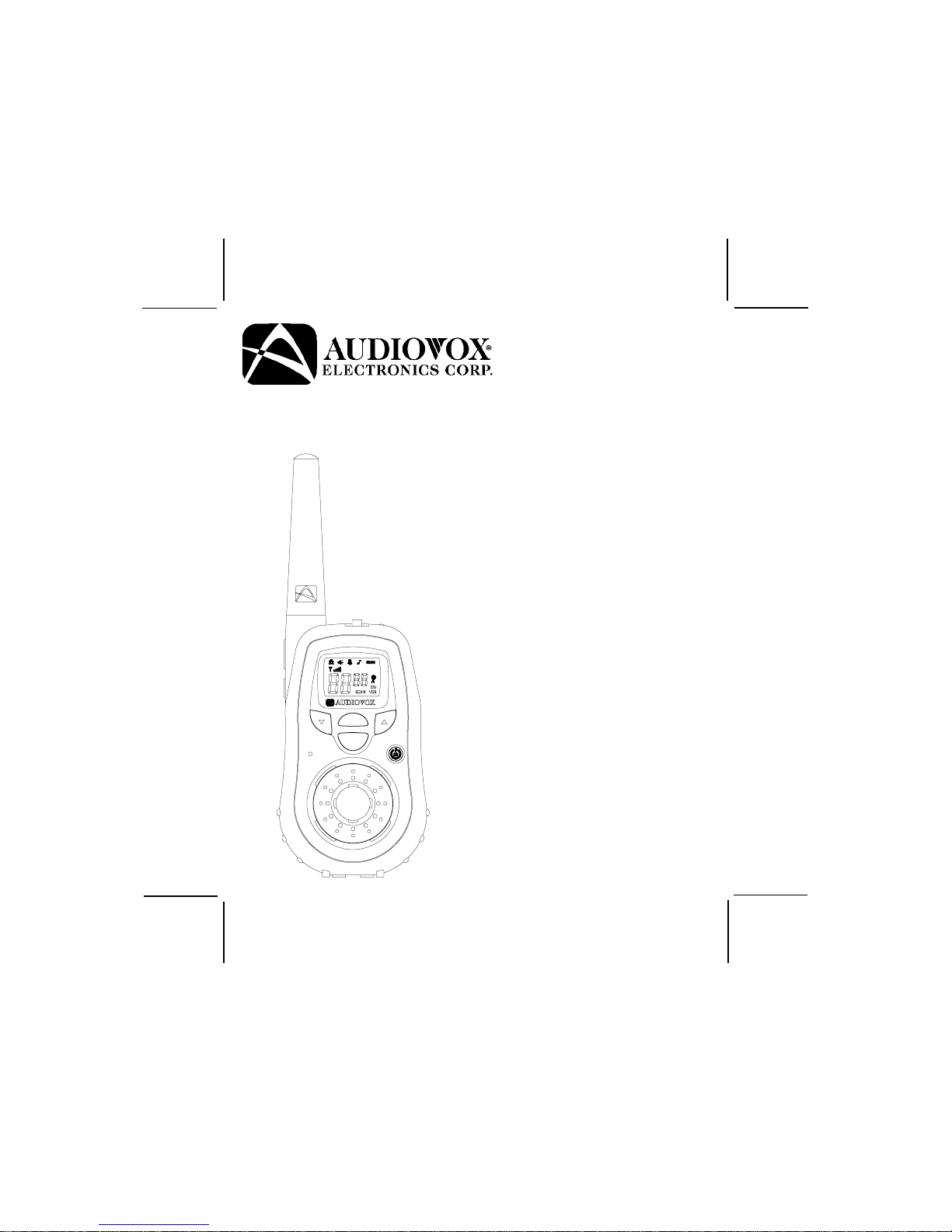

General Mobile Radio Service (GMRS)

Model :GMRS1262CH

CustomerService

1-800-290-6650

Released: 12-30-05

MODE

S/VOX

MIC

LOHI BUSY

Owner’s Manual

128-7624

2 of 28

THISPAGELEFTBLANKINTENTIONALLY

128-7624

3 of 28

CAUTION

SAFETY INFORMATION

Your wireless hand-held portable transceiver contains a low power

transmitter. When the PTT button is pushed (or the VOX mode is enabled)

itsendsoutradiofrequency (RF) signals. The device is authorized to operate

at a duty factor not to exceed 50%. In August 1996, the Federal

Communications Commissions (FCC) adopted RF exposure guidelines

with safety levels for hand-held wireless devices.

Important: To maintain compliance with the FCC’s RF exposure guidelines

hold the transmitter at least 1 inch (2.5 centimeters) from your

face and speak in a normal voice, with the antenna pointed up

and away. If you wear the handset on your body while using the

headset accessory, use only the Audiovox supplied carry clip

for this product and ensure that the antenna is at least 1 inch

(2.5 centimeters) from your body when transmitting. Use only

the supplied antenna. Do not use your transceiver with a

damaged antenna. Unauthorized antennas, modifications, or

attachments could damage the transmitter and may violate

FCC regulations.

Performance:

Your transceiver will only achieve its maximum operating range when

communicating with other transceivers across open and flat areas or

between elevated points. Normally occurring environmental factors such

as buildings, trees, terrain and weather, or interference from other radio or

electricalequipment,may have adverse effects on thetransceiver’seffective

range. These are not indicative of a fault condition.

Avoid placing the GMRS1202CH radio transceiver for prolonged periods of

time in direct sunlight or temperatures below -4°F(-20°C) or above

140°F (60°C).

Place the rubber cover on jacks when not in use.

128-7624

4 of 28

WARNINGS:

Battery Care

Never attempt to charge alkaline or dry cell batteries, as batteries may

burst causing personal injury and damage to the product. If rechargeable

batteries are used, such as Nickel Metal Hydride (NiMH), use only the

supplied Audiovox-approved rechargeable batteries. Use of the Audiovox

charger (also supplied) with other brands of batteries is not recommended,

as battery charging times will vary with different brands. Refer to the

Manufacturer’s instructions for charging other brands of batteries.

Battery Disposal

In general, if handled improperly, batteries pose a risk of fire or burns. Do

not disassemble, crush, puncture, short external contacts, or dispose of

the batteries in fire or water. Dispose of the batteries in a environmentally

safe manner and recycle whenever possible.

FCC WARNING

Replacement or substitution of transistors, diodes or other parts of a unique

nature, with parts other than those recommended by the manufacturer,

may cause a violation of the technical regulations of Part 15 of FCC Rules.

GMRSLICENSE:

USE OF THIS RADIO WITHINTHE UNITED STATES REQUIRESAN FCC

GMRSLICENSE. ANINDIVIDUAL 18 YEARSOFAGEOROLDER, WHO IS

NOTAREPRESENTATAIVE OFAFOREIGN GOVERNMENT, IS ELIGIBLE

TOAPPLYFORAGMRSSYSTEMLICENSE. YOUWILLNEEDTWOFORMS

FROMTHEFCC:FCCFORM159,ANDFCCFORM605 (MAIN FORM AND

SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:

HTTP://WWW.FCC.GOV/FORMPAGE.HTML,ORCALL1-800-418-3676.

128-7624

5 of 28

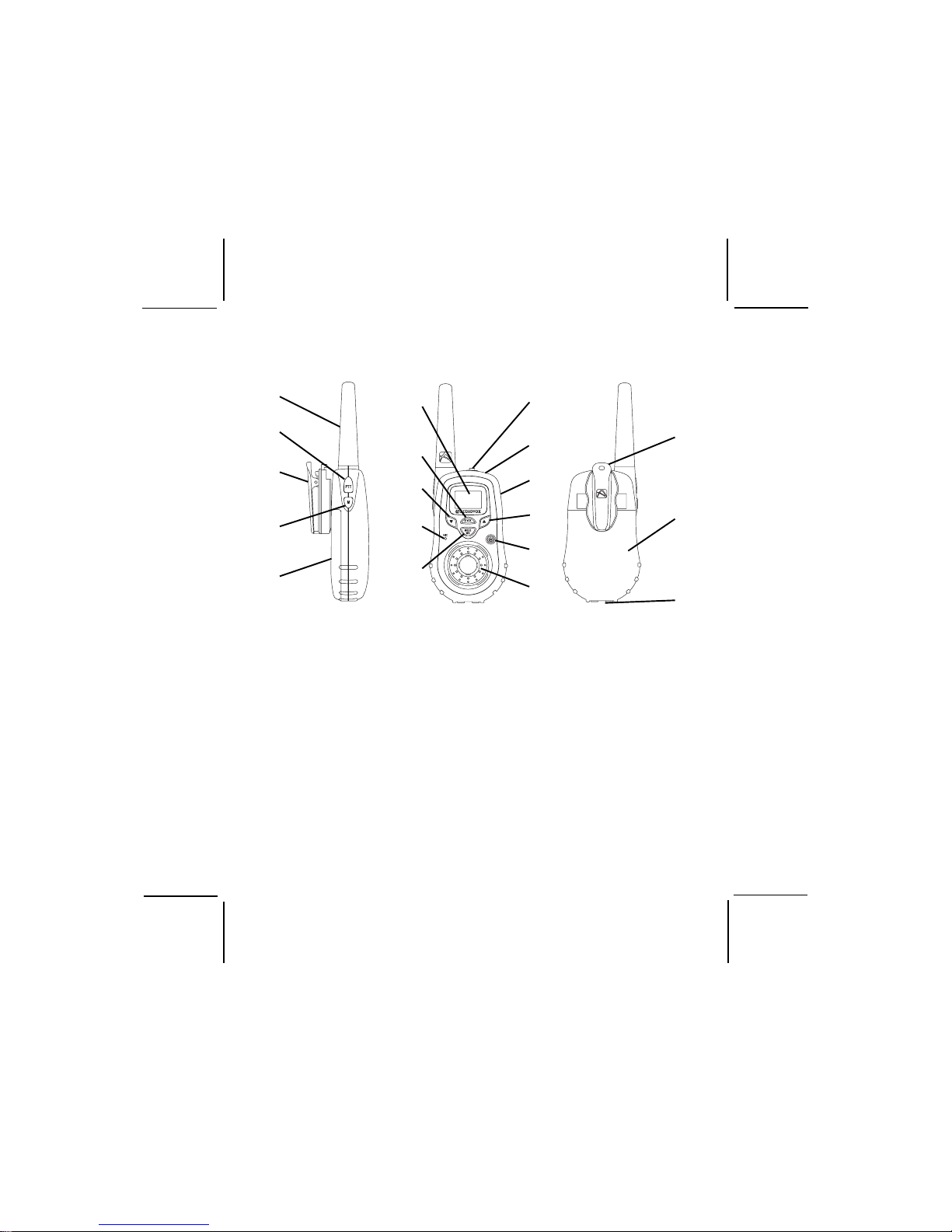

1. BatteryDoor

2. Monitor/BacklightButton

3. DetachableCarry Clip

4. Push-To-Talk(PTT)Button

5. Antenna

6. ExternalSpeaker(SPK)/Micro-

phone(MIC)/Charge(CHG)

Jack

7. Built-inSpeaker

8. LiquidCrystal Display (LCD)

Model GMRS1262CH (FCC License Required)

9. Built-inMicrophone

10. UpChannel/Volume Button

11. DownChannel/Volume

Button

12. MODE/WeatherButton

13. PowerOn/Off Keylock

Button

14. SCAN/VOXButton

15. White Flashlight LED

16. FlashlightEnable Button

17. BatteryChargingContacts

(REF)

128-7624

6 of 28

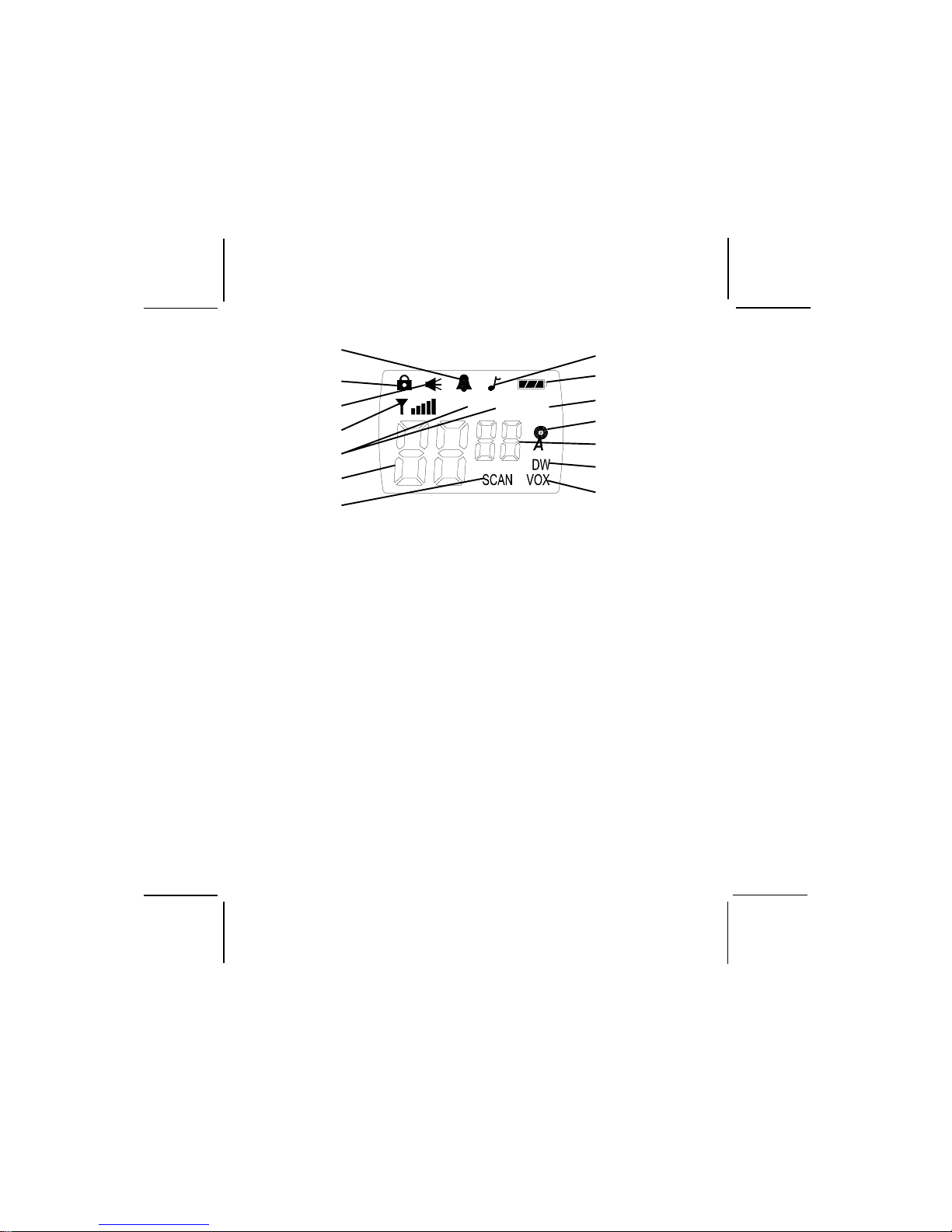

Model GMRS1262CH DISPLAY

1.Beep Tone Indicator: Icon appears when beep button confirmation

tone is selected; icon disappears when tone is off.

2.Key Lock Indicator: Icon appears when the keypad is locked. This

function disables keys such as channel up/down, SCAN and MODE.

3.Monitor Indicator: Icon appears when the Monitor (M) button is

pressed and the channel monitor function is activated.

4.Signal Strength Indicator: Icon appears when a signal is being

transmitted. The icon consists of five bars to indicate transmit signal

power level.

5.HI/LO Indicators: Power level indicator appears when the transmit

power is set to desired output power on the GMRS channels.

6.Large Segment Display: Indicates the channel number in use.

7.Scan Indicator: This function allows the user to scan a channel (and

tone code, if present) every .5 second to search for a valid signal.

8.RogerBeep Tone On/Off Indicator: This icon appears when the

Roger Beep tone is on, and disappears when tone is not in use.

9.Battery Level Indicator: Icon indicates the battery charge level.

10.Signal Receive Indicator: BUSY icon appears when a signal is being

received.

11.Weather Mode Indicator: Icon will be on steady when in the weather

band mode. When in the GMRS/FRS mode, the icon will blink when

the alert is active

LOHI BUSY

128-7624

7 of 28

12.Small Segment Display: Displays the CTCSS tone option for each

main channel from 01-38.

13.Dual Watch Mode Indicator: Indicator appears when dual watch

mode is active.

14.Voice Activated Transmission (VOX) Indicator: This function

allows hands free conversation. The indicator appears when the

VOX mode is activated.

Equipment and Accessories Supplied

1. Radio (2) GMRS1262CH

2. Owner’s Manual 128-7624

3. Desktop Charger GMRS9DS

4. AC WallAdapter GMRS9AC

5. Rechargeable (NiMH) Batteries (10) GMRS9BAT

6. Earbud with Remote PTT Button GMRSBHST8

Powering theTransceiver:

Your GMRS1262CH radio transceiver operates on five AAA Alkaline or

rechargeable batteries. Alkaline batteries will provide slightly better

performance than rechargeable batteries (supplied). Only Audiovox

approved rechargeable batteries should be recharged in the radio

transceiver using the charging accessories. This will ensure optimum

performance for the GMRS1262CH. Battery charging time is typically 6-7

hours for full charge, and 0.5-3 hours for fast charge (depending on existing

battery charge). (Refer to battery charging considerations later in this

manual.) Batteries may get warm during fast charge. Slow charging will

automatically occur after a quick charge of 75%, and may take up to 3-4

hours to achieve an additional 20% charge. Batteries should not get warm

during the slow charge cycle. Use of the Audiovox charging equipment with

other brands of rechargeable batteries is not recommended as battery

chargingtimeswill vary. Refer to the manufacturer’sinstructions for charging

other brands of batteries.

Batteries

There are three methods of powering the GMRS1262CH:

1.Alkaline Batteries.

128-7624

8 of 28

2. Slide the cover

down and then lift

cover at bottom to

open.Remove

cover.

3. Insert five AAA batteries

(positive (+) end toward

right side beginingat top

and alternating positive

terminals as shown).

1. Using thumb,

press down on

battery cover at

arrow and slide

cover down to

open.

WARNING: Do not attempt to recharge Alkaline batteries.

2.Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH

batteries and Charging Adapter included). Use only Audiovox

approved rechargeable batteries and charging equipment when

charging batteries internal to the unit.

NOTE: To extend battery life, avoid overcharging the batteries

3. Various Brands of Rechargeable Batteries - Use of the Audiovox

charger with other brands of rechargeable batteries is not

recommended, as battery charging times will vary with different

brands of batteries. Refer to the manufacturer’s instructions for

charging other brands of batteries.

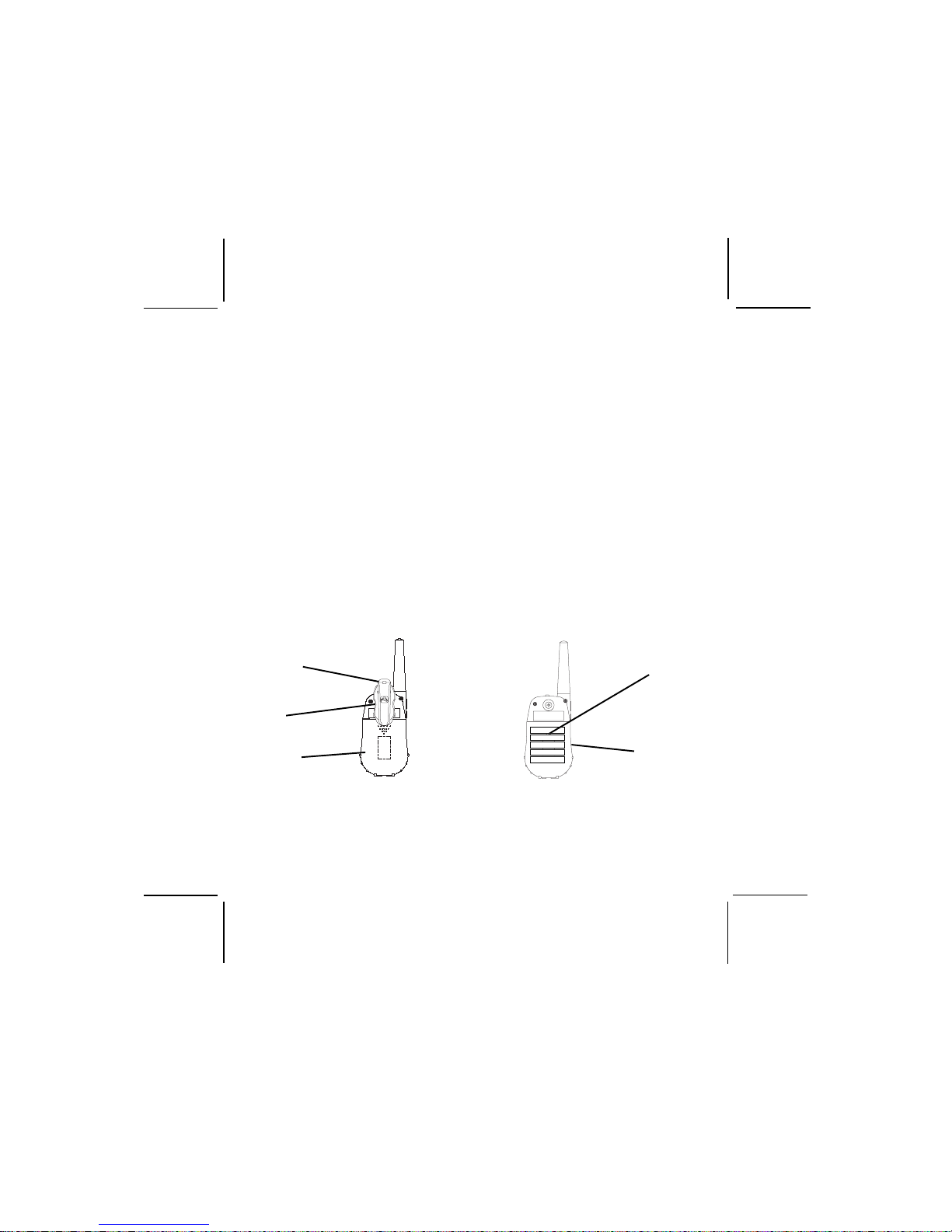

Installing the batteries:

Battery installation is made more convenient when the carry clip is

removed. To do this, release the spring latch securing the clip to radio

and slide the clip downward and away from the radio body. Next, press

down with the thumb at the embossed arrow, slide the battery cover down

and lift off the battery cover. Insert five AAA batteries (alternate

positive ends (+) toward the right side of the transceiver (starting top-to-

bottom).

RELEASE

BUTTON

BATTERY

COVER

CARRY

CLIP

COVER

ARROW

POSITIVE

TERMINALS

128-7624

9 of 28

The following guidelines will improve performance and provide longer

operating times for the GMRS1262CH:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the

longest operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable

batteries.

4. If the unit is not to be used for an extended period of time, remove the

batteries. Old or leaking batteries can cause damage to the unit and

will void the warranty.

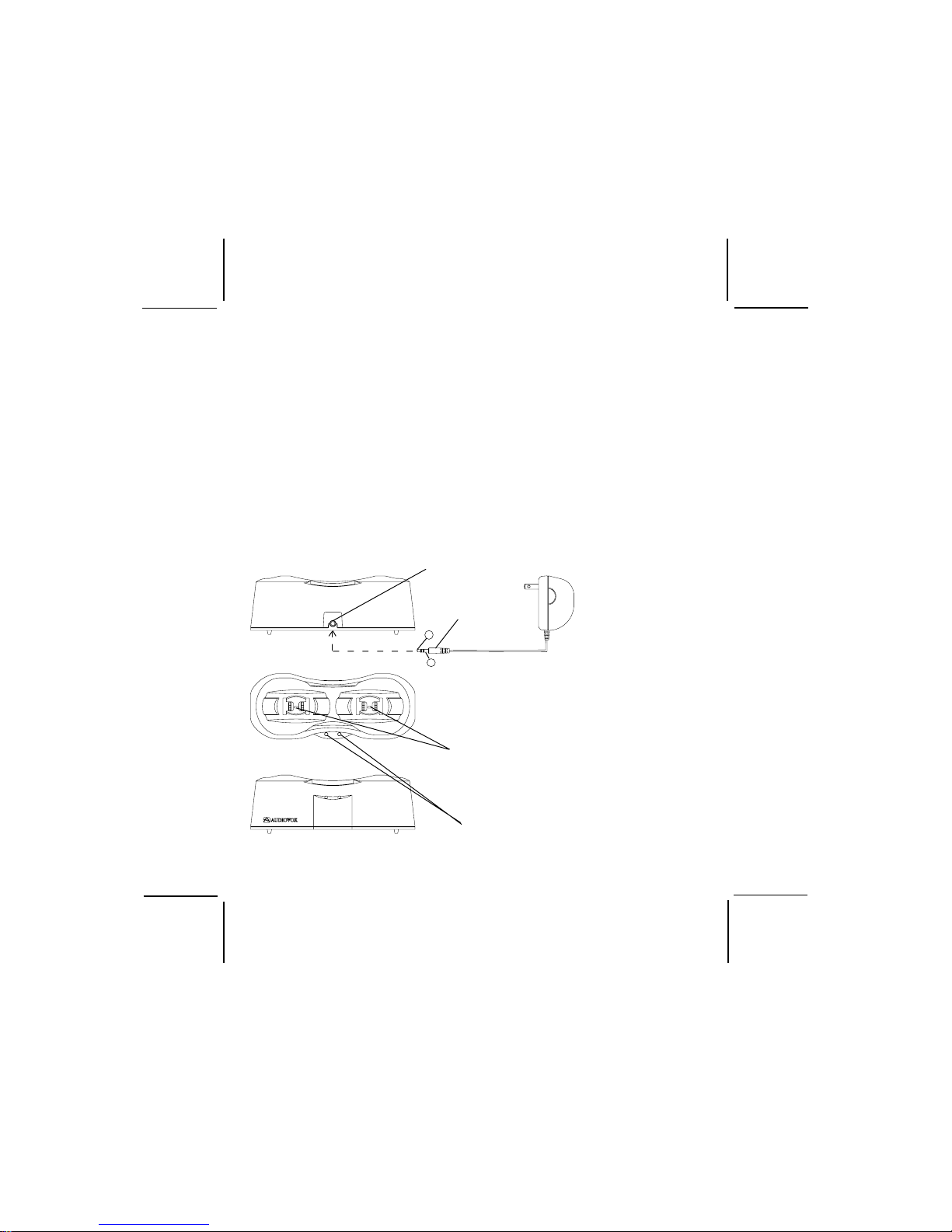

INPUT: 120VAC

OUTPUT: 11VDC

DESKTOP CHARGING STAND

PARTNUMBER GMRS9DS

CHARGING STAND

PWR JACK

ADAPTER

POWER

PLUG

GMRS RADIO

CHARGING

COMPARTMENTS(2)

CHARGINGCOMPARTMENT

LEDs:

RED----FAST CHARGING

OFF----SLOW CHARGING

NOTE: Only Audiovox

approved rechargeable

batteries(P/N GMRS9BAT)

can be recharged in the

radio transceiver.

ACWALL ADAPTER/

CHARGINGTRANSFORMER

MODEL:GMRS9AC

PWR

128-7624

10 of 28

Controls:

LEDFlashlight Button (16)

Press this button on the right side of the Transceiver to light the white LED

(15) on top of the unit, thereby activating the built-in flashlight function.

Power On/Off/Keylock (13) Button

Momentarily press (about 2seconds) the power on/off button ( ). You

will hear a dual beep to indicate the unit is on. Press the on/off button

again for 1 second to turn the unit off. When the unit is on and the button

is pressed for 3 seconds, the keylock icon ( ) will appear to confirm

the MODE, SCAN and channel up/down buttons have been disabled.

Adjusting the Volume (10, 11)

With the unit powered on, press the Up Channel/Volume button ( ) to

increase volume and the Down Channel/Volume button ( ) to decrease

GMRS1262CH OPERATIONAL MODES

WEATHERBAND

WEATHER BAND

SELECT

CHANNEL

SELECT

ROGER

BEEP

BUTTON

BEEP

DUAL

WATCH

VOXLEVEL

SELECT

CALL

SELECT

POWER

SELECT (GMRSChannels

Only)

GMRS/FRSBAND

CTCSS

SELECT

CHANNEL

SELECT

NOTE: 1. To switch between GMRS/FRS

and Weather Band modes,

press and hold the Mode/WB

button for 3 seconds. Refer to

the appropriate section of this

manual for detailed operating

instructions for each mode.

2.To enter the VOX mode, press

and hold the S/VOX button for 3

seconds.

Tabla de contenidos

Otros manuales de Radio de Audiovox

Audiovox

Audiovox GMRS600SCH Manual de usuario

Audiovox

Audiovox XT·250 XTRA series Manual de usuario

Audiovox

Audiovox GMRS862CH Manual de usuario

Audiovox

Audiovox GMRS1100-2CH Manual de usuario

Audiovox

Audiovox XPRESSEZ XMCK-5P Manual de usuario

Audiovox

Audiovox Sirius SIR-PNP2 Manual de usuario

Audiovox

Audiovox VR202 Manual de usuario

Audiovox

Audiovox Satellite Radio Receiver Manual de usuario

Audiovox

Audiovox XMp3i Manual de usuario

Audiovox

Audiovox XMRVRFM002 - Commander MT XM Radio Tuner Manual de usuario

Audiovox

Audiovox SIR-CK3 Manual de usuario

Audiovox

Audiovox GMRS500SLK Manual de usuario

Audiovox

Audiovox SIRIUS SRSIR-001 Manual de usuario

Audiovox

Audiovox SIR-PNP1 Instrucciones de instalación y funcionamiento

Audiovox

Audiovox XpressR Manual de usuario

Audiovox

Audiovox GMRS672 Manual de usuario

Audiovox

Audiovox Sirius SIR-PNP3 Manual de usuario

Audiovox

Audiovox TTR1 Manual de usuario

Audiovox

Audiovox XAPH1 Manual de usuario

Audiovox

Audiovox MS160 Manual de usuario

Audiovox

Audiovox GMRS1882CH Manual de usuario

Audiovox

Audiovox ACD-30 Manual de programación

Audiovox

Audiovox XMCK20P - XPRESSR XM Radio Tuner Manual de usuario

Audiovox

Audiovox GMRS121-2 Manual de usuario

Manuales populares de Radio de otras marcas

EisSound

EisSound KBSound iSelect Manual de usuario

Midland

Midland 1001LWX Manual de usuario

Konig

Konig HAV-SR41 Manual de usuario

Roberts

Roberts exprssion Manual de usuario

VDigi

VDigi DD3.0 Manual de usuario

Radio Shack

Radio Shack 21-1863 Manual de usuario

Roberts

Roberts Stream 207 Manual de usuario

Sony

Sony Walkman SRF-M97 Manual de usuario

Stanley

Stanley FatMax FMC770 Manual de usuario

auna

auna DAB-Radio 10026947 Manual de usuario

SOUNDMASTER

SOUNDMASTER UR190 Manual de usuario

HYT

HYT TC-320 Manual de usuario

auna multimedia

auna multimedia Yellowstone 10026851 Manual de usuario

B-Tech

B-Tech GMRS-V2 Manual de usuario

Weierwei

Weierwei VEV-V8 Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB750 Manual de usuario

Telefunken

Telefunken TF-1505 Manual de usuario

Makita

Makita LXRM03 Manual de usuario
