AVD300T
SLOT-IN DVD PLAYER WITH BUILT-IN TV TUNER
Owner’s Manual
2
A. Welcome
Thankyouforchoosingthe AVD300TDVDPlayer.TheAVD300Tis
designedtooptimizethe enjoymentofyourfavoriteDVDsinthemo-
bileenvironment.ThisDVDPlayerisconstructedtoprovideyearsof
reliable,trouble-freeservice.Pleasereadthismanualthoroughlyprior
tooperatingtheplayerandsaveitforfuturereference.
B. Precautions
EXPLANATIONOFGRAPHICSYMBOLS
Thelightingflashwitharrowheadsymbolwithinan equilateral
triangle, is intended to alert the user to the presence of
uninsulated‘dangerousvoltage’withintheproduct’senclosure
thatmaybe ofsufficientmagnitudetoconstituteriskofelectric
shock.
Theexclamationpointwithinanequilateraltriangleisintended
toalerttheusertothepresenceofimportantoperatingandmain-
tenance(servicing)instructionsintheliteratureaccompanying
theappliance.
WARNING:
TOREDUCETHERISKOFFIREORELECTRICSHOCK.DONOT
EXPOSETHISDEVICETOMOISTURE.
3
SAFETY PRECAUTION
Forsafetyreasons do not allow childrentounfastenseat-beltsto change
video media or make any adjustments to the system. Enjoy your enter-
tainment system but always remember the safety of all passengers is
the number one priority.
IMPORTANT NOTICE
It is unlawful in most states for a person to drive a motor vehicle which is
equipped with a television viewer or screen that is located in the motor
vehicle at any point forward of the back of the driver’s seat, or that is
visible, directly or indirectly, to the driver while operating the vehicle. In
the interest of safety, this system should never be installed where it will
be visible, directly or indirectly, by the operator of the motor vehicle.
1. OBJECT AND LIQUID
Do not insert objects of any kind into the system through its open-
ings; do not spill or spray liquid on or into the system (this may
resultin a fire or electric shock). Do notplace heavy objects onthe
unit.To ensureproper ventilationandproperoperation,never cover
or block the slots and openings.
2. DISASSEMBLE
Do not attempt to disassemble the unit. There is a risk of electric
shock and/or exposure to Laser Radiation. Contact qualified ser-
vice personnel if your system is in need of repair.
3. CLEANING UNIT
Whencleaning, makesurethe systemisunplugged from thepower
source. Do not use any solvents or cleaning solutions. Clean the
DVDplayerusinga lightly dampened lint free cloth to wipe the unit.
4
4. DISC
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources. Do not touch the surface of the disc. Handle
the disc by its edges. Clean the disc by wiping the disc from the
center out with a soft lint free cleaning cloth. Remove the disc from
the unit and store it in its case after playing. Some playback opera-
tions of discs may be intentionally fixed by software producers.
The unit plays discs according to the disc contents the software
producers designed therefore some playback features may not be
available. Refer to the instructions supplied with the discs.
5. Powering the DVD Player
This system MUST be powered from a switched (Accessory)
power source as indicated on the marking label. Power should be
applied to the unit when the ignition key is in the run and/or acces-
sory positions. Use only the supplied power cable provided with
this set to avoid electric hazards.
6.Operation
Whenthetemperaturerisesdramaticallyfromaverylowtempera-
ture,moisturemay condenseinside theAVD300Tandcause the
DVDplayertomalfunction.IftheAVD300Tdoesnotoperateprop-
erlyundertheseconditionsleavetheAVD300Tturnedonforatleast
30minutesforthemoisturetoevaporate.
5
C.Contents
1.MainUnit
2.Remotecontrolwithtwo AAA Batteries
3.PowerCable
4.Two(2)Bracketswithfour (4)Screws
5.Owner'sManual
6.PowerAdaptor* (4-Pinto2-Pin)Cable
7.DVRCA*Adaptorforconnectiontoasecond monitor
8.RCA Cables(Red,Yellow,andWhite)
9.RemoteIRReceiver
*Forusewith8010730 AccessoryCable
D.Controls

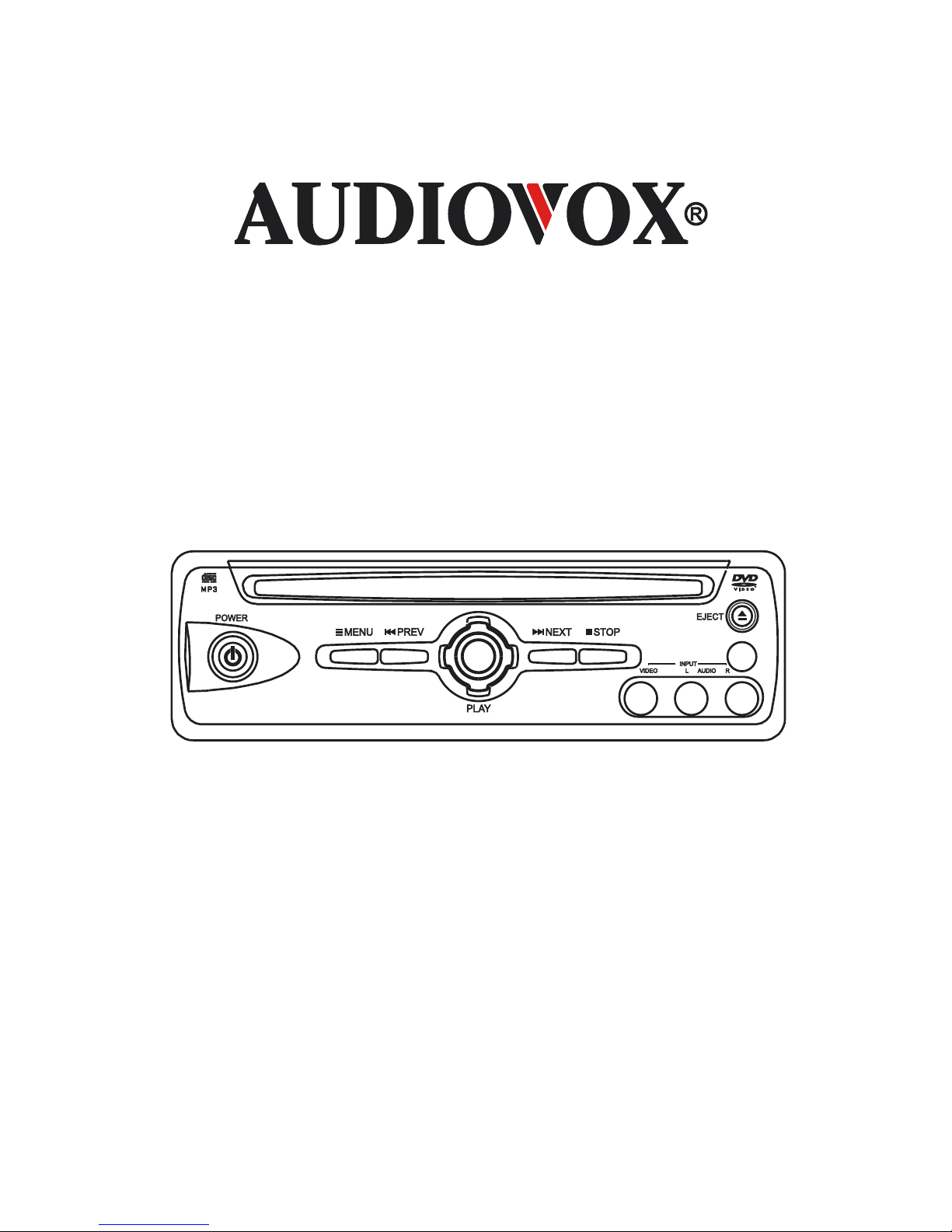

MainUnit(RefertoFigure1)
1.PowerButton
2.MenuButton
3.PreviousButton
4.Play&Up, Down,
Left, RightButton
5.Next Button
6.StopButton
7.VideoInputJack
8.AudioLInputJack
9.AudioRInputJack
10.EjectButton
11.RemoteControlSensor
12.DC12VPowerSupplyInput
13.IRInput
14.AntennaInput
15.MonitorOutputPort1
16.MonitorOuptutPort2
17.VideoOutputJack
18.AudioLOutputJack
19.AudioROutputJack
Figure1
6

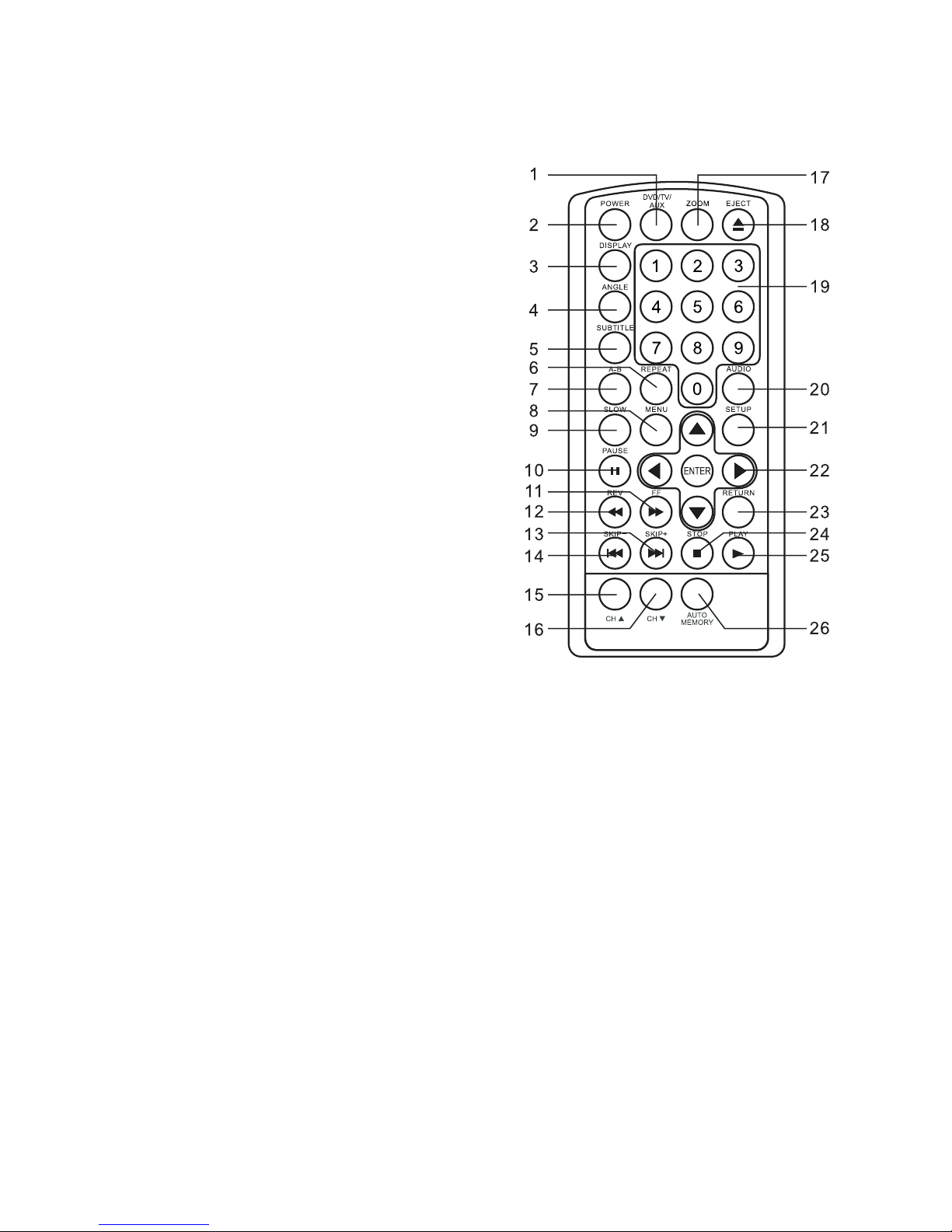

E.RemoteControlView(RefertoFigure2)
1)DVD/TV/AUXButton
2)PowerButton
3)DisplayButton
4)AngleButton
5)SubtitleButton
6)RepeatButton
7)A-BRepeatButton
8)MenuButton
9)SlowButton
10)PauseButton
11)ForwardScanButton
12)ReverseScanButton
13)Skip+Button
14)Skip-Button
15)AutomemoryButton
16)ChannelUpButton
17)ZoomButton
18)EjectButton
19)NumericKeypad
20)AudioButton
21)SetupButton(Next)
22)Up/Down/Left/Right/
EnterButtons
23)ReturnButton
24)StopButton
25)PlayButton
26)ChannelDownButton
Figure2
7
F.Connections
Figure3

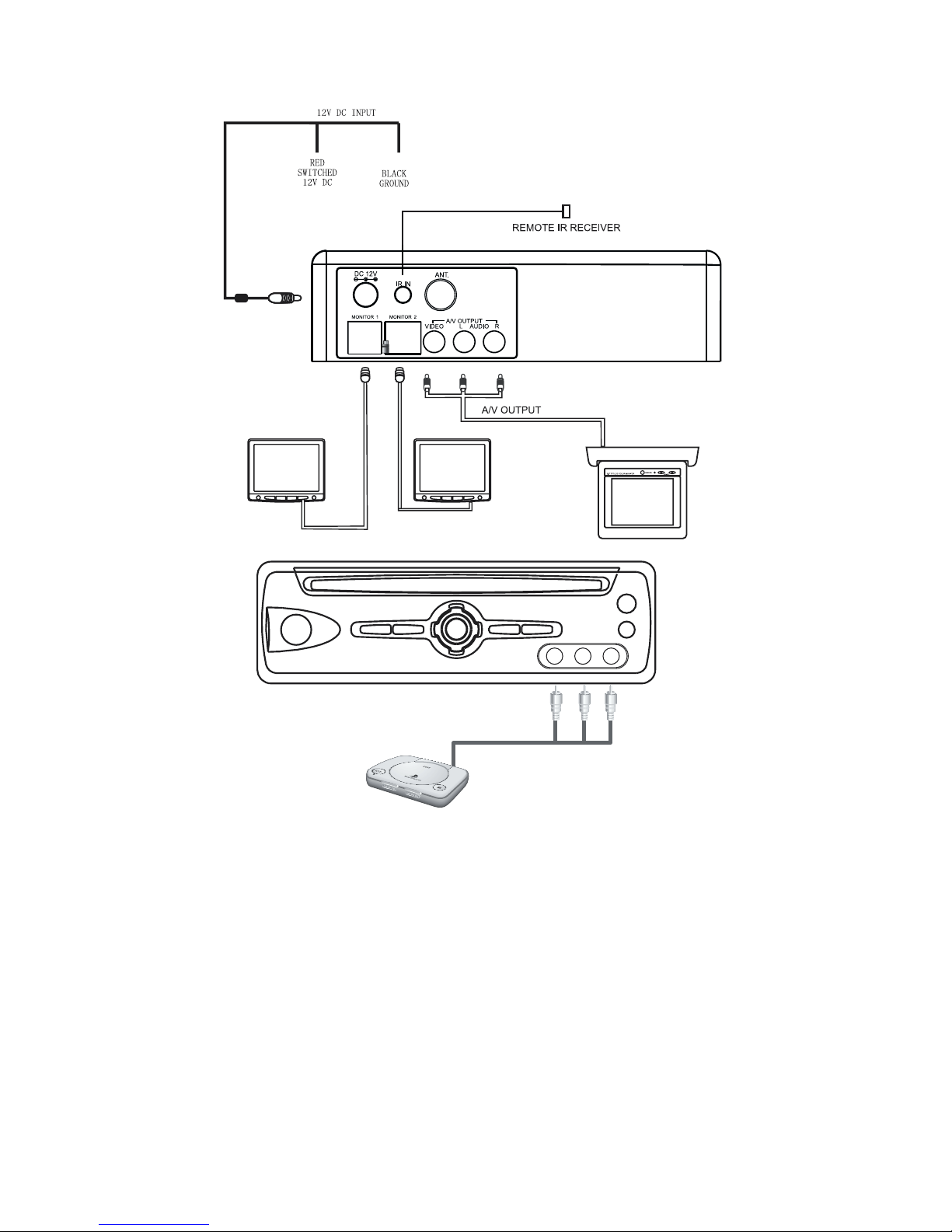

1. PoweringYour DVDPlayer(RefertoFigure3)
Connecttheblackwire(-)tothevehicleground. Connectthered
wire(+)toaswitched(Accessory)12VDCsource. Plugtheother
endintothe12VDCinputjackonthebackoftheunit.
2. RemoteIRReceiver( Refer to Figure 3)
Plugthe1/8”jackontheremote IRcableintotheIRINjackonthe
backofthe DVDplayer. PlacetheIRreceiveranywhereinthe
vehicletoallowremotecontrolfromanylocation.
8
Figure4

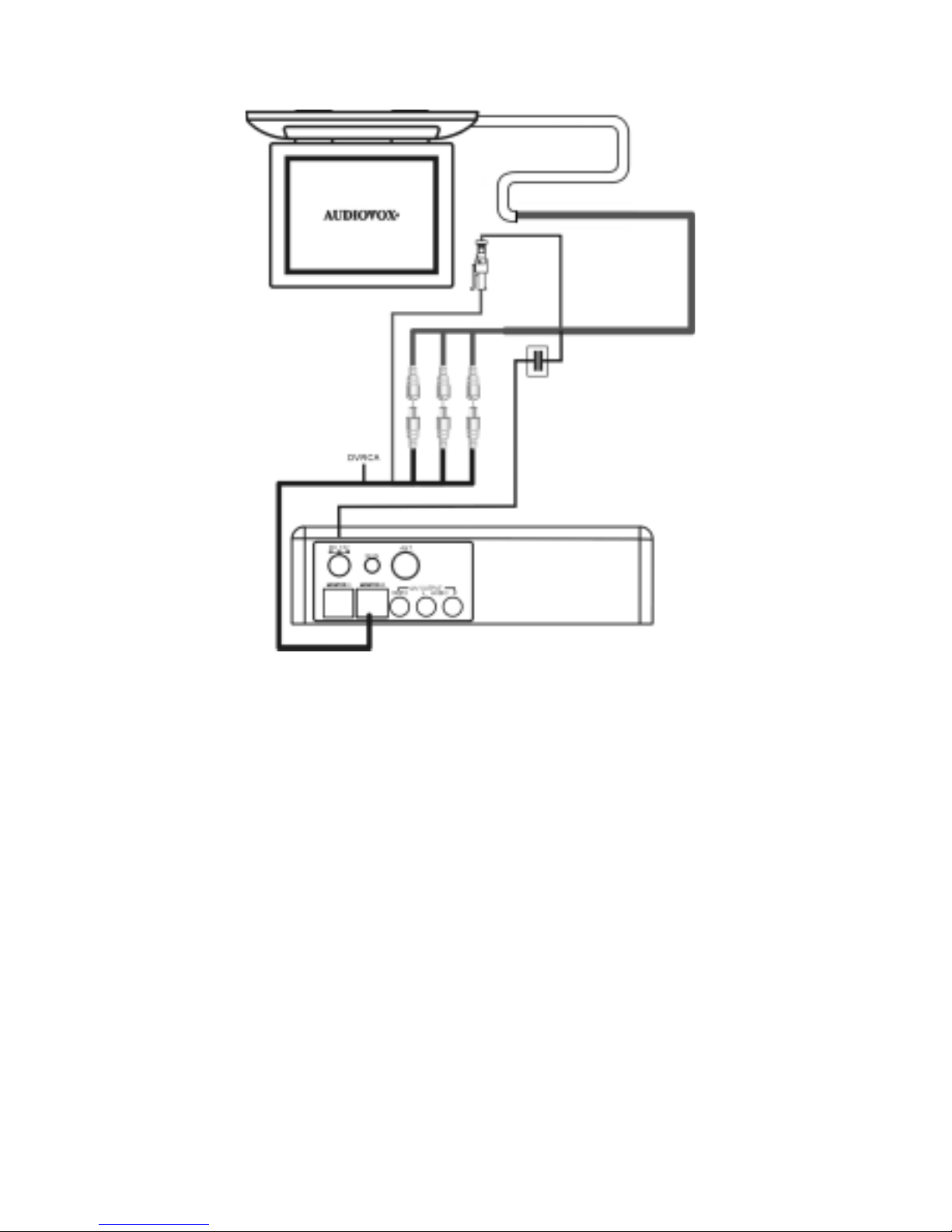

TheAVD300Tcanbeconnectedto AudiovoxOverheadmonitors
withthesuppliedadaptors(DVRCAand4pinto2pinpoweradapter)
whenusingtheAudiovoxaccessorycable(partnumber8010730).
Pluginthe3RCAjacks,white(leftaudio)towhite,red(rightaudio)
tored,andyellow(video)toyellow.Connectthe IRjacks.Connect
the4pin tothe 2pin poweradapter, 4pin tothe accessorycable
andtheplugintotheAVD300Tpowerjack.
4. ConnectingtoaMonitor
a. Matchthecolor-coded plugstotheappropriatejacksonthe
back of the DVD PlayerA/V OUTPUT jacks: Yellow (video) to
Yellow,White(leftaudio)toWhite,andRed(rightaudio)toRed.
3. ConnectingtoanAudiovoxOverheadMonitor
9
b.Connectanyofthetwomonitorports on thebackoftheDVD
playerdirectlytotheMovies2GoheadresthoodsModelMMH56
B/T/G. Power,audio,videoandIRsignalsaresuppliedthrough
theDINcable.
c.Usingthesuppliedadapter(PartNumberDVRCA)themonitor
portcanbeconnected toanymonitor.
5. ConnectinganExternalVideoSource
Toconnectavideo game oranotheraudio/videosource,plugthe
A/Voutput jacksintothematchingcolor-codedA/Vinputjackson
thefrontoftheDVDplayer.PresstheDVD/TV/AUXbuttononthe
remoteuntilAUXisdisplayedonthemonitor.
G.Playing
After connecting power to the unit, press the power button on the
main unit momentarily. The power light will increase in brightness.
Insertthediscintotheslotonthefrontofthe unit,theunitwillloadthe
discand start playingautomatically:If there’sa discinside theunit,
pressthePOWERbutton,theunitwillstartplayingautomatically.
Figure5
10
1. Basic Operation
POWER
EJECT
PLAY
SLOW
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
UP/DOWN/LEFT/RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
DVD/TV/AUX
AUTOMEMORY
CHANNEL UP
CHANNEL DOWN
Turn the unit on/off
Eject the disc
Start Play
Play at 1/2, 1/4, 1/8 or 1/16 times speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Go to the next chapter, track or scene dur-
ing play back
Go back to the preceding chapter, track or
scene during play back
Scan forward at 2, 4, 8, 16, or 32 times nor-
mal speed
Scan backward at 2, 4, 8, 16, or 32 times
normal speed
Usedfor Menu Navigation
Execute item or setting
Select item, setting, or TV channel
Return
Display the root menu of the disc
Repeat playing title, chapter, or track
RepeataspecificportionfrompointAtopoint
B of the disc
Display information (title, chapter, track,
time, etc.).
Change the angles on the scene
Select the subtitle language
Select the audio language
Enlarge an image to 2, 3, or 4 times the
original
Display the setup menu to select and set
items, and exit the setup menu.
Change sources (DVD, TV and AUX)
Search channels and store them automati-
cally
Choose the next channel
Choose the previous channel
