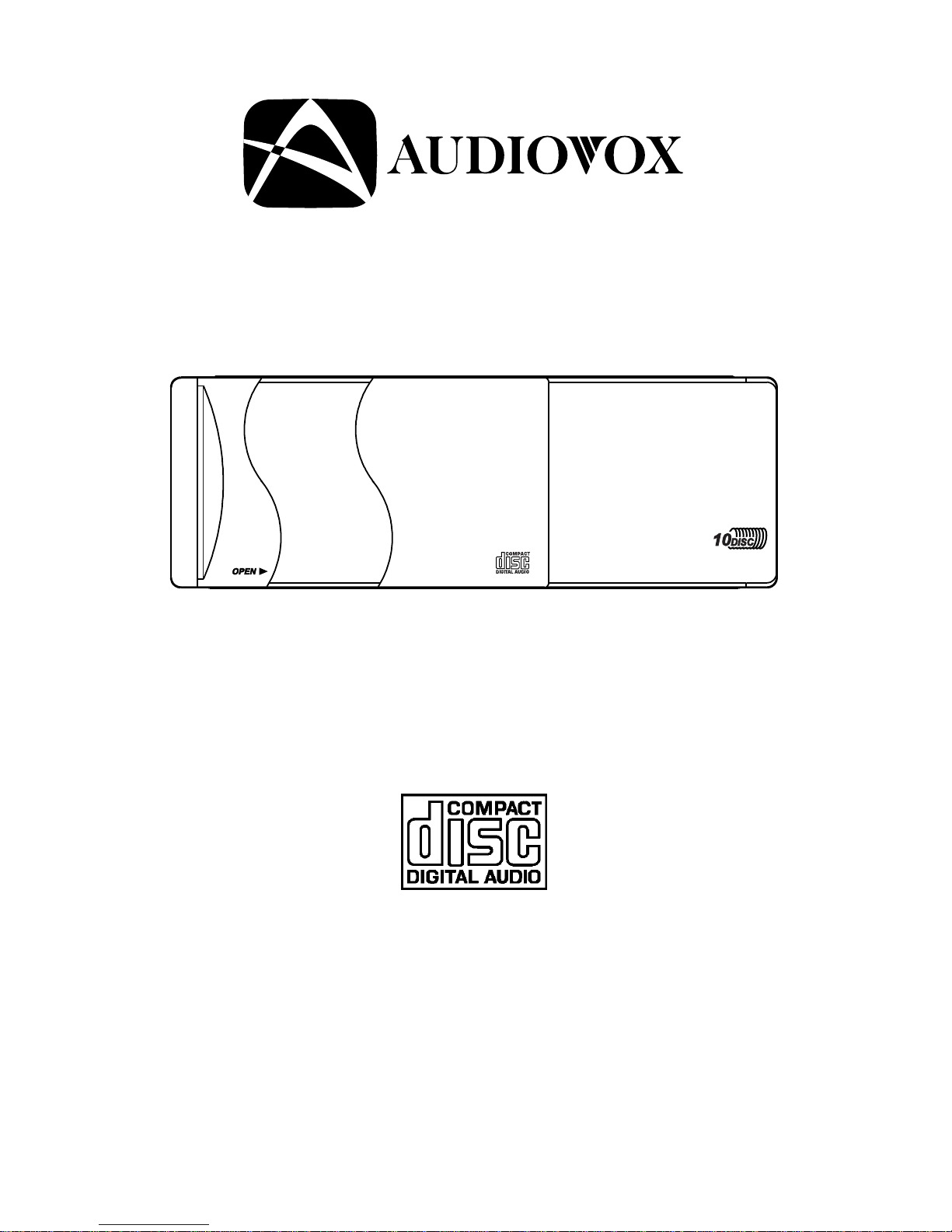

INSTALLATION MANUAL

MODEL SP-11CDS

10-DISC CD CHANGER

SP-11CDS

DIGITAL AUDIO/COMPACT DISC CHANGER

10 DISC AUTO CHANGER

COMPACT DISC AUDIO CHANGER SYSTEM

SP-11CDS

DIGITAL AUDIO/COMPACT DISC CHANGER

10 DISC AUTO CHANGER

COMPACT DISC AUDIO CHANGER SYSTEM

InstallationManual

1 pc.

Owner's Manual

1 pc.

Machine Screw

(M4x 10)

4 pcs.

Hexagonal Bolt

(M6 x 15)

4 pcs.

INSTALLATION PARTS

OTHER ACCESSORIES

MAIN UNIT

PACKING LIST

Changer

Stud Bracket

Hexagonal Nut

(M6)

4 pcs.

Bracket

2 pcs 2 pcs

CD Magazine (P/N SP11M)

1 pc.

Index seal sheet

1 pc.

5 Meter Din Cable

1 pc.

Screw Hole Cover Labels

1 pc.

Note

Ifthechangeristobeinstalledinacarthatisequippedwithanon-boarddriveornavigationcomputer,donotdisconnect

the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra

caution during installation, to prevent a short circuit.

Do not install the unit in the following locations.

lLocations exposed to direct sunlight.

lWhere hot air is discharged from the car heater.

lIn areas subject to extreme temperatures.

Incorrect installation can cause the sound to "skip" when playing a disc.

Mount the unit firmly in place, using the supplied brackets and screws.

Be careful not to damage the car wiring.

lBe sure to use the supplied screws.

lBe careful not to snag any wires when tightening screws.

lDo not use any of the screws that are part of the brake or steering system, to install the unit.

lThisunitcannotbeinstalledoneither side or up-side down. Installation in such positions will cause themechanism

to malfunction.

Installation and Wiring Precautions

To prevent a short-circuit,

lBe sure to turn off the ignition and remove the negative (-) battery cable, prior to installation.

lConnect power wires last.

BEFORE INSTALLING THE UNIT

Transport Lock Screws

The mechanism in the CD changer is "locked" into place during shipment by the

transport screws. Be sure to remove the screws prior to installation.

lCaution l

After removing the transport lock screws, place a piece of masking tape over

each screw hole. The tape will keep out dust , which could cause the unit

to malfunction.

TRANSIT BOLTS

(2 RIGHT SIDE, 1 LEFT SIDE)

PROCEDURE FOR HORIZONTAL INSTALLATION W/O STUDS

Attach abracketto each side of the unit, using the machine

screws with integral flat and lock washers (M4 x 10).

In the horizontal position, use bracket mounting holes 1 and

1' as shown at the right.

Set anti-vibration springs to position "0" as shown above.

Determine unit mounting location, and drill four mounting

holes.

Secure the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads and around

the holes to prevent moisture intrusion.

INSTALLATION

Never mount the unit near the fuel tank.

The unit can be installed horizontally, vertically or at a 45° angle. The position of the built-in anti-vibration springs (left and right side), must

correspond to the mounting position chosen. If the springs are not set correctly for the type of installation chosen, the anti-vibration

compensation will not be effective and vibration may cause the disc to skip.

CAUTION

After setting the built-in anti-vibration springs, place masking tape over the holes. The tape will keep out dust, which could cause the

unit to malfunction.

NOTE: Use masking tape to cover un-

used mounting holes on sides of

unit.

HORIZONTAL INSTALLATION

Set the 2 anti-vibration springs to

position "0".

VERTICAL INSTALLAITON

Set the 2 anti-vibration springs to

position "90".

45° ANGLE INSTALLATION

Set the 2 anti-vibration springs to

position "45°".

ANTI-VIBRATION SPRINGS POSITION

MACHINE SCREW WITH FLAT

AND LOCK WASHERS (M4 x 10)

DRILL HOLES 4MM IN DIAMETER

SELF-TAPPING SCREWS

(M5 x 12)

BRACKET

(Left Side)

BRACKET

(Right Side)

2Attach bracket to each side of the unit, using machine

screws with integral flat and lock washers. (M4 x 10).

In the vertical position, use holes 2 and 2' as shown

at left.

Mount the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads and around

the holes to prevent moisture intrusion.

Set the 2 anti-vibration springs to position "90".

Determine the mounting location, and drill four mounting

holes.

PROCEDURE FOR VERTICAL INSTALLATION W/O STUDS

Note

If the anti-vibration spring position has been changed and verified for vertical mounting (as shown on page 4), start with step 2.

Never mount the unit near the fuel tank.

NOTE: Use masking tape to cover unused

mounting holes on sides of unit.

MACHINE SCREWS

w/WASHERS (M4x10) BRACKET

(Right Side)

BRACKET

(Left Side)

DRILL HOLES 4MM IN DIAMETER

SELF-TAPPING

SCREWS (M5 x 12)

BRACKET

(Left Side)

BRACKET

(Right Side)

2Attachbracket toeachside ofthe unit,using themachine

screws with flat and lock washers (M4x 10).

In the 45 position, use holes 1 and 3' as shown at left.

Mount the unit in place, using four self-tapping screws

(M5 x 12).

Use RTV (silicone sealer) on screw threads and around

the holes to prevent moisture intrusion.

Set the 2 anti-vibration springs to position "45°".

Determine the mounting location, and drill four mounting

holes.

PROCEDURE FOR 45° ANGLE INSTALLATION W/O STUDS

Note

If the anti-vibration spring position has been changed and verified for 45° angle mounting (as shown on page 4), start with step 2.

Never mount the unit near the fuel tank.

NOTE: Use masking tape to cover unused

mounting holes on sides of unit.

MACHINE SCREW WITH FLAT

AND LOCK WASHERS (M4 x 10)

DRILL HOLES 4MM IN DIAMETER

SELF-TAPPING SCREWS

(M5 x 12)

BRACKET

(Left Side) BRACKET

(Right Side)

BRACKET

(Left Side) BRACKET

(Right Side)

PROCEDUREFORCHANGERINSTALLATION USING MOUNTING

STUDS

Note:

Make sure the anti-vibration spring position has been changed and verified for the proper angle mounting (as shown on page 4).

1Determine mounting location. If unit is to be installed onto mounting studs located under carpet, lift carpet to expose metal chassis

and mark position of each stud as shown below in detail Aand B.

2Insert two hexagonal mounting bolts through underside of each bracket (detail A) and mount stud bracket in position using two

self-tapping screws into metal chassis. Hex bolt heads should be flush with underside of stud bracket.

3Replace carpet over bracket studs (detail B), mark position of stud end of each bolt, and cut holes in carpet so bolts protrude through

carpet.

4Proceed with unit mounting by positioning unit mounting brackets over protruding hex bolts as shown in details C, Dand E. Secure

mounting brackets to bolts using hex lock nuts.

5If mounting studs are to be located directly on mounting surface with no carpet in between, mount changer directly on studs as

illustrated below in details A, C, Dand E.

STUD BRACKET MOUNTING

ARRANGEMENT

(Detail A)

STUD BRACKET MOUNTING

UNDER A CARPET

(Detail B)

VERTICAL INSTALLATION

WITH STUD BRACKET

(Detail C)

SUSPENDED INSTALLATION

WITH STUD BRACKET

(Detail D)

HORIZONTAL INSTALLATION

WITH STUD BRACKET

(Detail E)

HEX BOLT (M6 x 15)

CARPET

SELF-TAPPING SCREWS

(M5 x 12)

STUDBRACKET

CHASSIS

STUDBRACKET

CHANGER MOUNTING

BRACKET

CHANGER MOUNTING

BRACKET

HEX NUT (M6)

STUDBRACKET

CHANGER MOUNTING

BRACKET

128-5777A

VEHICLE WIRING

DIN cable (8-pin)

CD changer

Car Stereo with

CD Changer Controls

Mating 8-pin DIN socket on rear of

compatible radio chassis (see note 1 below).

NOTE: 1. Check with your Audiovox car audio dealer to be

sure your stereo is directly compatible with this

CD changer.

2. Wiring instructions for use with FM Modulator/

Commander Systems are included with the

CDC-MC1, CDC-MCR2, P-MC3 and P-MCR4

accessories.
