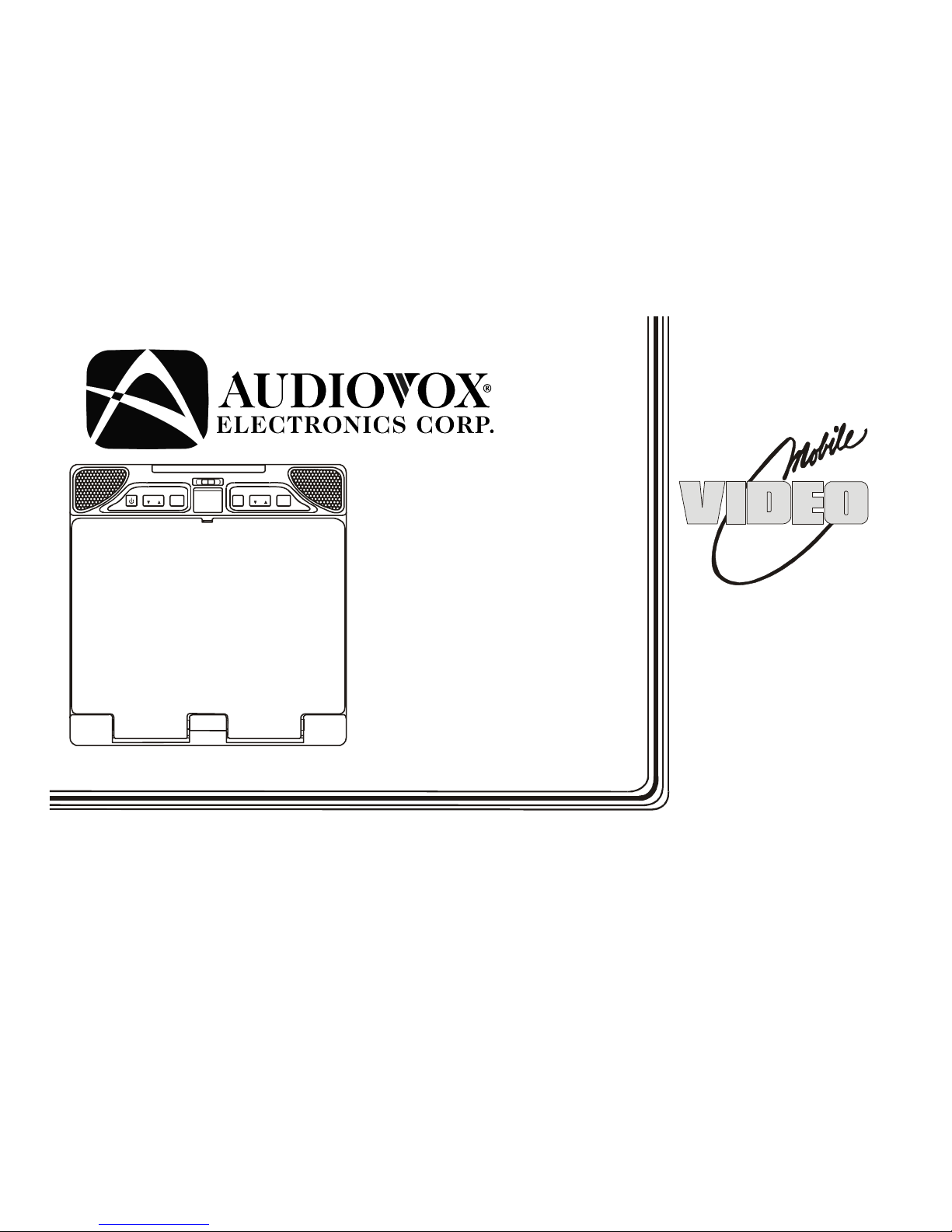

Audiovox VOH1042 DL Manual de usuario

VOH1042 DL

10.4” LCD

OVERHEAD

TV/MONITOR

TV/AV

OLUME PIC.

CHANNEL AP

OWNER’S

MANUAL

IMPORTANT NOTICE

It is unlawful in most jurisdictions for a person to drive a

motor vehicle which is equipped with a television viewe

or screen that is located in the motor vehicle at any point

forward of the back of the driver’s seat, or that is visible,

directly or indirectly, to the driver while operating the

vehicle. In the interest of safety, the VOH1042 DL

should never be installed where it will be visible, directly

or indirectly, by the operator of the motor vehicle.

-1-

FEATURES

• 10.4” TFT (Thin Film Transistor) Active Matrix LCD

(Liquid Crystal Display) Monitor

• OSD (On Screen Display) For Control Of Picture

Quality And Functions

• Full Function Remote Control

• Television Tuner

• Remote Sensor Eye

• Three Audio / Video Sources

• Speaker Amplifier

• Back-Lit Controls For Low Light Operation

• Infrared Wireless Headphone Transmitter

• Dual Dome Lights

• Optional Jack for RF Transmitter (for the Wireless

RF Headphones)

Congratulations on your purchase of the Audiovox

VOH1042 DL drop down TV/Video Monitor. The

VOH1042 DL has been designed to give you and you

family many years of video entertainment in the mobile

environment. Please read the directions that follow to

familiarize yourself with the product and to ensure that

you obtain the best results from your equipment.

NOTE: Installation options vary. See the individual

Owner’s Manuals for each component in your system to

obtain a full understanding of each component’s

operation.

SAFETY PRECAUTION

For safety reasons, when changing Video Media it is

recommended that the vehicle is not in motion, and that

you do not allow children to unfasten seat belts to

change Video Media or make adjustments to the

system. System adjustments can be accomplished

using the Remote Control while seat belts remain

fastened. Enjoy your Audiovox entertainment system

but remember safety of all passengers remains the

number one priority.

-2-

FRONT PANEL FEATURE

Figure 1

9 1181074321

PIC.

SEL.

OLUME

TV/AV

CHANNEL

-3-

FRONT PANEL FEATURES – See Figure 1

1. Power Button – (Bright red when system is ON, dim

when system is OFF).

2. Channel Up/Down – Changes the TV channel.

3. Auto Program Switch (AP)– Auto Program used to

program local channels into TV memory. Press when

vehicle is in a new location.

4. Sensor Eye – Allows the remote control to operate

the VOH802 DL’s OSD system (On Screen Display),

volume to Wired Headphone Jacks (and optional

external speakers), and for control of Video Media

Player and other accessories.

5. Three Position Dome Light Switch

• Auto – Automatically switched on the dome lights

in conjunction with the vehicle’s interio

illumination.

• Off – The Dome lights will not turn on in this

position.

• On – Turns on the Dome lights.

6. Screen release – Slides in the direction of the

arrow to release the drop down screen.

7. TV/AV– Any video equipment connected to the

AUDIO/VIDEO inputs can be used with the TV by

pressing this button. Each time the button is pressed

the Audio/Video source will change in the following

sequence VIDEO 1, VIDEO 2 and TV.

8. Volume Up/Down – Controls Volume to Headphone

Jacks and external Speakers if connected. Also, used

to adjust the picture control setting when “contrast”,

“bright”, “color” or “tint” is displayed on the screen.

9. Infrared Transmitter – Used to transmit audio to

Wireless Headphones.

10. Picture Select – Each time this button is pressed,

the screen picture adjustment display cycles through

“adjustment bars” for CONTRAST, BRIGHTNESS,

COLOR, and TINT. Once the desired adjustment ba

is displayed, use the VOLUME UP/DOWN buttons to

adjust the setting. The display will automatically turn

off if no adjustments are made within 6 seconds, or i

any other button is depressed.

11. Dome Lights – Provide additional illumination.

-4-

REMOTE CONTROL OPERATION

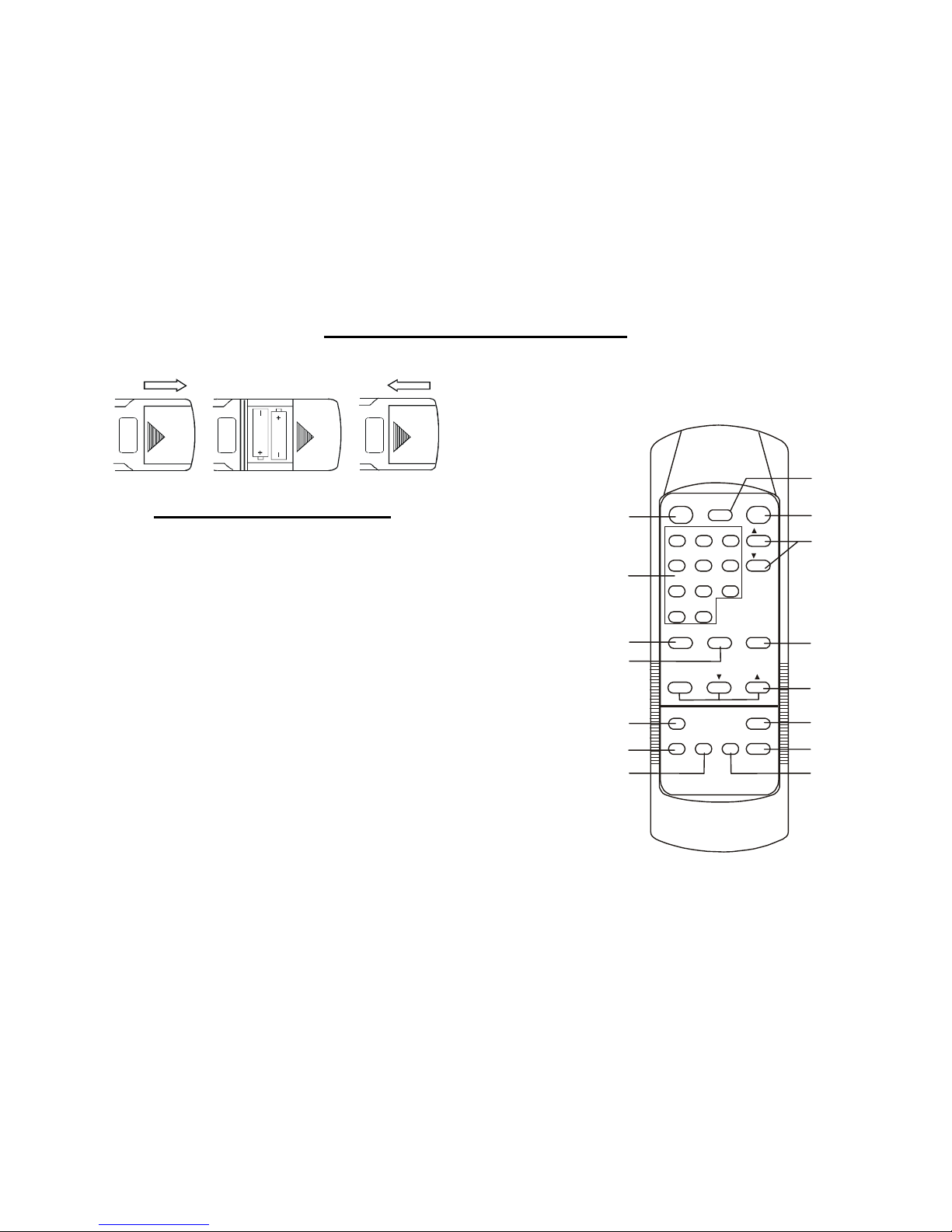

BATTERY INSTALLATION

Before attempting to operate the Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Press

down on the ridged area of the battery cover, and

slide it off.

2) Install Two “AAA” batteries as shown. Make sure

that proper polarity (+ or -) is observed.

3) Slide the cover back until it clicks into position.

The Remote Control will operate the VOH1042 DL,

Audiovox Televisions and Video Media Players. It is

not a universal remote control and will not control

equipment from other manufacturers.

If a universal Remote Control is used with the

VOH1042 DL, choose the remote control encoding

scheme for Audiovox Televisions when

programming the remote.

TV/VIDEO MUTE

123

456

789

01--

AUTO

MEMORY

ERASE/

WRITE

SKIP/SEARCH

PLAY

STOPREPLAYF. F W DREW

TV POWER

VCP POWER

VOLUME

PIX

-5-

-6-

REMOTE CONTROLLED TV FUNCTIONS

1. POWER ON/OFF

Press this button to turn the VOH1042 DL on. The

channel number or current video source will be

displayed on screen, and the picture will appear in

a few seconds. Press the button again to turn the

VOH1042 DL off.

2. DIRECT ACCESS (0-9) BUTTONS

Use these buttons to make a direct channel

selection. The channel number chosen will be

displayed on the screen for about 4 seconds. The

direct access is carried out with 0-9 keys (0-99CH).

The “1__” key will not function as it is only used fo

cable channels above 99.

3. CHANNEL UP/DOWN BUTTONS

Use these buttons to advance to the next higher o

lower channel. See also: SKIP/SEARCH BUTTON.

4. VOLUME UP/DOWN BUTTONS

Use these buttons to raise or lower the volume

level of the Wired Headphones or External

Speakers if installed. They are also used to make

adjustments in the picture select mode.

NOTE: These buttons will not affect the volume o

wireless headphones or a wired RF modulator.

When using these devices the volume must be

adjusted with the headphone volume control or with

your radio’s volume control. (See page 10,

Headphones, or page 11, Wired FM Modulator).

5. PICTURE SELECT BUTTON

Each time this button is pressed, the screen picture

adjustment display cycles through “adjustment

bars” for CONTRAST, BRIGHTNESS, COLOR,

and TINT. Once the desired adjustment bar is

displayed, use the VOLUME UP/DOWN buttons to

adjust the setting. The display will automatically

turn off if no adjustments are made within 6

seconds, or if any other button is depressed.

6. MUTE BUTTON

Press this button to shut off the sound to the

Wired Headphones and External Speakers i

installed. The screen will display the volume

adjustment bar for 6 seconds, indicating that the

sound has been turned off. Pressing the button

again restores sound to the previously set level.

The mute feature may also be released by pressing

the VOLUME UP/DOWN buttons.

7. TV / VIDEO BUTTON

Any video equipment connected to the

AUDIO/VIDEO inputs can be used with the TV by

pressing this button. Each time the button is

pressed, the Audio/Video source will change in the

following sequence VIDEO1, VIDEO2, and TV.

REMOTE CONTROLLED VCP FUNCTIONS

These features can only be used with an Audiovox Video

Tape Player, if this option was installed with your video

package. For more information consult the Audiovox

VCP Owner’s Manual.

11. POWER BUTTON

This button is used to turn the VCP on and off.

12. “REW” REWIND BUTTON

If this button is pushed while the tape is stopped, the

Video Tape will rewind. If this button is pushed while

the tape is playing, the VCP will go into rewind search

mode.

13. PLAY BUTTON

Press this button to activate play mode while a Video

Tape is loaded into the VCP. This button may also be

used to disengage search and pause modes.

14. “FFWD” FAST FORWARD BUTTON

If this button is pushed while the tape is stopped, Video

Tape will fast forward. If this button is pressed while

the Video Tape is playing, the VCP will go into fast

forward search mode.

15. REPLAY BUTTON

Pressing this button will rewind the Video Tape and

immediately begin playback when the Video Tape is

fully rewound.

16. STOP BUTTON

Press this button to stop the Video Tape.

8. AUTO MEMORY BUTTON

When the AUTO MEMORY BUTTON is depressed,

all channels in TV mode are searched and all

channels with strong signals detected are

automatically stored.

9. SKIP/SEARCH BUTTON

This button selects between SKIP and SEARCH

mode. In “SKIP mode” the TV only stops on

channels that are programmed into memory when

the CHANNEL UP/DOWN buttons are used. When

the SKIP mode is turned off, the TV will stop on all

active channels.

10. ERASE/WRITE BUTTON

When tuned to a channel press this button to store

or erase the channel from memory. The stored

channel numbers are displayed in “GREEN” on the

screen, and the erased channels are in “RED”.

When skip mode is on, the VOH1042 DL will tune to

only the stored channels when using the CHANNEL

UP/DOWN buttons.

-7-

CHANNEL TUNING SETUP

In order to easily access all available channels, it may

be necessary to perform the channel Auto-

Programming procedure whenever the vehicle’s

geographic location has changed, i.e. city-to-city,

weak signal area.

1. Press the AUTO MEMORY button on the remote

control unit or the AUTO PROGRAM (AP) button

on the flip down video unit. You will see the TV

cycle through all the channels. The built-in

microprocessor will automatically store each

channel that is actively broadcasting in your area.

(A)To tune only strong clear channels with the

CHANNEL UP/DOWN buttons, press the

SKIP/SEARCH button on the Remote Control

Unit until “SKIP MODE ON” is displayed on the

bottom of the screen. The TV will now tune

only to channels that are stored in memory

when the UP or DOWN buttons are used on the

monitor or the remote control.

(B)To tune to weak or marginal channels with the

CHANNEL UP/DOWN buttons, press the

SKIP/SEARCH button on the Remote Control

Unit until “SKIP MODE OFF” is displayed on the

bottom of the screen. The TV will tune to all

active channels when using the CHANNEL

UP/DOWN buttons or you can go directly to the

channel by using the 0-9 buttons on the Remote

Control.

2. To ERASE a channel, press the ERASE/WRITE

button on the Remote Control Unit until “MANUAL

MEMORY XX ERASE” is displayed on screen. To

STORE a channel, press the button until the

MANUAL MEMORY XX ADD is displayed on

screen.

TURNING THE VOH1042 DL ON AND OFF

1 Sliding the screen release lock forward will unlock

the screen and it will drop down slightly. (Pivot the

screen downward until a comfortable viewing angle

is reached). After the unit has been turned on and

is displaying a picture, adjustment to the viewing

angle can be made by pivoting the screen to

optimize the picture quality. The internal friction

detent will hold the screen in position while the

system is in use.

2 Pressing the power button on the pod or remote will

alternately turn the system on or off. When in use

the internal back lighting will illuminate the controls.

3 Remember to turn the unit off and pivot the display

screen to the locked position when not in use.

-8-

-9-

CHANNEL AP TV/AV

OLUME PIC.

OPERATION

OVERHEAD DOME LIGHTS

A three-position slide switch controls the Dome

Lights on the VOH1042 DL. Sliding the switch to

the ON position will turn the Dome Lights ON. The

OFF position will prevent the Dome Lights from

turning ON at all times and the auto position will

allow the Dome Lights to turn ON and OFF with the

vehicle’s interior lighting. Do not leave the vehicle

unattended with the Dome Lights switch in the ON

position, as this could result in a discharged battery.

Dome Light Dome Light

Dome Light Switch

CHANNEL AP TV/AV

OLUME PIC.

REMOTE INFRARED SENSOR/REPEATER

The VOH1042 DL incorporates an Infrared Sensor,

which relays the signals from the Remote Control to

allow the VOH1042 DL to be controlled simply by

pointing its Remote Control at the remote sensor.

This provides control of auxiliary equipment such as

an Audiovox VCP or DVD Player. The Remote

Infrared Sensor can relay signals from most

manufacturers Remote Control to its respective

component connected to the Video 1 and 2 inputs. In

this case you must use the Remote Control supplied

with the other manufacturers component.

Remote Infrared Sensor

Tabla de contenidos

Otros manuales de Sistema de vídeo para coche de Audiovox

Audiovox

Audiovox AVXMTG10U Manual de usuario

Audiovox

Audiovox LCM1041TV Manual de usuario

Audiovox

Audiovox 50-0244x-001 SERIES Manual de usuario

Audiovox

Audiovox MMD85 - 8.5 Inch Dropdown Video Monitor Manual de usuario

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manual de usuario

Audiovox

Audiovox 1187001PL Manual de usuario

Audiovox

Audiovox HR7011PKG Manual de usuario

Audiovox

Audiovox AVXMTG10UHD Manual de usuario

Audiovox

Audiovox Mobile Video VOD128 Manual de usuario

Audiovox

Audiovox VOH802 - VOH 802 - LCD Monitor Manual de usuario

Audiovox

Audiovox FlexVision LCM641TV Manual de usuario

Audiovox

Audiovox HR7008APKG Manual de usuario

Audiovox

Audiovox PAV2000DTV Guía de inicio rápido

Audiovox

Audiovox VOD80 Guía de inicio rápido

Audiovox

Audiovox VMO 5020 V Manual de usuario

Audiovox

Audiovox LCM1502TV Manual de usuario

Audiovox

Audiovox VOD10A Manual de usuario

Audiovox

Audiovox VOD10PS2 - Car - 16:9 Flipdown Monitor Manual de usuario

Audiovox

Audiovox MMD102 Manual de usuario

Audiovox

Audiovox VOD701 Manual de usuario

Audiovox

Audiovox AVXMTG13UHD Manual de usuario

Audiovox

Audiovox VOH-641 Manual de usuario

Audiovox

Audiovox VME 9325BTA - Manual de usuario

Audiovox

Audiovox PROV716 Manual de usuario

Manuales populares de Sistema de vídeo para coche de otras marcas

Stinger

Stinger HEIGH10 RB10RAM13B Manual de usuario

Eonon

Eonon E1057 Manual de usuario

Milion

Milion D2223 Manual de usuario

Metra Electronics

Metra Electronics 99-8153 Manual de usuario

Voxx Electronics

Voxx Electronics HR8MA1 Manual de usuario

Axxera

Axxera AV604Bi Manual de usuario

Clarion

Clarion NX706E Manual de usuario

Pyle view

Pyle view PLDN74BTi Manual de usuario

Clarion

Clarion NX602 Manual de usuario

PowerAcoustik

PowerAcoustik PTID-5850N Manual de usuario

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guía del usuario

Lanzar

Lanzar SVDVD5 Manual de usuario

Kia

Kia MTXM100YPPE Manual de usuario

Eonon

Eonon E1060 Manual de usuario

Macrom

Macrom M-AN900 Manual de usuario

Hyundai

Hyundai BAPE-L3000N Manual de usuario

r.LiNK

r.LiNK RL2-UCON8-SM Manual de usuario

Blaupunkt

Blaupunkt DVP 01C Manual de usuario
