Audiovox PROV710 S Manual de usuario

128-6743

1 of 26

VOD705

ELECTRONICS CORP.

PROV710 /

PROV710 S /

PROV 710 P

DROP-DOWN VIDEO

MONITOR WITH BUILT-IN

DVD PLAYER

128-6743

OFF AUTOON

PO W ER PLA Y STO P EJEC T

Date:12/05/2003

Date: 21/5/2003-PROV710 S & PROV710 P ADDED

128-6743

2 of 26

-2-

IMPORTANT

AnLCD panel and/orvideo monitor maybe installed ina motor vehicleand visible to thedriver if theLCD panel orvideo

monitoris used for vehicle information, system control, rear orside observation or navigation. If the LCD panelor video

monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that

thesefeatureswillonly function then thevehicleis in ‘park’ orwhenthevehicle’s parking brake isapplied.

AnLCD panel or videomonitor used fortelevision reception, videoor DVD playthat operates when thevehicle is ingear

orwhen the parking brake is not applied,must be installed tothe rear of the driver’s seatwhere it will not be visible,

directlyorindirectly,totheoperator of themotorvehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth

to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Rememberto leave the dome lightswitch in the off or auto positions when the vehicle is unattended, as the

dome lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

128-6743

3 of 26

-3-

Congratulations on your purchase of the Audiovox

PROV710/PROV710S/PROV710P DVDPlayerwith

Drop-DownVideoMonitor. ThePROV710/PROV710

S /PROV710 P has been designed to give you and

your family many years of video entertainment in the

mobile environment. Please read the directions that

follow to familiarize yourself with the product and to

ensure that you obtain the best results from your

equipment.

Please note: Installation options vary, see the

individual owner’s manuals for each component in

your system to obtain a full understanding of each

component’s operation.

Safety Precaution

For safety reasons, when changing video media it is

recommended that the vehicle is not in motion, and

that you do not allow children to unfasten seat-belts

to change video media or make any adjustments to

the system. System adjustments can be

accomplished using the remote control unit, while

seat-belts remain fastened. Enjoy your Audiovox

entertainment system but remember-safety of all

passengers remains the number one priority.

Features

••

•7 Inch TFT (Thin Film Transistor) Active

MatrixLCD(LiquidCrystalDisplay)Monitor

••

•OSD (On Screen Display) for Control of

PictureQualityandFunctions

••

•FullFunctionRemoteControl

••

•Infrared Transmitter for IR Wireless

Headphones

••

•OneAudio/VideoInput

••

•DomeLights withSwitch

••

•BacklitControlsforLowLightOperation

128-6743

4 of 26

-4-

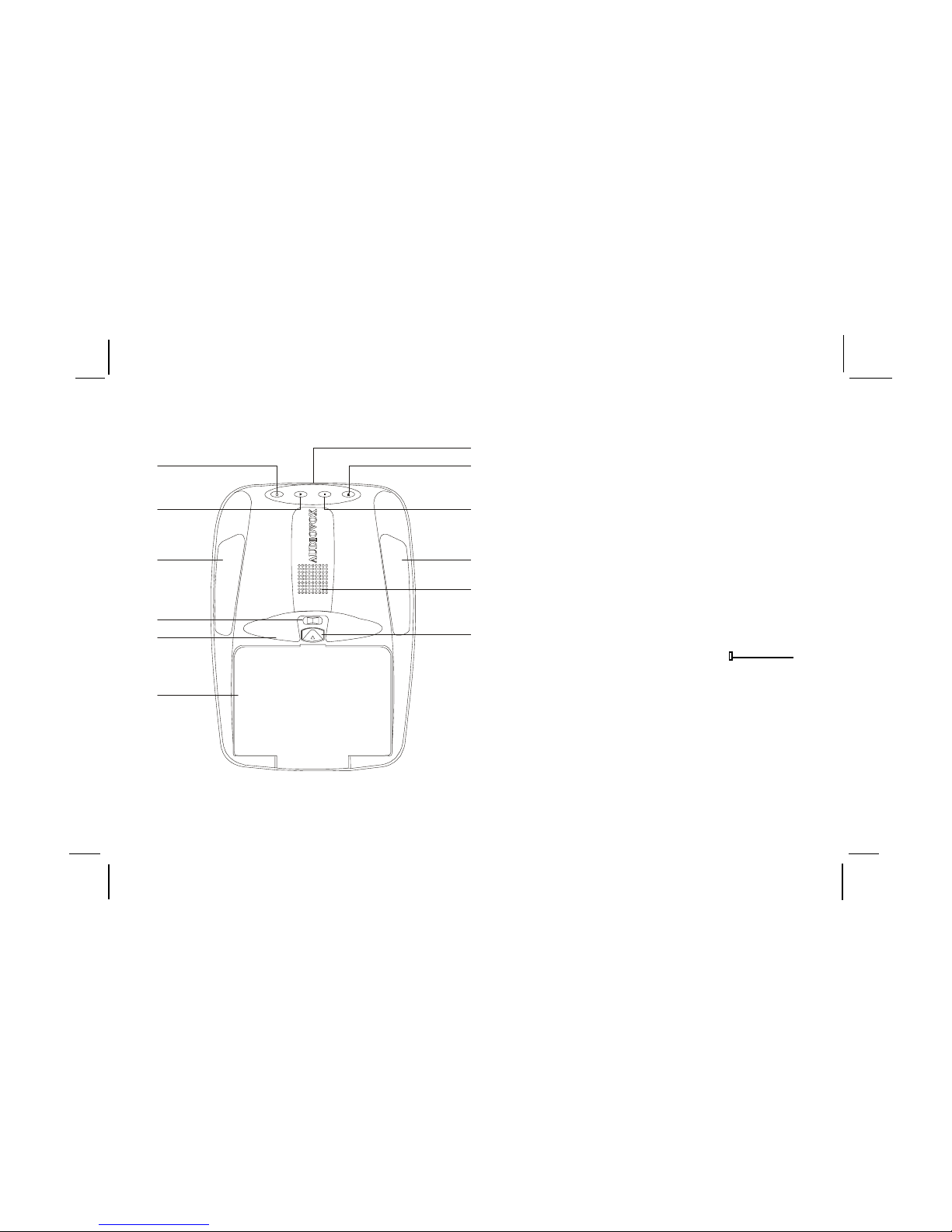

Controls and Indicators Diagram

OFF AUTOON

POW ER PLAY STOP EJECT

ClosedPosition Open Position

128-6743

5 of 26

-5-

Main Function Descriptions

1. DVD disc insertion slot.

2. Eject ( ) Button – Ejects disc.

3. Stop ( ) Button – Pressing this button will stop playback.

4. Power Button – Bright red when system is on, dim when off.

5. Play ( ) Button – This button is used to enter the play mode.

6. Dome Lights – provide additional interior illumination.

7. Three position Dome Light Switch

•Auto –Automatically switches on the dome lights in conjunction with the vehicle’s interior illumination.

•Off – The dome lights will not turn on in this position.

•On – Turns on the dome lights.

8. Infrared Transmitter and Sensor – Use to transmit audio to wireless headphones. Also allows the remote

control to operate the PROV710/PROV710 S /PROV710 P OSD (On Screen Display) and to control other

accessories in the system.

9. Drop Down LCD Panel.

10.Screen Release – Moves in direction of the arrow to release the drop down screen.

11.PROV710/PROV710 S /PROV710 P Ventilation Opening.

12.Source Select Button - Allows the user to select the source: DVD and AV1.

13.LCD Panel Shut-Off Switch

128-6743

6 of 26

-6-

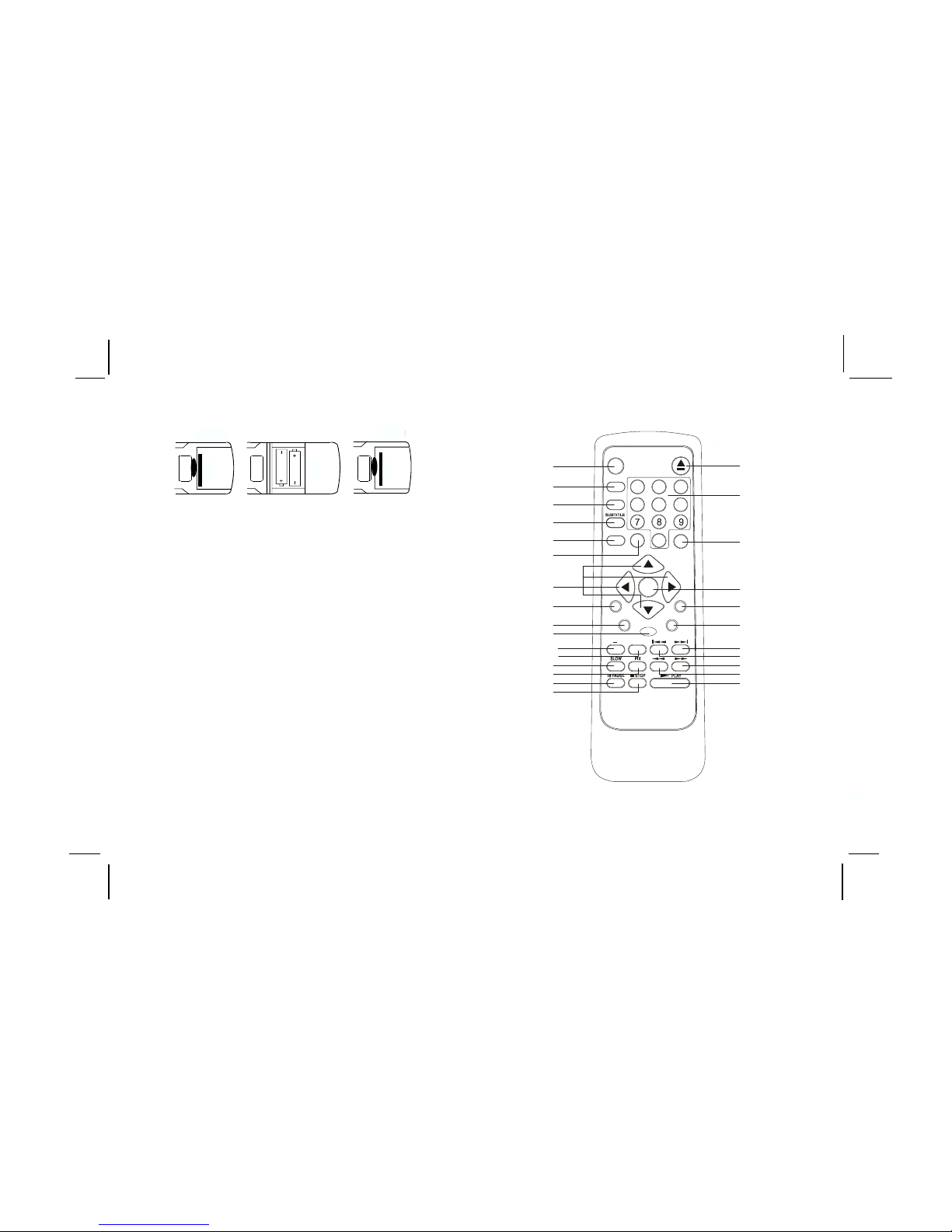

Remote Control Operation

Battery Installation

Before attempting to operate your Remote Control,

install the batteries as described below.

1) Turn the Remote Control face down. Using a

fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown. Make

sure that proper polarity (+ or -) is observed.

3) Align the cover tabs with the remote control

and press down until the cover clicks.

The remote control will operate the PROV710/

PROV710S /PROV710 P. It is not a universalremote

control and will not control equipment from other

manufacturers

RETURN

A-B

REPEAT

SETUP

DVD

POW ER

EJECT

DISPLAY

ANG LE

AUDIO

SOURCE

ZOOM

Enter

11a

11b

128-6743

7 of 26

-7-

DVD Function Descriptions

*Function control is available on the unit and the remote control.

1. DVD POWER ON/OFF Button*

Press this button to turn the PROV710/PROV710 S /PROV710 P on.

Press the button again to turn the PROV710/PROV710 S /PROV710 P off.

2. DISPLAY Button

Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once TITLE Elapsed Time

Twice TITLE Remain Time

3 times CHAPTER Elapsed Time

4 times CHAPTER Remain Time

5 times Display is turned off

3. ANGLE Button

Press to display & select the camera angles. Each time you press the button, the angle changes.

Note:The number ofangles vary fromdisc to disc. Not all disc’s containthis option

4. SUBTITLE Button

Press to display & select the subtitle language in DVD. Each time you press the button, the subtitle language

changes.

Note:The type& numberof languagesfor subtitlesvary fromdisc todisc.

5. AUDIO Button

128-6743

8 of 26

-8-

6. ZOOM Button

Press this button to zoom the picture.

Press ZOOM button OSD DVD Player Perform

Once ZOOMx2 ZOOM picture 2 times

Twice ZOOMx3 ZOOM picture 3 times

3 times ZOOMx4 ZOOM picture 4 times

4 times ZOOMx1/2 Reduce picture to 1/2

5 times ZOOMx1/3 Reduce picture to 1/3

6 times ZOOMx1/4 Reduce picture to 1/4

7 times ZOOM OFF Normaldisplay

7. CURSOR Button ( )

Use these buttons to do items selection.

8. MENU Button

Allows the user to access main menu.

9. RETURN Button

Press to return to the main page.

5. AUDIO Button

Presstodisplay& selectAUDIOlanguage&channel.Eachtimeyou press thebutton,thelanguageorchannelchanges.

Note: The languages & channel you can select are vary from disc to disc.

128-6743

9 of 26

-9-

10. A-B REPEAT Button

Allows the user to repeat play of a DVD or CD from point A to point B.

11a. Select Down (-) Button

Used this button to make picture adjustments in picture select mode.

b. Select Up (+) Button

Used this button to make picture adjustments in picture select mode.

Description of Adjustment Items:-

Item Press Select Down(-) button Press Select Up(+) button

CONTRAST

BRIGHTNESS

TINT

COLOR

12. SLOW Button

The DVD viewing speed will be reduced at 1/2, 1/4, 1/8 and 1/16 times the normal speed.

Decrease the contrast

for soft color

To darken the picture

Increases the

greenish skin tones

To decrease the color

intensity

Increase picture

contrast for vivid color

To brighten the picture

Increases the redish

skin tones

To Increase the color

intensity

128-6743

10 of 26

-10-

13. PIX Button (PICTURE SELECT)

Each time this button is pressed, the on screen picture adjustment display the “adjustment bars” for CONTRAST/

BRIGHTNESS, COLOR or TINT. Once the desired adjustment bar is displayed, use the Select up/Select Down

buttons to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or

if any other button is depressed.

14. PAUSE ( ) Button

DVD disc play will be paused.

15. STOP (

) Button *

DVD disc play will be stopped.

16. EJECT(

) Button *

The disc will be ejected disc from disc compartment.

17. NUMBERS Buttons

Allows the user to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters, and password setting.

18. SOURCE Button*

Video signals from video equipment connected to the audio / video input can be displayed on the monitor by

pressingthis button. Eachtime the button is pressed,the audio /video sourcewill change inthe following sequence:

DVDandAV1.

19. ENTER Button

Used to implement setting selected.
