Audiovox MMD 70 Guía de inicio rápido

MMD70

7" LCD MONITOR&DVDPLAYER

Owners and Installation Manual

Note:

This Productincorporates copyrightprotection technologythat is pro-

tectedbymethod claims ofcertain patents and other intellectual prop-

erty rights owned byMacrovision Corporation and other rights owners.

Useofthis copyrightprotectiontechnologymust beauthorizedby

MacrovisionCorporation,andisintendedforhomeandotherlimitedview-

inguses only unless authorizedby MacrovisionCorporation. Reverse

engineeringor disassemblyis prohibited.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners, they may scratch the screen.

Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.

Lock the LCD screen in the fully closed position when not in use.

Before putting on headphones always adjust the volume setting to the lowest position.

Remember to leave the dome light switch in the off or auto positions when the vehicle

is unattended, as the dome lights, if left on, can drain the vehicle’s battery.

Do not put pressure on the screen.

Licensed under one or more of the following patents,

Patent NOS. 5,775,762 and 5,927,784

AnLCDpanel and/or videomonitormaybeinstalled in amotor vehicle

and visible to the driver ifthe LCD panelor videomonitor is used for

vehicle information, system control, rear or side observationor

navigation.If the LCDpanelor video monitor is usedfortelevision

reception, video or DVD play, the LCDpanel or video monitor must be

installedsothat these featureswill onlyfunction when the vehicle is in

park”orwhenthevehicle’s parkingbrake isapplied.

AnLCD panelor video monitor used for television reception, videoor

DVDplay thatoperateswhenthevehicleis ingear or whentheparking

brakeis not appliedmust be installedtothe rearofthe driver’sseat

where itwill notbevisible, directly or indirectly, to theoperator of the

motor vehicle.

Important Notice

A.Introduction

Thankyou for selectingthe MMD70. The main features include a 7"

Wide Screen(16:9AspectRatio)LiquidCrystal Display (LCD)monitor

and abuilt-inDVD player. The unit applies the latest state ofthe art

electronics. Theunit is constructedto provideyearsof reliable,

trouble-free service. Please read theentire instruction manual sup-

plied with this product prior to operation. The documentation will as-

sistyouininstallingthesystemproperly to obtainthebest equipment

performance. Pleasestore this manual forlater use.

B. Cautions and Warnings

1. Installation

Ensure thatthe MMD70 isinstalled in accordance with theinstruc-

tions and illustrations provided in this manual.

2. Object and Liquid

Do not push objects ofany kind into the unit through openings; do

notspill or sprayliquid ofany kind on orin the system (this may

result in a fire or electric shock). Toensure proper ventilation and

properoperation,nevercover or blocktheslots and openings with

a cloth or other material.

3.Disassembly

Do not attempt to disassemble the cabinet. There is ariskofelec-

tricshock and/orexposure to LaserRadiation. Contact qualified

service personnel ifyour system is in need of repair.

4.Cleaning Unit

When cleaning, makesurethe systemis unplugged fromthepower

source.Do not useliquid cleanersor aerosol cleaners.Use a

clothlightlydampenedwith water forcleaning the exteriorof the

systemonly.

5. Disc

Do not use irregularlyshaped discs such asheart orstar-shaped

discs as theymay cause the unittomalfunction.Donotstickpaper,

tapeor glue on the disc. Do not expose thedisc to direct sunlight

or heat sources such as hot air ducts. Do not touch the surface of

disc.Handlethe discbyits edge. Cleanthediscby wiping thedisc

from thecenter outwith acleaning cloth. Removethe disc from

theunit andstoreitinitscaseafterplaying.Someplaybackopera-

tions of discs may be intentionallyfixedbysoftwareproducers.

Since this unit plays discs accordingto the disc contents the soft-

wareproducersdesigned,some playbackfeaturesmay notbe

available. Also refer to the instructions supplied with the discs.

*Note: Please don’tusediscof8cmfor theunit’sshortage.

C. CONTENTS

1. 7”LCD Monitor & DVD Player Combo

2.A/VAdapter Cable

3. Power/Domelight Harness

4. Hardware Package

4 pcs M3.5 x18mm Panhead Philips MachinesScrews

2pcs RubberPlugs

5. Remote Control

6.Mounting Plate

7. InstructionManual

TOOLSREQUIRED:

#2Philips Screwdriver

#1Philips Screwdriver

Utilityor Razor Knife or Shears

WireStrippers

Upholstery hooktool (for removal ofpanels as necessary)

ElectricalTape

MaskingTape

Multimeter (toverify 12 voltDC andcontinuity:Donotuse atestlight

or logic probe)

Marker pen –to markheadliner

Scribe(to marktrim ringifused)

Misc.electrical connectors(toconnect tovehicle power source).

Requirements will varyfrom vehicle to vehicle.

1. 2.

5. 4.

D. INSTALLATION AND POWERING

Figure1

(X 4) (X 2)

GENERAL INSTALLATIONAPPROACH:

1)Decide upon system configuration and options that will be installed

(i.e.: what components, VCP,Tuner,RF Modulator/externalamp,

remoteheadphones, DVD, etc.).

2)Reviewall manuals to become familiar withelectrical requirements

and hookups.

3)Decideupon mounting locations of all componentsandmethodof

mounting.

4)Prep the vehicle by removing anyinteriortrim necessary to gain ac-

cess to vehicle'swiring as well asall areas whereinterconnecting

wire harnesseswillneed to belocated.Ifany access holes need to

be cut intothevehicle(headliner,other trim components etc.), this

should be done nowas well.

5)Route the wiring harnesses throughout the vehicleas necessary.

(Refer to theWiringDiagrams on page10 of this manual as wellas

the wiringinstructions for the individual components and accessory

options being installed).Besure thatall wiring isprotected from

sharpedges and is routed in such amannerthatitwill notbe pinched

whenall components andinterior trim arefully installed. Be sure to

leaveenoughslack inthewiringateachcomponenttoallowworking

room.

6)Remove allA/V system components fromtheirpackaging and place

them looselyin the vehicle at their respective locations.

7)Connectallcomponents together(electrically)and verifyproper op-

erationof all system functions.Note:This is bestdoneBEFORE

components have been permanentlymounted.

8)Afterverifyingproper operation ofthe system,proceed tomounteach

ofthecomponents.

9)When all components are mounted, recheckfunction ofentire sys-

tem againto ensure that no wiring was pinched or connected im-

properlyduringfinal installation.

Notes :TheMMD70 video system is only intended foran overhead,

drop downinstallation.Itisnotintended forseat back or any other

type of mounting. Thehinging mechanismis designedfor horizontal,

drop down use only.

VEHICLE PREPARATION:

1)Locateanaccessorypowersource (+12v whenkeyisin theACC.

and run positions, and 0v when key is off). Generally, thiswire can

be found at the ignition switch or fuse-box.

2)The mountingmethod and location will vary from vehicle to vehicle,

so this manual will only focuson the installation ofthevideo monitor

and related consoleaccessories.

3)Generally,the bestlocationforthevideomonitor iswherethevehicle's

factory domelight isinstalled. The monitorshouldbelocated in

suchamannerthatitcan be comfortablyviewed byrearseatpassen-

gers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE

DRIVER'SVIEW.THISISNOTONLYDANGEROUS,BUT ITIS

ALSO ILLEGAL.

4)Once the mounting locationof the monitor has been determined,

there maybe additional preparation worknecessary, dependingon

the vehiclestructure and installation method.Someof the steps

thatmaybe required are:

A)Removal ofthe vehicle's dome light.

B)The headliner may need to be trimmed.

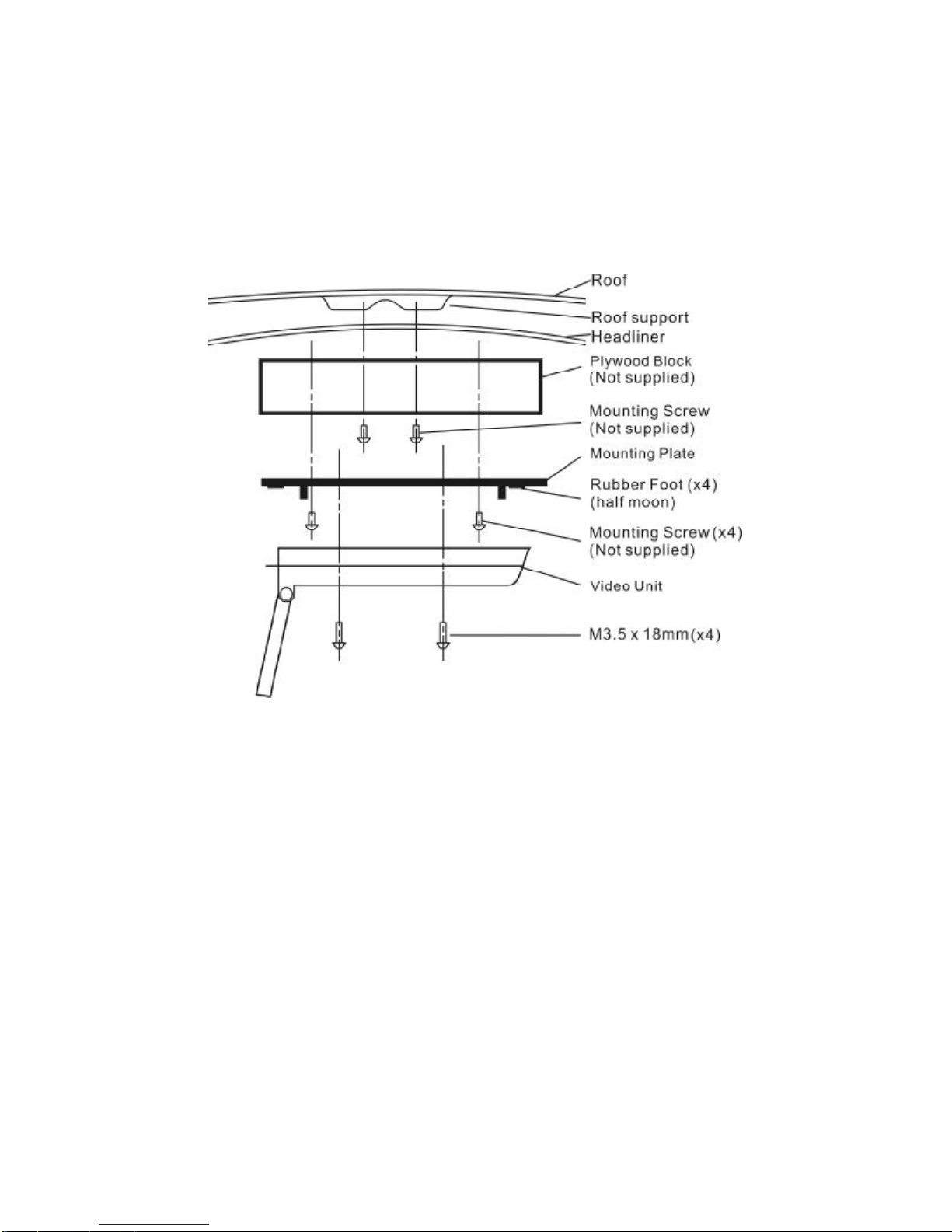

MOUNTING THE MMD70

Figure2

NOTE: Two ofthemountingholesarelocated under the domelight cov-

ers.

1)Make the connections to the vehicle with the 5 pin wiring harness.

2)Connect the 5pin harnessto the matingconnector onthe Video

Monitor.

3)Connect powerharnessto vehicle's electrical systembytapping

into an accessoryhot line.

4)Verifyallfunctions ofthesystem beforefinal mountingofthefinished

assembly.

NOTE: AVCPorother A/VComponent can be connected tothe

video monitorsystem using an RCAA/V cable.This secondhar-

nesswould plug intotheAV1inputs or AUXjack.

A/V Source Definitions :

1 =Built-in DVD

2 =AV1 input ( VCP,Game, DVD, etc )

3 =AV2 Input ( VCP,Game, DVD, etc )

Figure3

MMD70

(RED)

(BLACK)
