8.5” LCD OVERHEAD MONITOR

OPERATION MANUAL

POWER

MENU/

ENTER

ON OFF AUTO

DOWN

1287264.P65 11/2/2004, 9:48 AM1

2MM850

Important Notice

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the

driver if the LCD panel or video monitor is used for vehicle information, system control,

rear or side observation or navigation. If the LCD panel or video monitor is used for

television reception, video or DVD play, the LCD panel or video monitor must be installed

so that these features will only function when the vehicle is in “park” or when the vehicle’s

parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that

operates when the vehicle is in gear or when the parking brake is not applied must be

installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to

the operator of the motor vehicle.

Warnings

Do not use any solvents or cleaning materials when cleaning the video monitor.

Do not use any abrasive cleaners,

Safety Precaution

For safety reasons, when changing video media it is recommended that the vehicle is

not in motion, and that you do not allow children to unfasten seatbelts to change tapes

or discs or make any adjustments to the system. System adjustments can be

accomplished using the remote control unit, while seatbelts remain fastened. Enjoy

your Movies 2 Go entertainment system but remember-safety of all passengers remains

the number one priority.

1287264.P65 11/2/2004, 9:48 AM2

MM850 3

Congratulations on your purchase of the Movies 2 Go MM850 drop-down Video

Monitor. The MM850 has been designed to give you and your family many

years of video entertainment in the mobile environment. Please read the

directions that follow to familiarize yourself with the product and to ensure

that you obtain the best results from your equipment.

NOTE: Installation options vary, see the individual owner’s manuals for

each component in your system to obtain a full understanding of each

component’s operation.

FEATURES

!8.5” TFT (Thin Film Transistor) Active Matrix LCD (Liquid

Crystal Display) Monitor

!OSD (On Screen Display) for Control of Picture Quality and

Functions

!Infrared Transmitter for Optional IR Wireless Headphones

!Two Audio / Video Source Inputs

!Dome Lights with Built-in Three Way Switch

!Video Display ON/OFF Switch (when LCD Panel is

Opened and Closed)

!Full Function Remote Control

1287264.P65 11/2/2004, 9:48 AM3

4MM850

POWER

MENU/

ENTER

ON OFF AUTO

AUX

DOWN

FRONTPANELFEATURES

1287264.P65 11/2/2004, 9:48 AM4

5MM850

1. Infrared Transmitter – Used to transmit audio to the optional wireless

headphones.

2. Remote Sensor – To allow Remote Control operation of the MM850.

3. Dome Lights – Provide additional interior illumination.

4. Three Position Dome Light Switch

• Auto – Automatically switches on the dome lights in conjunction with the

vehicle’s interior illumination.

• Off – The Dome lights will not turn on in this position.

• On – Turns on the Dome lights.

5. Power ON/OFF – Turn the MM850 on and off.

6. Menu/Enter Button – Pressing this button will display the OSD menu for

picture quality adjustments (Brightness, Contrast, Color, Tint & Reset) and

source selection. After accessing the menu, it is used as the Enter function.

7. Select Up Button – For selection of menu items, source selection and

adjustment of picture quality.

8. Select Down Button – For selection of menu items, source selection and

adjustment of picture quality.

9. Screen Release – Slides in the direction of the arrow to release the drop

down screen.

10. LCD Panel – Display the video source and the On Screen Display (OSD).

11. AUX – Auxiliary input jack allows easy connection of an external A/V source.

12. LCD Cut Off Switch – Turns off the LCD backlighting when the screen is in

the closed position.

FRONT PANEL

1287264.P65 11/2/2004, 9:48 AM5

6MM850

TURNING THE MM850 ON OR OFF

1. Sliding the screen release lock forward will unlock the LCD screen and allow it

drop down slightly. Move the screen downward until a comfortable viewing

angle is reached. The internal hinge friction will hold the screen in position while

the system is in use.

2. Press the power button to turn the MM850 on.

3. After the unit is turned ON and begins to display a picture, adjust the viewing

angle by pivoting the screen to optimize the picture quality. (NOTE: The video

source (DVD/VCP/Game will need to be turned on also).

4. Remember to turn the unit OFF and pivot the LCD to the locked position when

not in use.

Power

ON/OFF

Switch

1287264.P65 11/2/2004, 9:48 AM6

7MM850

OPERATION

OVERHEAD DOME LIGHTS

The Dome Lights integrated into the MM850 are controlled by a three position slide

switch. Sliding the switch to the ON position will turn the lights ON. The OFF

position will prevent the lights from turning ON with the vehicle’s interior lighting,

and the auto position will allow the lights to turn ON and OFF with the vehicle’s

interior lighting. Do not leave the vehicle unattended with the dome light switch in

the ON position as this could result in a discharged battery.

Consult the Installation Manual for dome light wiring information.

Dome

Light

Switch

1287264.P65 11/2/2004, 9:48 AM7

8MM850

REMOTE CONTROL SENSOR

The MM850 incorporates an infrared sensor that will relay signals from the remote

control to allow a source connected to the AV1 input to be controlled simply by

pointing its remote control at the remote sensor eye. This provides control of

source equipment such as a Video Cassette Player or DVD Player. The infrared

sensor can relay signals from most manufacturer’s remote controls to the

component connected to the AV1 input, such as a DVD player. In this case you

must use the remote control supplied with the DVD player.

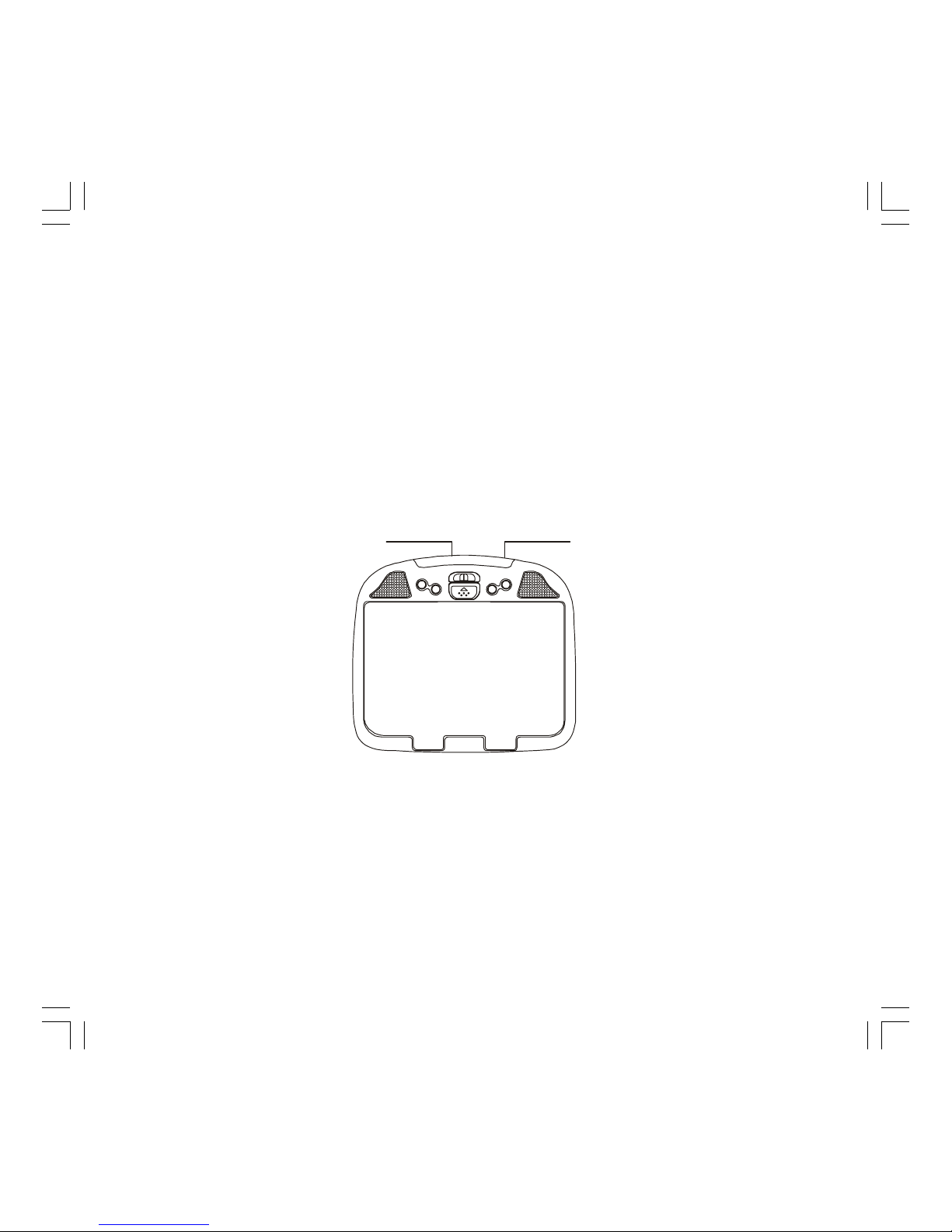

Infrared Transmitter Remote Sensor Eye

1287264.P65 11/2/2004, 9:48 AM8

9MM850

LCD SOURCE

MENU /

ENTER

STOP

PLAY

REW FWD

1 LCD : Power On / Off Button for the MM850 monitor

2 VCP : Power On / Off Button for an Optional Audiovox VCP

3 SOURCE : Button for selection of AV1 and AUX

4 MENU/ENTER Button

5 – : Select Down Button

6 + : Select Up Button

7 REW : ........Rewinds Tape

8 FWD : ........ Fast Forwards Tape

9 STOP : ........Stops Tape

10 PLAY : ........ Plays Tape

REMOTE CONTROL UNIT BUTTONS CONTROLS

1287264.P65 11/2/2004, 9:48 AM9

10 MM850

PICTURE ADJUSTMENT

When watching the program, the quality of the picture can be adjusted to your

preference.

Press the MENU button, the main menu

will appear. Then press the UP or DOWN

button to select from picture, source or

display off. Press the MENU button again

to select the item. For example: Press the

MENU button, highlight PICTURE using the UP or DOWN buttons. Press the MENU

button to enter the picture adjustment menu. The PICTURE menu will appear,

highlight the item you want to adjust using the UP or DOWN buttons and press the

MENU button to enter. Then press the UP or DOWN button to adjust the selected

item.

Description of Adjustment Items:-

Item Press DOWN button Press UP button

To darken the picture

Decrease the contrast

for soft color

To decrease the color

intensity

Increase the greenish

skin tones

To brighten the picture

Increases the picture

contrast for vivid color

To increase the color

intensity

Inceases the redish skin

tones

To restore the factory settings, select RESET and press the UP or DOWN

button. All of the picture adjustments (BRIGHTNESS, CONTRAST, COLOR and

TINT) will return to the factory settings.


CONTRAST

COLOR

TI NT

RESET

BRIGHTNESS


CONTRAST

COLOR

TI NT

RESET

BRIGHTNESS

32 BRIGHTNESS

SOURCE

DISPLAY OFF

PI CT URE

SOURCE

DISPLAY OFF

PI CT URE

BRIGHTNESS

CONTRAST

COLOR

TINT

1287264.P65 11/2/2004, 9:48 AM10
