Audiovox Xpress XMC10 Manual de usuario

128-7472

1 of 16

-1-

XMC10 Car Cradle

Installation Guide

Released: 9-15-05

Xpress®Satellite

Radio Receiver

128-7472

2 of 16

-2-

CONTENTS

Congratulations ........................................................................................ 3

Cautions and Warnings............................................................................ 4

ContentsXMC10 ...................................................................................... 5

Accessory Kit ............................................................................... 5

Installation/Wiring Precautions ................................................................. 6

Setting Up and Installing Your Kit.............................................................. 7

Interconnect Diagram ................................................................... 6

Using Other Manufacturer’s Mounts............................................. 9

Installing the Xpress XM®Into the Cradle...................................... 9

Connection Options ............................................................................... 10

Mountingthe VehicleAntenna................................................................. 12

Warranty................................................................................................. 15

128-7472

3 of 16

-3-

Congratulations

Thank you for purchasing the Audiovox Xpress XM®Satellite Car Kit. You are one step closer to experiencing the

latest innovation in XM®Satellite Radio. XM®Satellite Radio will revolutionize your vehicle or in-home entertain-

ment.

XM®features over 150 digital channels — 100% commercial-free music, over 30 channels of news, sports, talk

and entertainment, over 20 dedicated channels of XM®Instant Traffic & Weather, and the deepest play-list in the

industry with access to over 2 million titles!

XM®Satellite Radio service gives you the power to choose what you want to hear - wherever and whenever you want

it. XM®is America’s #1 Satellite Radio provider with over 4 million customers.

Your Audiovox Xpress XM®receiver must be used with an accessory kit, such as the Audiovox Home Kit, Boom Box

or Vehicle Kit as required by your specific installation needs. These kits are available at retailers where Audiovox

main units are sold.

Required subscription for service sold separately.

Installation costs and other fees and taxes may apply, including a one-time activation fee. All fees and program-

ming subject to change. College sports games subject to availability. Subscriptions subject to Customer Agree-

ment included with the XM Welcome Kit and available at www.xmradio.com. Only available in the 48 contiguous

United States.

marks are the property of their respective owners.

128-7472

4 of 16

-4-

Cautions and Warnings

1. Do not install the XMC10 car cradle in a position that

hinders your view through the windshield, or obstructs

viewing of the dashboard indicators and displays.

2. Do not install the unit where it may obstruct the

operation or deployment of safety devices, such as

airbags, etc.

3. Do not allow operation of the unit to detract from safe

driving practices; remember that you are responsible as

the vehicle operator to adhere to all safe driving and

traffic regulations.

4. This unit complies with the interference limits relative to

a Class B digital device, applicable under Part 15 of the

FCC Rules regarding installation in a residential envi-

ronment. If the unit is not installed in accordance with

these instructions, it could cause harmful interference to

radio or television reception. If this condition persists

aftercorrectiveaction,consultyour dealeror experienced

installation facility.

5. By adhering to these warnings and safety consider-

ations, serious accidents and/or personal injury can be

avoided.

128-7472

5 of 16

-5-

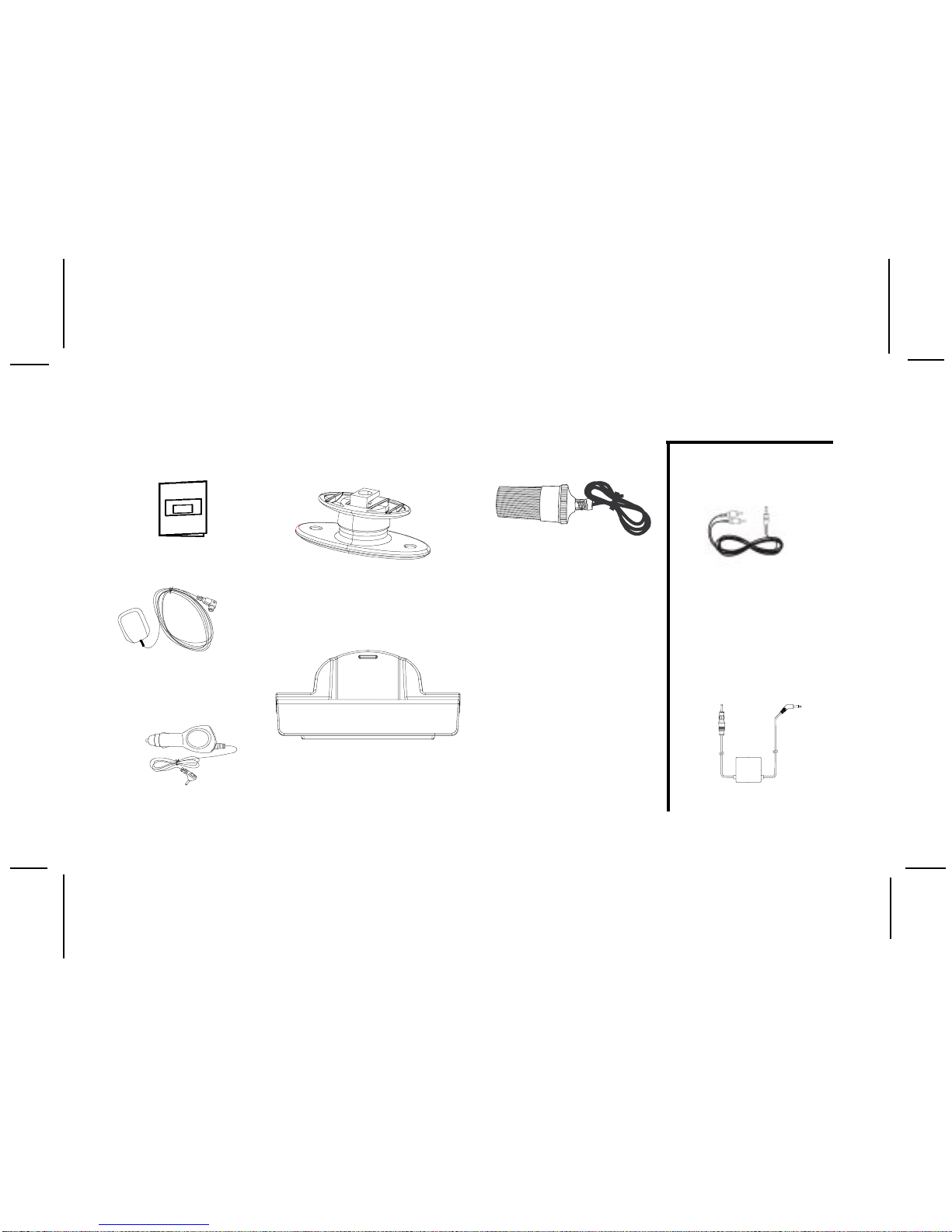

Swivel Bracket

(P/N 136-4048)

1 pc.

Contents XMC10

Install Manual

(P/N 1287472)

12 Volt-to-5 Volt

DC Power Adapter

(P/N 112-3456)

1 pc.

Antenna

1 pc.

(P/N 118-1133)

Cradle XMC10

(P/N 136-4041)

1 pc.

ACCESSORY KIT

AlcoholCleaningPad,

Surface Cleaning Pad,

InstructionSheet,

AntennaCable Exit Plug

(P/N 170-0054)

CLA Female Socket

(P/N 154-1132)

1 pc.

OPTIONAL

Audio Cable

(P/N SAT-RCA)

1 pc.

FMDirect Adapter

P/N XMFM-1

1 pc.

128-7472

6 of 16

-6-

Setting Up and Installing Your Kit

NOTE: The XM signal can be received and processed

virtually anywhere as long as there are no

obvious satellite signal obstructions such as

nearby buildings, high terrain, parking garages

or tunnels.

1. Cabling Interconnections

You can begin to enjoy XM®Satellite Radio as

soon as the Xpress XM®Receiver and Vehicle

Kitinstallationare complete. Setup yourAudiovox

Xpress XM®System using the following

installation instructions, or enlist the help of a

professional installer:

2. Installing the Cradle Mount Base Assembly

a. Interconnect all of the components as shown

on the adjacent page to verify that the system

operates normally.

b. Locateafirm, reasonablyflat surfacewithinyour

car to permit optimum viewing and line-of-sight

access by the supplied remote control unit.

Installation/Wiring Precautions

1. To prevent a short-circuit, be sure to turn off the

ignition and remove the negative (-) battery cable

prior to installation. Connect power wires last.

2. Do not install the unit in the locations exposed to

direct sunlight or, in areas subject to extreme

temperatures.

3. Incorrect installation may cause damage to the

system. Mount the unit firmly in place, using

the supplied hardware.

4. Be careful not to damage the vehicle wiring.

5. Be sure to use the supplied screws and washers.

6. Be careful not to snag any wires when tightening

screws.

7. Use only the 12 Volt-to-5 Volt DC Power Adapter

supplied. Use of an alternative power adapter may

damage the Xpress XM®unit and/or the XMC10

cradle.

CAUTION: You could drain the vehicle battery if

the DC power adapter remains

plugged in after the ignition is turned

off. Unplug the adapter to prevent

this possibility.

128-7472

7 of 16

-7-

Interconnect Diagram

AUX AUDIO INPUT TO AUDIO OUTPUT

OFEXTERNALPLAYBACKDEVICE.THIS

PERMITS AUDIO FROM AN EXTERNAL

DEVICE SUCH AS A PORTABLE CD

PLAYER OR MP3 PLAYER TO BE

PLAYED THROUGH THE XPRESS XM

WIRELESSFM TRANSMITTER.

NOTE:

1. IF THE XMC10 IS INSTALLED

USINGTHE OPTIONALXMFM-1 FM

DIRECT ADAPTER, DO NOT

CONNECT AN AUDIO CABLE TO THE

LINE OUT CONNECTOR OF THE

CRADLE.

2. THE FM TRANSMITTER OPTION

MUST BE SET TO ”FM ON” IN THE

XPRESS XM USER MENU. (REFER TO

THE OWNER’S MANUAL, PUBLICA-

TION NO.128-7454.)

CLA FEMALE SOCKET WIRES

TO VEHICLE +12 VDC POWER

RECEPTACLE

XMC10CRADLE

(REAR VIEW)

XMANTENNA

OPTIONALSAT-RCA

AUDIO CABLE

(PURCHASED

SEPARATELY)

(CONNECTTO

AUXILIARY AUDIO

INPUTS ON VEHICLE

HEAD UNIT.)

OPTIONAL FM DIRECT

ADAPTERXMFM-1

(PURCHASEDSEPARATELY)

+12V to +5V

DC POWER

ADAPTER

TO VEHICLE

+12 VDC POWER

RECEPTACLE

TO VEHICLE

RADIO ANTENNA

JACK

XMC10CRADLE

(LEFT SIDE VIEW)

XMC10CRADLE

(RIGHT SIDE VIEW)

128-7472

8 of 16

-8-

NOTE: Allow a 72-hour period for the adhesive

backing to cure completely.

CAUTION: Do not install the swivel bracket

on a leather or fabric surface, or

in a position that could impair

your vision, block air bag(s) or

obstruct vehicle dashboard

controls and/or radio CD/

cassetteoperational displays.

NOTE: The adhesive backing on the bracket

will not permit easy repositioning once

it has been mated to the surface; use

extreme care and planning when

selecting the mounting location. If the

bracketisto bescrewedto the surface,

make sure the area in back of the

mounting surface is clear of wires or

other items to prevent unintentional

damage.

c. Using the alcohol swab supplied with your kit,

clean the mounting surface and thoroughly wipe

the area dry with a clean lint-free cloth.

d. If the outside air temperature is cold, it may be

beneficial to warm the adhesive backing on

the bracket using a portable hair dryer, or by

holding the backing surface in front of a

vehicle heater vent.

e.Remove the plastic liner from the adhesive

backing on the bracket, and fix the base in

position on the surface; make sure the

mounting pad is accurately positioned on

the first try, since repositioning may be

difficult, if not impossible.

f. If the bracket is to be screwed in place, do

not remove the plastic liner from the

adhesive backing. Use appropriate sheet

metal or machine screws for this purpose.

g.To mount the XMC10 cradle atop the swivel

bracket, line up the slot at the rear of the cradle

with the bracket retainer tab, and slide the cradle

down so that the slot and tab mesh together in

a locked position.

128-7472

9 of 16

-9-

3. Using Other Manufacturer’s Mounts

The XMC10 Cradle can also be installed using

othermanufacturer’s mounts; the mounting

plate provisions on the rear and bottom of the

cradle provideyou with two mounting options

within thevehicle using various vehicle-specific

aftermarket brackets.

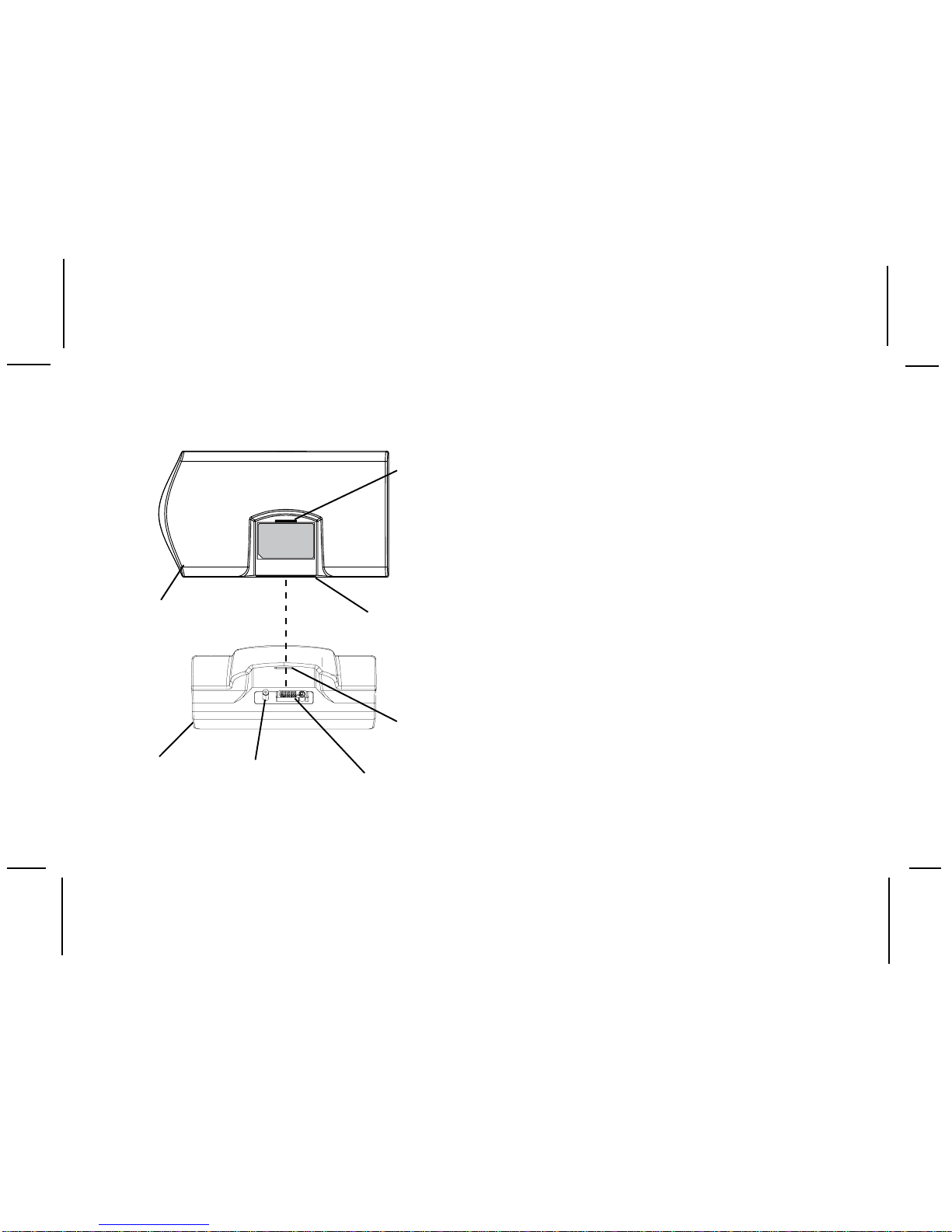

4. Installing the XpressXM®Receiver intotheCradle

Install the Receiver as follows:

a. After making sure the connectors and guide pin

hole are properly lined up, gently lower the

Xpress XM®Receiver into the cradle and press

down on the Xpress XM®Receiver to mate the

connectors together. The raised detent on the

cradle will enter the notch on the rear of the

Receiver, indicating the Xpress XM®is properly

seated.

b. The Xpress XM®Receiver should now be

secured inthe cradle

SCREWHOLES

(2)FORDIRECT

HARDMOUNTING

PLASTICLINER

ANDADHESIVE

BACKING

SWIVEL

ADJUSTMENT

SCREW

SWIVEL

BRACKET

SIDE(HORIZONTAL)

MOUNTING

CONFIGURATION

VERTICAL

MOUNTING

CONFIGURATION

XMC10

CRADLE

ASSEMBLY

128-7472

10 of 16

-10-

5. Connection Options

The Xpress Receiver and Cradle provide an audio

output signal in three ways:

a. FM Wireless Transmitter - When using the

XMC10 cradle with the wireless FM transmitter

option, the XM audio signal can be received

through your vehicle radio on selectable FM

frequencies using the menu options included

in your Xpress Receiver. (Refer to the Receiver

owner’s manual.) The XM audio signal can

then be played through your vehicle radio when

the car radio is tuned to one of the available

frequencies.

CRADLE

FRONTVIEW CONNECTOR

GUIDEPIN XMC10

SYSTEM

CONNECTOR

Xpress XM®

RECEIVER

SYSTEM

CONNECTOR

Xpress XM®

RECEIVER

REARVIEW

RAISED

DETENT

RECEIVER

NOTCH

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de coche de Audiovox

Audiovox

Audiovox HD5212 Manual de usuario

Audiovox

Audiovox IPD-1 Manual de usuario

Audiovox

Audiovox Jensen CD3720 Manual de usuario

Audiovox

Audiovox Prestige P-49 Manual de usuario

Audiovox

Audiovox Jensen MP5620 Manual de usuario

Audiovox

Audiovox XMCommander XM-RVR-FM-001C Manual de usuario

Audiovox

Audiovox Prestige P-955 Manual de usuario

Audiovox

Audiovox Jensen MP7720 Manual de usuario

Audiovox

Audiovox Sirius SIR-PNP3 Manual de usuario

Audiovox

Audiovox Prestige P-57S Manual de usuario

Audiovox

Audiovox 990 Manual de programación

Audiovox

Audiovox Prestige P-88 Manual de usuario

Audiovox

Audiovox 128-6210A Manual de usuario

Audiovox

Audiovox Prestige P-48 Manual de usuario

Audiovox

Audiovox Prestige P-953ESP Manual de usuario

Audiovox

Audiovox Prestige P-72 Manual de usuario

Audiovox

Audiovox VM8012 Manual de usuario

Audiovox

Audiovox Rampage ACD-84 Manual de usuario

Audiovox

Audiovox CD2620SE Manual de usuario

Audiovox

Audiovox FLO TV Manual de usuario

Audiovox

Audiovox VM9313 Manual de usuario

Audiovox

Audiovox VM9413 Manual de usuario

Audiovox

Audiovox Prestige P-105 Manual de usuario

Audiovox

Audiovox mp6512i Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
