Audiosystem M Series Manual de usuario

designed and engineered by audio system Germany

High-Performance

Car- amplifier

owner‘s manual

since 1988

german sound

M + C

co-220.1

M-400.1 MD

- Adaptercable HLAC und z-pro rca hi(optional)

- Very fast automatic music detection

- High-Level-Input with automatically TURN ON

- 1-Channel digital Mono-High-Power amplifier / 1-Channel Mono-High-Power amplifier

- High efficiency of max. 90 %

- Stable into 2 Ohm mono

- Variable Low Pass Filter from 50 to 150 Hz and fixed Subsonicfilter at 25 Hz

- Variable Phase Shift from 0° to 180°

- Input Sensitivity from 0,2 to 6 V

- Multi-Way Protection Circuitry: overheating, overcurrent, short circuitry and speaker DC protection

- Operation Voltage from 8 to 16 V

- Wired Remote Controller RTC

- 4mm²-cableset in 5 m length included (only M-400.1 MD)

-2-

features

M-400.1 MD / co-220.1

IMPORTANT: Before installation your power amplifier, we recommend to read the owner´s manual carefully

and to follow the instructions regarding connection and fitting exactly.

Congratulation on your purchase of your new m + c-Series amplifier.

IMPORTANT: Your proof of purchase is evidence of warranty claim for repair or replacement. Keep your proof

of purchase, manual and original packaging.

ATTENTION: Pay attention to advices and instructions of the car manufacturer.

ATTENTION: Use of sound components can impair your ability to hear necessary traffic sounds and may

constitute a hazard while driving your automobile.

Audio SystemGermany accepts no liability for hearing loss, bodily injury or property

damage as a result of use or misuse of our products. We recommend installing the equipment by an

authorized service center or dealer. A professional fitting and connection is the requirement for further

warranty and perfect sound.

-3-

4. Remote connection:

Connect the REM-terminal of the amplifier to the remote-output (automatic 12 V antenna-output) of the head unit. Use

a 0,5 - 1,5 mm power cable.

The M-400.1 mD + co-220.1 have a remote out (RO) for additional amplifier.

When using High-Level-Inputs the remote connection is not neccessary.

3. +12 V Power connection:

Connect the +12 V contact of the amplifier with the supply cable via a fuse directly to the vehicle battery. Keep in

mind, that the length of the cable from fuseholder to vehicle battery has to be maximum 30cm. For the amplifier to

function at its best, use a high quality fuse holder and suitable cable preferably AWG 7-5 cable. This fuse protects the

amplifier and the vehicle against the possibility of a short circuit in the power cable.

1. Battery disconnection:

First, disconnect the power supply of the

vehicle by removing the ground cable of

the battery.

2. Ground connection:

Connect the GND (ground) connection

of the amplifier with the car chassis.

Keep this cable as short as possible (not

longer than 50 cm) and use a suitable

cross section (AWG size 7-5).

Make sure, that the connection with the

vehicle chassis is free of paint, dirt and

dust.

GROUND

fuse

Remote

connection

blue

power connection

a) Take care of a professional attachement. Pay attention, that no electrical cable, gas tank, hydraulic

breakes or other components get damaged.

b) There has to be enough cooling and air circulation. Avoid the installation in small closed boxes or close to

heatening parts.

c) Protect the amplifier from fluids, wetness, heat and foreign material as well as from other influences.

d) The amplifier is only to be built into vehicles with a 12 V DC power supply .

e) Never install the power supply cable with other original wires of the vehicle (gas cables), fan motors,

brand control moduls etc.

f) Install the signal cable (cinch cable) as well as the speaker cable far away of the power cables to avoid

troubles with the music signal.

g) The cables of your amplifier have to be installed in a way so that there is no danger of binding,

squeezing or breaking.

Please follow the instructions during the installation of your amplifier:

ATTENTION

BATTERIE RADIO

REM

orange

M-400.1 Md / CO-220.1

-4-

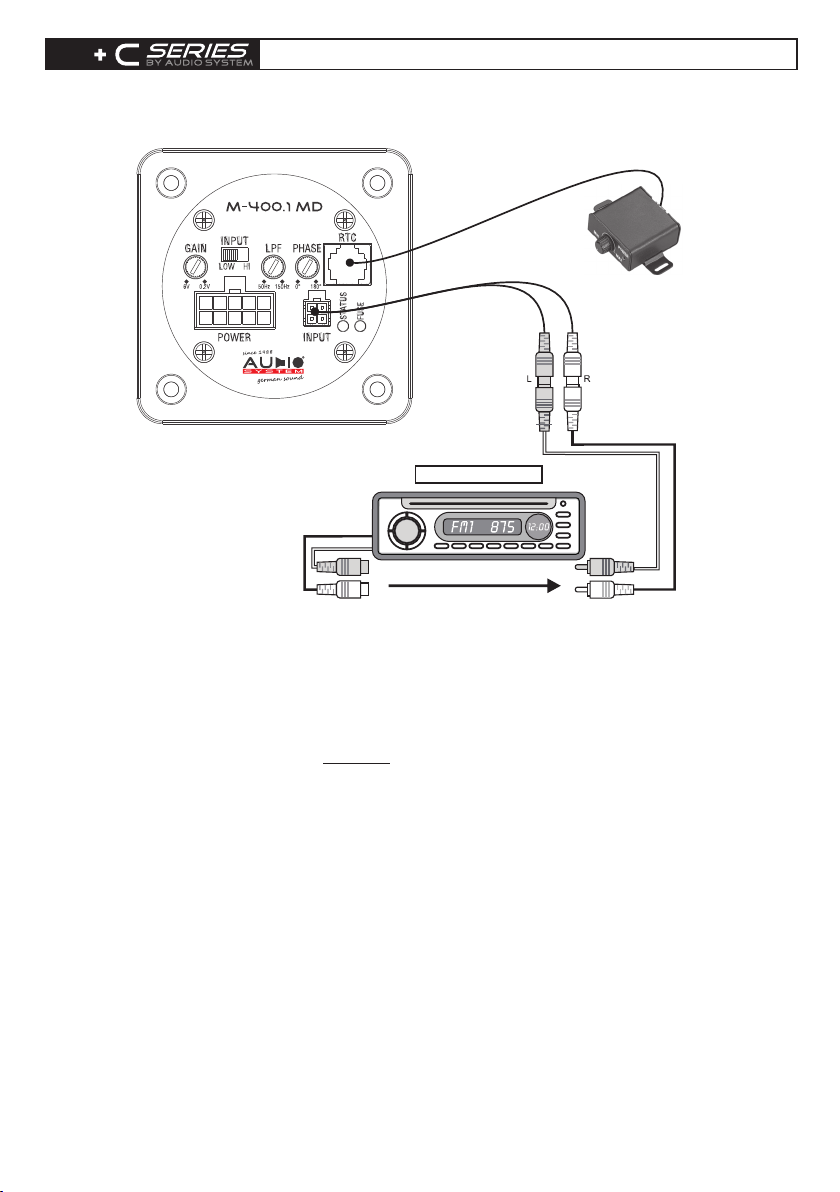

RCA connection

The M/c Series amplifier offers RCA-Inputs, which are connected through cinch cables with the

preamplifier-outputs of the head unit. If the head unit (OEM-RADIO) has no RCA-Output, than it is possible to connect

the speaker output direct to RCA/Cinch-Input of the amplifier.

With the aid of the variable lowpassfilter, phase shift-controller and the gain-controller you are able to adjust the

amplifier on to your preferred taste of hearing, the circumstances of the vehicle and to the speakers.

Optional a wire remote controller RTC can be installed to adjust the output level.

In this regard, AUDIO SYSTEM germany recommends to adjust your amplifier through a specialized

service center, dealer or a specialist.

The Input Mode has to be switched to “HI“. Important: the Gain-Controller has to be adjusted to minimum, then

carfully turn up the volume. If signal is presented, the amplifier automatically turns on. Adaptercable HLAC und

z-pro rca hi can be purchased at your specialized dealer.

Steuergerät (Radio)

Kabelfernbedienung

RTC

Kabelfernbedienung

RTC

M-400.1 MD / CO-220.1

-5-

speaker connection

Please note that this units are mono block units and have only one channel. Connecting to either the positive or

negative of either of the two connections will end in the same result as both positive connections (or both negative

connections) are tied together inside the unit. For example, if you connect two 4 ohm subwoofers, the amp will

parallel the connections for a 2 ohm load.

M-400.1 MD / co-220.1

MONO

Speaker

Impedance

2 ~ 8 Ohm

RED

BLACK

-6-

trouble shooting

This power amplifier is featured with an efficient protection system to prevent any damages like over-heating,

overvoltage, short-circuit and DC at the loudspeaker output.

Occuring an error the protection-LED will light in red. In order to check the problem, first turn down all levels of

the head unit, afterwards turn it off.

AMPLIFIER IS NOT

POWERED UP, NO LED IS

LIGHTENING - fuses inserted and alright?

- ground connection connected properly?

- remote cable connected properly?

- +12V powercable connected properly?

- analyze voltage on the amplifier.

- cinch cable ok and properly connected

- loudspeaker properly connected?

- head unit alright?

- amplifier too hot?

- short-circuit at the loudspeaker output?

- short-circuit caused by loudspeaker cable with vehicle chassis (ground)?

- input voltage too high (e.g.faulty generator)?

ILLUMINATES GREEN

PROTECTION LED

WHILE AMPLIFIER IS

SOUNDLESS

WHEN AMPLIFIER IS

ILLUMINATES RED

PROTECTION LED

POWERED UP

ERROR IN AMPLIFIER FUSE

Make sure when changing fuses to use the same value.

! CAUTION !

- ground professional connected?

- loudspeaker impedance alright?

SOUND TOO LOW OR

LOW-DISTORTED SOUND - output level control of the head unit alright?

- loudspeaker error?

- crossover frequencies has been properly set?

(Check head unit, amplilfier, DSP, soundprozessor, equalizer,

frequency bandpassfilter...)

- input level control “GAIN” is set to match the head unit?

- loudspeaker cable checked?

- ground connection properly connected?

- short-circuit caused by loudspeaker cable with vehicle chassi (ground)?

- cinch cable (RCA) and/or loudspeaker cabel installed too

close to the power connection cable?

- cinch ground (RCA) of the head unit alright?

HIGH HISS-ENGINE NOISE

IN SPEAKERS

Please contact your specialized dealer if the amplifier is still not working after it has been

checked with the error list!

For warranty adjustement / repairs the original invoice has to be attached!

Opening the power amplifier is leading to a lost of warranty in either case!

ATTENTION

OVERHEATING

(PROTECTION LED

ILLUMINATES RED WHEN

AMPLIFIER IS POWERED UP) ! CAUTION !

- impedance alright?

- loudspeaker error?

After cooling down, the amplifier turns on automatically.

- adequate airflow of the amplifier?

-7-

specifications M

M-400.1 MD

Power Supply Voltage

Rated Power Output @ 14,4 V / 3% THD

-RMS power @ 4 Ohm Mono

-RMS power @ 2 Ohm Mono

SIgnal to Noise Ratio

Lowpass crossover range

Subsonic Filter

Frequency Response

THD @ RMS Watts

Fuse Rating

Input Sensitivity

Dimensions

8 - 16 V

1x 200 W

1x 400 W

>96 dB

50 ~ 150 Hz

25 Hz

25 Hz ~ 200 Hz (+/-1 dB)

< 0,042%

1x 25 A (internal)

200 mV ~ 6 V (+/- 5%)

68(D) x 127(L)

Audio System Germany

Falltorstraße 6 - 76707 Hambrücken

since 1988

german sound

PRICE/QUALITY: EXCELLENT

UPPER CLASS

1,6

co-220.1

Power Supply Voltage

Rated Power Output @ 14,4 V / 3% THD

-RMS power @ 4 Ohm Mono

-RMS power @ 2 Ohm Mono

Signal to Noise Ratio

Lowpass crossover range

Subsonic Filter

Frequency Response

THD @ RMS Watts

Fuse Rating

Input Sensitivity

Dimensions

8 - 16 V

1x 150 W

1x 220 W

>96 dB

50 ~ 150 Hz

25 Hz

25 Hz ~ 200 Hz (+/-1 dB)

< 0,042%

1x 25 A (intern)

200 mV ~ 6 V (+/- 5%)

68(D) x 130(L)
