Audiopipe APSM-2125 Manual de usuario
APSM-2125
123
1. RCA Input Jacks
2. Left Speaker Output 3. Right Speaker Output
1. Ground
2. Remote Turn-on Input
3. Battery +12V Input
4. 30 Amp Fuse
5. Protection Circuit Indicator LED
6. Power Indicator LED
45
123
1. GAIN Control
2. Filter Select Switch
3. HPF Control
4. Bass Boost Level
5. LPF Control
456
12 3
APSM-4080
45
123
1. RCA Input Jacks
2. Rear Speaker Output 3. Front Speaker Output
321
910
678
1. Front GAIN Control
2. Front Filter Select Switch
3. Front HPF Control
4. Front Bass Boost Level
5. Front LPF Control
6. Rear GAIN Control
7. Rear Filter Select Switch
8. Rear HPF Control
9. Rear Bass Boost Level
10. Rear LPF Control
456
12 3
1. Ground
2. Remote Turn-on Input
3. Battery +12V Input
4. 40 Amp Fuse
5. Protection Circuit Indicator LED
6. Power Indicator LED
We recommend you have the installation done by Authorized Audiopip dealer. The ground
wire should be connected directly with the chasis of your vehicle which should be a metal
to metal ground point connection. The amplifier must be mounted securely at a solid, dry
and low vibration surface in the trunk or passenger area. Mount the amplifier in an open
air area to insure proper heat dissipation. Mount the amplifier in a place where you can
access it easily to set the input controllers. Install all amplifier cables as far as possible
from car electrical cables such as the car ignition cable.
When bridging two amplifiers please refer to the bridging wiring chart.
When bridging two amplifiers you should use same model amplifiers.
Please make sure the negative speaker terminal of two amplifiers are connected by
the same gauge cables as the positive terminal being used.
DO NOT connect any signal cables with the input RCA jacks when bridged as slave
unit.
The LPF, Input level and remote functions will be disabled on slave amplifier when
bridged.
All the functions of the slave amplifier will be adjusted by the master amplifier.
1.
2.
3.
4.
5.
6.
2- Channel Full-Range Operation
APSM-2125
HPFFLAT
HPFGAIN
MIN MAX
90 500
50Hz 1.2KHz
Bridged-Mono Subwoofer System
APSM-2125
2-Channel Full-Range Satellite, or Subwoofer FLAT System
APSM-2125
HPFFLAT
HPFGAIN
MIN MAX
90 500
50Hz 1.2KHz
HPFFLAT
HPFGAIN
MIN MAX
90 500
50Hz 1.2KHz
HPFFLAT
HPFGAIN
MIN MAX
90 500
50Hz 1.2KHz
4-Channel Full-Range Operation
APSM-4080
Bridged-Mono Subwoofer System
APSM-4080
MIN MAX
MIN MAX
HPFFLAT
HPFFLAT
90 500
50Hz 1.2KHz
90 500
50Hz 1.2KHz

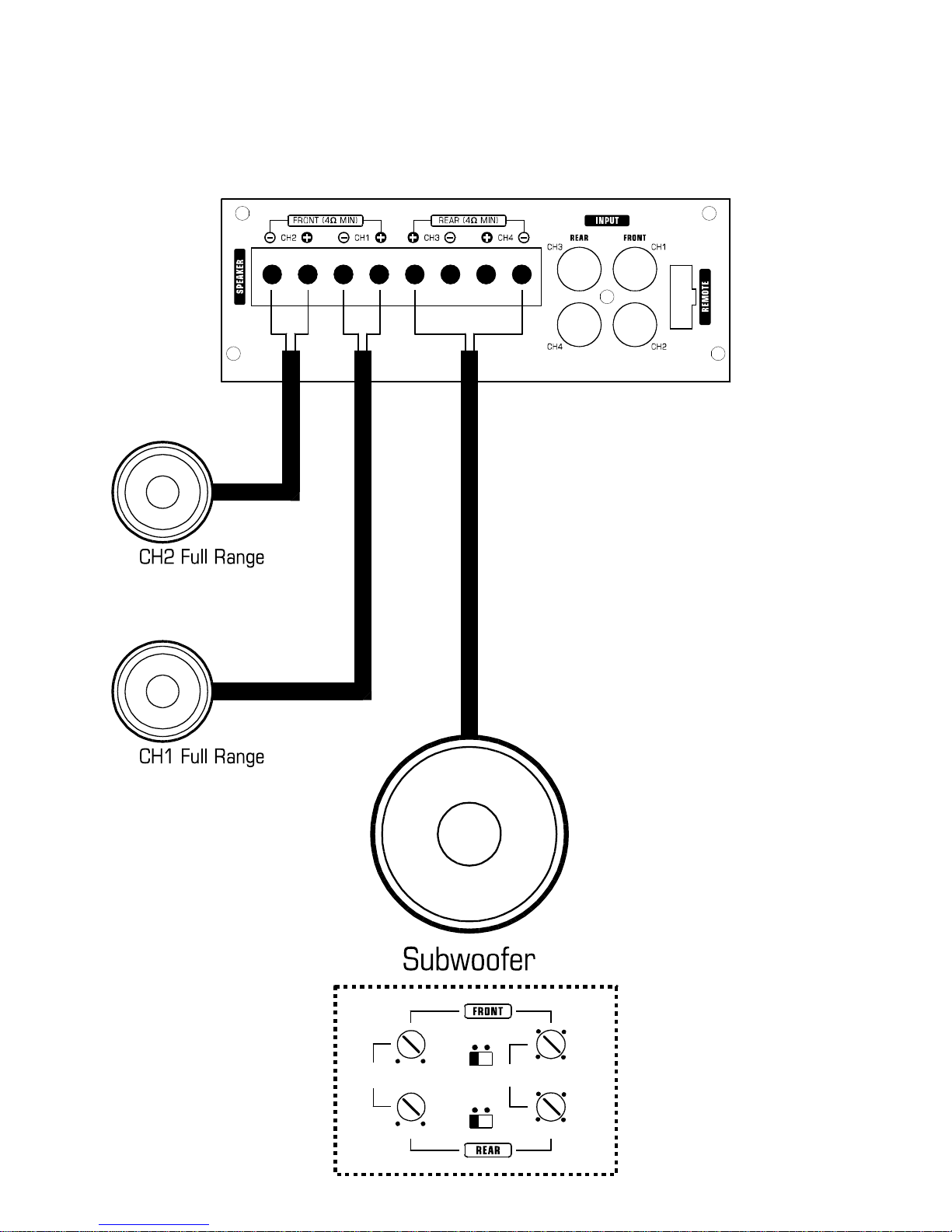

2-Channel Full-Range Satellite, or Subwoofer FLAT System
APSM-4080
MIN MAX
MIN MAX
HPFFLAT
HPFFLAT
90 500
50Hz 1.2KHz
90 500
50Hz 1.2KHz
