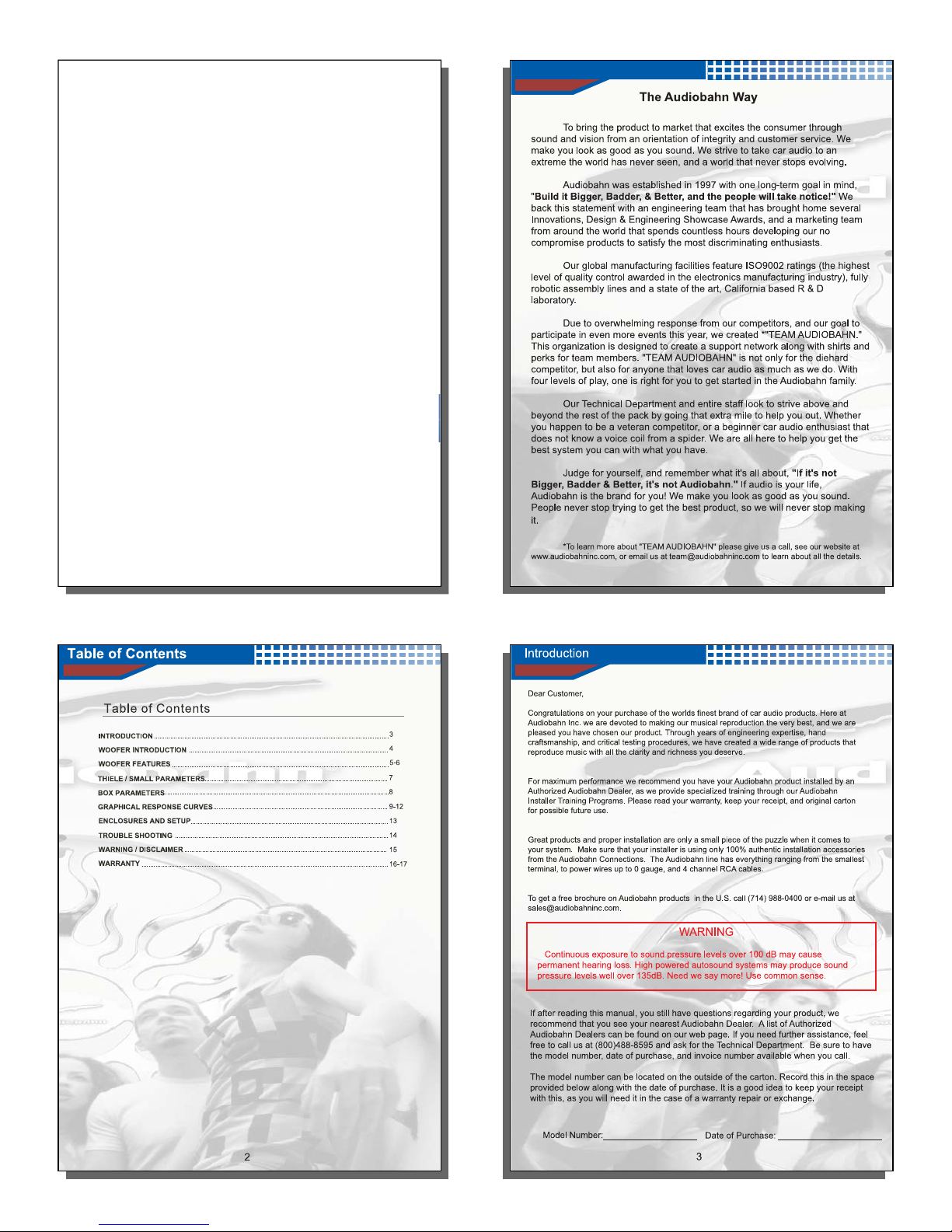

AudioBahn ALUM 8P Manual de usuario

ALUM 8P ALUM 10Q

ALUM 12Q ALUM 15Q

Model # ALUM8P ALUM10Q ALUM12Q ALUM15Q

Fs 28.3 26.4 Hz 24.4 Hz 24.4 Hz

Qts 0.43 0.47 0.47 0.56

Qes 0.46 0.51 0.52 0.63

Qms 4.7 4.9 4.8 5.64

Vas (Liters) 26 Liters 35 Liters 76 Liters 130 Liters

Vas(Cu.Ft.) 0.91 1.24Cu.Ft. 2.66 Cu.Ft. 4.5 Cu.Ft.

Re 5.8 6.0 ohms 5.4 ohms 5.5 ohms

Le 2.3mH 2.50mH 2.7mH 3.15mH

Mmd 113 Grams 158 Grams 186 Grams 290 Grams

Xmax +/- 8 mm +/- 13 mm +/-14 mm +/-16 mm

RMS 350 watts 800 watts 1000 Watts 1100 watts

Sd 0.025 M2 0.033 M2 0.049 M2 0.085 M2

Freq. Resp. 30Hz-1kHz 20Hz-500Hz 18Hz-500Hz 18Hz-500Hz

Efficiency 91.3 dB 95.6 dB 96.4 dB 96.4 dB

EBP 61 56 47 39

Depth 4 3/8" 5" 5 5/8" 7 1/4"

Hole 7 1/4" 9 1/4" 11 1/8" 14"

Diamater 81/2" 107/8" 123/4" 151/2"

Displacement 0.10 Cu. Ft. 0.15 Cu. Ft. 0.18 Cu.Ft. 0.23 Cu.Ft.

Audiobahn Woofer Parameters

Dimensions

Vas does not represent the volume of a Box. Vas is just a parameter used when calculating a box.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

Model # ALUM8P ALUM10Q ALUM12Q ALUM15Q

Ported

Air Space (Cu. Ft.) 0.65 0.6 1.3 1.6

Port Size (Inches) 2 x 6.25 2 x 6.75 3 x 7.25 4 x 10

Port Vel. (%) 16.54 38.34 27.49 28.02

-3dB (Hz) 35 35 35 37

Tune Freq. (Hz) 40 40 39 40

Sub Disp. (Cu. Ft.) 0.1 0.15 0.18 0.25

Port Disp.(Cu. Ft.) 0.09 0.011 0.026 0.06

TotalVol.(Cu.Ft.) 0.75 0.75 1.5 2

Ported

Air Space (Cu. Ft.) 1.15 1.35 2.3 2.65

Port Size (Inches) 3 x 9 3 x 7.5 4 x 7.75 (2) 3 x 7.25

Port Vel. (%) 8.09 18.72 15.53 23.25

-3dB (Hz) 32 31.5 31 32

Tune Freq. (Hz) 38 38 37 37

Sub Disp. (Cu. Ft.) 0.1 0.15 0.18 0.25

Port Disp.(Cu. Ft.) 0.033 0.027 0.051 0.053

TotalVol.(Cu.Ft.) 1.25 1.5 2.5 3

Ported

Air Space (Cu. Ft.) 1.9 2.35 3.25 3.5

Port Size (Inches) 4 x 10.75 4 x 7.25 (2) 4 x 11.25 (2) 4 x 10.5

Port Vel. (%) 4.58 11.14 8.06 13.11

-3dB (Hz) 30 30 30 30

Tune Freq. (Hz) 36 38 37 36

Sub Disp. (Cu. Ft.) 0.1 0.15 0.18 0.25

Port Disp.(Cu. Ft.) 0.073 0.045 0.152 0.14

TotalVol.(Cu.Ft.) 2 2.5 3.5 4

EBP 61

56 47 39

Model # ALUM8P ALUM10Q ALUM12Q ALUM15Q

Sealed

Minimum (Cu. Ft.) 0.25 0.5 0.5 1.5

Maximum (Cu. Ft.) 0.5 1.25 2 3

SPL (dB) 81.4 82.5 85.2 86.8

All sealed boxes already include the displacement for the subwoofer. NR = (Not Recommended)

Audiobahn Box Specifications

Remember to build your box to the total volume, not just air space, as total volume includes all displacement.

An EBP of less then 45 is SUGGESTED for only a sealed box and greater then 65 for a ported box.

The larger a sealed box is, the lower the sub will play, but the less power it will handle. The smaller a sealed box is, the higher the

frequency the sub will play, and the more power it will handle.

All ports listed are circle ports unless otherwise stated. Surface area of a circle port = (3.14) X (radius) (squared)

Ultimate SPL Bass Box

(Not Designed for Competition)

Everyday Bass Performer

Space Saver Bass Design

A port velocity of 20% or under is good for everday use and 5% or under for SPL competition . Port velocity translates to port noise, so

the lower the number, the less port noise you will incur.
