ATTO ExpressSAS Host and RAID Adapter

Installation and Operation Manual

ExpressSAS H644 Adapter

ExpressSAS H608 Adapter

ExpressSAS H680 Adapter

ExpressSAS H60F Adapter

ExpressSAS H6F0 GT Adapter

ExpressSAS R644 RAID Adapter

ExpressSAS R608 RAID Adapter

ExpressSAS R680 RAID Adapter

ExpressSAS R60F RAID Adapter

ATTO Technology, Inc.

155 CrossPoint Parkway

Amherst, New York 14068 USA

www.attotech.com

Tel (716) 691-1999

Fax (716) 691-9353

Sales support: [email protected]

Technical support: Monday -- Friday, 8am-6pm EST

[email protected]

(716) 691-1999 ext. 242

holders. No part of this manual may be reproduced in any form or by any means without the express written

permission of ATTO Technology, Inc.

10/2012

.. ... ..... ....... ........ .... . . ........ ...... ..... .... ..... ... ............ .......... ............ ...,,,,,,,, ,,,,,,,,,,,,,,,,

PRMA-0389-000MD

Contents

1 ATTO Provides Storage Solutions ...................................................................1

ExpressSAS Host Adapters

ExpressSAS RAID Adapters

2 Install Drivers .....................................................................................................6

Downloading drivers from the ATTO website

Windows

OS X

Linux

VMware ESXi 5 (ExpressSAS H6xx and H6F0 GT only)

VMware ESX/ESXi 4.1 (ExpressSAS H6xx and H6F0 GT only)

VMware ESX 3.5 (ExpressSAS H6xx and H6F0 GT only)

3 New Windows OS Installation ...........................................................................11

Install the driver into a new version of Windows 2000, XP, Server 2003

Install the driver into a new version of Windows 8, 7, Vista, Server 2012, 2008

4 New OS X Installation ........................................................................................13

5 Install Hardware .................................................................................................15

Installing the adapter

Installing CacheAssure (6Gb RAID Adapters only)

Non-Volatile (NV) Memory Card Installation

Power Module Installation

Bracket details

Adapter board details

Install storage

6 Data Path and LED Control ...............................................................................26

LED Control for Internal SAS Connectors

7 Troubleshooting .................................................................................................37

Appendix A Glossary ............................................................................................i

Glossary

Appendix B Configuration and Management .....................................................iii

Driver Configuration

Adapter Management

Appendix C Standards and Compliances ...........................................................vi

Appendix D Safety and Warranty ........................................................................vii

1 ATTO Provides Storage Solutions

ATTO Technology ExpressSAS low-profile host adapters provide 3Gb and 6Gb SAS/SATA II connectivity for IT

and digital video environments.

The ATTO ExpressSAS host adapter family provides

enhanced reliability and performance thanks to more

than 20 years of ATTO experience with SCSI

hardware and storage connectivity solutions. Using

the latest in PCI Express bus technology, the ATTO

ExpressSAS host adapters deliver blazing-fast

performance with transfer rates.

ATTO provides industry standard PCIe to SAS control

using Serial SCSI Protocol (SSP), Serial ATA

Tunneling Protocol (STP), and Serial Management

Protocol (SMP).

An easy-to-use utility, the ATTO ConfigTool,

configures, manages and monitors the ExpressSAS

adapters. The tool is included in your installation CD.

Installation procedure

The ExpressSAS RAID adapter has a Getting Started

Guide. If you have not used this guide or you are

installing an ExpressSAS host adapter, follow the

instructions in this manual.

In general you must:

1 Ensure you have the equipment and software

you need for the installation:

• ExpressSAS adapter

• ATTO ExpressSAS CD including drivers,

user manuals and utilities (Installation CD)

• The optional low-profile bracket and its

installation procedure

• A computer with an available x8 or x16 PCI

Express expansion slot. The ExpressSAS

adapter has been optimized for x8 electrical

slots. Check your computer’s

documentation

• SAS/SATA storage, cables and connectors

2 Install drivers from the Installation CD for your

operating system. Refer to Install Drivers on

page 6.

3 Install the configuration software, the ATTO

ConfigTool, found on the Installation CD. Refer

to the ATTO Utilities Installation and Operation

Manual for details.

4 Install the adapter. Refer to Install Hardware on

page 15.

5 Attach SAS/SATA storage. Refer to Install

storage on page 25.

6 Configure your storage and adapter, including

RAID, using the ATTO ConfigTool.

Note

Default settings are appropriate for most

systems but you may change settings using

the ATTO ConfigTool.

ExpressSAS features

• Improved performance over traditional

ULTRA320 SCSI with SAS, SATA and SATA II

attachment

• Increased bandwidth through x8 PCI Express

host interface

• Point-to-point technology delivers full throughput

to each connected storage device

• One-click installation

• User-friendly ATTO ConfigTool provides a

simple host-based utility for effortless

configuration; a BIOS setup utility provides

flexibility for custom applications

• Fully Thunderbolt aware, including hot plug and

daisy chain support in a PCIe expansion slot

• For RAID adapters, a user-friendly GUI allows

quick and easy RAID setup

• ADS™ technology alleviates data transfer

bottlenecks and moves data more efficiently

while managing latency

• DriveAssure™ is an ATTO exclusive

combination of features, for the ATTO RAID

series HBAs, that performs predictive and

corrective actions to allow the continued

operation of marginal drives, while ensuring

continued and uninterrupted access to data.

• CacheAssure™ provides confidence that your

cached data will remain intact in the event of an

unexpected power loss, while offering an

environmentally friendly, maintenance-free

solution. (6Gb RAID Adapter only)

• Driver support for Windows®, Linux®,

Mac® OS X, and VMware® ESX/ESXi Server

• RoHS compliant

• 3-year standard warranty

2 ATTO Technology Inc. ATTO ExpressSAS Host & RAID Adapter Installation and Operation Manual

ExpressSAS Host Adapters

ATTO ExpressSAS Host Adapters are engineered for

the most stringent IT server and digital media

workgroup environments and are compatible with

multiple operating systems, applications, and drives.

Providing SAS/SATA II connectivity to up to 1,024 end

devices (H6F0GT supports up to 2,048 end devices),

the ATTO SAS Host Adapter is ideal for both IT and

digital video environments that require a high level of

performance.

H644 technical specifications

• Four internal, four external ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 6.600”

• Height: 2.713”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 5 - 95% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.6A; 3.3V @ 0.2A, 8W

• Airflow: 100 lf/m minimum

H680 technical specifications

• Eight external ports

• Up to 6-Gb/sec per port performance

• Length: 6.600”

• Height: 2.846”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 5 - 95% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.6A; 3.3V @ 0.2A, 8W

• Airflow: 100 lf/m minimum

H608 technical specifications

• Eight internal ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 5.600”

• Height: 2.713”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 5 - 95% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.6A; 3.3V @ 0.2A, 8W

• Airflow: 100 lf/m minimum

H60F technical specifications

• 16 internal ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 8.638”

• Height: 2.918”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 5 - 95% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 1.6A; 3.3V @ 0.8A, 22W

• Airflow: 100 lf/m minimum

H6F0 technical specifications

• 16 external ports

• Up to 6-Gb/sec per port performance

• Length: 5.600”

• Height: 4.376”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 5 - 95% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 1.6A; 3.3V @ 0.6A, 22W

• Airflow: 100 lf/m minimum

H6F0 GT technical specifications

• 16 external ports

• Up to 6-Gb/sec per port performance

• Length: 6.600”

• Height: 2.713”

• Operating temperature: 0-55 °C (32 °F-131 °F)

• Operating humidity: 10- 90% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 1.6A; 3.3V @ 0.6A, 22W

• Airflow: 100 lf/m minimum

4 ATTO Technology Inc. ATTO ExpressSAS Host & RAID Adapter Installation and Operation Manual

ExpressSAS RAID Adapters

ATTO ExpressSAS RAID adapters are ideal for both IT

and digital video environments that require a high level

of protection and performance, supporting up to 256

end devices.

RAID improves data accessibility and reliability during

normal operations. A RAID group is a virtual,

independent single drive with data written to physical

drives according to a RAID algorithm.

DriveAssure™ lets you run longer, faster and

smoother without interrupting data flow while avoiding

the unnecessary cost of replacing functional drives.

The ATTO ExpressSAS RAID adapters support

JBOD, DVRAID™, RAID Level 0, 1, 4, 10, 5 and 6 and

advanced features such as read caching, Hot Spares,

automatic RAID group rebuilding, hot swap and

Simple Network Management Protocol (SNMP).

R644 technical specifications

• Four external & four internal ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 6.600”

• Height: 2.713”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 10 - 90% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.8A; 9.6W

• 12V @1.22A; 3.3V @ .06A, 15.05W

(NVCACHE charging), 12V @1.00A;

3.3V @ .06A, 12.34W (NVCACHE

charged)

• Airflow: 150 lf/m minimum

R680 technical specifications

• Eight external ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 6.600”

• Height: 2.713”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 10 - 90% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.8A; 9.6W

• 12V @1.22A; 3.3V @ .06A, 15.05W

(NVCACHE charging), 12V @1.00A;

3.3V @ .06A, 12.34W (NVCACHE

charged)

• Airflow: 150 lf/m minimum

R608 technical specifications

• Eight internal ports

• Up to 6-Gb/sec per port performance

• Form factor conforms to PCI low-profile

specification

• Length: 6.600”

• Height: 2.713”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 10 - 90% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 0.8A; 9.6W

• 12V @1.22A; 3.3V @ .06A, 15.05W

(NVCACHE charging), 12V @1.00A;

3.3V @ .06A, 12.34W (NVCACHE

charged)

• Airflow: 150 lf/m minimum

R60F technical specifications

• Sixteen internal ports

• 1/2 height form factor

• Up to 6-Gb/sec per port performance

• Length: 8.638”

• Height: 2.846”

• Operating temperature: 0-40 °C (32 °F-104 °F)

• Operating humidity: 10 - 90% non-condensing

• Storage temperature: -40-70 °C (-40 °F-157 °F)

• Storage humidity: 5 - 95% non-condensing

• Power (typ): 12V @ 2A, 25W

• Airflow: 250 lf/m minimum

6 ATTO Technology Inc. ATTO ExpressSAS Host & RAID Adapter Installation and Operation Manual

2 Install Drivers

ATTO ExpressSAS host adapters require a current device driver and hardware flash for proper operation.

Your adapter was properly flashed before shipment.

However, you must add ExpressSAS drivers to your

computer before continuing with installation.

If you already have one or more ExpressSAS adapters

installed and you have the latest drivers found on the

ATTO web site, or you followed the instructions in the

Getting Started Guide, you do not need to perform

any

of these procedures.

Drivers for Windows, OS X and Linux are supplied on

the Installation CD and on the ATTO web site.

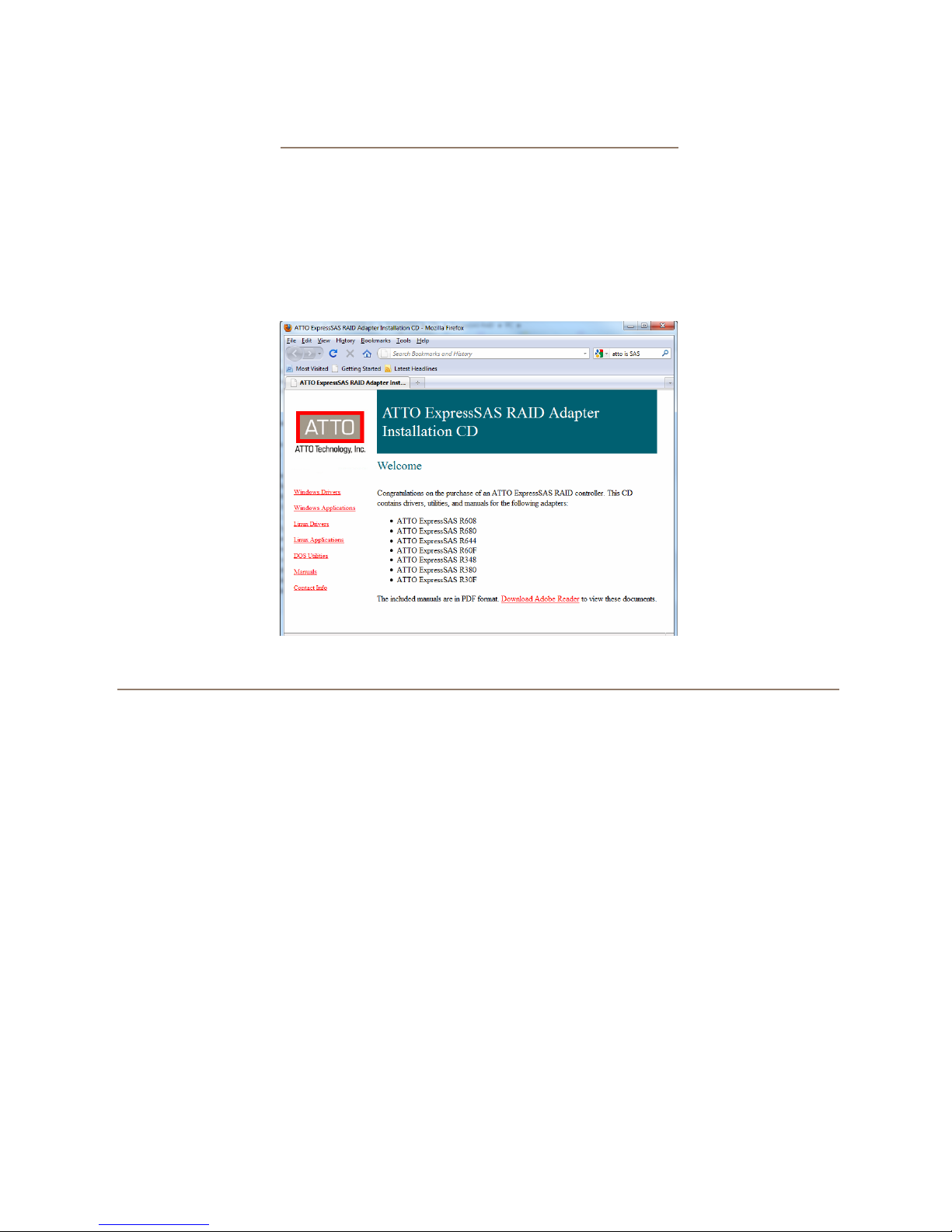

Exhibit 2-1 The Installation CD splash screen. for the ExpressSAS RAID host adapter.

Downloading drivers from the ATTO website

Use this procedure if you need to update drivers. The

latest driver for your adapter can be found on the

ATTO website.

1Gotowww.attotech.com.

2 On the splash screen menu, put your cursor

over Downloads then click on Product

Downloads.

3 Register or log in if previously registered.

4SelectSAS/SATA Host & RAID Adapters

from the product list.

5 Select your model.

6 From the table, find your Operating System.

7 Click on the entry for the latest driver.

8 A download window appears. Follow the

instructions for downloading the driver.

Internet Explorer users may select Run to

automatically run the downloaded self-

extracting executable file.

All other browser users select a download

destination and run the self-extracting

executable file.

9 Continue with the driver installation as

described on the following pages for your

Operating System.

Windows

Installing from the ExpressSAS

Installation CD

1 Power on your system.

2 Log on to Windows as the system

administrator.

3 Insert the Installation CD into a CD or DVD

drive. The CD begins automatically and

displays the Installation Guide. If the CD fails

to begin automatically, navigate to the root of

the CD, and run Autorun.bat.

4SelectWindows Drivers from the items on the

left side of the screen.

5 Select the appropriate CPU-based operating

system from the operating system choices. If

you do not know which version to select,

contact your system administrator or refer to

your operating system manual.

6SelectInstall Windows Driver.

For Windows 8, 7, Vista and Server 2012,

2008: If you have User Account Control

enabled, you are asked for permission for the

installer to continue. If you do not have

administrator privileges, you are also asked for

an administrator user name and password.

complete the required fields and click

Continue.

7 Click Install.

8 Follow the on-screen instructions to complete

the driver installation.

9 Continue on to Install Hardware on page 15.

Installing from the ATTO Technology

website

1 Power on your system.

2 Log on to Windows as the system

administrator.

3 Follow the instructions in Downloading drivers

from the ATTO website on page 6.

For Windows 7, Vista and Server 2008: If you

have User Account Control enabled, you are

asked for permission for the installer to

continue. If you do not have administrator

privileges, you are also asked for an

administrator user name and password. Fulfill

the required fields and click Continue.

4 Click unzip. The driver files are extracted and

the driver installer is launched.

5 Click Install.

6 Follow the on-screen instructions to complete

the driver installation.

7 Continue on to Install Hardware on page 15.

Installing from a directory containing the

ExpressSAS driver

1 Power on your system.

2 Log on as the system administrator.

3 Navigate to the directory containing the

ExpressSAS driver.

4RunSetup.exe.

For Windows8, 7, Vista and Server 2012, 2008:

If you have User Account Control enabled,

you are asked for permission for the installer to

continue. If you do not have administrator

privileges, you are also asked for an

administrator user name and password. Fulfill

the required fields and click Continue.

5 Click Install.

For Windows 8, 7, Vista and Server 2012,

2008: If you have User Account Control

enabled, you are asked for permission for the

installer to continue. If you do not have

administrator privileges, you are also asked for

an administrator user name and password.

Fulfill the required fields and click Continue.

6 Follow the on-screen instructions to complete

the installation.

7 Continue on to Install Hardware on page 15.

OS X

1 Power on your system.

2 Insert the Installation CD.

3 After it mounts, open the ExpressSAS volume.

4 Select the Drivers folder.

5 Launch the installer.

6 Follow the on-screen instructions.

7 Continue on to Install Hardware on page 15.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Adaptador de host de ATTO Technology

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 2600 Manual

ATTO Technology

ATTO Technology Celerity FC-41EL Manual de usuario

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3342 Manual de usuario

ATTO Technology

ATTO Technology ExpressSAS H1208 HBA Manual de usuario

ATTO Technology

ATTO Technology Celerity FC-21PS Manual de usuario

ATTO Technology

ATTO Technology ATTO Celerity FC-42XS Manual de usuario

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3300 Manual

ATTO Technology

ATTO Technology Celerity FC-41EL Manual de usuario

ATTO Technology

ATTO Technology Celerity FC host adapters FC-44ES 4-Gb Manual de usuario

ATTO Technology

ATTO Technology R30F Manual de usuario

ATTO Technology

ATTO Technology UL4D PCI Manual de usuario

ATTO Technology

ATTO Technology H30F Manual de usuario

ATTO Technology

ATTO Technology ATTO ExpressPCI FC 3321 Manual de usuario

ATTO Technology

ATTO Technology R30F Manual de usuario

ATTO Technology

ATTO Technology Celerity FC-84EN Manual de usuario

ATTO Technology

ATTO Technology ATTO XstreamCORE FC 7550 Manual de usuario

ATTO Technology

ATTO Technology R30F Manual de usuario

ATTO Technology

ATTO Technology ExpressSAS H1208 HBA Manual de usuario

ATTO Technology

ATTO Technology ExpressPCI UL5D Manual de usuario

ATTO Technology

ATTO Technology ATTO Celerity FC-42XS Manual de usuario

ATTO Technology

ATTO Technology H30F Manual de usuario

ATTO Technology

ATTO Technology ExpressPCI UL5D LP Manual de usuario

ATTO Technology

ATTO Technology Celerity FC-41EL Manual de usuario

ATTO Technology

ATTO Technology Low-Profile SAS Host Adapter H308 Manual de usuario

Manuales populares de Adaptador de host de otras marcas

Digital Equipment

Digital Equipment StorageWorks EK-KZPCM-UG Manual de usuario

Sun Microsystems

Sun Microsystems Sun StorEdge Manual de usuario

LSI

LSI LSI21320-R Manual de usuario

LSI

LSI Ultra160 Manual de usuario

Tekram Technology

Tekram Technology TR-824 Manual de usuario

LSI

LSI S14037 Manual de usuario

Sonnet

Sonnet Tempo Ultra ATA66 Manual de usuario

Adaptec

Adaptec AHA-3940UW/OF Manual de usuario

HighPoint

HighPoint RocketRAID 600L Manual de usuario

Tekram Technology

Tekram Technology DC-820B Manual de usuario

HighPoint

HighPoint RocketRAID 174x Manual de usuario

Adaptec

Adaptec AHA-2944UW Manual de usuario

IBM

IBM System Storage DS4000 Manual de usuario

HP A8002A Instrucciones de uso

Yealink

Yealink VC400 Manual de usuario

Sans Digital

Sans Digital HA-SAN-4ESPCIE Manual de usuario

Adaptec

Adaptec AHA-2740 Manual de usuario

Adaptec

Adaptec AHA-1540CP Manual de usuario
