Atomic FFZ Manual de usuario

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Assembly Manual

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

M2x6 PM

Motor Mount

M2x6 PM

6x8x1.5 O-ring

2x5x2.5 Bearing

3x6x2 Bearing

M1.7x3 KM

M2x4 KM M1.7x3 KM

Step 2 – Chassis and Bulkheads

Step 1 - Drive Pulley Assembly

Steel Axel

Spur Gear

15T Drive Pulley

2.0*3.0 *0.1 washer

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Rubber Collar

Apply Ball Diff Grease

3x6x2 Bearing

Diff Lock Nut

M2x4 PM

6x10x3 Bearing

Adjust the bearing hub position to

adjust belt tension. Middle position is a

good start.

40T Belt

Step 4 – Front Drive System

Apply Thrust

Bearing Grease

oil

Loosen

Tighten

er a

Diff tool

27T

Step 3 – Ball Differential

Polish the diff plate and thrust

bearing plate with #1500 sand

paper

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Step 5 – Servo Mount M2x4 KM

M2x4 KM

M2x4 PM

Adjust the gear mesh, not too lose nor

too tight

Step 6–Motor and Pinion Gear

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Step 7 – Battery Holder

Step 8 –Top Deck

M2x4 KM

M1.5x 4 PM

M1.5 x 4 PM

Instant glue

M2x4 PM

M2x4 PM **

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Step 9 – Front Arms

Step 10 – Front Knuckles

2 x 12 pin

1.5 x 11 pin

1.2 x 4 PB (self-tapping screw)

1.2 x 3 PM

4.0mm Ball Head

Put 0.1 or 0.2 shims to adjust the

Play slop (M3 shims) 3 x 6 x 2

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Step 11 – Steering Crank

Normal Thread

Reverse Thread

Step 12 – Steering System

3x6x2 Bearing

6.5 mm

2.5 Ball Caps

2.5 Ball Heads

M2 x 5 x 0.8 shims (4pcs)

M2 x 8 PM

M2 x 4 PM

3 x 5 x 0.2 shim

Video to show how to smooth ball links, please scan the QR code.

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

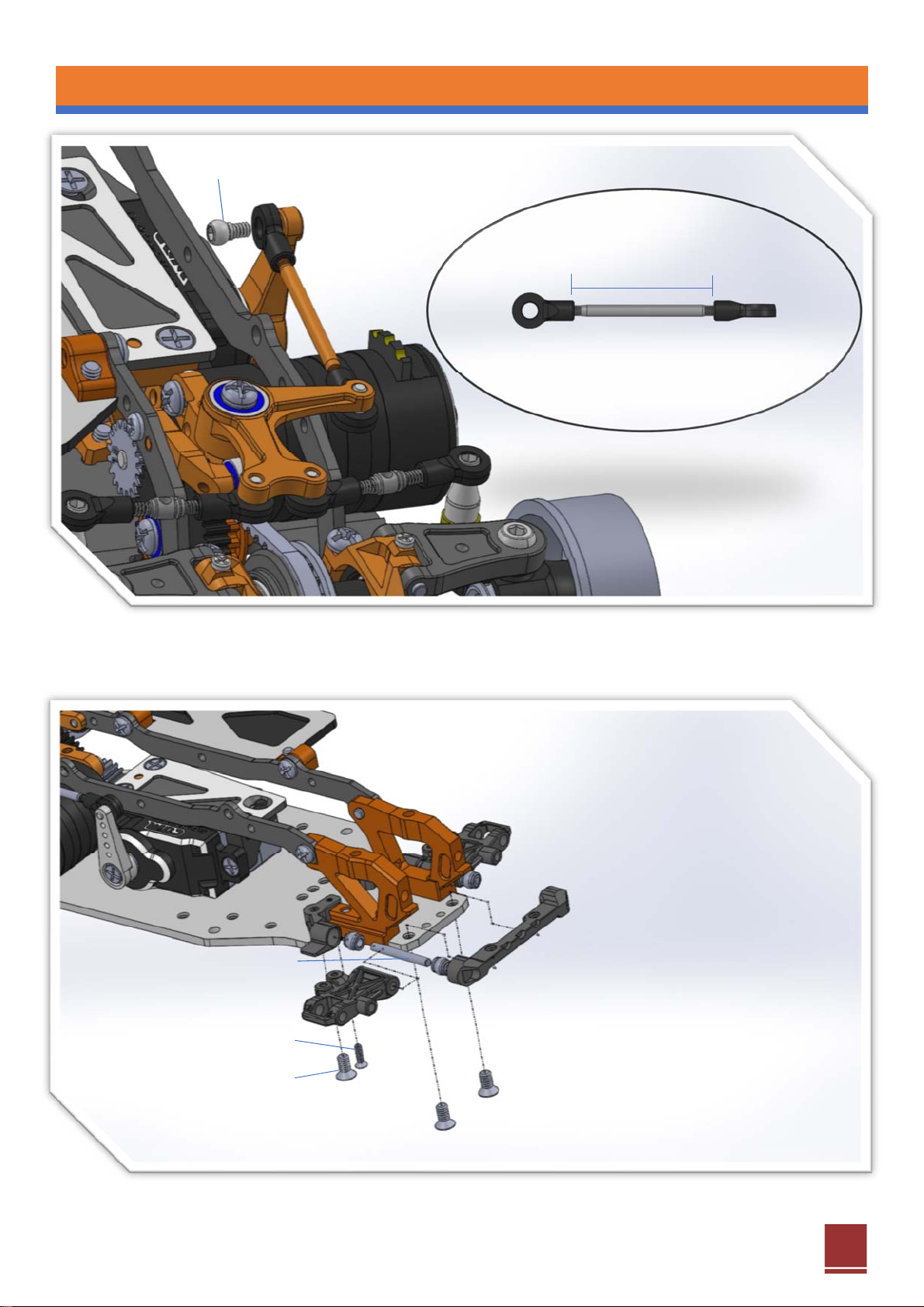

Step 13 – Servo Linkage

Step 14 – Rear Arms

2.5 Ball Heads

17mm

M2 x 4 KM

1.2 x 4 KA (Flat head self-taping)

1.5 x 13 pin

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

Step 15 – Rear Uprights

Step 16 – Rear Suspension

3.5 Ball Head

Camber link Collar

3 x 6 x 2 Bearing

Wheel Axle

Rear upright

2 x 8 pin

Pin cover

FFZ -FRONT WHEEL DRIVE CHASSIS ATOMIC

V1.1 (25 Dec 2018)

18.8mm

Step 17 – Rear Camber Links

Step 18 – Rear Dampers

M2 x 6 set screw

3.5mm Ball Head

M1.2 x 4 PB

M2 x 4 PM

M2 x 4 KM

M2 x 4 PM

M2 x 6 PM

4mm Hollow Ball

Apply shock grease #25000

Default setup
