Read this entire manual before operation begins.

Record below the following information which is located on the serial number

data plate.

Serial No.

Model No.

Date of Installation

Contents

Speciﬁcations . . . . . . . . . . . . . 4

Installation Requirement . . . . . . . 5

Steps Of Installation . . . . . . . . . 7

Exploded View . . . . . . . . . . . . 30

Test Run . . . . . . . . . . . . . . . 33

Cylinder Bleeding Procedure . . . . . . 34

Operation Instructions. . . . . . . . . 36

Maintenance Schedule. . . . . . . . . 37

Trouble Shooting . . . . . . . . . . . 38

Parts List . . . . . . . . . . . . . . . 39

Warranty . . . . . . . . . . . . . . . 44

Specifications 4

414

Speciﬁcations

414 Features

• Manual control air-operated system.

• Mechanical self-lock and air-driven safety release.

• Manual hydraulic power system, cable-driven.

• Sand ﬁnish platform

• Adjustable platform and adjustable safety lock ladders.

• Optional Jack:With hand pump/Air-operated hydraulic pump/Controlled by

power unit.

Fig. 1

Model Lifting

Capacity Lifting

Height Lifting

Time

Overall

Length

(Inc. Ramps)

Overall

Width

Between

Posts

Gross

Weight Motor

414 14,000 lbs 74” 60 S 256” 130

7/8” 116” 3200 lbs.

2.0 HP

220V

1 Phase

Installation Requirement 5

414

Installation Requirement

Tools Required

Rotary Hammer Drill (Φ19)

Hammer

Level Bar

English Spanner (12”)

Ratchet Spanner With Socket (28#)

Wrench set

(10#, 12#, 13#, 14#, 17#, 19#, 24#, 30#)

Carpenter’s Chalk

Screw Sets

Tape Measure (25’)

Pliers

Socket Head Wrench (3#, 5#, 6#)

Lock Wrench

Fig. 2

Installation Requirement 6

414

Concrete Speciﬁcations

Speciﬁcations of concrete must be adhered to the speciﬁcation as

following. Failure to do so may result in lift and/or vehicle falling.

1. Concrete must be thickness 6” minimum and without reinforcing steel bars,

and must be dried totally before the installation.

2. Concrete must be in good condition and must be of test strength 3,000psi

(220kg/cm2) minimum.

3. Floors must be level and no cracks.

Fig. 3

Air Supply

Air pressure requirement: 75-120 psi, Air line size 8mm×6mm and 6mm×4mm.

Power Supply

The electric power unit must be greater than 2 horse power. Electrical wire must

be a minimum of 10 gauge.

Steps Of Installation 7

414

Steps Of Installation

A. Location Of Installation

Check and ensure the installation location (concrete, layout, space size etc.) is

suitable for lift installation.

B. Check The Parts Before Assembly

1. Packaged lift and hydraulic power unit (See Fig. 4).

Fig. 4

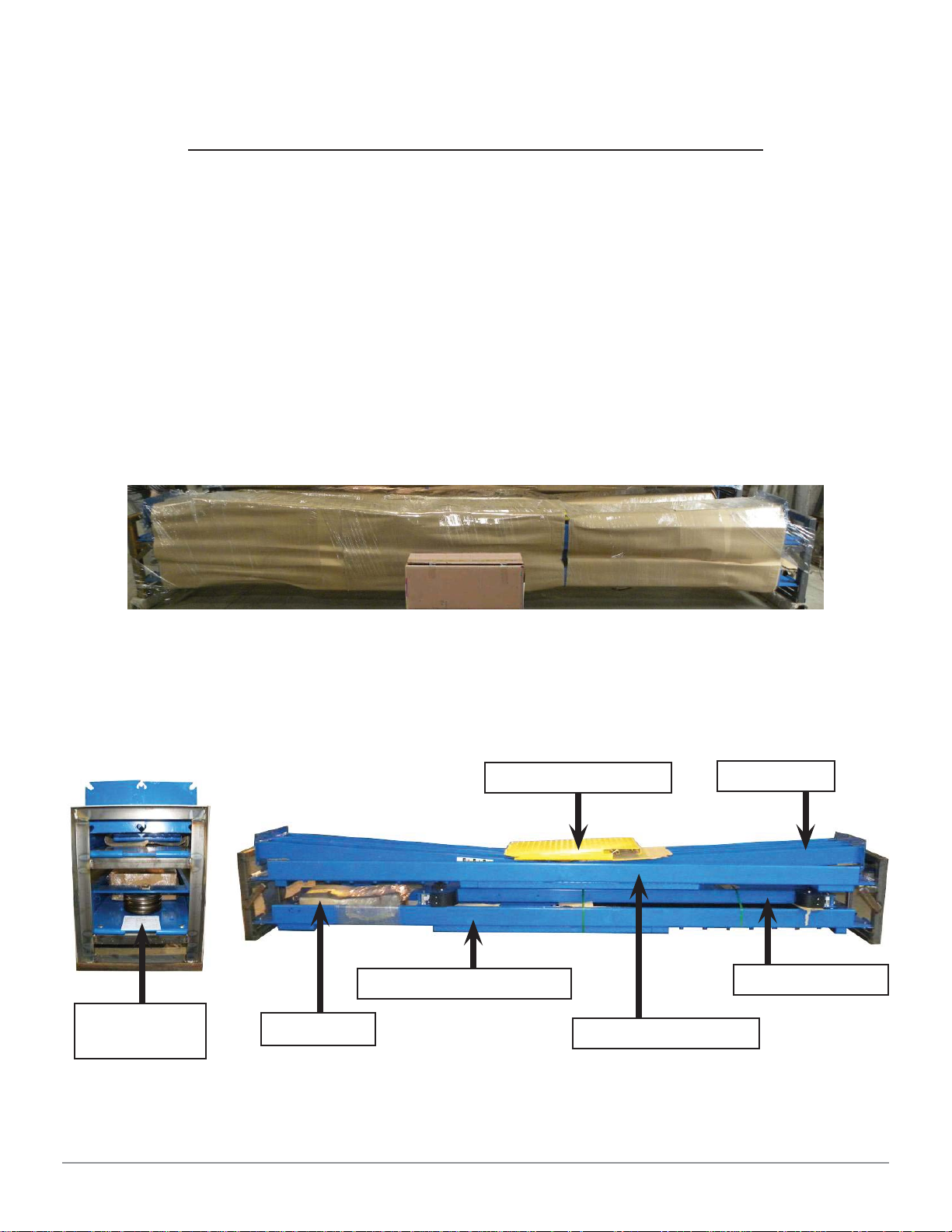

2. Open the outer packing carefully (See Fig. 5).

Fig. 5

Parts box

Drive-thru Ramp

Cross Beam

Column

Offside Platform

Shipment

Parts List

Powerside Platform

Steps Of Installation 8

414

3. Remove the Drive-thru Ramps and Columns (See Fig. 6).

Fig. 6

4. Loosen the screws of the upper package stand, take off the offside

platform, take out the parts inside the power side platform, than remove

the package stand.

5. Move aside the parts and check the parts according to the shipment parts

list. (See Fig. 7).

Fig. 7

Steps Of Installation 9

414

6. Open the carton of parts and check the parts according to the parts box list

(See Fig. 8).

Fig. 8

7. Check the parts of the parts bag according to the parts bag list (See Fig. 9).

Fig. 9

Steps Of Installation 10

414

C. Use A Carpenter’s Chalk Line To Establish

Installation Layout As Per Table 1

Make sure the size is right and base is ﬂat (see Fig. 10).

Note: Reserve space before and behind the installation site.

Fig. 10

MODEL A B C

414 216 1/2” 130 7/8” 253”

Table 1

Use a carpenter’s

chalk line to establish

installation layout

Car in Direction
