Atlantic Alfea extensa + Manual de usuario

Installation and

operating manual

intended for professionals

To be saved for

future consultation

Document n° 1734-10- ~ 19/05/2017

alféa extensa +

atlantic-comfort.com

FR NL DE EN IT

ES PT PL PT PT

Heat pump air/water

split 1 service

Outdoor unit Hydraulic unit

WOYA 060 LFCA 023650

WOYA 080 LFCA 023651

WOYA 100 LFTA

WOYG112LHT 023652

WOYG112LCTA

WOYG140LCTA

Contents

Package . . . . . . . . . . . . . . . . . . . . . . . . 4

Denitions . . . . . . . . . . . . . . . . . . . . . . . 4

Specications . . . . . . . . . . . . . . . . . . . . . 5

Description. . . . . . . . . . . . . . . . . . . . . . 10

Operating principle . . . . . . . . . . . . . . . . . 11

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Regulation installation and maintenance conditions 13

Unpacking and reservations. . . . . . . . . . . . . 13

Receipt . . . . . . . . . . . . . . . . . . . . 13

Handling . . . . . . . . . . . . . . . . . . . 13

Containment of refrigerant circuits . . . . . . 13

Accessories provided . . . . . . . . . . . . . 13

Installation of refrigerant connections . . . . . . . . 14

Installation of the outdoor unit . . . . . . . . . . . . 15

Installation precautions . . . . . . . . . . . . 15

Outdoor unit positioning . . . . . . . . . . . 17

Condensate drain hose . . . . . . . . . . . . 17

Installing the hydraulic unit . . . . . . . . . . . . . 18

Installation precautions . . . . . . . . . . . . 18

Positioning the hydraulic unit . . . . . . . . . 18

"This device requires for its installation, the intervention of qualied personnel with a certicate of

capacity for handling refrigerants.

Description of the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Refrigerant gas connection and lling the installation with gas . . . . . . 19

Rules and precautions. . . . . . . . . . . . . . . . 19

Shaping the refrigeration pipes . . . . . . . . . . . 19

Bending . . . . . . . . . . . . . . . . . . . . 19

Creating the arings . . . . . . . . . . . . . 19

Accessing the hydraulic unit’s

refrigerant connections . . . . . . . . . . . . 20

Check and connecting. . . . . . . . . . . . . . . . 22

Filling the installation with gas. . . . . . . . . . . . 24

Seal test . . . . . . . . . . . . . . . . . . . 25

Creating a vacuum . . . . . . . . . . . . . . 25

Filling the installation with gas . . . . . . . . 26

Final sealing test . . . . . . . . . . . . . . . 26

Additional charge . . . . . . . . . . . . . . . 27

Pump down operation (Refrigerant collecting

operation) outdoor unit . . . . . . . . . . . . 28

Hydraulic connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Connecting to the Heating circuit . . . . . . . . . . 30

Rinsing out the installation . . . . . . . . . . 30

Connecting . . . . . . . . . . . . . . . . . . 30

Volume of the heating system . . . . . . . . 31

Filling and purging the installation . . . . . . . . . . 31

Heating circulation pump speed settings . . . . . . 32

Installation and operation manual "1734 - EN"

Heat pump air/water split 1 service alféa extensa +

- 2 -

Electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

General . . . . . . . . . . . . . . . . . . . . . . . 36

Characteristic of the electrical supply. . . . . 36

General remarks on electrical connections . . 36

Overview of all the electrical connections . . 37

Cable section and protection rating . . . . . . . . . 37

Electrical connections on the outdoor unit side . . . 38

Electrical connections on the hydraulic unit side . . 40

Outdoor sensor . . . . . . . . . . . . . . . . . . . 43

Room thermostat and/or room control unit . . . . . 43

Installing a room sensor . . . . . . . . . . . 43

Installing a room control unit . . . . . . . . . 43

Fan convectors or dynamic radiators area . . 43

Commissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Conguring room thermostat . . . . . . . . . . . . 44 Conguring room control unit . . . . . . . . . . . . 45

Regulation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

User interface, Room control unit (option) and

Room thermostat (option) . . . . . . . . . . . . . . 46

Description of the display . . . . . . . . . . . . . . 48

Temperature control . . . . . . . . . . . . . . . . . 48

Set to . . . . . . . . . . . . . . . . . . . . . 48

Parametering the setting . . . . . . . . . . . . . . 50

General . . . . . . . . . . . . . . . . . . . . 50

Setting parameters . . . . . . . . . . . . . . 50

Recommended settings according to the heat

emitters installation . . . . . . . . . . . . . . 50

List of function lines

(settings, diagnosis, status). . . . . . . . . . 51

Overall hydraulic layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Electrical wiring diagrams. . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Faults displayed on the hydraulic unit . . . . . . . . 74

Information display . . . . . . . . . . . . . . . . . 76

Faults displayed outdoor unit . . . . . . . . . . . . 77

Maintenance of the installation . . . . . . . . . . . . . . . . . . . . . . . . 78

Hydraulic checks . . . . . . . . . . . . . . . . . . 78

Checking the outdoor unit . . . . . . . . . . . . . . 78

Electrical checks. . . . . . . . . . . . . . . . . . . 78

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Emptying the hydraulic unit . . . . . . . . . . . . . 78 Distribution valve . . . . . . . . . . . . . . . . . . 78

Quick-start procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Start-up check-list . . . . . . . . . . . . . . . . . . 80

Before starting-up. . . . . . . . . . . . . . . 80

Starting-up . . . . . . . . . . . . . . . . . . 81

Settings sheet . . . . . . . . . . . . . . . . . . . . 82

Start-up data sheet . . . . . . . . . . . . . . . . . 83

ErP performance values . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

ErP Denition . . . . . . . . . . . . . . . . . . . . 84

ErP specications . . . . . . . . . . . . . . . . . . 84

Package che . . . . . . . . . . . . . . . . . . . . 88

Instructions for the user . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Installation and operation manual "1734 - EN" - 3 -

Heat pump air/water split 1 service alféa extensa +

1.1 Package

• 1 package: Outdoor unit.

• 1 package: Hydraulic unit and outdoor sensor.

1.2 Denitions

- Split: The heat pump consists of two elements

(an outdoor unit for outdoor and a hydraulic unit for

inside the dwelling).

- Air/water: The surrounding air is the energy source.

This energy is transmitted to the water in the heating

circuit by the heat pump.

-Inverter: The fan and compressor speeds are modulated

according to the heating requirements. This technology

enables you to save on energy and operate on a single-

phase power supply, whatever the heat pump's output,

by avoiding heavy intensities on start-up.

-COP (coefcient of performance): This is the

relationship between the energy transmitted to the

heating circuit and consumed electrical energy.

1 Description of the unit

Installation and operation manual "1734 - EN"

Heat pump air/water split 1 service alféa extensa +

- 4 -

Packing list

Heat pump (HP) Outdoor unit Hydraulic unit

Models Code Réf. Code Réf. Code

alféa extensa + 5 522220 WOYA060LFCA 700171 MH extensa + 5 023650

alféa extensa + 6 522221 WOYA060LFCA 700171

MH extensa + 6-10 023651alféa extensa + 8 522222 WOYA080LFCA 700172

alféa extensa + 10 522225 WOYA100LFTA 700173

alféa extensa + 13 522226 WOYG112LHT 700197

MH extensa + 13-16 023652WOYG112LCTA 700174

alféa extensa + 16 522227 WOYG140LCTA 700175

• Swimming pool kit (code 074726).

• Cooling kit (code 075312).

• High ow rate circulating pump kit (code 074067)

for the installation of 1 circuit oor heating.

• Kit Pack PAC (code 602 231).

Scope of application

This heat pump provides:

- Heating in winter,

- The addition of electrical back-ups*, for extra heating

on the coldest days,

- Installation with boiler connection* as a supplementary

heating for the coldest days,

- Control of two heating circuits*,

- Production of domestic hot water* (provided that

combined with a DHW tank),

- Cooling in summer* (for oor heating-cooling system

or fan-convectors),

- Heating the swimming pool*.

* : These options require the use of additional kits

(see para " Required accessory" or "Optional equipment").

Required accessory (except with Boiler connection

kit).

• Electrical back-ups kit (code 073985).

Optional equipment

• 2nd circuit kit (code 074025)

for connecting 2 heating circuits.

• Regulation extension kit (code 075311)

to manage a 2nd heating circuit, swimming pool,

telephone modem etc...

• DHW kit (code 073991)

for connecting a DHW tank (with built-in electrical

back-ups).

• Boiler connection kit (code 073989)

for connecting a boiler to the heat pump.

• Room thermostat T55 (code 073951),

Room thermostat radio T58 (code 075313)

for correcting the ambient temperature.

• Room control unit T75 (code 073954),

Room control unit radio T78 (code 074061)

for correcting the ambient temperature and

programming the heat pump.

• Anti-vibration blocks (code 523574).

• White PVC oor support (code 809532) or

Black rubber oor support (code 809536).

1.3 Specications

1 Hydraulic unit : Sound pressure level in (x)m of the device, 1.5 m of the

ground, the open eld / Outdoor unit : Sound pressure level in (x)m of the

device,middle from the ground of the height of the outdoor unit , the open eld.

2 The sound power level is a laboratory measure of the emitted sound power

but contrary to the noise level, it doesn't correspond to the measure of the felt.

3 Refrigerant R410A (as per the standard EN 378.1).

4 Factory charge of refrigerant R410A.

5 Taking into account the possible additional load of refrigeration uid R410A

(see page 27).

Designation models alféa extensa + 5 6 8 10 13 16

Nominal heating performances (outdoor temperature/ initial temperature)

Heat output

+7 °C / +35 °C - Floor heating system kW 4.50 6.00 7.50 10.00 14.01 16.06

-7 °C / +35 °C - Floor heating system kW 4.10 4.60 5.70 7.40 9.45 12.93

+7 °C / +45 °C - Low temperature radiator kW 4.50 5.10 6.20 8.27 10.43 13.60

-7 °C / +45 °C - Low temperature radiator kW 4.10 4.45 5.05 7.40 9.25 11.20

+7 °C / +55 °C - Radiator kW 4.50 4.50 5.0 7.00 7.84 10.03

-7 °C / +55 °C - Radiator kW 3.70 3.85 5.20 7.00 7.29 8.65

Power absorbed

+7 °C / +35 °C - Floor heating system kW 1.00 1.41 1.84 2.49 3.50 4.37

-7 °C / +35 °C - Floor heating system kW 1.47 1.74 2.23 2.97 3.92 5.32

+7 °C / +45 °C - Low temperature radiator kW 1.31 1.50 1.87 2.53 3.19 4.38

-7 °C / +45 °C - Low temperature radiator kW 1.86 2.04 2.47 3.70 4.38 5.22

+7 °C / +55 °C - Radiator kW 1.79 1.79 1.94 2.86 3.25 4.01

-7 °C / +55 °C - Radiator kW 2.20 2.33 3.34 4.15 4.45 5.20

Coefcient of performance (COP) (+7°C / + 35°C) 4.52 4.26 4.08 4.02 4.00 3.68

Electrical characteristics

Supply voltage (50 HZ) V 230

Maximum current for appliance A11 12.5 17.5 18.5 22 25

Nominal current A 4.5 6.3 8.1 10.9 11.4 14.2

Max. current of the Heating electrical back-ups A13.05 / 26.1

Power of the Heating electrical back-ups kW ajustable 3 or 6 kW

Real power absorbed by the fan W 49 49 49 100 2 x 100 2 x 100

Real power absorbed by the circulation pump W 24 24 24 24 39.5 39.5

Maximum power absorption by the outdoor unit W 2530 2875 4025 4255 5060 5750

Hydraulic circuit

Maximum operating pressure Heating MPa (bar) 0.3 (3)

Hydraulic system ow rate 4°C<Δt<8°C

(nominal conditions) mini / maxi l/h 490 / 980 650 / 1300 810 / 1620 1080 / 2160 1380 / 2760 1720 / 3450

Various

Weight of outdoor unit Kg 41 41 42 60 92 92

Noise level at 1 m 1 (hydraulic unit) dB (A) 39

Sound power level according to EN 12102 2 (hydraulic unit) dB (A) 46

Noise level at 1 m 1 (outdoor unit) dB (A) 41 41 47 47 47 48

Sound power level according to EN 12102 2 (outdoor unit) dB (A) 63 63 69 69 69 70

Weight of hydraulic unit (empty / full of water) Kg 42 / 58

Water capacity of the hydraulic unit l 16

Heating system operating limits

Outdoor temperature mini / maxi °C -20/+35 -20/+35 -20/+35 -20/+35 -25/+35 -25/+35

Initial max. heating water temperature

Floor heating system °C 45

Initial max. heating water temperature

Low temperature radiator °C 55 55 55 55 55 55

Flow min. heating water temperatur °C 8

Refrigeration circuit

Diameter of "Gas" pipes Inches 1/2 1/2 5/8 5/8 5/8 5/8

Diameter of "Liquid" pipes Inches 1/4 1/4 1/4 3/8 3/8 3/8

Factory charge of refrigerant R410A 3g 1100 1100 1400 1800 2500 2500

Maximum operating pressure MPa (bar) 4.15 (41.5)

Minimum / Maximum length of pipes 4m 5 /15 5 /15 5 /15 5 /15 5 /15 5 /15

Maximum length of pipes 5m30 30 30 30 20 20

Maximum level difference m20 20 20 20 15 15

Installation and operation manual "1734 - EN" - 5 -

Heat pump air/water split 1 service alféa extensa +

gure 2 - Dimensions in mm

650

AIR

370

830

196

900 77

33031

147

170

400

540

4 holes Ø11

790

290

18 23

209

352

620

320

110

175

AIR

Installation and operation manual "1734 - EN"

Heat pump air/water split 1 service alféa extensa +

- 6 -

"Outdoor unit,

Models extensa + 5, 6 & 8

"Outdoor unit,

Model extensa + 10

450

800

843

97 98 457

479

Heating return

ø M 26x34

Heating ow

ø M 26x34

Front view Side view

"Hydraulic unit

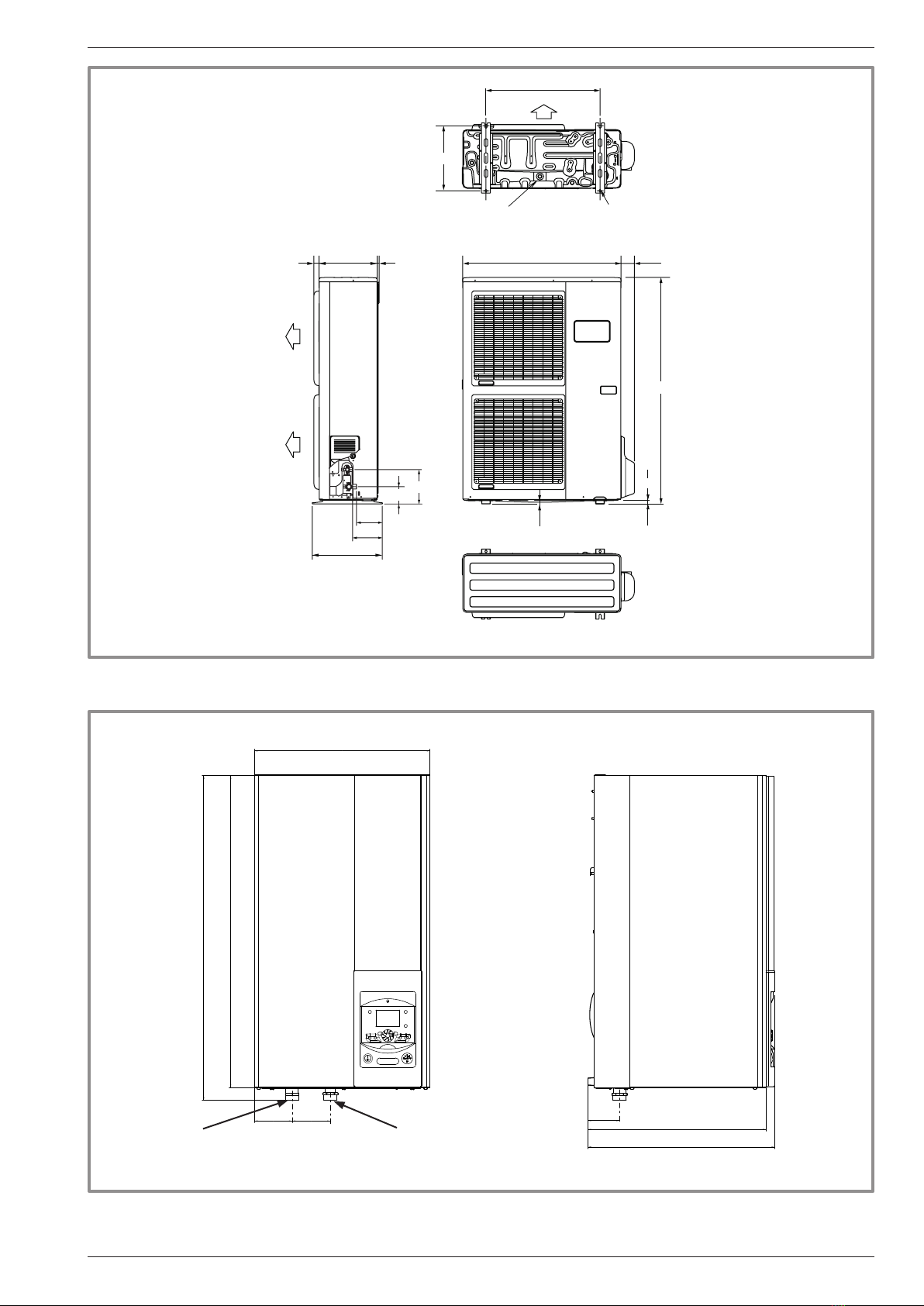

gure 4 - Dimensions in mm

Installation and operation manual "1734 - EN" - 7 -

Heat pump air/water split 1 service alféa extensa +

"Outdoor unit,

Models extensa + 13 & 16

31 77900330 12

400

650

1290

151

170

196

370

3/8

5/8

Air

Overflow hole (Ø 20) 4Ø12Holes

Top view

Front view

Sight of lower part

Side view

Air

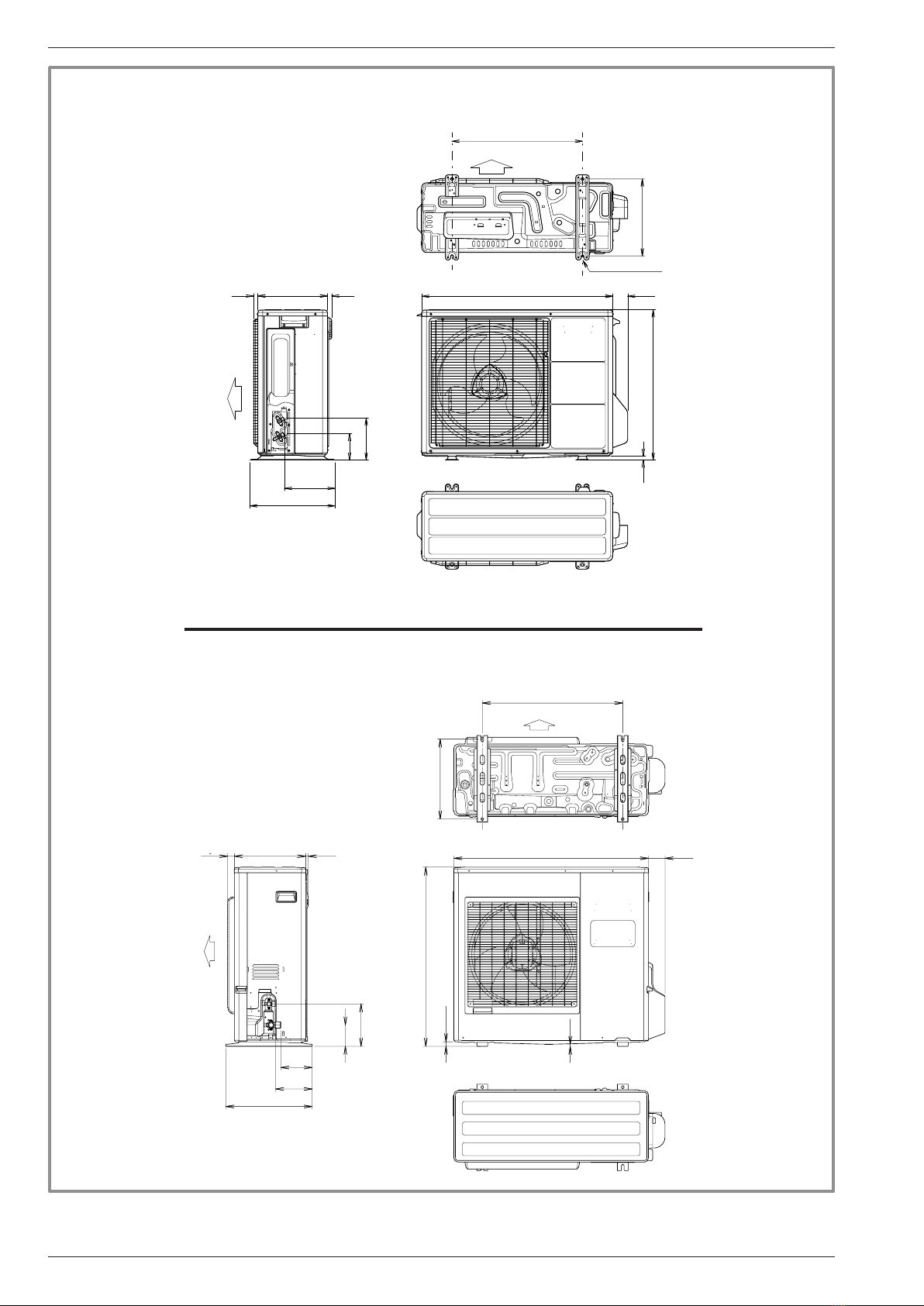

gure 3 - Dimensions in mm

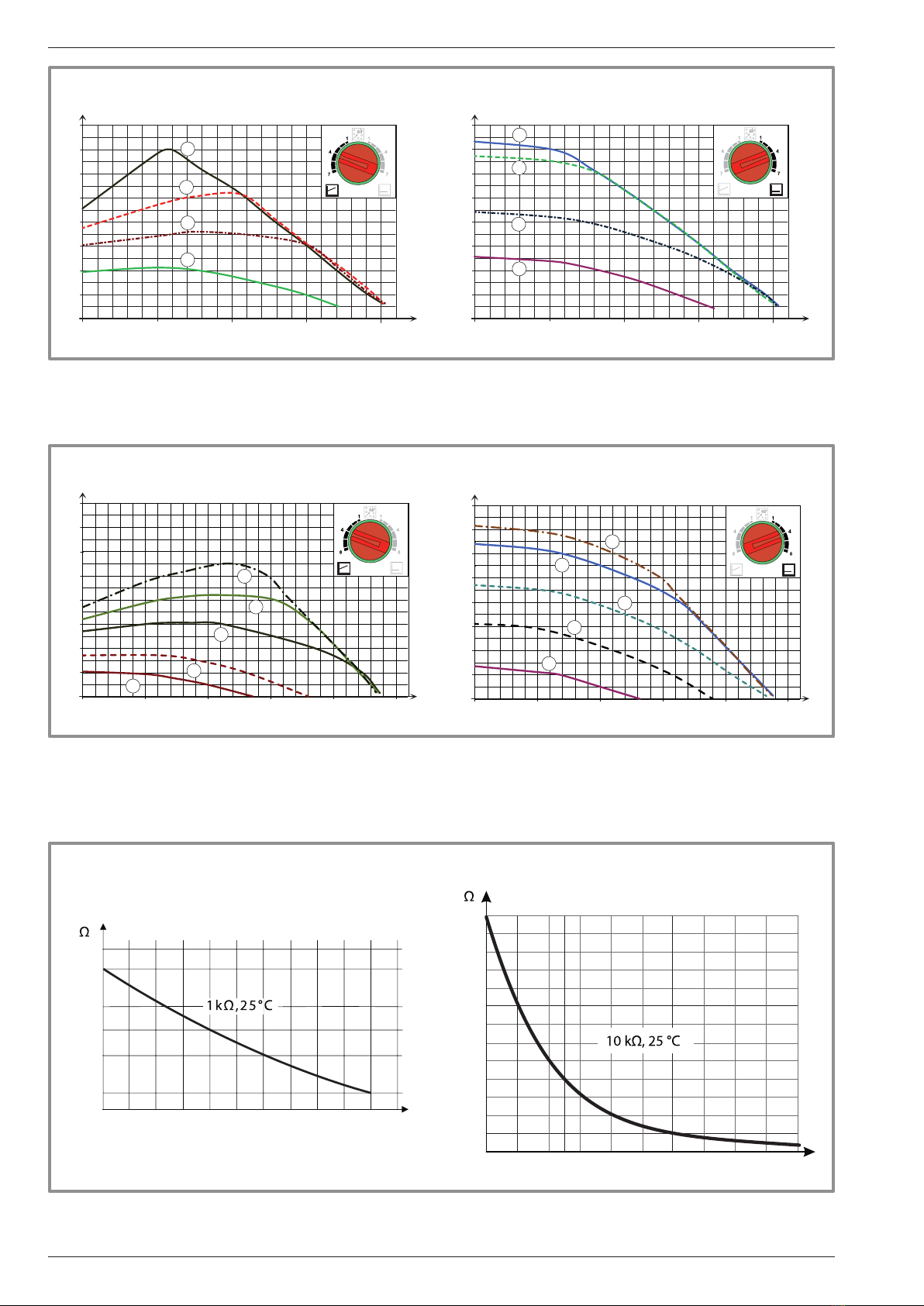

gure 5 - Hydraulic pressures and ow rates available (models extensa + 5, 6, 8 & 10)

-50

1000

10000

43907

2490

338

-25025 50 75

°C

2500

5000

7500

10000

12500

15000

17500

20000

22500

25000

27500

30000

32500

0102030405060708090 100

B3977

Outdoor sensor QAC34 Heat pump return sensor

Heat pump ow sensor

gure 6 - Ohmic values of the sensors (hydraulic unit)

mCE

1 mbar=10 mmCE=100 Pa

m/h

11,5 20,50

mCE

1 mbar=10 mmCE=100 Pa

m/h

11,5 20,50

Variable pressure Constant pressure

Installation and operation manual "1734 - EN"

Heat pump air/water split 1 service alféa extensa +

- 8 -

gure 7 - Hydraulic pressures and ow rates available (models extensa + 13 & 16)

mCE

1 mbar=10 mmCE=100 Pa

m/h

11,5 20,50

0 0,5 1 1,5 2 m

mCE

1 mbar=10 mmCE=100 Pa

m/h

11,5 20,50

0 0,5 1 1,5 2 m

Variable pressure Constante pressure

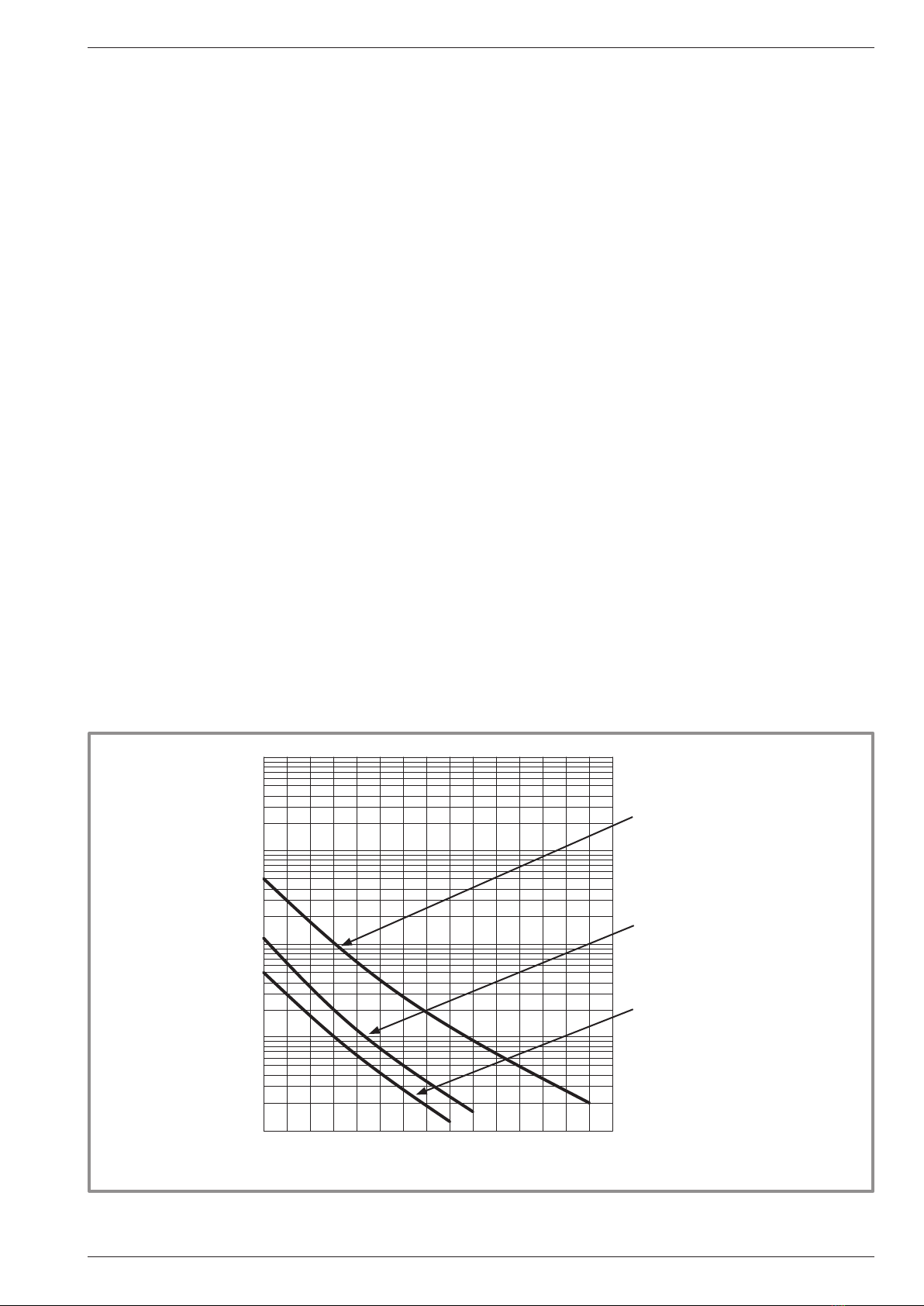

gure 8 - Ohmic values of the sensors (outdoor unit)

-20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130

10000

1000

100

- Compressor

- Discharge

- Condensation

- Expansion valve

- Evaporator inlet

- Outdoor

Temperature °C

Ohmic value (kΩ)

Installation and operation manual "1734 - EN" - 9 -

Heat pump air/water split 1 service alféa extensa +

1.4 Description

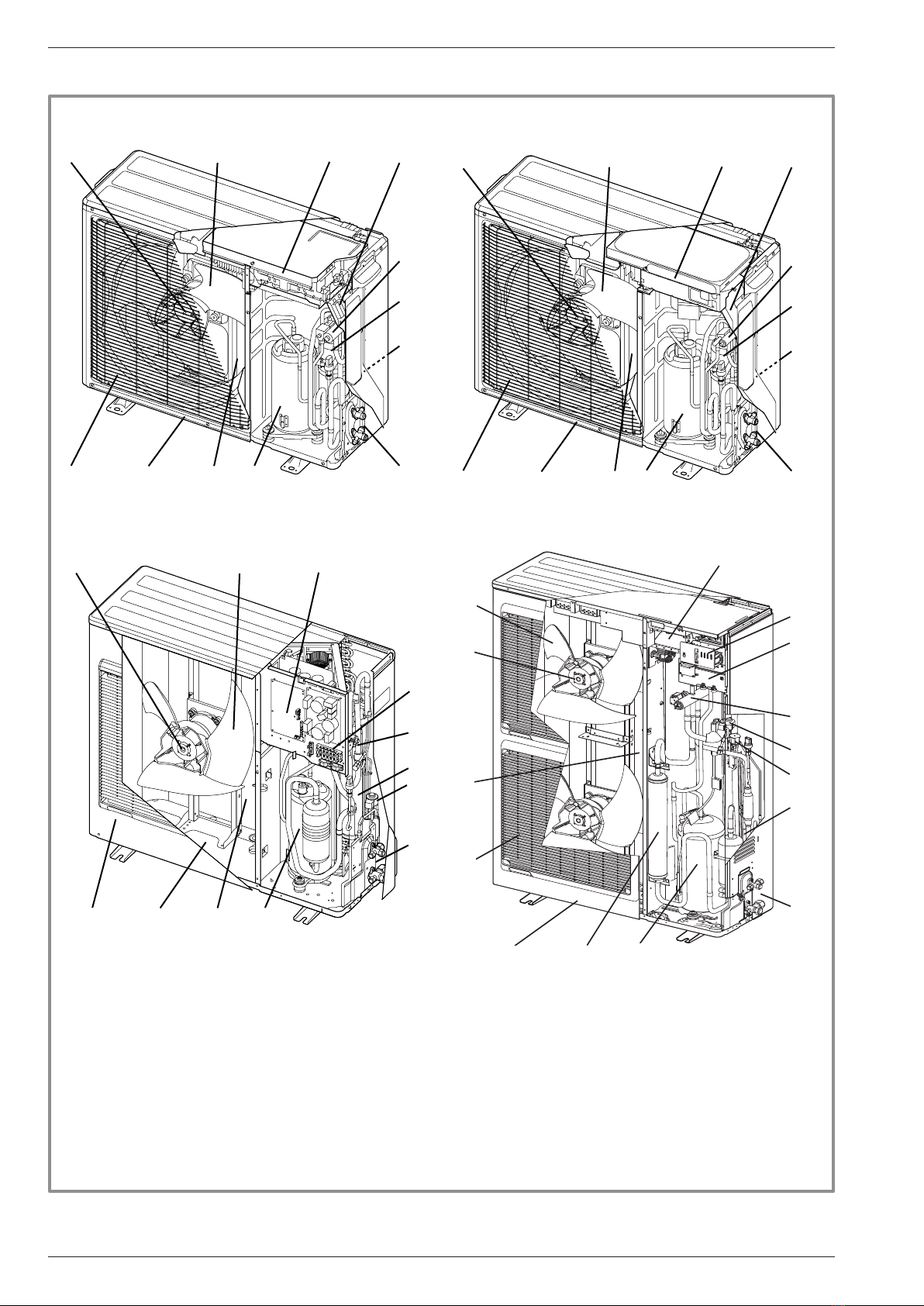

gure 9 - Outdoor unit components

234

1211

234

1211

Legend :

1 - Low-noise, high-output fan.

2 - Electric variable speed "Inverter" motor.

3 - Control lights and buttons.

4 - Connection terminal blocks

(power and interconnection).

5 - Refrigerant accumulator bottle.

6 - Cycle reversing valve.

7 - Anti-corrosion treated bodywork.

8 - Electronic expansion valve.

9 - Noise and temperature insulated

"Inverter" compressor.

10 - Refrigeration connection valves

(ared connectors) with protective caps.

11 - Holding tank with condensate drain hole.

12 - High-performance exchange surface evaporator ;

anti-corrosion treated hydrophilic aluminium ns and

grooved copper tubes.

13 - "Inverter" control unit.

14 - Solenoid valve for liquid injection.

15 - Electric expansion valve for liquid injection.

"Models extensa + 5 & 6 "Model extensa + 8

1211

"Model extensa + 10 "Models extensa + 13 & 16

13 14

Installation and operation manual "1734 - EN"

Heat pump air/water split 1 service alféa extensa +

- 10 -

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de Atlantic

Atlantic

Atlantic WOYA060LFCA Manual de instalación y operación

Atlantic

Atlantic Alfea Excellia HP Duo A.I. Series Manual de usuario

Atlantic

Atlantic Alfea Extensa Duo + 10 Manual de usuario

Atlantic

Atlantic Loria 6000 R32 Manual de usuario

Atlantic

Atlantic 024122 Manual de instalación y operación

Atlantic

Atlantic WOYA060LCD Manual de usuario

Atlantic

Atlantic EGEO Manual de usuario

Atlantic

Atlantic WOYG112LCT Manual de usuario

Atlantic

Atlantic WOYG112LHT Manual de usuario

Atlantic

Atlantic Alfea Evolution 5 Manual de usuario

Atlantic

Atlantic Alfea Extensa Duo A.I. 5 Manual de usuario

Atlantic

Atlantic Alfea Extensa A.I. R32 Manual de usuario

Atlantic

Atlantic Alfea hybrid duo gas Series Manual de instalación y operación

Atlantic

Atlantic Alfea Extensa A.I. R32 WOYA060KLT Manual de usuario

Atlantic

Atlantic alfea excellia duo 11 Manual de instalación y operación

Atlantic

Atlantic WOYA 060 LDC Manual de usuario

Atlantic

Atlantic Loria duo 6000 Series Manual de usuario

Atlantic

Atlantic Alfea Excellia HP Duo A.I. Series Manual de usuario

Atlantic

Atlantic Aurea M Series Manual de usuario

Atlantic

Atlantic alfea hybrid duo gas Manual de instalación y operación

Atlantic

Atlantic Loria Duo 6000 R32 Manual de usuario

Atlantic

Atlantic Loria 6000 R32 Manual de usuario

Atlantic

Atlantic Geolia 5 Manual de usuario

Atlantic

Atlantic Alfea Hybrid Duo Series Manual de instalación y operación

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario

Atlantic alfea extensa + Manual de usuario

Manuales populares de Bomba de calor de otras marcas
