AT&T E560-1 Manual de usuario

User Manual (Part 2)

5.8 GHz Expansion

Handset E560-1

For use with AT&T

model E5633/E5630/E5600

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 1

You must charge the

battery and register the

handset before use. STOP! See pages 2-3

for easy instructions.

Table of contents

For customer service or product

information, visit our web site at

www.telephones.att.com

or call 1-800-222-3111.

Please also read

Important Product

Information

Enclosed in product package.

Before you begin........................................1

Parts checklist ............................................1

Battery & charging installation ...............2

Registering the handset............................3

Belt clip & optional headset....................4

Quick reference guide..............................5

AT&T and the Globe Design are trademarks of AT&T Corp.,

licensed to Advanced American Telephones.

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 2

Before you begin

This cordless telephone

operates with the maximum

power allowed by the

Federal Communications

Commission (FCC). Even

so, this handset and base

can communicate over only

a certain distance — which

can vary with the locations

of the base and handset, the

weather, and the construc-

tion of your home or office.

If you receive a call

while you are out of

range, the handset might

not ring — or if it does

ring, the call might not con-

nect when you press

PHONE. Move closer to the

base, then press PHONE to

answer the call.

If you move out of range

during a phone conver-

sation, you might hear

noise or interference.To

improve reception, move

closer to the base.

If you move out of range

without pressing OFF,

your phone will be left off

the hook.To hang up prop-

erly, walk back toward the

telephone base, periodically

pressing OFF until the call is

disconnected.

Parts checklist

Remember to save your sales receipt and original packaging in

case you ever need to ship your telephone for warranty service.

Check to make sure the telephone package includes the follow-

ing:

CHARGING

Handset charger

Telephone

handset Power

adapter

Belt clip

Battery

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 3

Battery & charger installation

After installation, place the handset in the charger and allow the bat-

tery to charge for 12 hours before use.You can keep the battery

charged by returning the handset to the charger after each use.

When battery power is fully depleted, a full recharge takes about 10

hours.Average talk time on a fully charged battery is about eight

hours depending on environmental conditions, standby time is

approximately four days.

Light remains on while

battery is charging.

Plug power cord into jack on

underside of charger, then plug

transformer into electrical outlet.

Insert supplied

battery.

Low battery indicator

Return handset to base or

charger to recharge when

this symbol flashes.

(Handset will beep when

battery is low.)

Caution: Use only supplied recharge-

able battery or AT&T replacement bat-

tery model 2420 (SKU 00578. Part

number 80-5542-00-00).

LOW BATTERY

Press tab to open

battery compart-

ment.

Then replace

compartment

cover.

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 4

Registering the handset

Enter base ID, then press SELECT.

HANDSET 2

Handset 1 Handset 2 Handset 3

Before using a new E560-1 handset, you must

base. During registration, you must enter the

15-digit ID number of the telephone base.

The Base ID is located on the bottom of the

base unit.

Follow the instructions provided with your

new handset to register it for use with your

telephone.

The handset provided with your telephone is

automatically registered as Handset 1.

Additional handsets will be assigned num-

bers in the order they are registered (2, 3 or

4).You can register a maximum of four hand-

sets.

Handset 4

ENTER BASE ID

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 5

Belt clip & optional headset

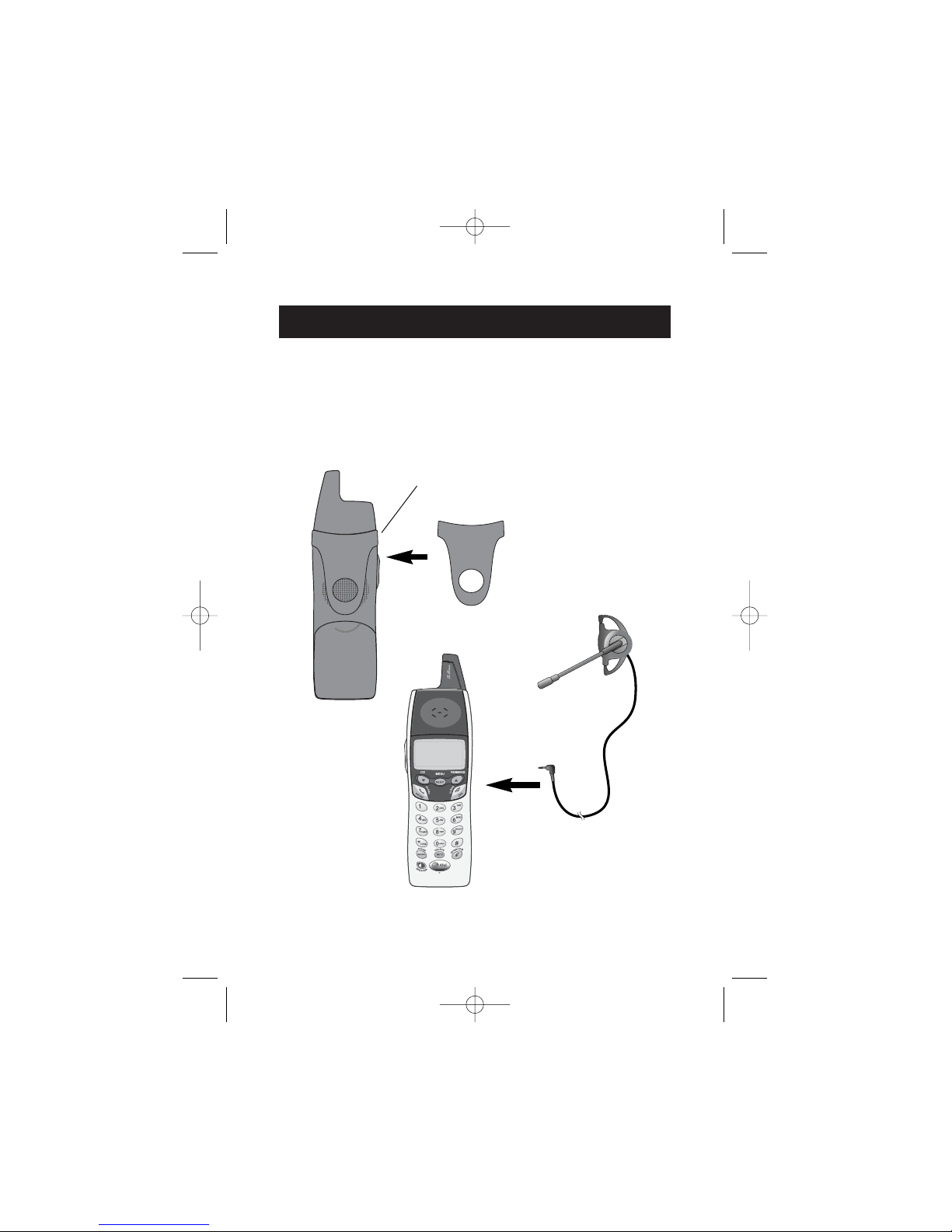

Install belt clip as shown below if desired.

For hands-free telephone conversations, you can use any industry

standard 2.5 mm headset (purchased separately). For best results

use an AT&T 2.5 mm headset.

Snap belt clip into notches on

side of handset. Rotate and pull

to remove.

Plug 2.5 mm headset

into jack on side of

handset (beneath

small rubber cap)

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 6

For complete instructions, please refer to the manual provided with

your E5633, E5630 or E5600 telephone.

Quick reference guide

Feature menu

>PHONE BOOK

CALL LOG

Feature Menu

Phone book

Call Log

Ringer Volume

Ringer Tone

Key Tone

Language

Clear MSG WAIT

Dial Type

Press

to scroll

through menu items.

Press SELECT to select or

modify a highlighted item.

Press OFF to cancel an opera-

tion, back up to the previous

menu, or exit the menu display.

>shows highlighted item

Off/Clear

During a call, press to hang up.

While using menus, press to cancel an

operation, back up to the previous

menu, or exit the menu display.

Redial/Pause

Press to view redial memory.

While entering numbers, press and hold

to insert a dialing pause .

VCID

Press to scroll down in menus.

Press when phone is not in use to dis-

play Caller ID information . While enter-

ing names, press to move the cursor to

the left.

Speaker

Press to activate handset speakerphone.

Press again to resume normal handset

use (earpiece).

^PHONE BOOK

Press to scroll up in menus.

Press when phone is not in use to dis-

play phone book entries. While entering

names, press to advance cursor.

Phone/Flash

Press to begin a call, then dial a number.

During a call, press to receive an incom-

ing call, if Call Waiting is activated .

Mute/Delete

Press to mute microphone . While

reviewing call log, press and hold to

clear Caller ID log .

Intercom

Press to initiate an intercom

conversation or forward a call.

Handset Select/Menu

Press to display menu, or to select

highlighted item from menu.

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 7

www.telephones.att.com

AT&T and the Globe Design are trademarks of AT&T Corp.,

licensed to Advanced American Telephones. Printed in China. Issue 1 AT&T 12/04.

91-000183-010-000

91-000183-010-000-E560-1 Manual ok.qxd 2/13/1950 7:21 PM Page 8
