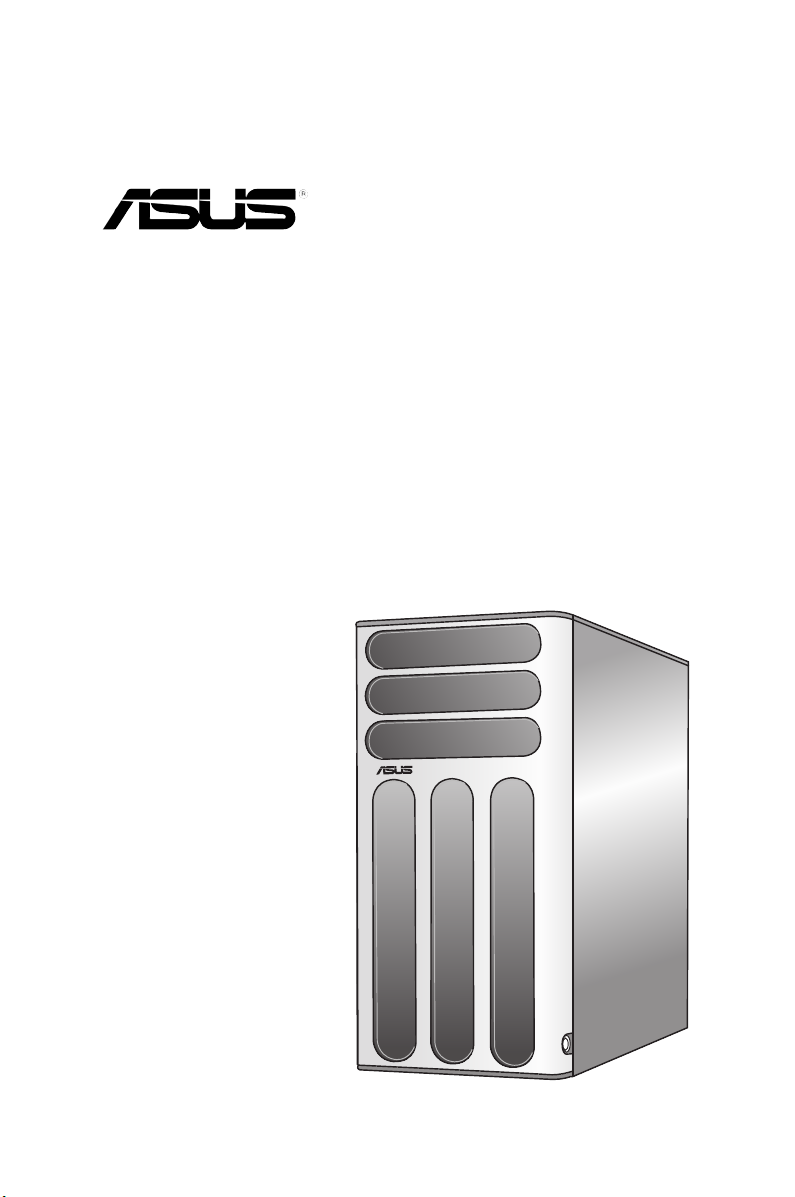

Asus TS300-E5 Manual de usuario

TS300-E5

Conguration Guide

No part of this manual, including the products and software described in it, may be reproduced, transmitted,

transcribed, stored in a retrieval system, or translated into any language in any form or by any means,

except documentation kept by the purchaser for backup purposes, without the express written permission

of ASUSTeK COMPUTER INC. (“ASUS”).

ASUS provides this manual “as is” without warranty of any kind, either express or implied, including but not

limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no

event shall ASUS, its directors, ofcers, employees, or agents be liable for any indirect, special, incidental,

or consequential damages (including damages for loss of prots, loss of business, loss of use or data,

interruption of business and the like), even if ASUS has been advised of the possibility of such damages

arising from any defect or error in this manual or product.

Specications and information contained in this manual ae furnished for informational use only, and are

subject to change at any time without notice, and should not be construed as a commitment by ASUS.

ASUS assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual,

including the products and software described in it.

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless

such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the

owners’ benet, without intent to infringe.

E4149

First Edition V1

August 2008

III

Contents

Contents ...................................................................................................... III

Revision history.......................................................................................... III

Safety information ...................................................................................... IV

Chapter 1: Product introduction

1.1 Key features.................................................................................. 1-2

1.2 System overview.......................................................................... 1-3

1.3 Front panel features..................................................................... 1-4

1.4 Rear panel features...................................................................... 1-5

1.5 Systemspecications ................................................................. 1-6

Chapter 2: Components

2.1 Upgrading CPU and CPU heatsink............................................. 2-2

2.2 Upgrading system memory......................................................... 2-3

2.3 Upgrading hard disk drives......................................................... 2-4

2.4 Installing ASUS 8708ELP RAID module..................................... 2-5

2.5 Installing ASUS Server Management Board.............................. 2-6

2.6 Rackmount rail kit........................................................................ 2-7

2.7 OS support list ............................................................................. 2-8

Revision history

Revision Revision history Date

V1 First release of TS300-E5 conguration guide August 2008

Safety information

Electrical Safety

• Before installing or removing signal cables, ensure that the power cables for

the system unit and all attached devices are unplugged.

• To prevent electrical shock hazard, disconnect the power cable from the

electrical outlet before relocating the system.

• When adding or removing any additional devices to or from the system, contact

a qualied service technician or your dealer. Ensure that the power cables for

the devices are unplugged before the signal cables are connected. If possible,

disconnect all power cables from the existing system before you service.

• If the power supply is broken, do not try to x it by yourself. Contact a qualied

service technician or your dealer.

Operation Safety

• Servicing of this product or units is to be performed by trained service

personnel only.

• Before operating the server, carefully read all the manuals included with the

server package.

• Before using the server, make sure all cables are correctly connected and the

power cables are not damaged. If any damage is detected, contact your dealer

as soon as possible.

• To avoid short circuits, keep paper clips, screws, and staples away from

connectors, slots, sockets and circuitry.

• Avoid dust, humidity, and temperature extremes. Place the server on a stable

surface.

This product is equipped with a three-wire power cable and plug for the user’s

safety. Use the power cable with a properly grounded electrical outlet to avoid

electrical shock.

Lithium-Ion Battery Warning

CAUTION! Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

CD-ROM Drive Safety Warning

CLASS 1 LASER PRODUCT

Heavy System

CAUTION! This server system is heavy. Ask for assistance when moving or

carrying the system.

This chapter describes the key features

of TS300-E5. It includes the product

overview and general specications.

Chapter 1

Product introduction

Chapter 1: Product introduction1-2

1.1 Key features

TS300-E5 is a single-socket pedestal server system based on Intel® 3210MCH chipset,

which provides immediate performance scale up and high processing speed in the

UP tower server. With 4 DIMM slots, the server supports DDR2 800/667 un-buffered

ECC/Non-ECC up to 8GB memory capacity.

Provide SAS RAID Solution with ASUS Proprietary SAS HBA

• ASUS SASsaby 1064E (PCI-E 4-port SAS add-on card) is able to support

RAID 0, 1, 1E without sacrice of expansion slots

Quad-LAN Teaming Technology Provides 200% Faster Transfer Rate

• Four PCI-Express Gb LAN provide 200% faster transfer rate than those with

only two LAN chips

• Teaming & Failover function enables higher bandwidth aggregation and reliable

network connection via load-balance and fault-tolerance

• Multiple network segments help enhance network security and improve

communication efciency

Flexible Expansion Choices

• Provide three 32-bit/33MHz (5V) PCI slots for legacy device support

• Provide two PCI-E x 16 (x8 link) (one is designed for add-on SAS Saby card)

and one PCI-E x8 (x1 link) for higher bandwidth

• One SO-DIMM socket for optional ASUS ASMB3-SOL card for remote

management and monitoring

User-friendly Management Software

• Bundled ASWM2.0 system software makes system management easy. With

effective management and monitoring via intelligent interaction & image; the

customer may have a clear view regarding CPU, memory, HDD, fan speed,

OS, FRU, NIC and other working status

ASUS TS300-E5 1-3

1.2 System overview

Items Items

1. Central processing unit (CPU) 5. 8708ELP RAID card (optional)

2. CPU heatsink and fan 6. ASUS Server management board (optional)

3. System memory 7. Rackmount rail kit (optional)

4. Hard disk drives

Chapter 1: Product introduction1-4

1.3 Front panel features

Optical drive

Empty 5.25-inch bays

Power button

Reset button

Message LED

HDD access LED

Power LED

Floppy disk drive

Security lock

Drive bays

USB 2.0 ports

ASUS TS300-E5 1-5

1.4 Rear panel features

• * LAN port 5 is a 10/100Mbps LAN (RJ-45) port for server management

only and does not support common network connections.

• ** The PX4 model comes with a ASUS SASsaby 1064E SAS RAID

controller card by default.

Power cord connector

12 cm system fan

Gigabit LAN ports 1-4

VGA port

Serial port

USB 2.0 ports

PS/2 keyboard port

Power supply module

Expansion slots**

PS/2 mouse port

10/100Mbps LAN port 5*

Power supply switch

Chapter 1: Product introduction1-6

1.5 Systemspecications

Model Name TS300-E5/PA4 TS300-E5/PX4

Processor support

Quad-Core Intel®Xeon® processor 3300 series (45nm)

Dual-Core Intel®Xeon® processor 3100 series (45nm)

Dual-Core Intel®Xeon® 3000 series

Quad-Core Intel®Xeon® 3200 series (G0 stepping)

FSB 1333 / 1066 / 800 MHz

Core Logic Intel® 3210 MCH + Intel® ICH7R

Memory 4-DIMM support up to 8GB DDR2 800/667 un-buffered,

ECC

Storage

4 x Hot-swap SATAII HDD

bays

4 x Hot-swap SAS HDD

bays

1 x 5.25” Optical Device (Optional)

1 x FDD

RAID support

Max. 4 x SATA HDD with SW

RAID 0, 1, 5, 10 (Windows) /

SW RAID 0, 1, 10 supported

(Linux)

ASUS SASsaby 1064E

PCI-E 4-port SAS Add-

on Card (Support LSI®

Integrated RAID 0, 1, 1E)

NIC 4 x Broadcom® BCM5721 PCI-E GbE LAN

Onboard Gfx XGI Z9s VGA Controller / 32MB

Expansion Slot

2 x PCI-E x16 slot (x 8

link)

1 x PCI-E x8 slot (x1 link)

3 x PCI 32-bit/33MHz slot

(5V)

2 x PCI-E x16 slot (x 8

link) (one supports ASUS

SASsaby 1064E card)

1 x PCI-E x8 slot (x1 link)

3 x PCI 32-bit/33MHz slot

(5V)

Power Supply 450W Single Power Supply

Dimension (HH x WW x DD) 431mm x 220mm sx 510mm

Net Weight 18Kg (CPU, Memory & HDD are not included)

*Specicationsaresubjecttochangewithoutnotice.
