2HPWMT-LX Manual

1. FEATURES

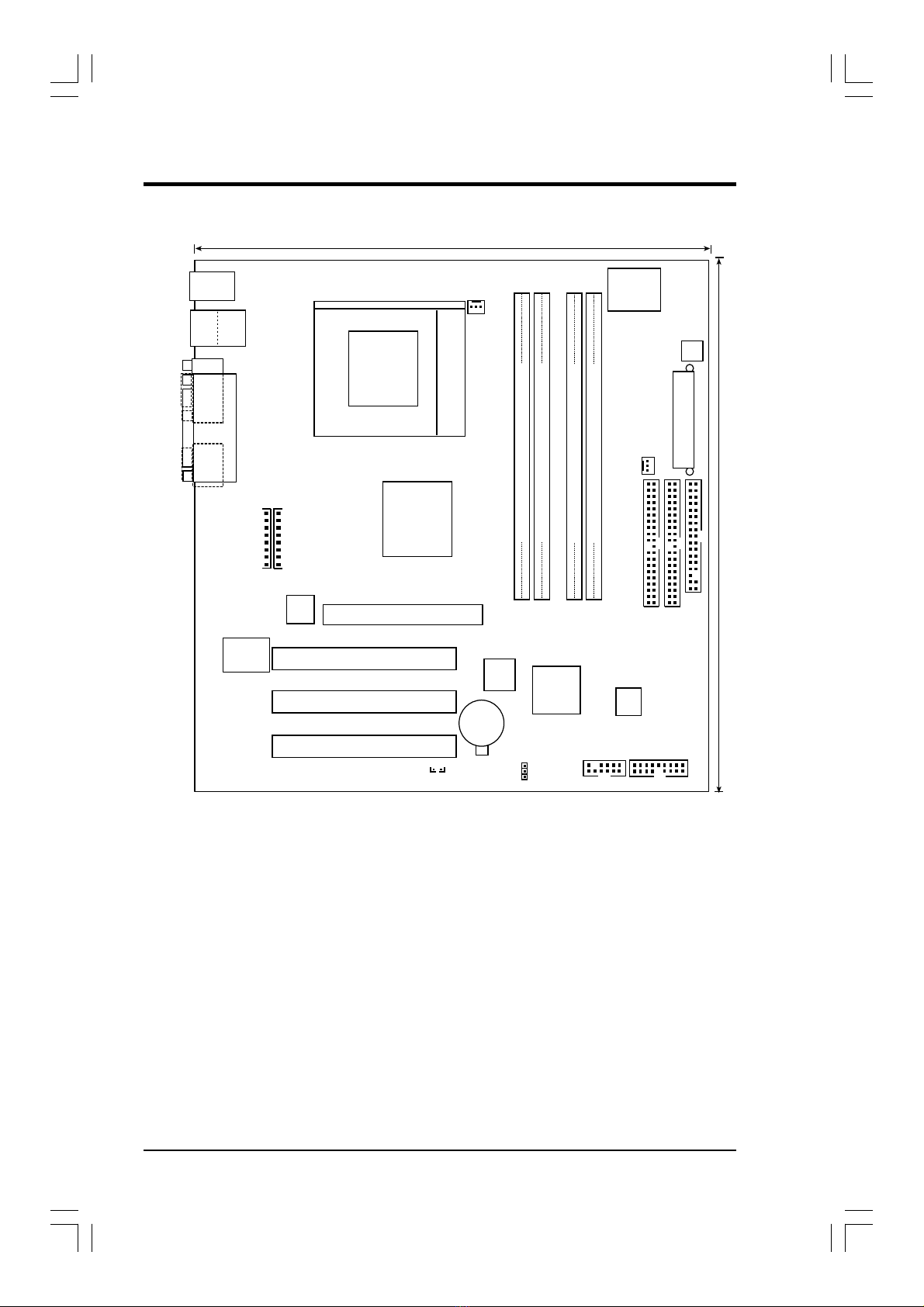

1.1 WMT-LX Motherboard Layout

RJ-45

Top:

24.4cm (9.60in)

24.4cm (9.6in)

PS/2KBMS

T: Mouse

B: Keyboard

PCI1

PCI2

PCI3

PANEL

FLOPPY

SECONDARYIDE

PRIMARYIDE

Intel I/O

Controller

Hub

(ICH2)

WMT-LX

Accelerated Graphics Port (AGP)

CR2032 3V

Lithium Cell

CMOS Power

Socket 423

COM1

PARALLEL PORT

RIMMB2 (16/18 bit, 184-pin module)

RIMMB1 (16/18 bit, 184-pin module)

ATX Power Connector

RIMMA2 (16/18 bit, 184-pin module)

RIMMA1 (16/18 bit, 184-pin module)

Multi

I/O

ATX12V

Intel 850

Memory

Controller

Hub (MCH)

USB1

USB2

Top:

Realtek

RTL8139C

CPU_FAN

PWR_FAN

USB2/3

CLRTC

BIOS

WOLCON

1394 HEAD

IEEE

1394

Physical

Layer

Chip

1394

Link

Layer

Chip

RJ-45

Bottom:

Grayed components are available only on certain models at the time of purchase.

+001-006 WMT_01.p65 3/22/01, 4:28 PM2

HPWMT-LX Manual 3

1.2 Layout Contents

Expansion

1) RIMMA1/A2/B1/B2 p. 5 184-Pin System Memory Support

2) CPU p. 7 Central Processing Unit

3) PCI1/2/3/ p. 12 32-bit PCI Bus Expansion Slots

4) AGPPRO p. 13 Accelerated Graphics Port Slot

Connectors

1) PS2MS p.14 PS/2 Mouse Connector (Green 6-pin female)

2) PS2KB p.14 PS/2 Keyboard Connector (Purple 6-pin female)

3) PRINTER p.15 Parallel Port Connector (Burgundy 25-pin female)

4) COM1 p.15 Serial Port Connectors (Turquoise 10-1 pin male)

5) 1394_CON p.15 IEEE-1394ControllerInterface Connector (6-pin male)

6) USB p.16 Universal Serial Bus Ports (Black two 4-pin female)

7) RJ45 p.16 Fast-Ethernet Port Connector (female)

8) PRIMARY/SECONDARYIDE p.17 Primary/Secondary IDE Connectors (Two 40-1pin)

9) FLOPPY p.18 Floppy Disk Drive Connector (34-1pin)

10) 1394HEAD2/1394HEAD3 p.18 IEEE-1394 Headers (8-pin)

11) CPU_FAN, PWR_FAN p.19 POWER, CPU Fan Connectors (3 pin)

12) WOL p.20 Wake-On-LAN Connector (3 pin)

13) USB2/3 p.20 USB Header (10-1 pin)

14) ATXPWR, AUXPWR, p.21 ATX 12V Power Supply Connectors

ATX12V

15) PWR (PANEL) p.22 ATX Power / Soft-Off Switch Lead (2 pin)

16) IDELED (PANEL) p.22 IDE Activity LED (2 pin)

17) PLED (PANEL) p.22 System Power LED Lead (3-1 pin)

18) RESET (PANEL) p.22 Reset Switch Lead (2 pin)

19) MLED (PANEL) p.22 System Message LED (2 pin)

20) KEYLOCK (PANEL) p.22 Keyboard Lock Switch Lead (2 pin)

21) SMI (PANEL) p.22 System Management Interrupt Switch Lead (2 pin)

22) SPEAKER (PANEL) p.22 System Warning Speaker Connector (4 pin)

23) RTC p.23 Real Time Clock Jumper

1. FEATURES

+001-006 WMT_01.p65 3/22/01, 4:28 PM3

4HPWMT-LX Manual

2. HARDWARE SETUP

2.1 Getting Started

IMPORTANT: Due to Pentium 4 CPU’s power consumption requirement, an

ATX12V power supply is recommended for this motherboard. For typical system

configurations, anATX12V power supply that can supply at least 230W and at least

8.5A on the +12V lead is required. For heavily-loaded configurations, an ATX12V

power supply that can supply at least 300W is required.

Before using your computer, you must complete the following steps:

• Check Motherboard Settings

• Install Memory Modules

• Install the Central Processing Unit (CPU)

• Install Expansion Cards

• Connect Ribbon Cables, Panel Wires, and Power Supply

WARNING! Computer motherboards and expansion cards contain very delicate

Integrated Circuit (IC) chips. To protect them against damage from static electric-

ity, you should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do

nothave one, touch both of your hands to a safely grounded object or to a metal

object, such as the power supply case.

3. Hold components by the edges and try not to touch the IC chips, leads or con-

nectors, or other components.

4. Placecomponentson a grounded antistatic pad oronthebag that came with the

component whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or

remove the ATX power connector on the motherboard.

WARNING! Make sure that you unplug your power supply when adding or

removing system components. Failure to do so may cause severe damage to

your motherboard, peripherals, and/or components. The onboard LED when

lit acts as a reminder that the system is in suspend or soft-off mode and not

powered OFF.

+001-006 WMT_01.p65 3/22/01, 4:28 PM4

HPWMT-LX Manual 5

2. HARDWARE SETUP

2.2 System Memory

NOTE: No hardware or BIOS setup is required after adding or removing memory.

This motherboard has four 184-pin Rambus Inline Memory Modules (RIMM) sockets.

These sockets support 64Mbit, 128Mbit, and 256Mbit Direct RDRAM technologies.

IMPORTANT

1. The memory configuration of channelA(RIMMA1 and RIMMA2) and chan-

nel B (RIMMB1 and RIMMB2) must be identical (see below).

2. C-RIMMs (Continuity RIMM) must be used to complete the sockets that are

not populated by RDRAMs. A C-RIMM is necessary to avoid breaking the

signal lines, which are a serial connection in a Rambus interface, such as

used in this motherboard. This assures the electrical integrity of a Rambus

interface.

3. When C-RIMMs are required, it is recommended that they be inserted into

RIMMA2 and RIMMB2.

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

C-RIMM

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

RIMMA1

RIMMA2

RIMMB1

RIMMB2

128MB RDRAM

C-RIMM

Location Memory Module Subtotal

RIMMA1 RDRAM x1

(Rows 0&1) C-RIMM (use when socket will not be populated)

RIMMA2 RDRAM x1

(Rows 2&3) C-RIMM (use when socket will not be populated)

RIMMB1 RDRAM x1

(Rows 4&5) C-RIMM (use when socket will not be populated)

RIMMB2 RDRAM x1

(Rows 6&7) C-RIMM (use when socket will not be populated)

TOTALSYSTEM MEMORY =

(2GB Max)

NOTE: When using only two memory modules,

it is recommended that you use configuration a.

+001-006 WMT_01.p65 3/22/01, 4:28 PM5

6HPWMT-LX Manual

2. HARDWARE SETUP

2.2.1 Installing Memory

The memory module (RIMM/C-RIMM) will fit in only one orientation.

IMPORTANT:Do not touch the memory module’s connectors. Handle the mod-

ule only by the edges.

1. Make sure that the notch keys in the module are aligned with the small ribs

inside the RIMM sockets.

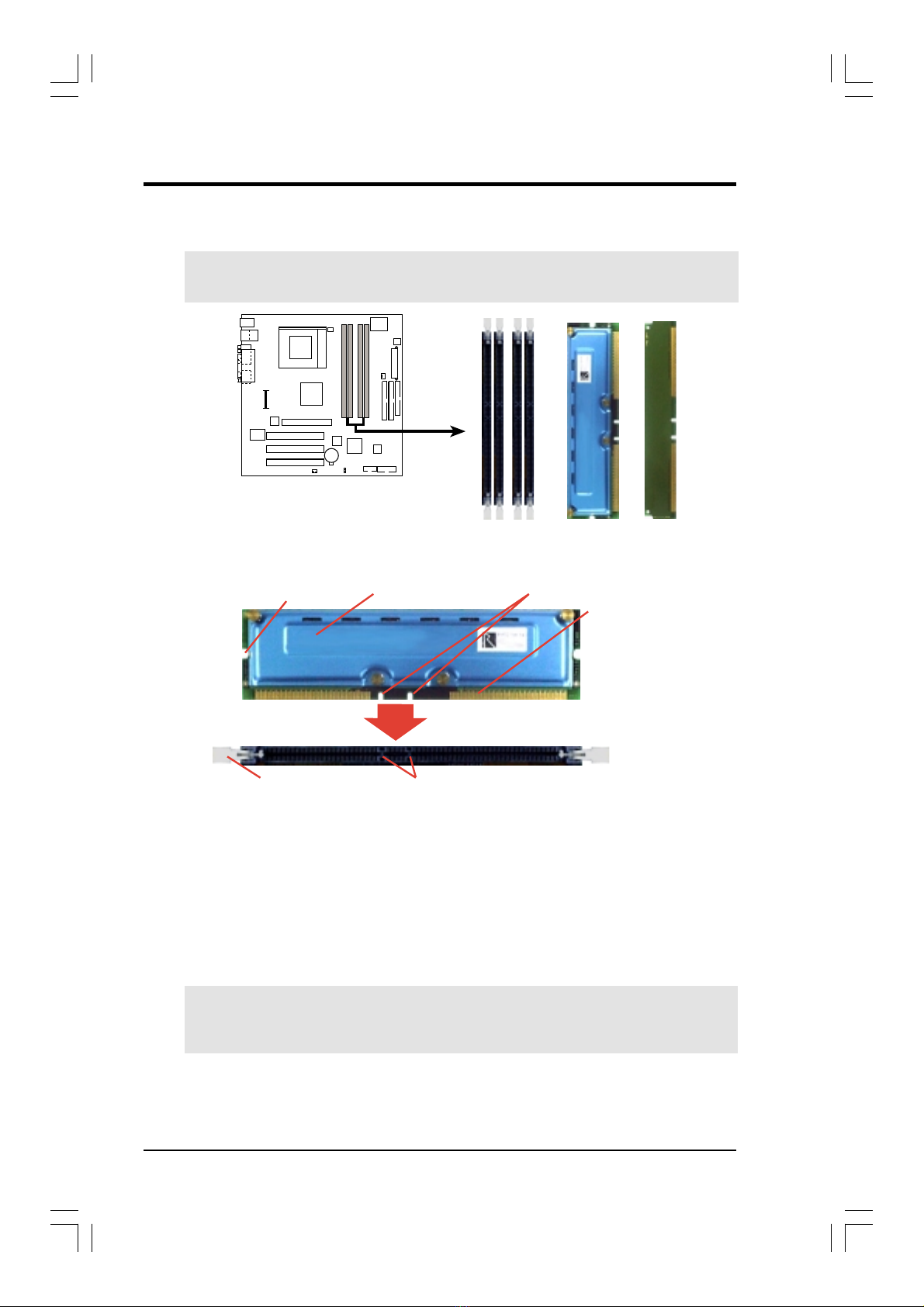

NOTCH KEYS

CONNECTORS

RDRAM (with heat spreader)MOUNTING NOTCH

RIBS (inside socket)

EJECTOR (TOP VIEW)

2. With the ejectors in the open position (as shown), push down gently but firmly

on the memory module until it snaps into place. The guides on the socket’s

ejectors should go through the two mounting notches on the module and the

ejectors should close. If necessary, push the ejectors inward to secure the mod-

ule in place.

Removing Memory

To release a memory module, push both ejectors outward and pull the module straight

up and out of the RIMM sockets.

WARNING! RIMM modules become extremely hot during operation. To re-

duce the risk of personal injury from hot surfaces, allow the modules to cool off

before removing them.

RJ-45

Top:

WMT-LX

WMT-LX 184-Pin RIMM Sockets

RIMM Sockets

RIMM with Heat Spreader

C-RIMM

+001-006 WMT_01.p65 3/22/01, 4:28 PM6

2. HARDWARE SETUP

HPWMT-LX User’s Manual

2.3 Central Processing Unit (CPU)

The motherboard provides a ZIF Socket for the P4 CPU. The CPU that came with

the motherboard should have a fan attached to it to prevent overheating. If this is not

the case, then purchase a fan before you turn on your system.

RJ-45

Top:

WMT-LX

WMT-LX Socket 423

Gold Arrow

Socket 423 Pentium 4

Gold Arrow

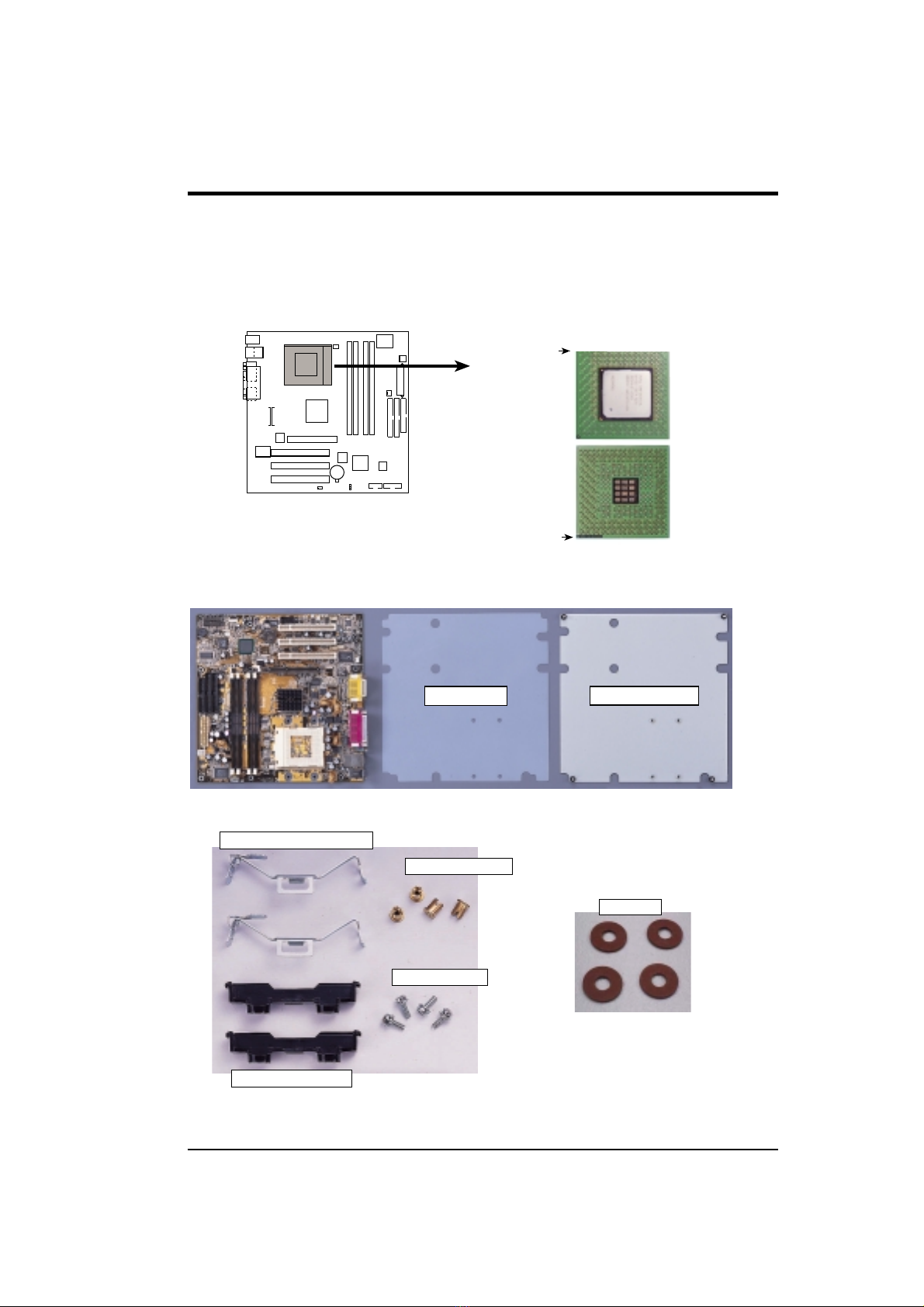

Before you start, you should check to see that you have the following items:

Rubber Pad Metal Baseboard

2 Metal heatsink retaining clips

4 Copper captive nuts

4 Pan Head screws

2 Heatsink support bases

4 Washers

8HPWMT-LX User’s Manual

2. HARDWARE SETUP

3.5.1 CPU Installation

Step 1: Install the Baseboard

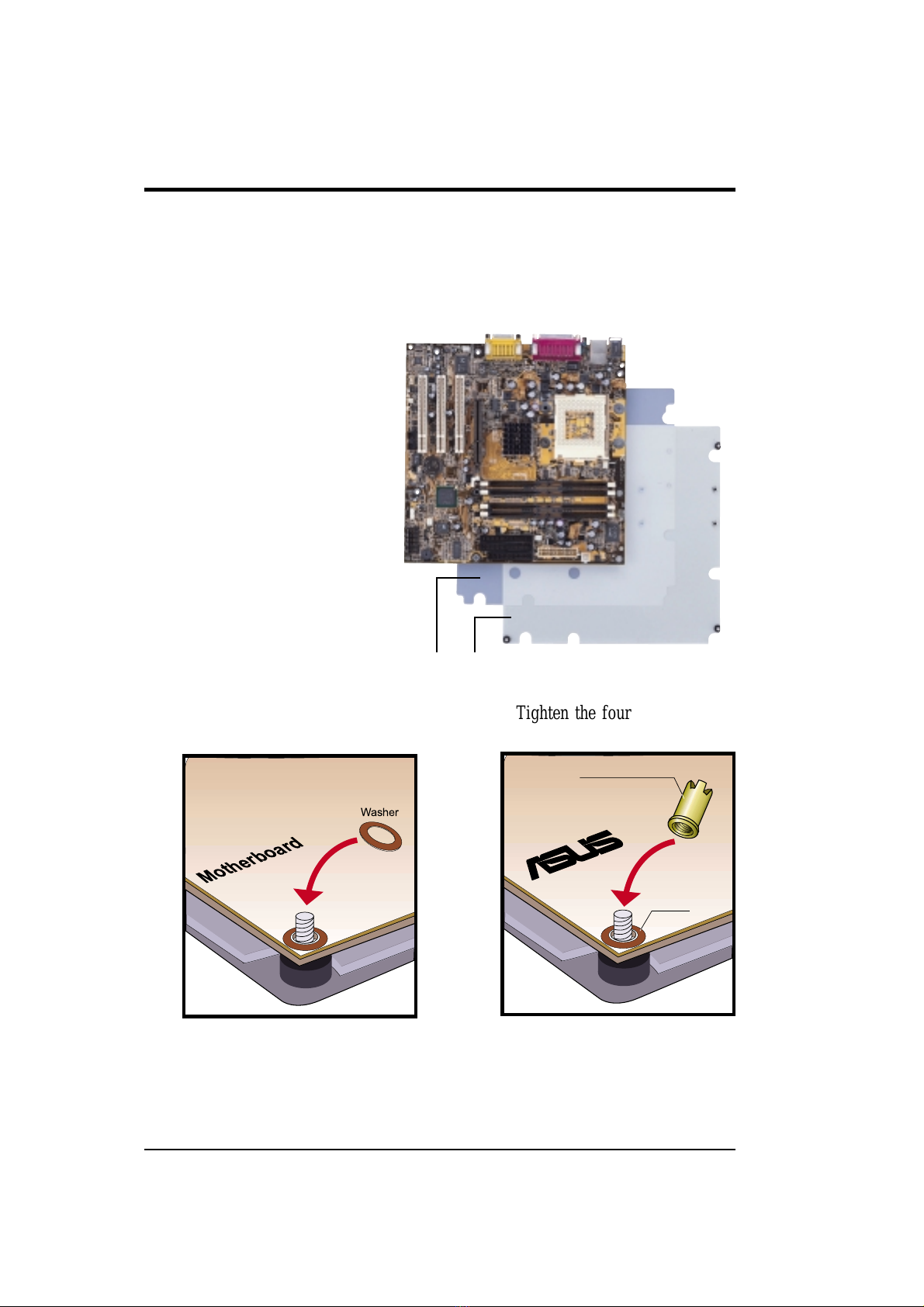

A metal baseboard is required to install the heatsink to the motherboard. A rubber

pad is placed between the metal board and motherboard to provide insulation to

prevent shorting.

Placethefourwashersoverthe four

screws on the baseboard.

Motherboard

Washer

Tighten the four copper captive

nuts over the washers.

Rubber Pad Metal Baseboard

Align the rubber pad over

the metal baseboard so that

the holes match. Align the

motherboard over the rub-

ber pad and metal base-

board so that the screws on

the baseboard match up

with the motherboard’s

screw holes.

IMPORTANT:

This step is a MUST! The washers

are necessary to prevent shorting.

Washer

Copper captive nut

Motherboard

2. HARDWARE SETUP

HPWMT-LX User’s Manual

Step 2: Install the CPU

A. L ocate the Z I F socket on the motherboard.

B . Unlock the socket by pressing the lever sidesways and then lifting it up to a

90˚–100˚angle.

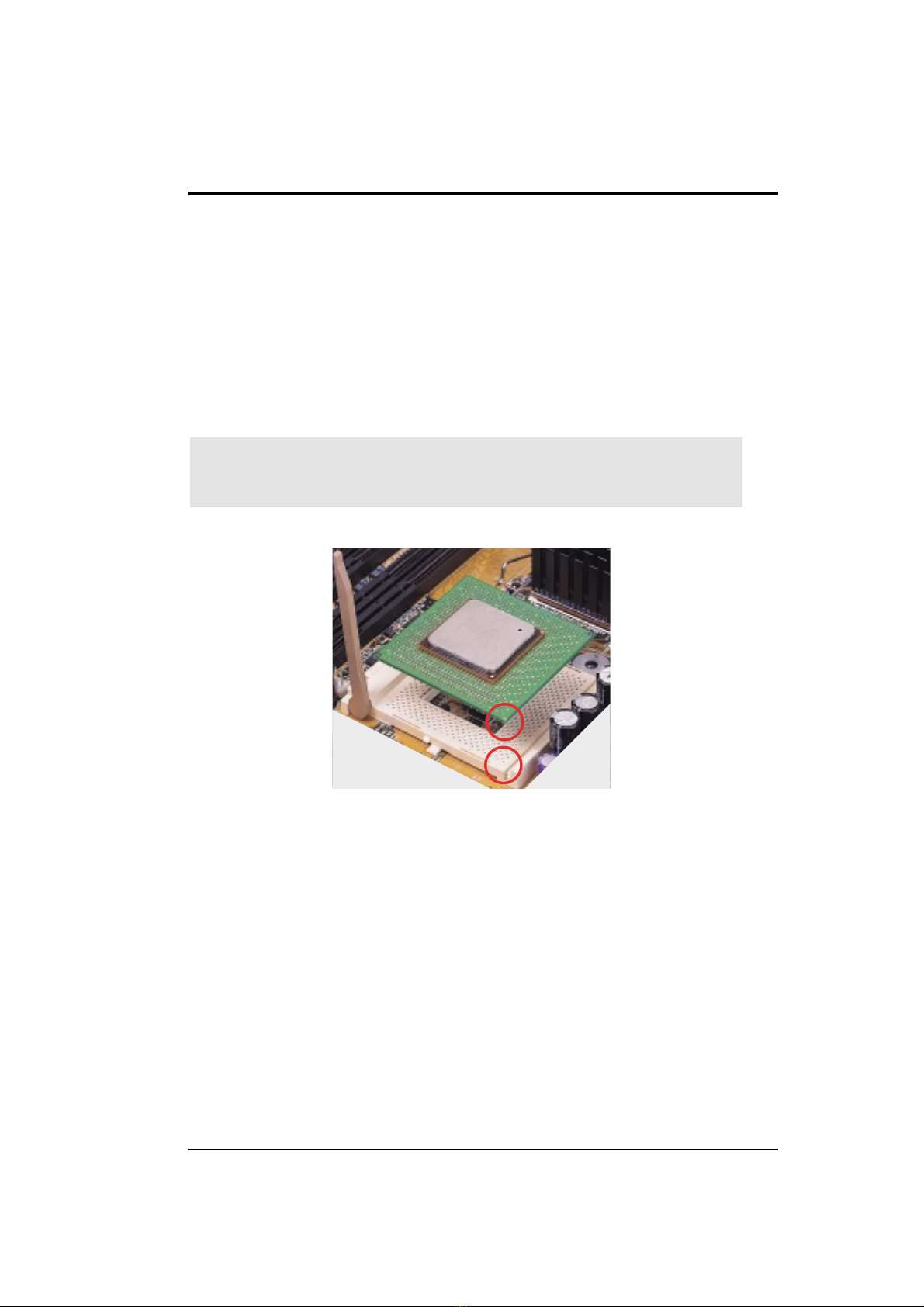

C . Align the C PU over the socket such that its notched or marked corner matches

the socket’s corner near the end of the lever, while making sure that the C PU is

parallel to the socket.

D . C arefully insert the C PU into the socket until it fits in place. The illustration

below shows how to insert a C PU properly.

CAUTION!The C PU fits in only one orientation. D o not force the C PU into the

socket as it will bend the pins and damage the C PU. I t should drop into the

socket with minimal pressure. I f not, check its orientation or check for bent pins.

E . Secure the C PU into the socket by pushing the socket lever all the way down.

Y ou will hear a click indicating that the lever is in place.

10 HPWMT-LX User’s Manual

2. HARDWARE SETUP

Step 3: Install the Heatsink Support Base

Place the two heatsink support base as shown and screw in the four pan head screws.

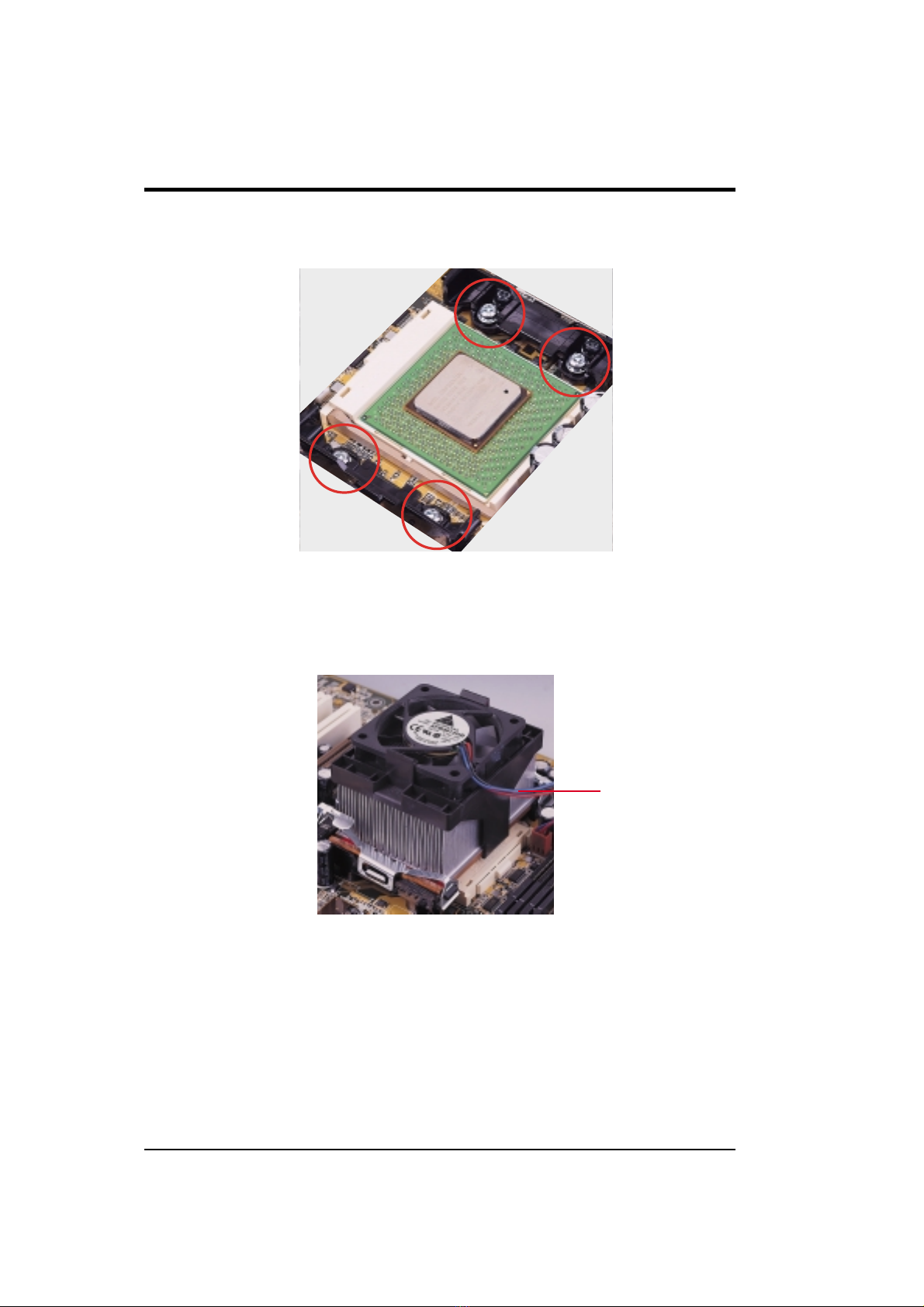

Step 4: Install the Heatsink

C arefully place the fan heatsink on top of the heatsink support base and connect the

fan power cable to the C PU fan connector.

C onnect to the

C PU fan connector.

Tabla de contenidos

Otros manuales de Placa madre de Asus

Asus

Asus M2N8-VMX Manual de usuario

Asus

Asus Motherboard A7S8X-MX Manual de usuario

Asus

Asus PRIME B360M-D Manual de usuario

Asus

Asus Z170-AR Manual de usuario

Asus

Asus A55BM-E Manual de usuario

Asus

Asus P4B266 Manual de usuario

Asus

Asus H97-PLUS Manual de usuario

Asus

Asus TUF GAMING B660M-PLUS WIFI Manual de usuario

Asus

Asus Crosshair V Formula ThunderBolt Manual de usuario

Asus

Asus M2R-FVM Manual de usuario

Asus

Asus Z87-A Manual de usuario

Asus

Asus M2NBP-VM-CSM Manual de usuario

Asus

Asus P5B SE - Motherboard - ATX Manual de usuario

Asus

Asus TUF GAMING B660M-PLUS WIFI Manual de usuario

Asus

Asus P4PE-X Manual de usuario

Asus

Asus TUF Z390-PLUS GAMING Manual de usuario

Asus

Asus PRIME A520M-A Manual de usuario

Asus

Asus P8H61-M LE/CSM R2.0 Manual de usuario

Asus

Asus P7H55D-M PRO Manual de usuario

Asus

Asus P8B75-M LX TW Manual de usuario

Asus

Asus P4S533-MX Manual de usuario

Asus

Asus A55BM-E-BR Manual de usuario

Asus

Asus P5M2-M Manual de usuario

Asus

Asus M3A - Motherboard - ATX Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

EPC

EPC EPC9147C Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario

Epson

Epson S5U13700P00C000 Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manual de usuario

Albatron

Albatron PX925XE Series Manual de usuario
