1 Headers

1. Clear RTC RAM (2-pin CLRTC)

This header allows you to clear the Real Time Clock (RTC) RAM in

CMOS. You can clear the CMOS memory of date, time, and system setup

parameters by erasing the CMOS RTC RAM data. The onboard button

cell battery powers the RAM data in CMOS, which include system setup

information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Use a metal object such as a screwdriver to short the two pins.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to re-

enter data.

• Ifthestepsabovedonothelp,removetheonboardbatteryandshortthetwopins

again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the

battery.

• YoudonotneedtocleartheRTCwhenthesystemhangsduetooverclocking.For

system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature.

Shut down and reboot the system, then the BIOS automatically resets parameter

settings to default values.

2. RTC Battery header (2-pin BATT_CON)

This connector is for the lithium CMOS battery.

3. Chassis intrusion header (4-1 pin CHASSIS)

This header is for a chassis-mounted intrusion detection sensor or

switch. Connect one end of the chassis intrusion sensor or switch cable

to this connector. The chassis intrusion sensor or switch sends a high-

level signal to this connector when a chassis component is removed or

replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled “Chassis Signal” and “Ground” are shorted

with a jumper cap. Remove the jumper caps only when you intend to use

the chassis intrusion detection feature.

CLRTC

+3V_BAT

GND

PIN 1

VBAT

GND

BATT_CON

+5VSB_MB

Chassis Signal

GND

CHASSIS

1-4 Motherboard Pin Denition

2 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC)

RAM in CMOS. You can clear the CMOS memory of date, time,

and system setup parameters by erasing the CMOS RTC RAM

data. The onboard button cell battery powers the RAM data in

CMOS, which include system setup information such as system

passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3

for about 5~10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the <Del> key during the boot process and enter BIOS setup to

reenter data.

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default

position. Removing the cap will cause system boot failure!

• Ifthestepsabovedonothelp,removetheonboardbatteryandmovethejumper

again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the

battery.

• YoudonotneedtocleartheRTCwhenthesystemhangsduetooverclocking.For

system failure due to overclocking, use the CPU Parameter Recall (C.P.R) feature.

Shut down and reboot the system so the BIOS can automatically reset parameter

settings to default values.

2. Intel®ME jumper (3-pin DIS_ME)

This jumper allows you to enable or disable the Intel®ME

function. Set this jumper to pins 1-2 to enable (default) the Intel®

ME function and to pins 2-3 to disable it.

122 3

Normal

(Default)

Clear RTC

CLRTC

2 2 3

Normal

(Default)

Disable ME

DIS_ME

Disable the Intel®ME function before updating it.

Motherboard Pin Denition 1-5

3. USB device wake-up (3-pin USBPWF)

Set these jumpers to +5V to wake up the computer from S1 sleep

mode (CPU stopped, DRAM refreshed, system running in low power

mode) using the connected USB devices. Set to +5VSB to wake

up from S3 and S4 sleep modes (no power to CPU, DRAM in slow

refresh, power supply in reduced power mode).

• TheUSBdevicewake-upfeaturerequiresapowersupplythatcanprovide500mAon

the +5VSB lead for each USB port; otherwise, the system would not power up.

• ThetotalcurrentconsumedmustNOTexceedthepowersupplycapability(+5VSB)

whether under normal condition or in sleep mode.

21 2 3

+5V

(Default)

+5VSB

USBPWF

4. Keyboard and USB device wake up (3-pin KB_USBPWB)

This jumper allows you to enable or disable the keyboard and

USB device wake-up feature. When you set this jumper to pins

2-3 (+5VSB), you can wake up the computer by pressing a key on

thekeyboard.ThisfeaturerequiresanATXpowersupplythatcan

supply at least 1A on the +5VSB lead, and a corresponding setting

in the BIOS.

+5V +5VSB

(Default)

KB_USBPWB

1 2

2 3

5. Display panel backlight power selector (3-pin BLKT_PWR_SEL)

1 2

2 3

12V

(Default)

19V

BLKT_PWR_SEL

6. Display panel VCC power selector (VCC_PWR_SEL)

(Default)

12V

VCC_PWR_SEL

Pins Setting

1-2 (Default) 12V

2-3 19V

Pins Setting

1 (Default) 3V

2 5V

3 12V

7. LVDS panel/eDP selector (3-pin FPD_SEL)

1 2

2 3

for LVDS

(Default)

for eDP

FPD_SEL

Pins Setting

1-2 (Default) LVDS

2-3 eDP

1-6 Motherboard Pin Denition

3 Internal Connectors

1. Serial port connector (10-1 pin COM)

This connector is for a serial (COM) port. Connect the serial port

module cable to this connector, then install the module to a slot

opening at the back of the system chassis.

2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN)

Connect the fan cable to the fan connector on the motherboard,

ensuring that the black wire of the cable matches the ground pin

of the connector

Do not forget to connect the fan cables to the fan connectors.

Insufcientairowinsidethesystemmaydamagethe

motherboard components. These are not jumpers! Do not place

jumper caps on the fan connectors! The CPU_FAN connector

supports a CPU fan of maximum 1A (12 W) fan power.

PIN 1

COM

DCD

TXD

GND

RTS

RXD

DTR

DSR

CTS

CPU_FAN

CPU FAN PWM

CPU FAN IN

CPU FAN PWR

GND

+5V

CHA FAN IN

CHA FAN PWR

GND

CHA_FAN

3. USB 3.0 connector (20-1 pin)

This connector allows you to connect a USB 3.0 module for

additional USB 3.0 front or rear panel ports. With an installed USB

3.0module,youcanenjoyallthebenetsofUSB3.0including

faster data transfer speeds of up to 5 Gbps, faster charging time

forUSB-chargeabledevices,optimizedpowerefciency,and

backward compatibility with USB 2.0.

4. USB 2.0 connector (10-1 pin)

This connector is for USB 2.0 ports. Connect the USB module cable

to this connector, then install the module to a slot opening at the back

of the system chassis. This USB connector complies with USB 2.0

specicationsandsupportsupto480Mbpsconnectionspeed.

USB3

PIN 1

USB3+5V

IntA_P1_SSRX-

IntA_P1_SSRX+

GND

IntA_P1_SSTX-

IntA_P1_SSTX+

GND

IntA_P1_D-

IntA_P1_D+

GND

USB3+5V

IntA_P2_SSRX-

IntA_P2_SSRX+

GND

IntA_P2_SSTX-

IntA_P2_SSTX+

GND

IntA_P2_D-

IntA_P2_D+

USB

PIN 1

USB+5V

USB_P11-

USB_P11+

GND

USB+5V

USB_P12-

USB_P12+

GND

Motherboard Pin Denition 1-7

5. Single USB 2.0 connector (5-1 pin)

This connector is for a USB 2.0 port. Connect the USB module cable

to this connector, then install the module to a slot opening at the back

of the system chassis. This USB connector complies with USB 2.0

specicationsandsupportsupto480Mbpsconnectionspeed.

PIN 1

USBE5

+5V DC

Data(negative)

Data(positive)

Groud

•

Forafullyconguredsystem,werecommendthatyouuseapowersupplyunit

(PSU)thatcomplieswithATX12VSpecication2.0(orlaterversion)andprovidesa

minimum power of 350 W.

•

DONOTforgettoconnectthe4-pin/8-pinATX+12Vpowerplug.Otherwise,the

system will not boot up.

• WerecommendthatyouuseaPSUwithhigherpoweroutputwhenconguringa

system with more power-consuming devices or when you intend to install additional

devices. The system may become unstable or may not boot up if the power is

inadequate.

•

Ifyouareuncertainabouttheminimumpowersupplyrequirementforyoursystem,

refer to the Recommended Power Supply Wattage Calculator at http://support.asus.

com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

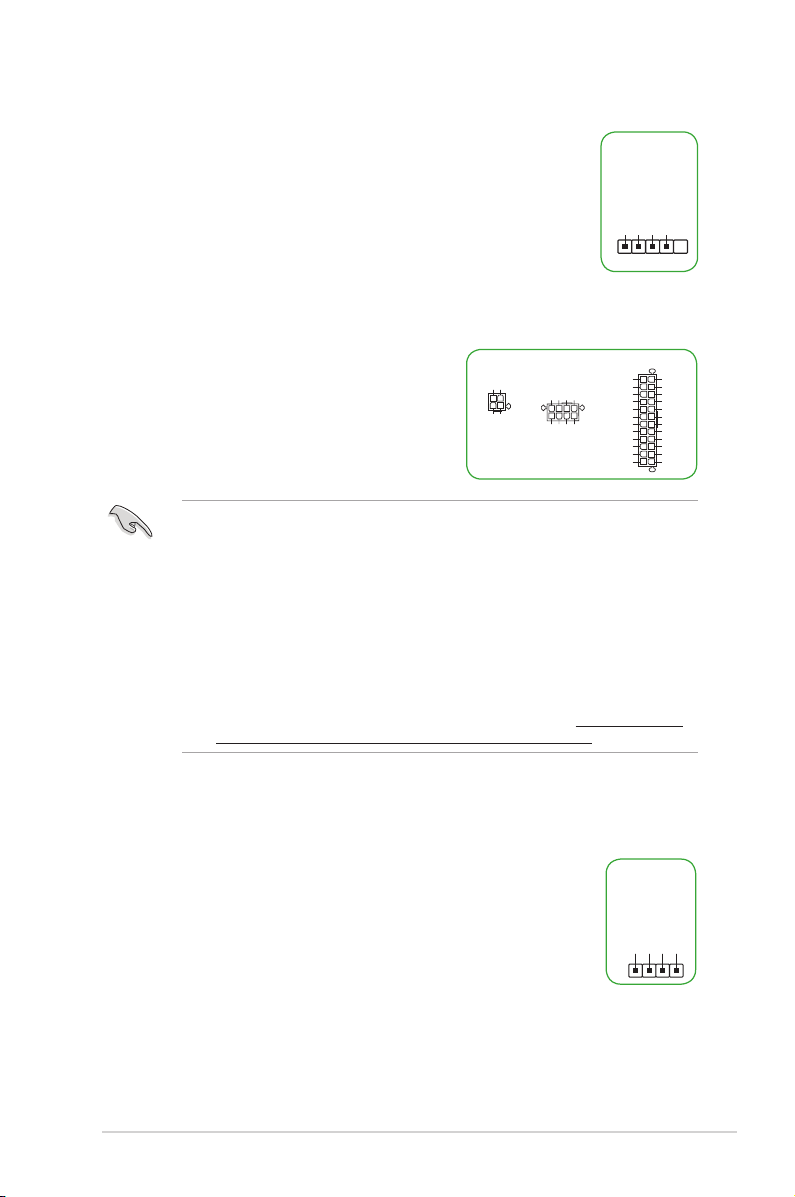

6. ATX power connectors (24-pin EATXPWR, 8-pin EATX12V, 4-pin EATX12V)

TheseconnectorsareforATXpowersupply

plugs.Thepowersupplyplugsaredesignedtot

these connectors in only one orientation. Find the

properorientationandpushdownrmlyuntilthe

connectorscompletelyt.

EATX12V

+12V DC

GND

EATXPWR

PIN 1

GND

+5 Volts

-5 Volts

GND

PSON#

GND

-12 Volts

+3 Volts

+12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND

+3 Volts

ATX12V

PIN 1

+12V DC

GND

7. Speaker connector (4-pin SPEAKER)

The 4-pin connector is for the chassis-mounted system warning speaker.

The speaker allows you hear system beeps and warnings.

+5V

GND

Speaker Out

SPEAKER

PIN 1

1-8 Motherboard Pin Denition

8. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio

I/O module that supports either HD Audio or legacy AC`97

audio standard. Connect one end of the front panel audio

I/O module cable to this connector.

AAFP

PIN 1

AGND

SENSE1_RETUR

SENSE2_RETUR

PORT1 L

PORT1 R

PORT2 R

SENSE_SEND

PORT2 L

HD-audio-compliant

pin definition

PIN 1

AGND

MIC2

MICPWR

Line out_R

Line out_L

Legacy AC’97

compliant definition

Werecommendthatyouconnectahigh-denitionfront

panel audio module to this connector to avail of the

motherboard’shigh-denitionaudiocapability.

9. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF)

port. Connect the S/PDIF Out module cable to this connector, then install

the module to a slot opening at the back of the system chassis.

SPDIF_OUT

+5V

SPDIFOUT

GND

10. Direct connector (2-pin DRCT)

This connector is for the chassis-mounted button that supports the

DirectKey function. Connect the button cable that supports DirectKey,

from the chassis to this connector on the motherboard.

Ensure that your chassis comes with the button cable that supports the

DirectKey feature. Refer to the technical documentation that came with the

chassis for details.

PIN 1

DRCT

GND

11. LPT connector (26-1 pin LPT)

The LPT (Line Printing Terminal) connector supports devices

suchasaprinter.LPTstandardizesasIEEE1284,whichisthe

parallel port interface on IBM PC-compatible computers.

PIN 1

O_LPT_XSTB#_R

O_LPT_XPD0_R

O_LPT_XPD1_R

O_LPT_XPD2_R

O_LPT_XPD3_R

O_LPT_XPD4_R

O_LPT_XPD5_R

O_LPT_XPD6_R

O_LPT_XPD7_R

O_LPT_ACK#_R

O_LPT_BUSY_R

O_LPT_PE_R

O_LPT_SLCT_R

O_LPT_XAFD#_R

O_LPT_ERROR#_R

O_LPT_XINIT#_R

O_LPT_XSLIN#_R

GND

Motherboard Pin Denition 1-9

12. LVDS connector (40-pin LVDS)

This connector is for an LCD monitor that supports Low-

voltage Differential Signaling (LVDS) interface.

Enable LVDS in the BIOS setup if the LVDS output is

disabled by default.

LVDS

PIN 1 PIN 20

PIN 40

PIN 21

ODD_Lane3_P

ODD_Lane3_N

ODD_Lane2_P

ODD_Lane2_N

ODD_Lane1_P

ODD_Lane1_N

ODD_Lane0_P

ODD_Lane0_N

EVEN_Lane3_P

EVEN_Lane3_N

EVEN_Lane2_P

EVEN_Lane2_N

EVEN_Lane1_P

EVEN_Lane1_N

EVEN_Lane0_P

EVEN_Lane0_N

EDID_GND

LCD_VCC

N/C

EDID_3.3V

LCD_GND

ODD_CLK_P

ODD_CLK_N

BKLT_GND

BLKT_GND

BKLT_GND

EDID_CLK

BKLT_ENABLE

BKLT_PWM_DIM

EVEN_CLK_P

EVEN_CLK_N

BKLT_PWR

N/C

EDID_DATA

13. Embedded DisplayPort (40- pin eDP)

This connector is for an internal embedded DisplayPort connection.

EDP(Back)

PIN 1

14. SATA 6.0Gb/s connectors (7-pin SATA6G)

These connectors connect to SATA 6.0 Gb/s hard disk drives via SATA

6.0 Gb/s signal cables.

SATA6G

GND

RSATA_RXP4

RSATA_RXN4

GND

RSATA_TXN4

RSATA_TXP4

GND

You must install Windows®XPServicePack3orlaterversionbefore

using Serial ATA hard disk drives.

15. SATA EXPRESS connector (7-pin SATA6G, SATAEXPRESS)

This connector connects to SATA 6.0 Gb/s hard disk drives via SATA

6.0 Gb/s signal cables.

If you installed SATA hard disk drives, you can create a RAID 0, 1,

5,and10congurationwiththeIntel®Rapid Storage Technology

through the onboard Intel®chipset.

TheSATAEXPRESSconnectorcansupportoneSATAExpress

device or two SATA devices.

SATAEXPRESS

GND

RSATA_TXP1

RSATA_TXN1

GND

RSATA_RXN1

RSATA_RXP1

GND

RSATA_TXP2

RSATA_TXN2

GND

RSATA_RXN2

RSATA_RXP2

GND

Floating

Device_Reset

GND

Detection

1-10 Motherboard Pin Denition

16. System panel connector (10-1 pin F_PANEL)

This connector supports several chassis-mounted functions.

PIN 1

PWR BTN

PWR_LED+

PWR_LED-

PWR

GND

HDD_LED+

HDD_LED-

Ground

HWRST#

(NC)

F_PANEL

+PWR LED

+HDD_LED RESET

• SystempowerLED(2-pinPWR_LED)

This 2-pin connector is for the system power LED. Connect the

chassis power LED cable to this connector. The system power

LED lights up when you turn on the system power, and blinks

when the system is in sleep mode.

• HarddiskdriveactivityLED(2-pinHDD_LED)

This 2-pin connector is for the HDD Activity LED. Connect the

HDD Activity LED cable to this connector. The HDD LED lights

uporasheswhendataisreadfromorwrittentotheHDD.

• ATXpowerbutton/soft-offbutton(2-pinPWR_BTN)

This connector is for the system power button.

• Resetbutton(2-pinRESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot

without turning off the system power.

• SystempowerLED(2-pinPWR_LED)

This 2-pin connector is for the system power LED. Connect

the chassis power LED cable to this connector. The system

power LED lights up when you turn on the system power,

and blinks when the system is in sleep mode.

• HarddiskdriveactivityLED(2-pinHDD_LED)

This 2-pin connector is for the HDD Activity LED. Connect

the HDD Activity LED cable to this connector. The HDD

LEDlightsuporasheswhendataisreadfromorwrittento

the HDD.

• Systemwarningspeaker(4-pinSPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The

speaker allows you to hear system beeps and warnings.

• ATXpowerbutton/soft-offbutton(2-pinPWRSW)

This connector is for the system power button. Pressing the power button turns

the system on or puts the system in sleep or soft-off mode depending on the

BIOS settings. Pressing the power button for more than four seconds while the

system is ON turns the system OFF.

• Resetbutton(2-pinRESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot

without turning off the system power.

System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

PIN 1

+PWR_LED-

SPEAKER

PWR_LED+

PWR_LED-

+5V

Ground

Speaker

HDD_LED+

HDD_LED-

PWR

Ground

Reset

Ground

F_PANEL

+HDD_LED- PWRSW RESET

Otros manuales para B150-A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Asus

Asus

Asus P5B-MX WIFI-AP Manual de usuario

Asus

Asus Prime H470M-PLUS Manual de usuario

Asus

Asus P7H55 series Manual de usuario

Asus

Asus PRIME B250-PLUS Manual de usuario

Asus

Asus P4B533 Manual de usuario

Asus

Asus M2N-X PLUS Manual de usuario

Asus

Asus PRIME H310M-E Manual de usuario

Asus

Asus P4S800D-X Manual de usuario

Asus

Asus Q170M2 Manual de usuario

Asus

Asus H87M-E Manual de usuario

Asus

Asus XC Cube box Manual de usuario

Asus

Asus N3150I-C Manual de usuario

Asus

Asus Motherboard A7V8X Manual de usuario

Asus

Asus TUF GAMING B660M-E D4 Manual de usuario

Asus

Asus A55BM-E Manual de usuario

Asus

Asus TUEG-VM Motherboard 815EG Manual de usuario

Asus

Asus B150-PLUS D3 Manual de usuario

Asus

Asus VANGUARD B85 Manual de usuario

Asus

Asus H61M-CS Manual de usuario

Asus

Asus J6412T-IM-A Manual de usuario

Asus

Asus P5GC-VM Manual de usuario

Asus

Asus G-SURF365 Manual de usuario

Asus

Asus A88XM-A Manual de usuario

Asus

Asus P5QL-VM EPU Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

EPC

EPC EPC9147C Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario

Epson

Epson S5U13700P00C000 Manual de usuario

Gigabyte

Gigabyte GA-K8N Ultra-SLI Manual de usuario

Albatron

Albatron PX925XE Series Manual de usuario
