Asus VZ229HE Manual de usuario
ii
Copyright © 2017 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.
First Edition
January 2017
iii
Table of Contents
Notices......................................................................................................... iv
Safety Information ....................................................................................... v
Care & Cleaning.......................................................................................... vi
Takeback Services..................................................................................... vii
1.1 Welcome! ...................................................................................... 1-1
1.2 Package Contents........................................................................ 1-1
1.3 Assembling the Monitor Base..................................................... 1-2
1.4 Connect Cables ............................................................................ 1-3
1.4.1 Rear of the LCD Monitor ................................................. 1-3
1.5 Monitor Introduction .................................................................... 1-4
1.5.1 Using the Control Buttons ............................................... 1-4
1.5.2 QuickFit Function ............................................................ 1-6
2.1 Adjusting the Monitor .................................................................. 2-1
3.1 OSD (On-Screen Display) Menu.................................................. 3-1
3.1.1 How to Recongure ........................................................ 3-1
3.1.2 OSD Function Introduction.............................................. 3-2
3.2 Specications............................................................................. 3-13
3.3 Troubleshooting (FAQ) .............................................................. 3-14
3.4 Supported Timing List ............................................................... 3-15
iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance
with manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This product implements power management functionality. In case of no
signal input after 10 seconds, the product automatically goes to sleep/
standby mode.
As an Energy Star® Partner, our company has determined
that this product meets the Energy Star® guidelines for
energyefciency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.
AEEE Yönetmeliğine Uygundur
v
Safety Information
• Before setting up the monitor, carefully read all the documentation that
came with the package.
• To prevent fire or shock hazard, never expose the monitor to rain or
moisture.
• Never try to open the monitor cabinet. The dangerous high voltages
inside the monitor may result in serious physical injury.
• If the power supply is broken, do not try to fix it by yourself. Contact a
qualified service technician or your retailer.
• Before using the product, make sure all cables are correctly connected
and the power cables are not damaged. If you detect any damage,
contact your dealer immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or
over a radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supply to
your home, consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power
standard.
• Do not overload power strips and extension cords. Overloading can
result in fire or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the
monitor in any area where it may become wet. Place the monitor on a
stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a
long period of time. This will protect the monitor from damage due to
power surges.
• Never push objects or spill liquid of any kind into the slots on the
monitor cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked
between 100-240V AC.
• The socket-outlet shall be installed near the equipment and shall be
easily accessible.
• If you encounter technical problems with the monitor, contact a
qualified service technician or your retailer.
• This product may contain chemicals known to the State of California
to cause cancer, and birth defects or other reproductive harm. Wash
hands after handling.
vi
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the
cables and power cord. Follow the correct lifting techniques when
positioning the monitor. When lifting or carrying the monitor, grasp the
edges of the monitor. Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the
monitor surface with a lint-free, non-abrasive cloth. Stubborn stains
may be removed with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner
intended for use with the LCD. Never spray cleaner directly on the
screen, as it may drip inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• The screen may flicker during the initial use due to the nature of the
fluorescent light. Turn off the Power Switch and turn it on again to
make sure that the flicker disappears.
• You may find slightly uneven brightness on the screen depending on
the desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the
previous screen may remain after switching the image. The screen will
recover slowly or you can turn off the Power Switch for hours.
• When the screen becomes black or flashes, or cannot work anymore,
contact your dealer or service center to fix it. Do not repair the screen
by yourself!
Conventions used in this guide
WARNING: Information to prevent injury to yourself when trying
to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Information that you MUST follow to complete a
task.
NOTE: Tips and additional information to aid in completing a task.
vii
Where to nd more information
Refer to the following sources for additional information and for product
and software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may
have been added by your dealer. These documents are not part of
the standard package.
Takeback Services
ASUS recycling and takeback programs come from our commitment to the
highest standards for protecting our environment. We believe in providing
solutions for our customers to be able to responsibly recycle our products,
batteries and other components as well as the packaging materials.
Please go to http://csr.asus.com/english/Takeback.htm for detail recycling
information in different region.
1-1
ASUS LCD Monitor VZ229 Series
1.1 Welcome!
Thank you for purchasing the ASUS®LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper,
broader, and brighter display, plus a host of features that enhance your
viewing experience.
With these features, you can enjoy the convenience and delightful visual
experience that the monitor brings to you!

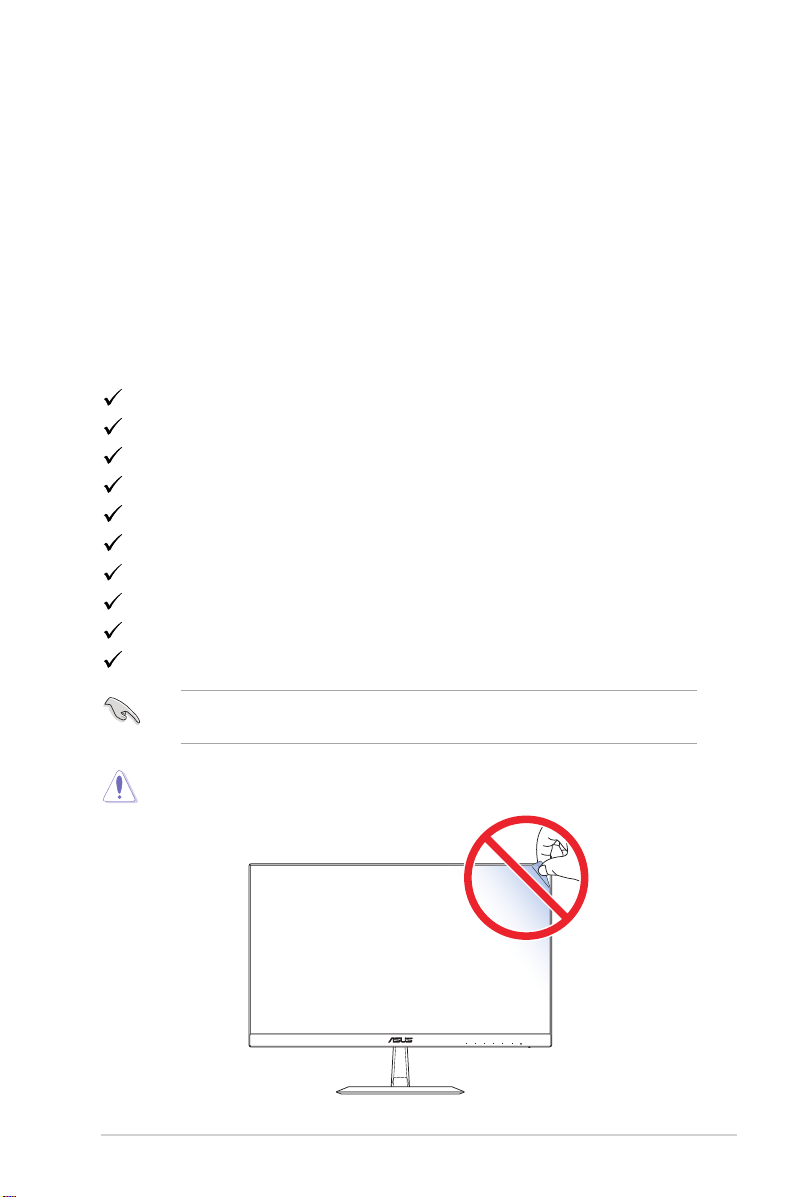

1.2 Package Contents
Check your package for the following items:
LCD monitor
Monitor Base
Quick Start Guide
Warranty Card
Adaptor
Power Cord (optional)
VGA cable (optional)
DVI cable (optional)
HDMI cable (optional)
Audio cable (optional)
•If any of the above items is damaged or missing, contact your retailer
immediately.
CAUTION
1-2 Chapter 1: Product Introduction
1.3 Assembling the Monitor Base
1. Have the front of the monitor face down on a table.
2. Attach the base to the arm.
3. Turn the screw clockwise to secure the base. Then adjust the monitor
to the angle that is most comfortable for you.
•We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
1-3
ASUS LCD Monitor VZ229 Series
1.4 Connect Cables
1.4.1 Rear of the LCD Monitor
VGA
HDMI
VGA
HDMI
6 74 5
21 3 1
VGA
HDMI
VGA
HDMI
74 5
2 3
VZ229H VZ229HE
VGA
DVI
VGA
DVI
2
7
3
8 5
VZ229N
1. Speakers
2. Control buttons
3. Kensington Lock
4. HDMI port
5. VGA port
6. Audio-IN port
7. DC-IN port
8. DVI port
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Monitor de Asus
Asus
Asus MB169B+ Manual de usuario
Asus
Asus ROG SWIFT PG32UCDM Manual de usuario
Asus
Asus VG249Q1A Manual de usuario
Asus
Asus MG278 Series Manual de usuario
Asus
Asus PG191 Manual de usuario
Asus
Asus Republic of Games ROG SWIFT PG329Q Manual de usuario
Asus
Asus 90LM0575-B01170 Manual de usuario
Asus
Asus MX27U series Manual de usuario
Asus
Asus VW195T Manual de usuario
Asus
Asus MB16AHP Manual de usuario
Asus
Asus VH198T Manual de usuario
Asus
Asus ROG STRIX XG27A Manual de usuario
Asus
Asus ROG STRIX XG17AHPE Manual de usuario
Asus
Asus VA229HR Manual de usuario
Asus
Asus VH192D - 18.5" LCD Monitor Manual de usuario
Asus
Asus VG279QMY Series Manual de usuario
Asus
Asus PA328 Series Manual de usuario
Asus
Asus VW226T Manual de usuario
Asus
Asus VG24V Series Manual de usuario
Asus
Asus MX259H Series Manual de usuario
