TSD ■Service Manual

1

P526 Service Manual

TSD ■Service Manual

2

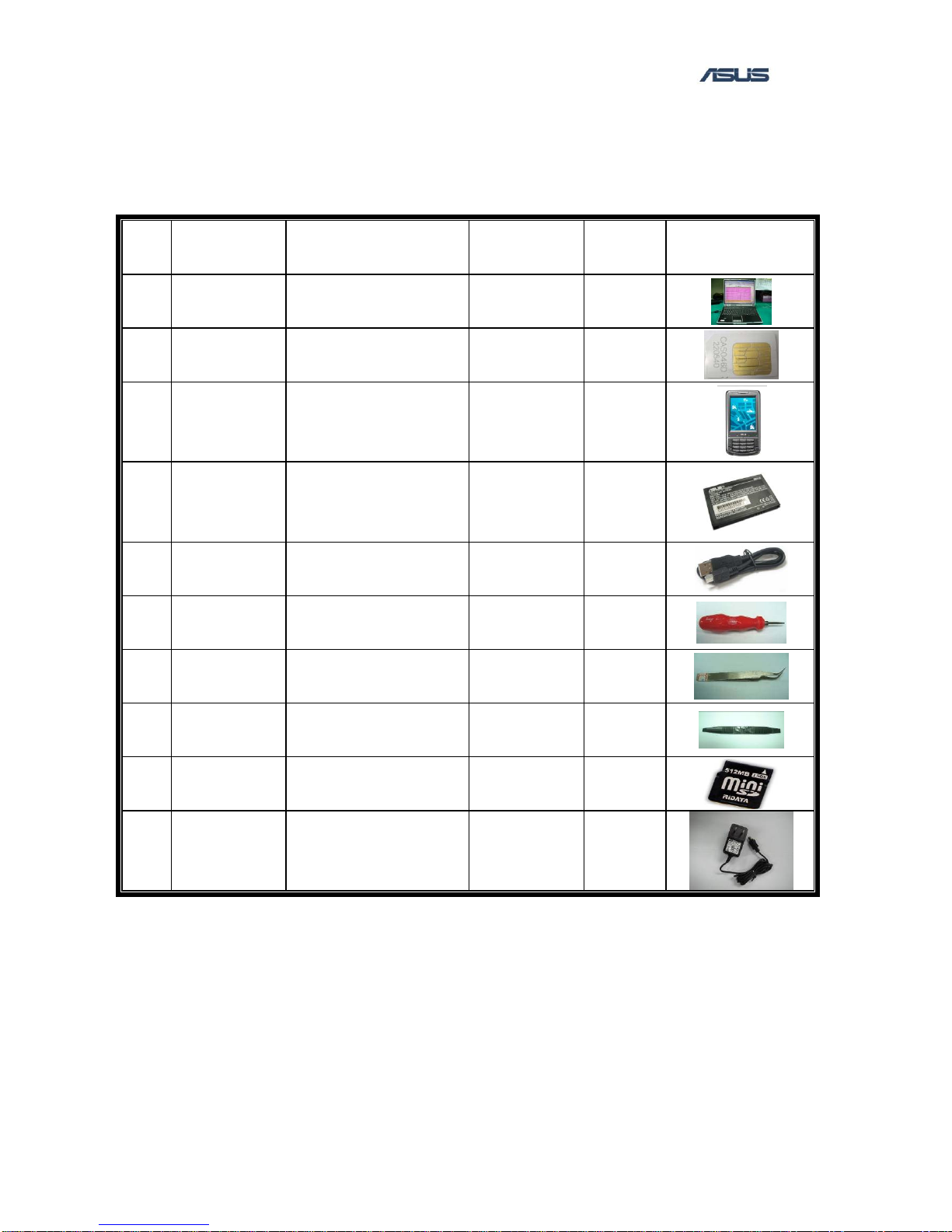

1．Equipments required

NO# Equipment

Description ASUS Part# Supplier Quantity Remarks

1 Computer None None 1

2 SIM Card None None 1

3 P526 80A-S5C1004 ASUS 1

4 Battery 07G016043459 ASUS 1

5 Mini USB

cable 14G000506200 ASUS 1

6 Screwdriver

(T5) 16-T00362002 ASUS 1

7 Tweezers 16-000600014 ASUS 1

8 Plastic

Wrench 13GV0400PZZZ ASUS 1

9 Micro SD

Card 04G352700210 ASUS 1

10 ADAPTER 04G267013820 ASUS 1

TSD ■Service Manual

2. Disassembly / Assembly Procedure

2.1 Introduction

This section describes how to disassemble P526 telephone.

Many of the integrated devices used in this phone are vulnerable to damage.

Ensure adequate static protection is in place when handling, shipping,

and servicing any internal components.

2.2 Recommended Tools

 Anti-Static Mat (Ground Cord included)

 Anti-Static Wrist Strap

 Torque Screw Driver (T5 type, torque is set to 1.2kg-cm)

 Tweezers

 Plastic blade

TSD ■Service Manual

4

2.3 Disassembly Procedure

The following set of diagrams will demonstrate the correct sequence and action to disassemble

P526.

1. Remove the Stylus

2. Remove Battery cover

3. Remove Battery

TSD ■Service Manual

5

4. Remove the ANTENNA Cover

5. Remove 4 SCREWS M1.6*4L T5

6. Disassemble FRONT COVER ASS'Y and MIDDLE COVER ASS'Y by Plastic

Wrench

TSD ■Service Manual

6

7. Remove VIBRATOR and SPEAKER from MIDDLE COVER ASS'Y

8. Remove Main Board from FRONT COVER ASS'Y

TSD ■Service Manual

7

9. Remove LCD TFT, KEYPAD and 4 GASKETS from FRONT COVER ASS'Y

10. Remove RECEIVER from FRONT COVER ASS'Y

TSD ■Service Manual

8

2.4 Assembly Procedure

It is carried out in the exact reverse sequence as the disassembly.

1. Assemble FRONT COVER ASS'Y: Put RECEIVER in FRONT COVER ASS'Y

2. Assemble LCD module

3．Put Keypad in FRONT COVER ASS'Y

TSD ■Service Manual

9

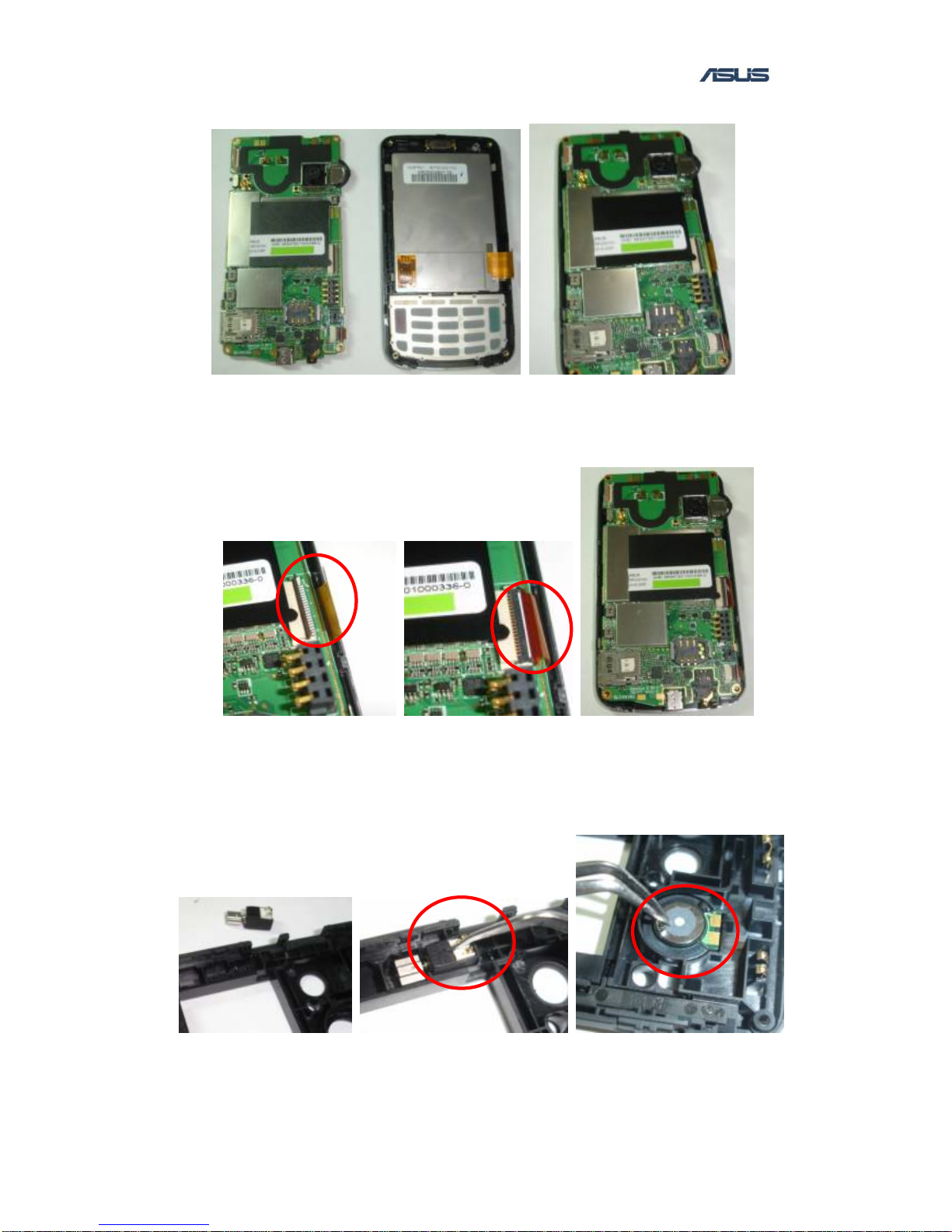

4. Assemble FRONT COVER ASS'Y and Main Board

5．Connect the LCM Module

6. Assemble MIDDLE COVER ASS'Y：Put VARISTOR in MIDDLE COVER

ASS'Y

TSD ■Service Manual

10

7．Put OK KEY MIDDLE COVER ASS'Y

8．Put CAMERA KEY in MIDDLE COVER ASS'Y

9．Put POWER KEY in MIDDLE COVER ASS'Y

10．Assemble MIDDLE COVER ASS'Y and MIDDLE COVER ASS'Y
