Asus MW100 Manual de usuario

ET10651

First Edition

December 2015

ASUS MW100

Wireless Smart Plug

User Manual / 使用手冊

15060-61503000

Product specications

Dimension

87 x 51 x 53 mm

Weight

72g

Wireless

ZigBee PRO

Operation Range

100 m (without obstruction)

Operation Interface

ZigBee button; Power button

LED Indicator

White for power button

Blue for ZigBee button

Operating Voltage

100 ~ 120VAC

Over Current Protection

10 A

Operating Temperature

-10~40°C

Operating Humidity

0~90%

NOTE: Specications subject to change without notice.

Technical support

This manual is a guide for setting up your device for the rst time only.

Actual product content and app screen may vary per rmware and

updates. Please refer to the ASUS support site for more information:

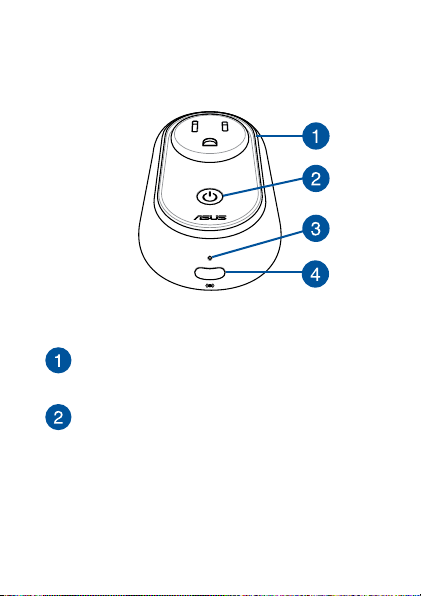

Product overview

Power socket

Power socket and power plug may vary in appearance,

depending on models and your region.

Power button with ON/OFF LED indicator

Press this button to turn the ASUS MW100 on or o. The LED

turns white when the ASUS MW100 is turned on.

ZigBee LED indicator

Refer to the following table for details on the LED status

indicator:

Color Status Description

Solid Blue

Device powering on Lights up for 1 second

Disconnecting with

home gateway

Press and hold the

ZigBee button for 5

seconds

Identifying device Lights up for 5 seconds

Blinking Blue

Connecting with

home gateway

Press the ZigBee

button to connect with

home gateway

ZigBee button

Press to connect with home gateway. Press and hold for 5

seconds to reset the device.

NOTE: Ensure to reset your ASUS Smart Home

device and delete the device from the companion

app to remove it completely.

System requirements

• Three-prongoutlet.DONOTremovethegroundprong.

• iOSorAndroidsmartphone.

• Wi-FirouterwithInternetaccess.

• AsusSmartHomegatewayandSmartHomeuseraccount.

Safety tips

• Thisdevicesupports100-120V,10A(Max.1200W)electrical

appliances.DONOTusethisdeviceforairconditioners,fridges,

ovens or other high power consumption electrical appliances.

• Checkthepowerratingonyourelectricalappliancesbeforeusing

it with this device.

• DONOTconnectpowerstripstothisdevice.

• DONOTattempttorepairtheproductyourself.

• Minimizetheexposuretomoistureincludingwethandsanddirect

contact with liquids.

• Usesoft,dryclothtocleanandavoidcleaningwithwater,alcohol

or other chemicals.

Installing ASUS SmartHome app

• Thisdevicecanbesetupandoperatedthoughthecompanion

app. Search for ASUS SmartHome and download the companion

app through the Apple App Store or Google Play.

• EnsureyouhaveInternetconnectionbeforedownloading.

• Ensureyoursmartphoneisconnectedtoyourrouterbeforesetting

up.

ASUS

SmartHome

Refer to a qualied

vendor or the ASUS

website for the minimum

system requirements.

Getting started

Connecting to your HG 100

1. Launch the ASUS SmartHome APP.

2. Tap on the main page of Home Control to add devices for the

home gateway.

3. Tap Add Device to join your ASUS SmartHome device to the

SmartHome Gateway.

4. Press the ZigBee button on your ASUS Smart Home device

to add the device.

NOTE: After tapping Add Device, you can press the

ZigBee button on all your ASUS Smart Home devices to

add them all at once.

5. Tap Done once all the devices are added to complete.

NOTE:

• EnsuretheASUSMW100ispluggedtoapowersource

before connecting. Refer to the LED indicator to check

the status of your device.

• Ensurethatyourdeviceiswithin100metersofyourASUS

SmartHome Gateway, and there are no obstructions such

as thick solid walls or other electronic devices that may

cause interference.

• TheLEDstatusindicatoronyourASUSSmartHome

Gateway will blink blue for sixty (60) seconds to indicate

that devices can be added.

• EnsuretoresetyourASUSSmartHomedeviceand

delete the device from the companion app to remove it

completely.

Additional information

• ThisdeviceissettoOFFbydefault.

• ThisdevicewillupdatedatatotheHomeGatewayevery10

minutes. You can view the data through the companion app.

• Whenthisdevicelosespower,thecompanionappwilldisplaya

gray icon and cannot be congured. The status will be updated

every 10 minutes.

產品規格

尺寸

87 x 51 x 53 mm

重量

72g

無線連線

ZigBee PRO

操作範圍

100 公尺（無障礙物）

操作介面

ZigBee 鈕；電源按鈕

LED 狀態指示燈

電源按鈕為白燈

ZigBee 按鈕為藍燈

操作電壓

100 ~ 120VAC

過載電流保護

10 A

操作溫度

-10~40°C

操作濕度

0~90%

說明：規格若有變更恕不另行通知。

技術支援

此使用手冊為初次使用時的設定指南。實際產品內容與應用程式畫

面會因韌體與更新而不同。要獲得更多資訊，請造訪華碩支援網站：

產品功能介紹

電源插座

電源插座與插頭的外觀會因機型與銷售區域不同而有差

異。

具備 ON/OFF LED 指示燈電源按鈕

按下此按鈕以將華碩 MW100 通電或斷電。當華碩 MW100

開機時，LED 指示燈會亮起白燈。

ZigBee LED 狀態指示燈

LED 狀態指示燈的詳細說明請參考下表：

顏色狀態說明

藍燈恆亮

裝置開機亮起約 1 秒

與智慧管家解除連線按住 ZigBee 按鈕

約 5 秒

裝置辨識中亮起約 5 秒

藍燈閃爍

與智慧管家連線按下 ZigBee 按鈕與智

慧管家連線

ZigBee 按鈕

按下以與智慧管家連線。按住約 5 秒以重置裝置。

說明：請確認重置華碩智慧家庭裝置並將裝置從專屬應用

程式中完全刪除。
