Astera Lightdrop AL3-series Manual de usuario

USER MANUAL

Lightdrop

(AL3-Series)

Manual Version: 3.2.20

Release Date: Jul . 23rd.2010

Astera LED Technology GmbH

Address : Nahestrasse 8-70, 55593 Rüdesheim an der Nahe, Germany Tel.: +49(0) 53 -3553 1 Email: sales@astera-led.com

1 Table of Contents

1 Table of Contents......................................................................................2

2 Safet ........................................................................................................3

3 Specifications............................................................................................4

3.1 Technical Data............................................................................................5

4 Quick Start................................................................................................6

4.1 Overview....................................................................................................

4.2 Advantages.................................................................................................7

4.3 Button and Operation..................................................................................7

5 Batter Runtime........................................................................................8

6 Troubleshooting........................................................................................9

7 Disposal...................................................................................................10

2 Safety

Before ou operate the unit, read this manual carefull .

Make sure to keep the manual, in case ou need to

consult this manual again or ou give the unit to another

person.

Alwa s make sure to include this manual if ou hand out

the unit to another person.

Keep in mind that this manual cannot address all

possible dangers and environments. Please use our own

caution when operating.

Onl qualified personnel ma repair this product.

Don't open the case.

Do not operate the unite in areas where the high

temperature condition or outdoors . It will cause

abnormal function or damage the product.

The Li-ion is inbuild, please avoid bumping or plunging, it

will cause FIRE or EXPLOSION.

Never store the batter when full drained. Alwa s

recharge immediatel when empt .

Make sure to full charge all AL3 units before storing

them.

Partiall charged batteries will loose capacit .

3 Specifications

a) Wireless spot light, for Indoor and outdoor use

b) Narrow light beam angle can be widened with diffuser lens

c) Displa s more than 16 million colors.

d) Low power consumption

e) Controllable b Radio Frequenc Remote Control

f) DMX integration via ART3 wireless DMX Transmitter

g) 8-24 hours operation time without recharging the batter .

h) Up to 300 meter operation distance of the remote control

i) High brightness LEDs

j) RGB LEDs combined with white LEDs for a better color mixing

and color appearance

3.1 Technical Data

Light Sources

Light Sources 5mm bullet LEDs with 15 degree beam angle

Amount or LEDs AL3-S: 1 (4xR, 4xG, 4xB, 4xW)

AL3-M: 9 (24xR,24xG, 24xB, 24xW)

LED Power AL3-S: 1.7W

AL3-M: 10.2W

Power Suppl

Power supply unit Shipping with the Lightdrop

Input power AC 100-240V, 50/ 0Hz, 0.3A

Output power DC 5V, 0.5A

Rechargeable Battery AL3-S: 3.7V, 0.85AH

AL3-M: 5V, 0. 5AH

Battery operational time 8 – 24h (depending on selected colors,

brightness, programs)

Wireless Module

Available versions RF(radio frequency), IR(infra-red)

Range IR: up to 10m

RF: 50m up to 300m

RF Frequency Europe: 8 8.000 MHz – 8 9.750 MHz

US: 902MHz – 928 Mhz

Housing

Material POM housing and clear PMMA cover

Size AL3-S: Ø 59mm x H 48mm (Ø 2.3” x H 1.9”)

AL3-M: Ø 90mm x H 58mm (Ø 3.5” x H 2.3”)

Weight AL3-S: 140g (0.31lb)

AL3-M: 480g (1.0 b)

Environmental

Requirements

Operational Temp 0 ~ 50 °C work temperature

Environment Indoor and Outdoor (splash-proof)

4 Quick Start

This Lightdrop is designed for event illumination and decorative lighting. Due to its

integrated battery and wireless module it offers an uncomplicated setup without the

need to lay out cables for control and power supply.

The Lightdrop offers several mounting possibilities. Through its magnetic back it can

be quickly attached at walls, ceilings or under tables and chairs. It can also be used

to light up a range of optional decorative objects.

An AL3 can be used as standalone lamp since basic illumination can be started with

the touch button. However, for betters setting of colors and programs and additional

functions it is recommended to use it together with the ARC2 remote control or the

IR Remote Control.

For a larger setup, AL3s can be grouped and paired with other AL3 units and other

wireless Astera lamps. This can be done with the ARC2 remote control or the ART3

Wireless DMX transmitter.

4.1 Overview

AL3-S AL3-M

LED light sources

window for

IR reception

indicator LED

touch button

(heat sensitive)

4.2 Advantages

Wireless design --- The AL3 is easy for installation due to its integrated battery and

RF receiver.

Smart programing --- The AL3 not only displays complex color-changing programs

but also gives you the possibility to use your own customized colors for these pro-

grams when controled by an ARC2 Remote Control. The AL3 can be used as a stan-

dalone unit or grouped and paired with other Astera lamps and be controlled with an

ARC2 RF Remote Control.

Energ saving design --- Low working voltage, low power consumption and addi-

tional white LEDs helps to save up to 80% energy so it can reach a maximum opera-

tion time of up to 24 hours.

4.3 Button and Operation

To power on the unit, hold the on/off button for 2-3 second.

To power off, press the on/off button shortly.

To choose basic colors or a rainbow effect, turn the unit on, then hold down the button and

keep the finger until the lamp turns into the blue blinking mode. Push the button several

times to cycle through the basic colors until the rainbow effect. When the desired color is

displayed, hold the button until the LEDs stop blinking and the lamp turns into normal oper-

ation.

To do a Factory Reset, turn the unit on. Then hold down the button and keep the finger

until: unit turns off turns on blue blinking turns off again→ →

When the unit turns off for the second time, a factory reset was done.

While powered up, the indicator LED will show the battery charge state:

red – orange – green corresponding to the charge state

While charging, the LED will blink in green.

5 Battery Runtime

The work temperature is 0~ 0 Celsius degree.

When you switch on but it's not working and the red light is keep shining means you need

recharge the battery.

The LED POWER modes description:

•When we use maxium runtime, we setting the LED power is 50% full power, the LED

will run longer time, but the brightness is just 50% also

•When we use normal brightness, we setting the LED power is 70% full power , the

LED will run time is our normal time.

•When we use high brightness, we setting the LED power is 100% full power, then

the LED will more bright, but the run time will be shorter then the nornal brightness

or maxium runtime mode.

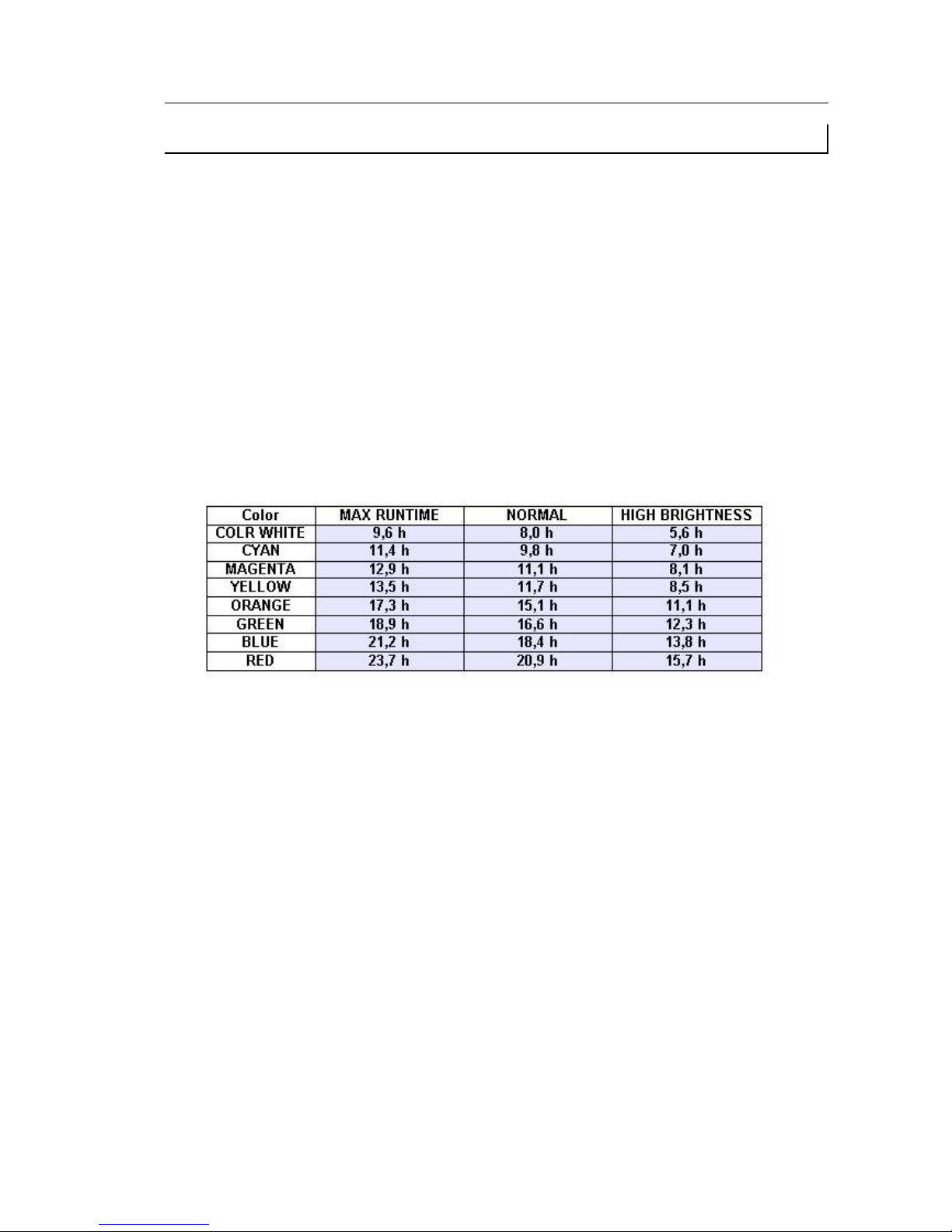

Here are estimated battery runtimes:

6 Troubleshootin

Fault condition Cause Troubleshooting

LED no light when you switch on Due to the vast number of settings, one

can not always predict behavior of the

units, if setup was already done earlier.

Set the brightness to other value.

Units behave incorrectly Due to the vast number of settings, one

can not always predict behavior of the

units, if setup was already done earlier.

Do FACTORY RESET on units and/or re-

mote control.

Couldn’t turn on the system Maybe the battery is run out.

Plug the AC input, and put the system

charge 1 hour more, then can turn ON

The indicator not blinking when charging DC plug or AC input not settled well or

battery is already full

Discharge the battery a little or check

wether the DC has been plugged or

wether the AC input has any problem.

Units will go out of battery after only

hours of operation.

The units last only 8 hours with COLD

WHITE, if the LED POWER is set to NOR-

MAL. For HIGH BRIGHTNESS the run

time is shorter than 8 hours.

Adjust LED POWER and/or see manual

of the unit.

7 Disposal

Follow local ordinances and/or regulations for disposal!

PACKAGING:

The unit is shipped in protective packaging.

This packaging can be rec cled!

UNIT:

Don't throw the unit into the garbage at the end of its

lifetime.

Make sure to dispose is according to our local

ordinances and/or regulations, to avoid polluting the

environment!

BATTERIES:

Don't throw empt batteries into the garbage!

Bring them to a collecting point for used batteries!
