Assa Abloy EMTEK A Manual de usuario

OOR

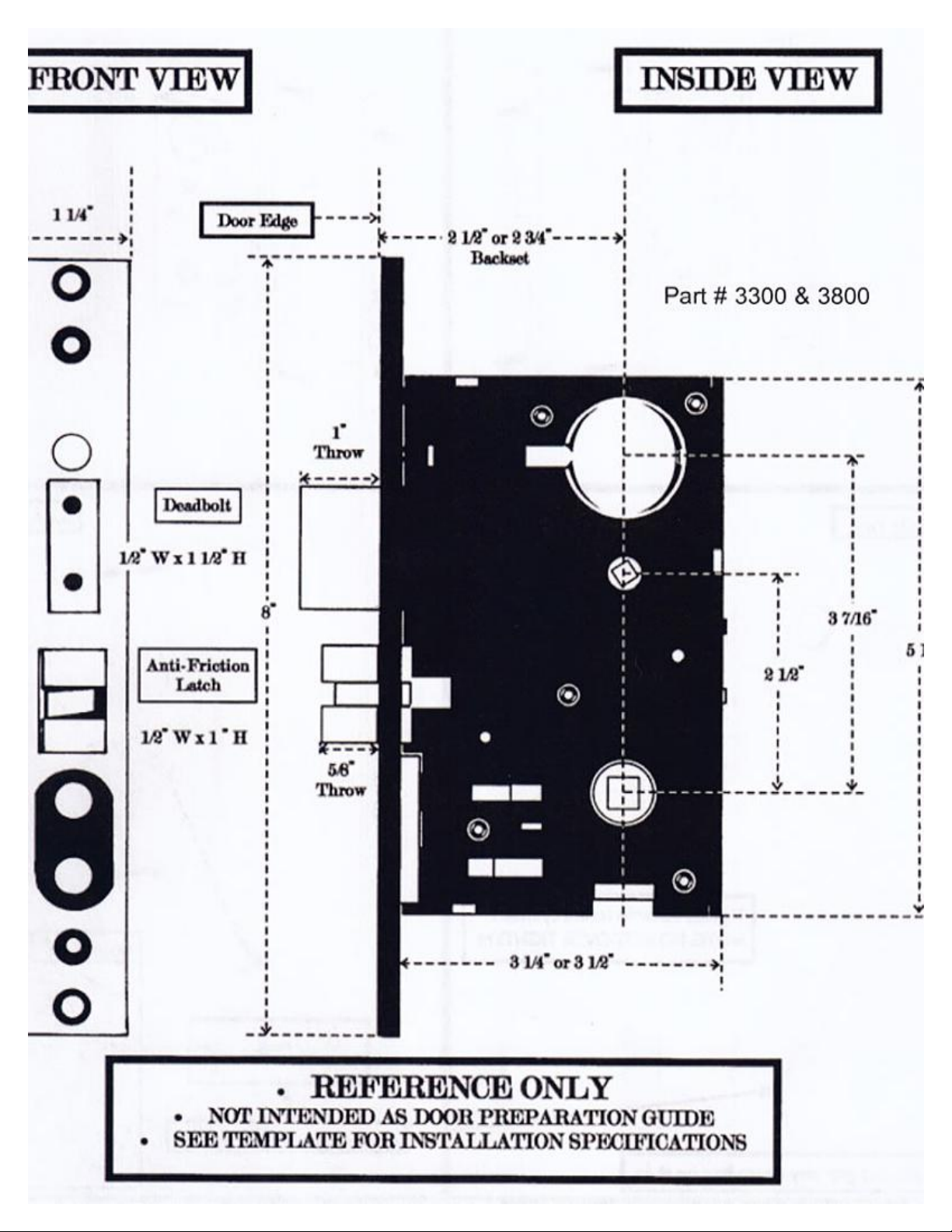

HOLE PREPARATION

OOR

IN4-MORTISE-R 15C

nstallation Guide - F13 MortiseLock

Platesandgripvarydependingonstyle.

IN4-MORTISEINSTF13 REV15A

Assembleto

bottomtube

See templatefordoorprep

2.InstallMortise Lock1.Install CylinderPlug

Outside nside

3.MountInside andOutsideTrimtoDoor

nstall key 3/4 of the way into

the key cylinder and thread

it clockwise onto trim plate.

nstall cylinder plug by

threading it clockwise

onto lock body

4.Install KeyCylinder

After key cylinder is installed,

secure cylinder by tightening

screw

6.Install TrimPlate

TightenLeverwith3/32

Hexwrench(provided).

See templatefordoor 2.Pull outand rotate

Latch bolt toreverse

itsdirection.

1.Removedowel

screw. (Replace

afterreversing

swing)

Note: Notch on cylinder

plug must be in the 9

o’ clock position when

fully screwed onto lock

body.

nstallation Guide - F20 MortiseLock

Platesandgripvarydependingonstyle.

IN4-MORTISEINSTF20 REV 15A

Assembleto

bottom tube

See templatefordoorprep

2.InstallMortise Lock1.Install CylinderPlug

Outside nside

3.MountInside andOutsideTrimtoDoor

nstall key 3/4 of the way into

the key cylinder and thread

it clockwise onto trim plate.

nstall cylinder plug by

threading it clockwise

onto lock body

4.Install KeyCylinder

After key cylinder is installed,

secure cylinder by tightening

screw

6.Install TrimPlate

TightenLeverwith3/32

Hexwrench(provided).

Seetemplatefordoor Thumbpress

Locked

Thumbpress

Unlocked

In In

2. Pullout and rotate

Latchbolt toreverse

itsdirection.

1.Remove dowel

screw.(Replace

afterreversing

swing)

Note: Notch on cylinder

plug must be in the 9

o’ clock position when

fully screwed onto lock

body.
