Requirements:
Units are handed. Hand of unit and hand of door must be the same.
All dimensions shown in inches (mm).
Door must be hung on ball bearing butt hinges or 3/4" (19) offset pivots.
Door thickness must be 1-3/4" (44) to 2-1/4" (64).
Door must swing freely through the entire opening and closing cycle before beginning the installation procedure.
Frame face must be a minimum of 2" (51).
Ceiling clearance must be a minimum of 3 -1/2" (89) for push side application or 4" (102) for pull side application. See pages
2 and 7 for templates.
Power input to unit must be of the same voltage as that stated on the unit.
Unit to be mounted on interior of building in dry environment, maximum humidity of 95%.
See NFPA70 for wiring requirements and NFPA72 for alarm system requirements.
Pull Side Applications with Slide Track
(4 Pull, 6 Pull)
(see page 7 for template)
Push Side Applications with Double Lever Arms
(4 Push, 6 Push)
(see page 2 for template)
Item No. Description
1 Track (Pull Side)
2 Cover
3 Track Arm (Pull Side)
4 Double Lever Arm (Push Side)
• Allen wrench set (inch)
• Flat blade screwdriver (potentiometer &
terminal size)
• Screwdriver (Phillips size 2)
• Tape ruler
• Power drill
• Center punch
• Wire stripper
Tools required:
Use screw pack and hardware provided to mount operator.
312
4
Table of Contents:
Push Side Template....................2
Push Side Installation..............2-4
Closer Adjustments.....................5
Hold Open Position Adj...............6
Pull Side Template......................7
Pull Side Installation.................7-9
Closer Adjustments...................10
Hold Open Position Adj.............11
Non-Detectored Electrical.........12
Detectored Electrical.................13
RF Unit Electrical.................14-15
Troubleshooting.........................15
General Information..................16
ASSA ABLOY
RIXSON®Smok-Chek® VI
Installation and Instruction Manual
ASS
A ABL
O
Y
RIXSON®
ASSA ABL
OY
RIXSON®
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
2

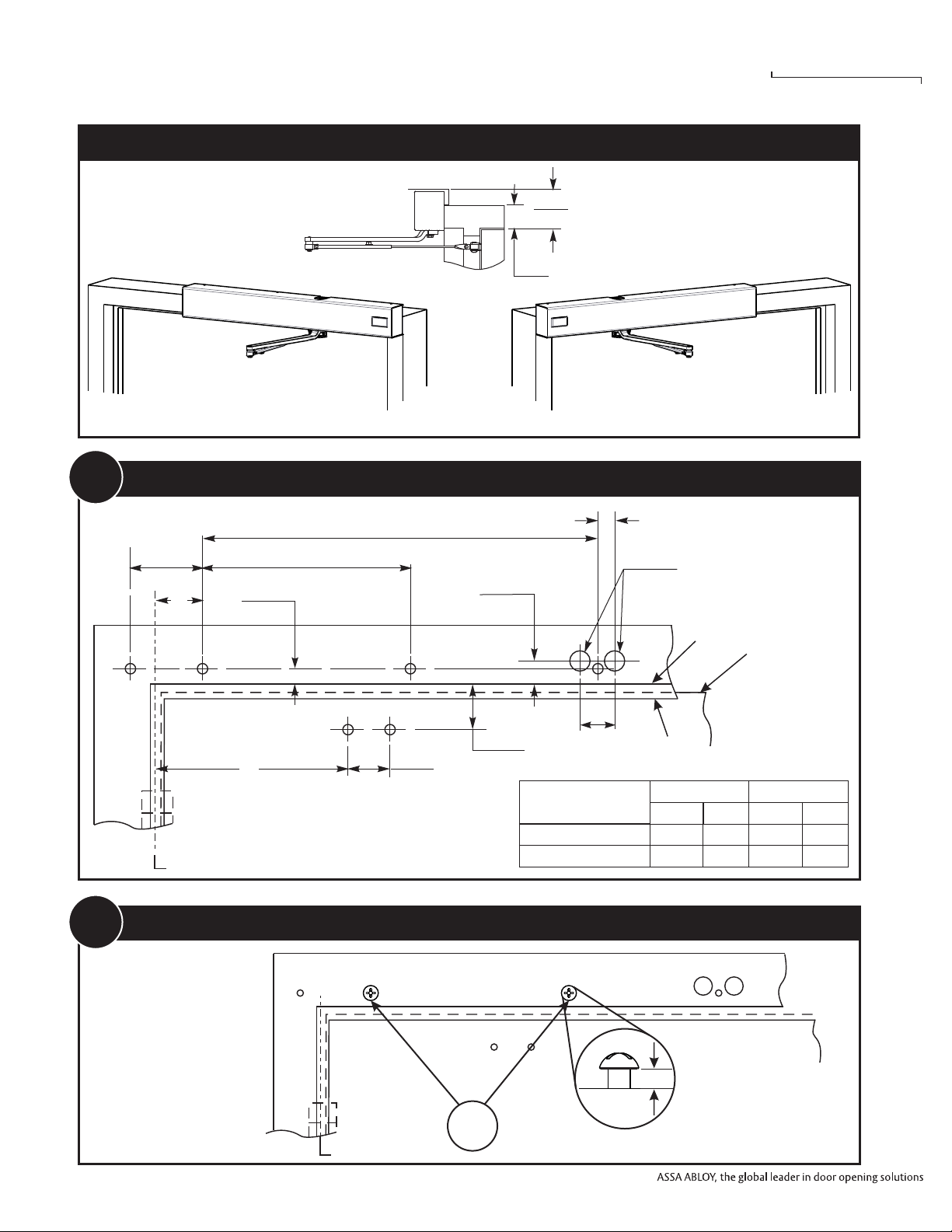

Double Lever Arm (Push Side)
Closer Mounting
2
Prepare Frame
Ceiling Line
2
(51)
3-1/2
(89)
Min
Min
Use of an auxiliary door stop, by
others, is required for these applications.
Hinge
Edge
Of
Door
DOOR OPENING
ANGLE
Dim “A”
Inches (mm)
To 100°
100° to 180°
5-7/8
3-1/8
149.2
79.4
Hinge or Pivot
Drill #7; Tap 1/4-20 UNC 19-3/4
1-3/4
(44.5)
C
4
(101.6)
11-1/4
(285.8)
(501.7)
For Concealed
Wiring Only
7/8
(22.2) DIA THRU
A
Left hand door shown, right hand opposite.
All dimensions shown in inches (mm).
Install two screws in
the key slot locations
leaving 1/8" gap
between screw head
and frame face as
shown (a).
C
1/8"
B
Dim “B”
Inches (mm)
13-3/8
10-5/8
339.7
269.9
1
Top of
Door
Frame
Soffit
1-3/4
(44.5)
7/8
(22.2)
Frame Rabbet
11/16
(17.5)
5/16
(7.9)
1-5/8
(41.3)
RH - Right Hand
LHR - Left Hand Reverse
LH - Left Hand
RHR - Right Hand Reverse
a
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
3

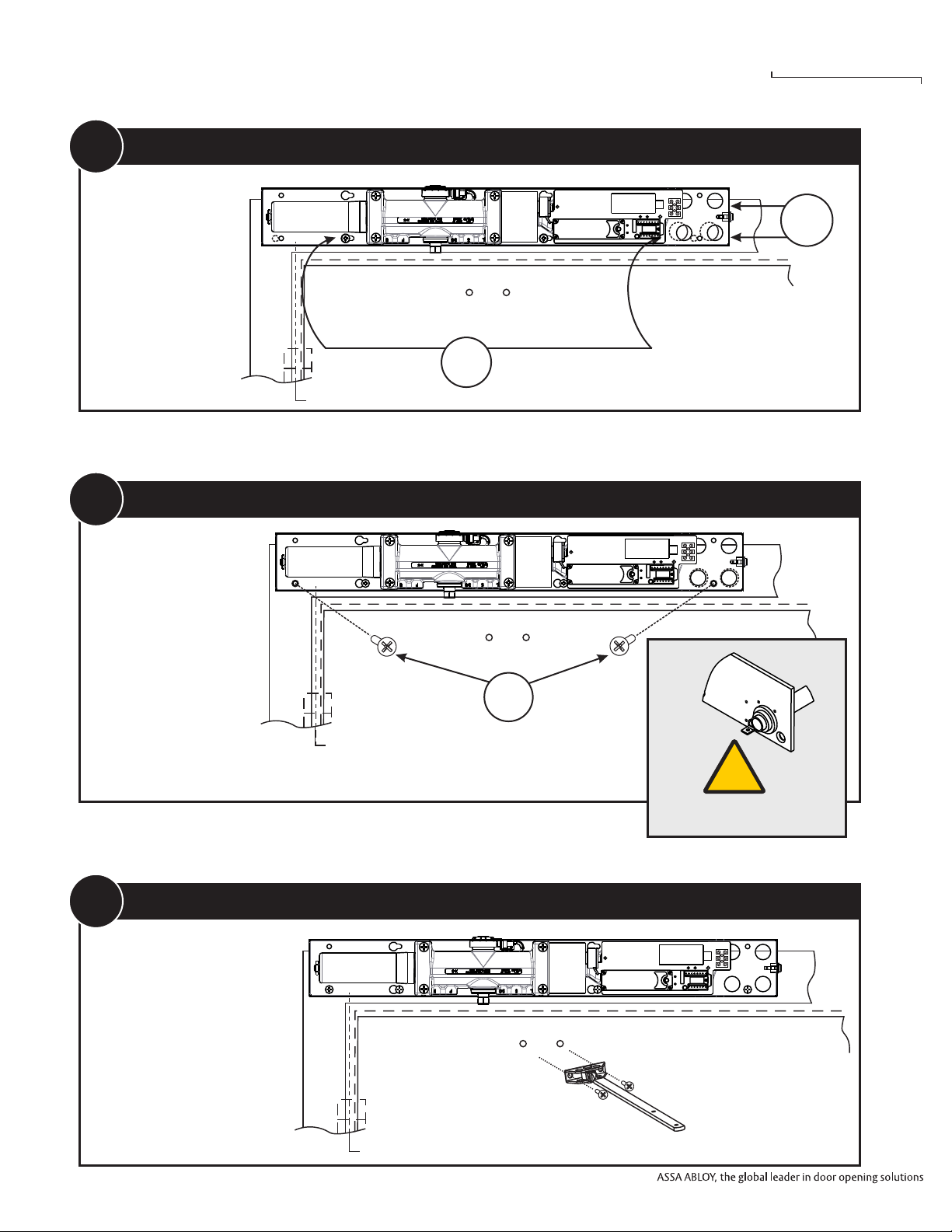

Operator Mounting
3
c
Hang closer body
by key hole slots (b)
and slide closer
toward hinge to
capture screw
heads (c).
Warning: Do not
allow pedestrian
traffic through
opening until all
mounting screws
are tightened.
Closer Mounting
4
Install remaining
mounting screws
through back plate and
tighten all four screws
(d). Pull wiring through
holes (if concealed
wired).
Arm Shoe Mounting
5
Mount closer arm shoe to
door face as shown.
For Concealed Wired Only
(If surface wired, see page 13-15)
!
d
C
C
b
C
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
4

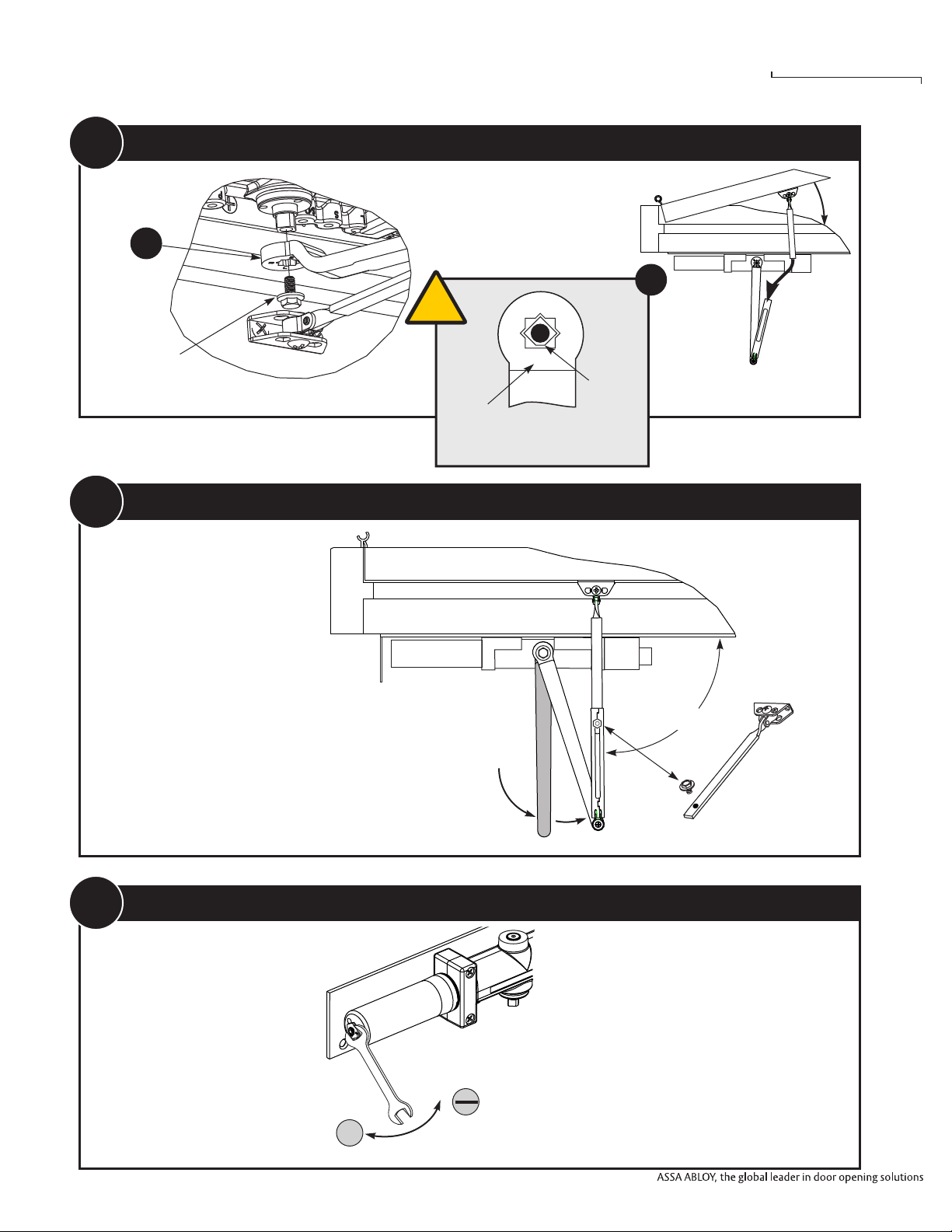

Attach Arm
36
Preload Closer Spring
37
Arm Screw
(7/16” Drive)
Main
Arm F
Closer Spring Adjustment
38
11/16"
Wrench
+
Closing Force
Weaker
Stronger
Slowly increase closer power
until door closes consistently. A
closer set to the ADA required 5
lbs opening force may not be
strong enough to close the door
due to latching hardware, air
pressure, or frame issues.
F
L
R
Y
S
Z
Pinion
Flat
Arm
Mark
Align the pinion flat with
the letter "S".
!
90°
With the door closed and
latched, rotate main arm until
secondary arm is perpendicular
to the door frame, then tighten
adjustment screw as shown with
7/16” wrench.
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
5

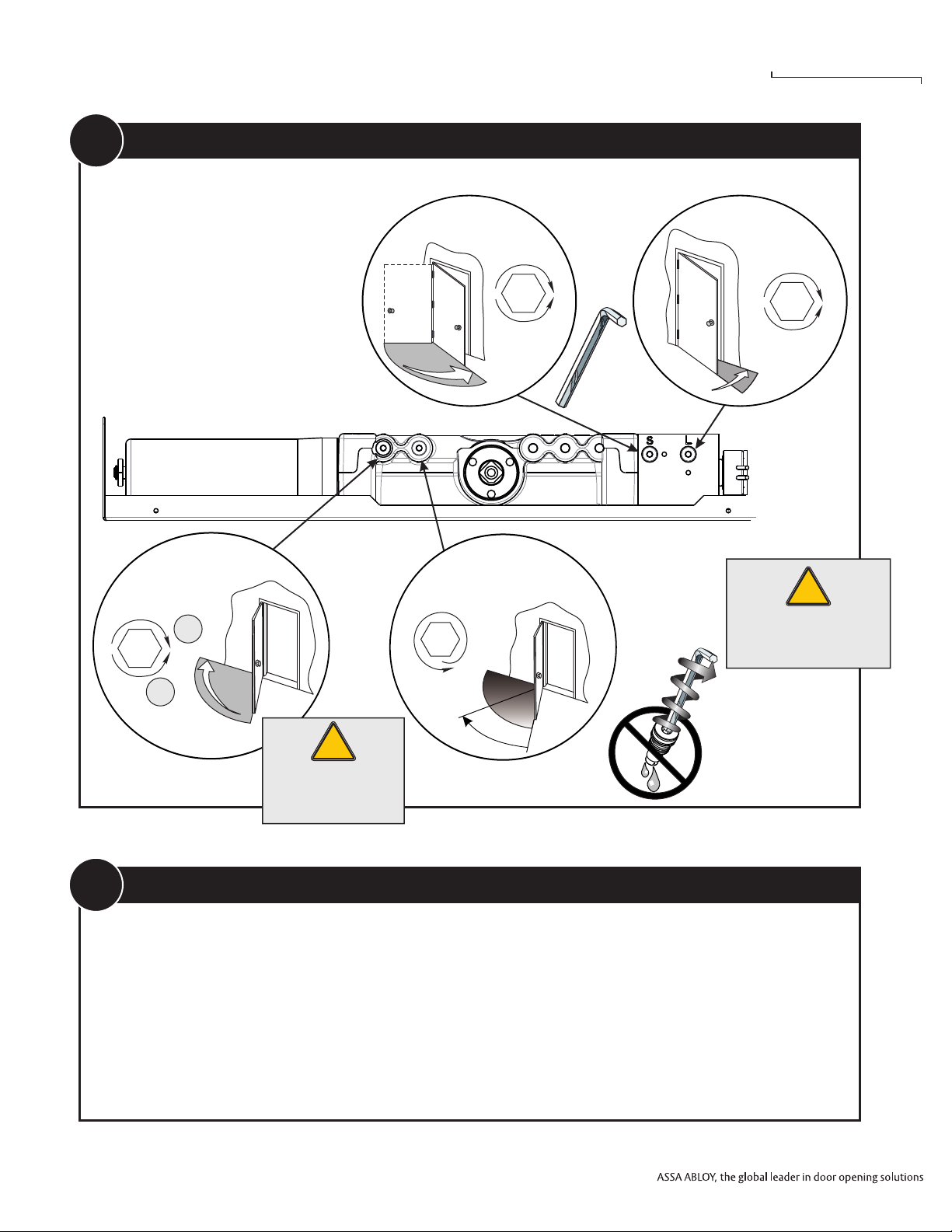

Closer Adjustments
39
+
-
1/8"
Hex
Key
"B"
Backcheck
75°
"L"
Latch
0°
5°
1/8"
Hex
Key
"P"
Backcheck
Position
75°
90°
"S"
Sweep
5°
!
Never Close
backcheck valve
completely
!
Do not remove valves
from closer. Hydraulic
oil will escape.
1/8"
Hex
Key
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e
w
o
e
l
r
S
F
r
a
s
t
e
Weaker
Stronger
Closing Speed Controls
• Valve "S" Controls Sweep Range from
full open to 5°.
• Valve "L" Controls Latch Range from 5°
to closed.
Opening Cycle
• Valve "B" controls the strength of
cushioning in Backcheck Range.
NEVER close this valve completely – it
is not to provide a positive stop.
• Valve "P" adjusts the angle that back-
check is felt in the open cycle.
Electrical Connections
3
See Page 13 for Non-Detectored Units
See Page 14 for Detectored Units
See Page 15 for RF Units
10
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
6
Attach Cover
312
Attach cover using screws provided.
Selective Hold Open Cam Adjustment
3
11
Setting Hold Open Angle
• Make all required electrical connections
and turn power switch to on for non-
detectored units (detectored units
cannot be turned off at the closer). (See
previous step)
• Open door to desired hold open angle.
• Loosen cam screw and rotate cam until
switch closes and door holds open.
• Rotate cam until it touches the switch.
• Tighten cam screw but do not over
torque as this will cause damage to
cam.
• Force door out of hold open by closing
the door, then test hold open by
opening to hold open angle again.
a
5/32” hex
wrench
b
c
5/32” hex
wrench
e
d
Right hand pull-side shown.
Switch shown in hold open position (closed).
Backplate
SHO switch in
open position.
Closer not in
hold open.
SHO switch in
closed position.
Closer in hold
open.
Un-used pin
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
7
Track Mount (Pull Side)
Closer Mounting
2
Prepare Frame
Left Hand Door - LH
Right Hand Reverse - RHR
RH - Right Hand Door
LHR - Left Hand Reverse
Ceiling Line
2
(51)
4
(102)
Min
Min
Right hand door shown, left
hand opposite.
All dimensions shown in
inches (mm).
Install two screws in
the key slot locations
leaving 1/8" gap
between screw head
and frame as shown
(a).
a
C
1/8"
1
Track Mount Unit
6
(152.4)
19-1/8
(485.8)
CHinge or Pivot
3-1/4
(82.6)
3/4
(19)
For Concealed
Wiring Only
7/8
(22.2) DIA THRU
1-3/8
(34.9)
1-1/16
(27)
23
14-1/2
(368.3)
(584.2)
Prepare holes for mounting per instructions on page 2. *Track screws are
self tapping and are smaller than closer mounting screws*
1-1/4 (31.8)
Standard Arm
Double Egress Arm
Series Dim "A"
5/8 (15.9)
1/8 gap
(3.2)
Top of
Door
Frame
Soffit
A
(44.5)
1-3/4
7/8
(22.2)
*9/64 (3.6) Holes
for track screws*
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
8
Closer Mounting
3
Closer Mounting
4
Arm Mounting
5
c
Install remaining
mounting screws
through back plate
and tighten all four
screws (d). Pull
wiring through holes
(if concealed wired). d
Fully close Latch & Sweep
Valves with 1/8" wrench
provided.
Mount closer arm to pinion square as shown.
Use main arm to rotate pinion
until flat is visible.
RE-INSTALL
HERE
LEFT
HAND
RIGHT
HAND
Attach with provided
screw and washer.
Tighten arm screw with
5/32" hex wrench.
Attach Arm
36
PINION
FLAT
LEFT
HAND
RIGHT
HAND
Align the pinion flat as
shown.
!
*All views from floor looking upward*
C
C
Hang closer body
by key hole slots (b)
and slide closer toward
hinge to capture screw
heads (c).
Warning: Do not allow
pedestrian traffic
through opening until
all mounting screws
are tightened.
*For Connected Free Swing Arm
see Instructions 80-9372-0101-000*
For Concealed Wired Only
(If surface wired, see page 13-15)
!
b
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
9
A) Insert slider into track.
B) For openings 125°or less, insert spring
cushion stop on hinge side of track .
For openings greater than 125°, omit
spring stop.
C) Insert end caps (both ends).
D) Secure track to door using screws
provided.
E) Snap on cover.
Set Screws
toward hinge
!
If opening angle greater than 125°, spring cushion stop cannot be used and an auxiliary stop
by others is required.
Mount Track
37
Connect Arm to Track
38
Open door to maximum desired swing
minus 5° and hold. Slide spring
cushion stop assembly against slider
assembly and secure to track using
5/64" or 2mm wrench.
HINGE
Secure arm to slider
assembly using 3/16"
wrench. Turn wrench
counter clock wise to
tighten.
Open Latch & Sweep Valves
with 1/8" wrench provided.
A
B
C
D
E
Closer Spring Adjustment
39
11/16"
Wrench
+
Closing Force
Weaker
Stronger
Slowly increase closer power
until door closes consistently. A
closer set to the ADA required 5
lbs opening force may not be
strong enough to close the door
due to latching hardware, air
pressure, or frame issues.
Copyright © 2010, 2014 Yale Security Inc., an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited. 80-9372-0100-015 (02-14)
ASSA ABLOY
RIXSON®
10
Closer Adjustments
3
10
+
-
1/8"
Hex
Key
"B"
Backcheck
75°
1/8"
Hex
Key
"P"
Backcheck
Position
75°
90°
"S"
Sweep
5°
!
Never Close
backcheck valve
completely
!
Do not remove valves
from closer. Hydraulic
oil will escape.
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e
Weaker
Stronger
Closing Speed Controls
• Valve "S" Controls Sweep Range from
full open to 5°.
• Valve "L" Controls Latch Range from 5°
to closed.
Opening Cycle
• Valve "B" controls the strength of
cushioning in Backcheck Range.
NEVER close this valve completely – it
is not to provide a positive stop.
• Valve "P" adjusts the angle that back-
check is felt in the open cycle.
"L"
Latch
0°
5°
1/8"
Hex
Key
w
o
e
l
r
S
F
r
a
s
t
e
Electrical Connections
3
See Page 13 for Non-Detectored Units
See Page 14 for Detectored Units
See Page 15 for RF Units
11
Tabla de contenidos
Otros manuales de Sistema de apertura de puertas de Assa Abloy
Assa Abloy
Assa Abloy Norton LEO 5700 Series Guía rápida
Assa Abloy
Assa Abloy DC140 Manual de usuario
Assa Abloy
Assa Abloy Corbin Russwin ED5600 Series Manual de usuario
Assa Abloy
Assa Abloy Besam SW300 Manual de usuario
Assa Abloy
Assa Abloy DC200 Manual de usuario
Assa Abloy
Assa Abloy Norton PR7500 Manual de usuario
Assa Abloy
Assa Abloy SARGENT 1130-HU Series Manual de usuario
Assa Abloy
Assa Abloy Norton 6300 Series Manual de usuario
Assa Abloy
Assa Abloy Yale 2500 Series Manual de usuario
Assa Abloy
Assa Abloy Corbin Russwin DC8200 Series Manual de usuario
Assa Abloy
Assa Abloy Besam SL500 Manual de usuario
Assa Abloy
Assa Abloy SARGENT FIREGUARD 2499 Manual de usuario
Assa Abloy
Assa Abloy Norton 7540STH Series Manual de usuario
Assa Abloy
Assa Abloy Norton Narrow Profile Series Manual de usuario
Assa Abloy
Assa Abloy Norton 7970DPS-B Series Manual de usuario
Assa Abloy
Assa Abloy DC3210 Manual de usuario
Assa Abloy
Assa Abloy besam PUSH-N-GO Manual de usuario
Assa Abloy
Assa Abloy Corbin Russwin DC8200 Series Manual de usuario
Assa Abloy
Assa Abloy Sargent FIREGUARD 2408 Series Manual de usuario
Assa Abloy
Assa Abloy Corbin Russwin PED5000 DB Series Manual de usuario
