Assa Abloy Yale nexTouch NTB610 Especificaciones técnicas

P/N 80-9150-0080-010 (11-19)

Retroﬁtting or modifying this product may impact ﬁre rating, safety features and warranty.

Consult with code speciﬁcations to ensure compliance with all codes and ratings.

™

nexTouch

Touchscreen and Push Button Access Cylindrical Lock

Installation and Programming Instructions

3/32"

Optional

P/N 80-9150-0080-010 (11-19)

?Determining Handing

Left Hand “LH”, Hinges Left.

Open Inward.

Left Hand Reverse "LHR", Hinges Left.

Open Outward.

Right Hand "RH", Hinges Right.

Open Inward.

Right Hand Reverse "RHR", Hinges Right.

Open Outward.

The hand of a door is determined from the secure side of the door. The

term "secure" means the side from which you initially unlock and enter.

P/N 80-9150-0080-010 (11-19)

Preparing Door

Drill holes 1/2 way thru

door then complete from

other side to prevent

splitting.

DPS Option

Wood Door:

3/8" Dia. x Thru to

Hole in Door Face

*Metal Door:

3/4" Dia. Thru to

Hole in Door Face

*Metal Door Installations

Supplied plastic collar MUST be

installed for DPS to function properly.

80-8150-0032-010

Rev C

™

nexTouch

Cylindrical Lock

BEVELED EDGE

DOOR ONLY

HIGH EDGE

LOW EDGE

1" Dia.(25mm)

Thru Door

HIGH EDGE Fold Line

2-3/4" Beveled Backset

2-3/8" Square Backset

Fold Line

2-3/8" Square Backset

Fold Line

5/32" Dia x 1/8" Deep

(4mm x 3mm)

2 Locations

Both sides of door

2-3/4" (70mm)

Between Centers

2-1/8" Dia

(54mm)

Thru Door

3-1/2"

(89mm)

Between

Centers

CAUTION:

If printed from website

Print 1:1 Scale

Measure both 3" lines to check scale

SQUARE EDGE

DOOR ONLY

5/32" Dia x 1/8" Deep

(4mm x 3mm)

2 Locations

Both sides of door

HIGH EDGE Fold Line

2-3/8" Beveled Backset

LOW EDGE Fold Line

2-3/8" Beveled Backset

LOW EDGE Fold Line

2-3/4" Beveled Backset

WHEN IN TOP

POSITION ONLY

5/16" Dia

(8mm)

Thru Door

5/16" Dia

(8mm)

Thru Door

1" Dia.(25mm)

Thru Door

WHEN IN TOP

POSITION ONLY

3-1/2"

(89mm)

Between

Centers

Horizontal

Center Line

Vertical

Center Line

CUT

CUT CUT

CUT

Product Support Tel 800-810-WIRE (9473) • www.yalelocks.com

nexTouch™ is a trademark of Yale Security Inc., an ASSA ABLOY Group company.

Reproduction in whole or in part without the express written permission of Yale Security Inc., an ASSA ABLOY Group company is prohibited.

Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.

An ASSA ABLOY Group brand

3/4" (19mm) Dia.

Metal Frame

3/8" (9.5mm) Dia.

Wood Frame

™

nexTouch Cylindrical Locks

NTB610

NTB620

NTB630

NTB640

Cylinder Override - Push Button

Cylinder Override - Cap Touch

No Cylinder Override - Push Button

No Cylinder Override - Cap Touch

3/4" (19mm) Dia.

Metal Frame

3/8" (9.5mm) Dia.

Wood Frame

P/N 80-9150-0080-010 (11-19)

2Preparing Frame

DoorFrame

1" Dia. x

1/2" Deep

Frame DPS Option

Wood Frame:

3/8" Dia. x 1"

*Metal Frame:

3/4" Dia. x 1"

See Instruction

A7983B

Inside

of Door

Frame

3-1/2"

7-16 / 8-32 x 1" UNCWS

*Metal Frame Installations

Supplied plastic collar MUST be

installed for DPS to function properly.

P/N 80-9150-0080-010 (11-19)

3Preparing Inside Escutcheon

!Do not take apart the

outside assembly.

P/N 80-9150-0080-010 (11-19)

Curved edge of latchbolt

faces direction door closes.

Installing Latchbolt

Inside of Door

7-16 / 8-32 x 1" UNCWS

Removing Battery Cover

2-3/8" Latchbolt for thin doors sold separately.

See Installation Options.

P/N 80-9150-0080-010 (11-19)

Installing Outside Assembly

Inside of Door

View from Outside of Door

"T" Tabs

Retractor Pocket

Mounting Flange

Two moving "T" tabs

must be fully captured

in retractor pocket.

Mounting Flanges

must be in Mounting

Flange Pockets.

Mounting Flange Pocket

Mounting

Flange

Mounting Flange Pocket

6Thin door gaskets sold separately.

See Installation Options.

Optional DPS

P/N 80-9150-0080-010 (11-19)

10-32 x 2-1/2" PFHMS

Do Not

Overtighten Screws

Installing Inside Support Assembly

Inside of Door

Optional DPS

P/N 80-9150-0080-010 (11-19)

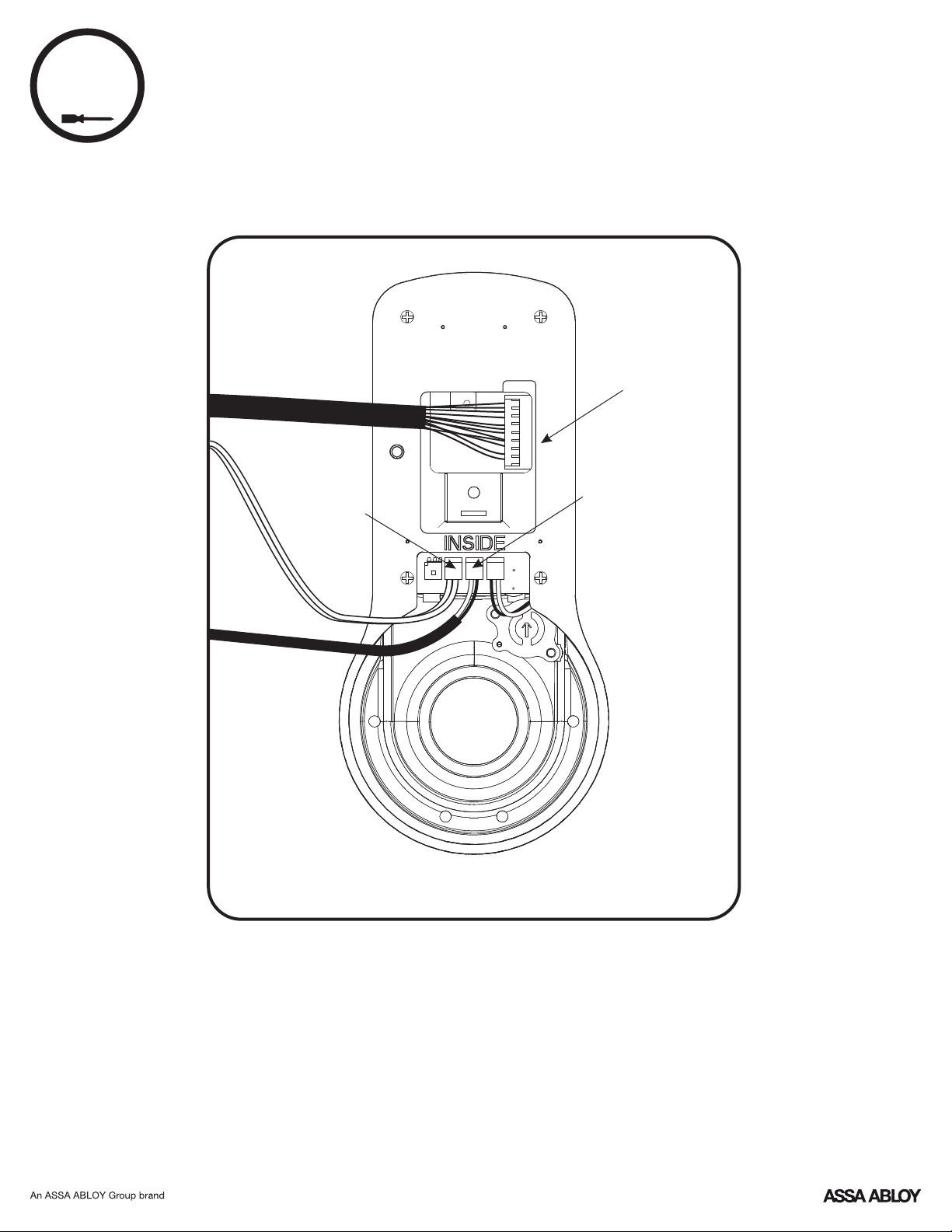

Attaching Cables

Optional

DPS

Connection

Motor

Connection

Touchpad

Connection

P/N 80-9150-0080-010 (11-19)

9Installing Inside Escutcheon

Testing Inside Lever Operation

Avoid pinching

cables

Thin door gaskets sold separately.

See Installation Options.
