ASROCK X99 OC Formula Manual de usuario

Version 1.0

Published September 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;

7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &

DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,

DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.

English

X99 OC Formula

Motherboard Layout

Supe r

I/O

Supe r

I/O

ATXPWR1

USB3_7_ 8

LAN

PCIE1

PCIE4

PLED1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

USB5_6

USB3_4

COM1

X99 OC Formula

PCIE5

S_SATA3 _2 _3

SATA3 _0 _1

SATA3 _2 _3

SATA3 _4 _5

CHA_FAN1

CPU_FAN1

CPU_FAN2

PWR_FAN1

RoHS

S_SATA3 _0 _1

3458

DDR4_A2 (64 bit, 284-pin module)

DDR4_A1 (64 bit, 284-pin module)

DDR4_B2 (64 bit, 284-pin module)

DDR4_B1 (64 bit, 284-pin module)

Purity

Sound 2

Ul tra M .2

PC Ie Ge n3 x4

128Mb

BIOS

BIOS_A

BIOS_A_LED

128Mb

BIOS

BIOS_A

BIOS_A_LED

TPMS1

CLRMOS1

CT2CT3CT4CT5

HD_AUDIO1

T BT1

CHA_FAN3

SATA_PWR_1

CT1

DDR4_D1 (64 bit, 284-pin module)

DDR4_D2 (64 bit, 284-pin module)

DDR4_C1 (64 bit, 284-pin module)

DDR4_C2 (64 bit, 284-pin module)

2011-3 Socket

Verti ca l

Type A USB

USB3_8

USB3_9_ 10

Dr.

Debug

Reset Power

33 32

44 31

BIO S_ SEL 1

MINI_PCIE1

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE IN

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

CLRC

BTN1

Top:

RJ-45

USB 3.0

T: USB5

B: USB6

RJ-45

USB 2.0

T: USB1

B: USB2

PS2

Keyboard

/Mouse

USB 3.0

T: USB3

B: USB4

USB 3.0

T: USB1

B: USB2

CHA_FAN2

8-Layer PC B

1 2 3 4

OFF

PCIE_PWR1

CMOS

Battery

Intel

X99

LN2MODE1 SLOWMODE1SWITCH1

CPU

DRAM

VGA

BOOT

ATX12V1

ATX12V2

DIRKEY1

PCIE2

ULTRA_M2

CT2CT3CT4CT5

PCIE3

M2_1

English

No. Description

1 2 x 284-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

2 2 x 284-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

3 8 pin ATX 12V Power Connector (ATX12V1)

4 4 pin ATX 12V Power Connector (ATX12V2)

5 CPU Fan Connector (CPU_FAN1)

6 2 x 284-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)

7 2 x 284-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)

8 CPU Fan Connector (CPU_FAN2)

9 Rapid OC Button (+) (PLUS)

10 Rapid OC Button (–) (MINUS)

11 Menu Button (MENU)

12 PCIe ON/OFF Switch (SWITCH1)

13 LN2 Mode Switch (LN2MODE)

14 Slow Mode Switch (SLOWMODE)

15 V-ProbeTM (VOL _CON1)

16 Post Status Checker (PSC)

17 ATX Power Connector (ATXPWR1)

18 USB 3.0 Header (USB3_7_8)

19 Vertical Type A USB 3.0 (USB3_8)

20 Chassis Fan Connector (CHA_FAN3)

21 USB 3.0 Header (USB3_9_10)

22 SATA3 Connectors (S_SATA3_0_1)

23 SATA3 Connectors (S_SATA3_2_3)

24 SATA3 Connectors (SATA3_0_1)

25 SATA3 Connectors (SATA3_2_3)

26 SATA3 Connectors (SATA3_4_5)

27 HDD Saver Connector (SATA_PWR_1)

28 BIOS Selection Switch (BIOS_SEL1)

29 Power LED Header (PLED1)

30 Direct Key Button (DIRKEY1)

31 Chassis Speaker Header (SPEAKER1)

32 System Panel Header (PANEL1)

33 Power Switch (PWR)

English

X99 OC Formula

No. Description

34 Reset Switch (RST)

35 Chassis Fan Connector (CHA_FAN2)

36 TPM Header (TPMS1)

37 USB 2.0 Header (USB3_4)

38 USB 2.0 Header (USB5_6)

39 Chassis Fan Connector (CHA_FAN1)

40 Clear CMOS Jumper (CLRCMOS1)

41 COM Port Header (COM1)

42 PCIe Power Connector (PCIE_PWR1)

43 underbolt AIC Connector (TB1)

44 Front Panel Audio Header (HD_AUDIO1)

45 Power Fan Connector (PWR_FAN1)

English

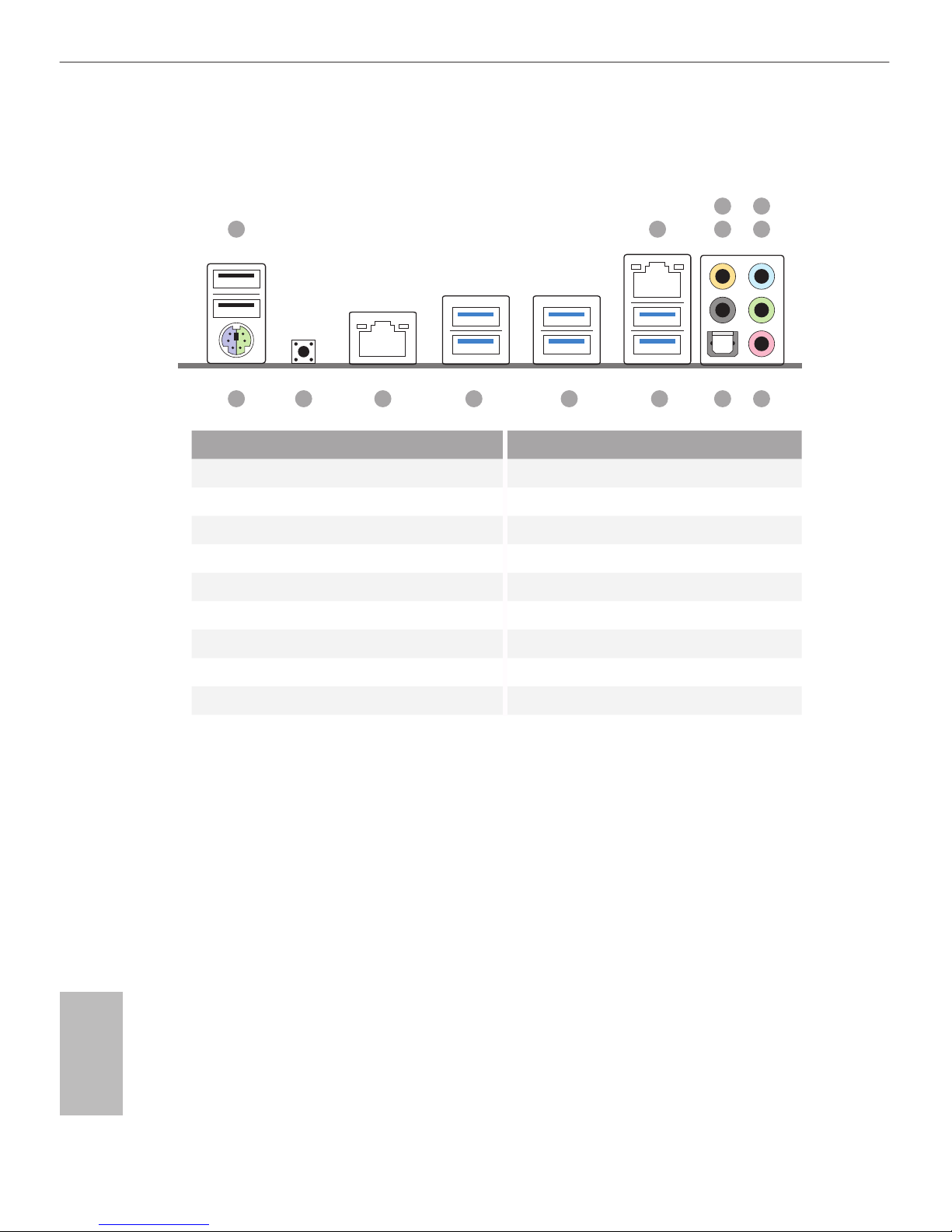

1.4 I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB12) 9 USB 3.0 Ports (USB3_56)

2 LAN RJ-45 Port 10 USB 3.0 Ports (USB3_34)

(Qualcomm® Atheros® AR8171)* (ASMedia ASM1074 hub)

3 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_12)

4 Rear Speaker (Black) (ASMedia ASM1074 hub)

5 Line In (Light Blue) 12 LAN RJ-45 Port

6 Front Speaker (Lime)** (Intel® I218V)*

7Microphone (Pink) 13 Clear CMOS Switch

8 Optical SPDIF Out Port 14 PS/2 Mouse/Keyboard Port

14 78910111213

2 4

English

X99 OC Formula

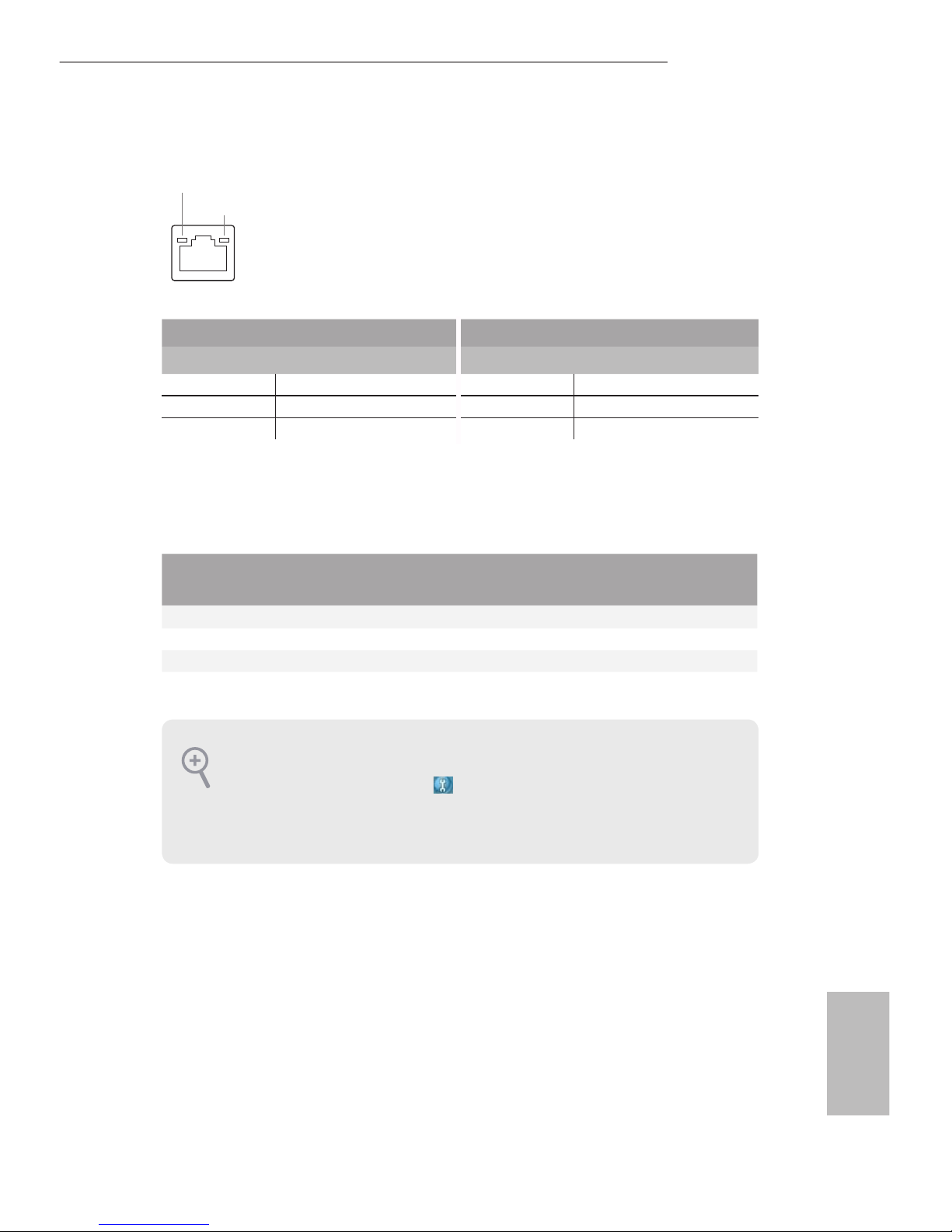

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

2V -- -- --

4V V -- --

6V V V --

8VVVV

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

English

Chapter 1 Introduction

ank you for purchasing ASRock X99 OC Formula motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

•ASRock X99 OC Formula Motherboard (EATX Form Factor)

•ASRock X99 OC Formula Quick Installation Guide

•ASRock X99 OC Formula Support CD

•1 x I/O Panel Shield

•3 x ASRock Flexible SLI Bridge Connector Cables (2 x 10 cm, 1 x 14 cm)

•6 x Serial ATA (SATA) Data Cables (Optional)

•1 x HDD Saver Cable

•2 x Screws for M.2 Socket

•1 x Screw for mini-PCIe Slot

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

X99 OC Formula

1.2 Specications

Platform •EATX Form Factor

•8 Layer PCB

•4 x 2oz copper

•High Density Glass Fabric PCB

CPU •Supports Intel® CoreTM i7 and Xeon® 18-Core Processors

Family for the LGA 2011-3 Socket

•Digi Power design

•12 Power Phase design (Supports up to 1300w)

•Supports Intel® Turbo Boost 2.0 Technology

•Supports Untied Overclocking Technology

Chipset •Intel® X99

Memory •Quad Channel DDR4 Memory Technology

•8 x DDR4 DIMM Slots

•Supports DDR4 3400+(OC)*/2933(OC)/2800(OC)/2400

(OC)/2133/1866 non-ECC, un-buered memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

•Supports non-ECC x8 (8 bit) RDIMM (Registered DIMM)/

x8 (8 bit) UDIMM

•Supports DDR4 ECC x8 (8 bit) RDIMM/x8 (8 bit) UDIMM

with Intel® Xeon® processors E5 series in the LGA 2011-3

Socket

•Max. capacity of system memory: 128GB

•Supports Intel® Extreme Memory Prole (XMP) 2.0

Expansion

Slot

•5 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/

PCIE5: single at x16 (PCIE1); dual at x16 (PCIE1) / x16

(PCIE4); triple at x8 (PCIE1) / x8 (PCIE2) / x16 (PCIE4);

quad at x8 (PCIE1) / x8 (PCIE2) / x8 (PCIE4) / x8 (PCIE5))

* If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE4

will run at x16/x0/x4/x8 or x8/x8/x4/x8, and PCIE5 will be

disabled.

* If Ultra M.2 PCI Express module is installed, PCIE3 slot will

be disabled.

•1 x Half Mini-PCI Express Slot

English

•Supports AMD Quad CrossFireXTM, 4-Way CrossFireXTM,

3-Way CrossFireXTM and CrossFireXTM

•Supports NVIDIA® Quad SLITM, 4-Way SLITM, 3-Way SLITM

and SLITM

* If you install CPU with 28 lanes, 4-Way CrossFireXTM and

4-Way SLITM are not supported.

Audio •7.1 CH HD Audio with Content Protection (Realtek

ALC1150 Audio Codec)

•Premium Blu-ray Audio support

•Supports Surge Protection (ASRock Full Spike Protection)

•Supports Purity Sound™ 2

- Nichicon Fine Gold Series Audio Caps

- 115dB SNR DAC with Dierential Amplier

- TI® NE5532 Premium Headset Amplier (Supports up to

600 Ohms headsets)

- Direct Drive Technology

- EMI Shielding Cover

- PCB Isolate Shielding

•Supports DTS Connect

LAN •1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)

•1 x Qualcomm® Atheros® AR8171 (PCIE x1 Gigabit LAN

10/100/1000 Mb/s)

•Supports Qualcomm® Atheros® Security Wake On Internet

Technology (on Qualcomm® Atheros® AR8171)

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse/Keyboard Port

•1 x Optical SPDIF Out Port

•2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD

Protection (ASRock Full Spike Protection))

Otros manuales para X99 OC Formula

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK QC5000M-ITX/PH Manual de usuario

ASROCK

ASROCK IMB-186 Manual de servicio

ASROCK

ASROCK Fatal1ty Z97 Manual de usuario

ASROCK

ASROCK NF6-GLAN Manual de usuario

ASROCK

ASROCK FM2A75M-DGS R2.0 Manual de usuario

ASROCK

ASROCK Fatal1ty Z97 Manual de usuario

ASROCK

ASROCK H81 Pro BTC Manual de usuario

ASROCK

ASROCK A55M-VS Manual de usuario

ASROCK

ASROCK K10N7SLI Manual de usuario

ASROCK

ASROCK 2Core1333DVI-2.66G Manual de usuario

ASROCK

ASROCK B85 Pro4 Manual de usuario

ASROCK

ASROCK Z87M Pro4 Manual de usuario

ASROCK

ASROCK H510M-ITX/ac Manual de usuario

ASROCK

ASROCK AD425PV - V1.0 Manual de usuario

ASROCK

ASROCK FM2A85X Pro Manual de usuario

ASROCK

ASROCK A230GC - V1.0 Manual de usuario

ASROCK

ASROCK B150M-HDV/D3 Manual de usuario

ASROCK

ASROCK WRX90 WS EVO Manual de usuario

ASROCK

ASROCK H67M Manual de usuario

ASROCK

ASROCK G41M-VGS3 Manual de usuario

ASROCK

ASROCK G41M-GS Manual de usuario

ASROCK

ASROCK ALIVENF7G-HD720P - V2.0 V5.0 Manual de usuario

ASROCK

ASROCK FM2A78M-ITX+ Manual de usuario

ASROCK

ASROCK PV530-ITX - V1.0 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
