ASROCK X470 Master SLI Manual de usuario

Version 1.0

Published January 2018

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

CE Warning

is device complies with directive 2014/53/EU issued by the Commision of the European

Community.

is equipment complies with EU radiation exposure limits set forth for an uncontrolled

environment.

is equipment should be installed and operated with minimum distance 20cm between

the radiator & your body.

Operations in the 5.15-5.35GHz band are restricted to indoor usage only.

Radio transmit power per transceiver type

Function Frequency Maximum Output Power (EIRP)

WiFi

2400-2483.5 MHz 18.5 + / -1.5 dbm

5150-5250 MHz 21.5 + / -1.5 dbm

5250-5350 MHz 18.5 + / -1.5 dbm (no TPC)

21.5 + / -1.5 dbm (TPC)

5470-5725 MHz 25.5 + / -1.5 dbm (no TPC)

28.5 + / -1.5 dbm (TPC)

Bluetooth 2400-2483.5 MHz 8.5 + / -1.5 dbm

English

X470 Master SLI/ac / X470 Master SLI

Motherboard Layout

DDR4_A2 (64 bit, 288-pin module)

DDR4_A1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

ATXPWR1

PCIE1

Top:

Central/Bass

Cen te r:

REA R SP K

Top:

LIN E IN

Cen te r:

FRO NT

Bot to m:

Opt ic al

SPD IF

Bot to m:

MIC I N

PCIE4

HDLE D RESE T

PLED P WRBT N

PANE L1

SPK _PL ED 1

COM 1

HD_ AUD IO 1

SATA3 _3_ 4

SATA3 _1_ 2

USB_1_2

USB _3_ 4

SATA3 _5_ 6

CMOS

Battery

M2_1

M2_2

USB 3_ 7_8

CPU_FAN1

TPM S1

Ul t r a M.2

PC Ie G e n3 x 4

CHA_FAN1/WP

USB3_9_10

AMD _FAN _LE D1

BIOS

ROM

RoHS

PCIE5

CHA _FAN 2/ WP

USB_5

RGB _LE D1

Supe r

I/O

PCIE6

CPU _FAN 2/ WP

CHA _FAN 3/ WP

Top:

RJ- 45

USB 3 .1 Gen1

T: USB5

B: US B6

USB 3 .1 Gen2

T: USB3 _TA_1

B: US B3_TC _1

USB 3 .1 Gen1

T: USB3

B: US B4

ADD R_L ED1

AMD

Promontory

X470

SOCKET AM4

HDMI1

PS2

Keyb oa rd/

Mous e

USB 3 .1 Gen1

T: USB1

B: US B2

ATX1 2V 1 ATX1 2V 2

CLRC MOS 1

PCIE2

PCIE3

M2_W IFI _1*

* e vertical M.2 socket (Key E) with the bundled WiFi-802.11ac module is for X470

Master SLI/ac only.

English

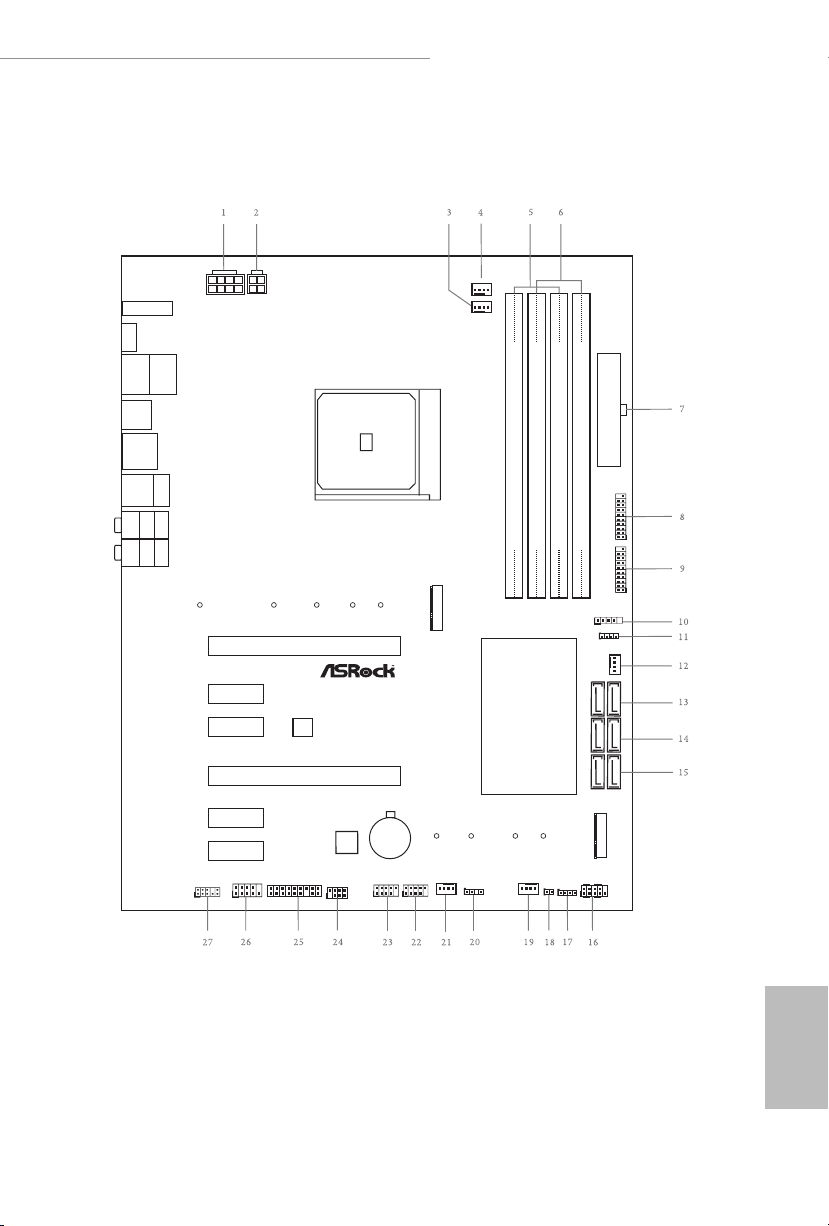

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 ATX 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

6 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

7 ATX Power Connector (ATXPWR1)

8 USB 3.1 Gen1 Header (USB3_9_10)

9 USB 3.1 Gen1 Header (USB3_7_8)

10 AMD LED Fan USB Header (USB_5)

11 AMD Fan LED Header (AMD_FAN_LED1)

12 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

13 SATA3 Connectors (SATA3_5_6)

14 SATA3 Connectors (SATA3_3_4)

15 SATA3 Connectors (SATA3_1_2)

16 System Panel Header (PANEL1)

17 RGB LED Header (RGB_LED1)

18 Clear CMOS Jumper (CLRCMOS1)

19 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

20 Addressable LED Header (ADDR_LED1)

21 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)

22 USB 2.0 Header (USB_1_2)

23 USB 2.0 Header (USB_3_4)

24 Power LED and Speaker Header (SPK_PLED1)

25 TPM Header (TPMS1)

26 COM Port Header (COM1)

27 Front Panel Audio Header (HD_AUDIO1)

English

X470 Master SLI/ac / X470 Master SLI

I/O Panel

X470 Master SLI/ac

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 9 USB 3.1 Gen1 Ports (USB3_5_6)

2 LAN RJ-45 Port* 10 USB 3.1 Gen2 Type-A Port (USB3_TA_1)

3 Central / Bass (Orange) 11 USB 3.1 Gen2 Type-C Port (USB3_TC_1)

4 Rear Speaker (Black) 12 USB 3.1 Gen1 Ports (USB3_3_4)

5 Line In (Light Blue) 13 USB 3.1 Gen1 Port (USB3_1_2)

6 Front Speaker (Lime)** 14 HDMI Port (HDMI1)

7 Microphone (Pink) 15 Antenna Ports

8 Optical SPDIF Out Port

12 91014 13

English

X470 Master SLI

No. Description No. Description

1 PS/2 Mouse/Keyboard Port 8 Optical SPDIF Out Port

2 LAN RJ-45 Port* 9 USB 3.1 Gen1 Ports (USB3_5_6)

3 Central / Bass (Orange) 10 USB 3.1 Gen2 Type-A Port (USB3_TA_1)

4 Rear Speaker (Black) 11 USB 3.1 Gen2 Type-C Port (USB3_TC_1)

5 Line In (Light Blue) 12 USB 3.1 Gen1 Ports (USB3_3_4)

6 Front Speaker (Lime)** 13 USB 3.1 Gen1 Port (USB3_1_2)

7 Microphone (Pink) 14 HDMI Port (HDMI1)

12 91014 13

English

X470 Master SLI/ac / X470 Master SLI

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

2V -- -- --

4V V -- --

6V V V --

8VVVV

ACT/LINK LED

SPEED LED

LAN Port

English

WiFi-802.11ac Module and ASRock WiFi 2.4/5 GHz Antennas

(for X470 Master SLI/ac only)

WiFi-802.11ac + BT Module

is motherboard comes with an exclusive WiFi 802.11 a/b/g/n/ac + BT v4.2

module (pre-installed on the rear I/O panel) that oers support for WiFi 802.11 a/b/

g/n/ac connectivity standards and Bluetooth v4.2. WiFi + BT module is an easy-to-

use wireless local area network (WLAN) adapter to support WiFi + BT. Bluetooth

v4.2 standard features Smart Ready technology that adds a whole new class of

functionality into the mobile devices. BT 4.2 also includes Low Energy Technology

and ensures extraordinary low power consumption for PCs.

* e transmission speed may vary according to the environment.
