ASROCK P4S55FX Manual de usuario

P4S55FX+

P4S55FX

User Manual

Version 1.01

Published March 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 4

1.1 Package Contents .......................................................... 4

1.2 Specifications ................................................................ 5

1.3 Motherboard Layout (P4S55FX+) ................................. 7

1.4 Motherboard Layout (P4S55FX) .................................. 8

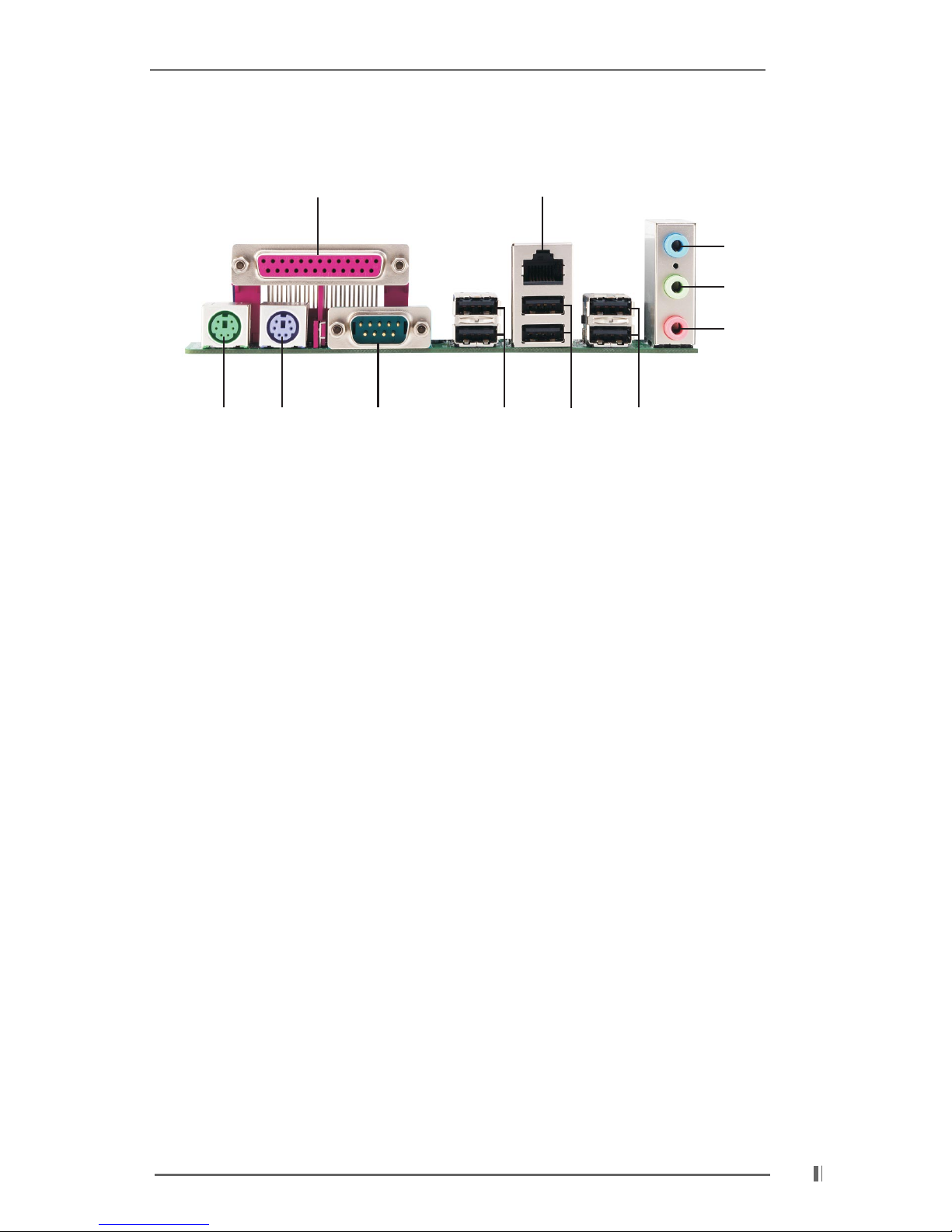

1.5 ASRock I/O PlusTM (P4S55FX+/ P4S55FX) ................... 9

2 Installation...................................................... 10

Pre-installation Precautions ................................................... 10

2.1 CPU Installation .............................................................. 11

2.2 Installation of CPU Fan and Heatsink ............................ 11

2.3 Installation of Memory Modules (DIMM)......................... 12

2.4 Expansion Slots (PCI and AGP Slots) ........................... 14

2.5 Jumpers Setup .............................................................. 15

2.6 Onboard Headers and Connectors .............................. 16

2.7 Serial ATA (SATA) Hard Disks Installation ..................... 19

2.8 Making An SATA Driver Diskette ................................... 20

3 BIOS Setup ...................................................... 21

3.1 BIOS Setup Utility ........................................................... 21

3.1.1 BIOS Menu Bar ....................................................... 21

3.1.2 Legend Bar ............................................................. 21

3.2 Main Menu ...................................................................... 22

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 24

4 Software Support ........................................... 25

4.1 Install Operating System ............................................... 25

4.2 Support CD Information ................................................. 25

4.2.1 Running Support CD ............................................... 25

4.2.2 Drivers Menu .......................................................... 25

4.2.3 Utilities Menu ........................................................... 25

4.2.4 ASRock “PC-DIY Live Demo” Program .................. 25

4.2.5 Contact Information ................................................ 25

Appendix ............................................................ 26

1. Advanced BIOS Setup Menu .......................................... 26

2. Security Setup Menu ....................................................... 31

3. Power Setup Menu .......................................................... 32

4. Boot Setup Menu ............................................................. 33

5. Exit Menu ......................................................................... 34

Chapter 1 Introduction

Thank you for purchasing ASRock P4S55FX+ / P4S55FX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD. More information of ad-

vanced BIOS setup is offered on page 26 for advanced users’ reference.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4S55FX+ or P4S55FX Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock P4S55FX+ / P4S55FX Quick Installation Guide

ASRock P4S55FX+ / P4S55FX Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One Serial ATA (SATA) Cable (For P4S55FX+ Only)

One Serial ATA (SATA) HDD Power Cable (For P4S55FX+ Only)(Optional)

One ASRock I/O PlusTM Shield

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,

Willimate) / Celeron®processor

Chipsets: North Bridge:

SiS 655FX, FSB @ 800/533/400 MHz,

with Intel®Hyper-Threading Technology ready

South Bridge:

P4S55FX+:

SiS 964, supports USB 2.0, ATA 133, SATA 1.5Gb/s

P4S55FX:

SiS 964L, supports USB 2.0, ATA 133

Memory: 4 DDR DIMM Slots:DDR1, DDR2, DDR3, and DDR4

Supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266) , Max. 3.5GB

Dual Channel Memory Technology support (see CAUTION 1)

IDE: IDE1: ATA 133 / Ultra DMA Mode 6

IDE2: ATA 133 / Ultra DMA Mode 6

Supports up to 4 IDE devices

Serial ATA: 2 SATA connectors

Supports up to 1.5Gb/s data transfer rate

(SATA is only available on P4S55FX+ Motherboard)

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing

Chassis temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 2)

CPU fan tachometer

Chassis fan tachometer

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 3)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 4)

ASRock I/O PlusTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ 45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI BIOS

Supports “Plug and Play”

ACPI 1.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3.1 support

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 5)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

2. If the CPU is overheated, please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve heat

dissipation, remember to spray thermal grease between the CPU and the

heatsink when you install the PC system.

3. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

4. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows® 98 /

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

5. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

1.3 Motherboard Layout (P4S55FX+)

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Solder Points (CLRCMOS1)

2 CPU Fan Connector (CPU_FAN1) 16 Chassis Fan Connector (CHA_FAN1)

3 CPU Heatsink Retention Module 17 Infrared Module Header (IR1)

4 CPU Socket 18 System Panel Header (PANEL1)

5 North Bridge Controller 19 Floppy Connector (FLOPPY1)

6 184-pin DDR DIMM Slots 20 Chassis Speaker Header (SPEAKER 1)

(Dual Channel A: DDR1, DDR3; Blue) 21 USB 2.0 Header (USB67, Blue)

7 ATX 12V Connector (ATX12V1) 22 Game Connector (GAME1)

8 Secondary IDE Connector (IDE2, Black) 23 Flash Memory

9 Primary IDE Connector (IDE1, Blue) 24 PCI Slots (PCI1- 5)

10 184-pin DDR DIMM Slots 25 JR1 Jumper / JL1 Jumper

(Dual Channel B: DDR2, DDR4; Black) 26 Front Panel Audio Header (AUDIO1)

11 AGP Slot (1.5V_AGP1) 27 Internal Audio Connector: AUX1 (White)

12 South Bridge Controller 28 Internal Audio Connector: CD1 (Black)

13 Secondary Serial ATA Connector (SATA2) 29 ATX Power Connector (ATXPWR1)

14 Primary Serial ATA Connector (SATA1)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX12V1

SATA2

SATA1

CLRCMOS1

AUX1

CD1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: US B 4

B: USB5

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

Super

I/O

USB67

IR1

PAN E L 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4S55FX+

SiS

964

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

AGP 8X

ATA133

DDR400

5.1 CH

SATA

SiS

655FX

PGA478

IDE1

IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

GAME1

JR1 JL1

LAN

PHY

DDR3 (64/72 bit, 184-pin module)

DDR4 (64/72 bit, 184-pin module)

USB2.0

FSB800

21.8cm (8.6 in)

30.5cm (12.0 in)

126

21 20 19 18 17

1.4 Motherboard Layout (P4S55FX)

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX12V1

CLRCMOS1

AUX1

CD1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: US B 4

B: USB5

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

Super

I/O

USB67

IR1

PAN E L 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4S55FX

SiS

964L

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

AGP 8X

ATA133

DDR400

5.1 CH

SiS

655FX

PGA478

IDE1

IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

GAME1

JR1 JL1

LAN

PHY

DDR3 (64/72 bit, 184-pin module)

DDR4 (64/72 bit, 184-pin module)

USB2.0

FSB800

21.8cm (8.6 in)

30.5cm (12.0 in)

126

19 18 17 16 15

1 PS2_USB_PWR1 Jumper 14 Chassis Fan Connector (CHA_FAN1)

2 CPU Fan Connector (CPU_FAN1) 15 Infrared Module Header (IR1)

3 CPU Heatsink Retention Module 16 System Panel Header (PANEL1)

4 CPU Socket 17 Floppy Connector (FLOPPY1)

5 North Bridge Controller 18 Chassis Speaker Header (SPEAKER 1)

6 184-pin DDR DIMM Slots 19 USB 2.0 Header (USB67, Blue)

(Dual Channel A: DDR1, DDR3; Blue) 20 Game Connector (GAME1)

7 ATX 12V Connector (ATX12V1) 21 Flash Memory

8 Secondary IDE Connector (IDE2, Black) 22 PCI Slots (PCI1- 5)

9 Primary IDE Connector (IDE1, Blue) 23 JR1 Jumper / JL1 Jumper

10 184-pin DDR DIMM Slots 24 Front Panel Audio Header (AUDIO1)

(Dual Channel B: DDR2, DDR4; Black) 25 Internal Audio Connector: AUX1 (White)

11 AGP Slot (1.5V_AGP1) 26 Internal Audio Connector: CD1 (Black)

12 South Bridge Controller 27 ATX Power Connector (ATXPWR1)

13 Clear CMOS Solder Points (CLRCMOS1)

1.5 ASRock I/O PlusTM (P4S55FX+ / P4S55FX)

1 Parallel Port 7 USB 2.0 Ports (USB0, USB1)

2 RJ-45 Port 8 USB 2.0 Ports (USB2, USB3)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB4, USB5)

8910

Chapter 2 Installation

P4S55FX+ / P4S55FX is an ATX form factor (12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

motherboard. Before you install the motherboard, study the configuration of your

chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure

that the power is switched off or the power cord is

detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals,

and/or components.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK FM2A85X Extreme6 Manual de usuario

ASROCK

ASROCK A780LM-S Manual de usuario

ASROCK

ASROCK H87M-ITX Manual de usuario

ASROCK

ASROCK P67 EXTREME6 - Manual de usuario

ASROCK

ASROCK AM1H-ITX Manual de usuario

ASROCK

ASROCK H81M-HG4 Manual de usuario

ASROCK

ASROCK X99 WS-E/10G Manual de usuario

ASROCK

ASROCK N3150DC-ITX Manual de usuario

ASROCK

ASROCK X58 EXTREME - Manual de usuario

ASROCK

ASROCK E350M1 - Manual de usuario

ASROCK

ASROCK J4105B-ITX Manual de usuario

ASROCK

ASROCK 4Core1333-GLAN Manual de usuario

ASROCK

ASROCK A55M-HVS Manual de usuario

ASROCK

ASROCK FM2A55 Pro+ Manual de usuario

ASROCK

ASROCK Z87 Extreme9/ac Manual de usuario

ASROCK

ASROCK X570 PHANTOM GAMING 4 Manual de usuario

ASROCK

ASROCK E3C224-V4L Manual de usuario

ASROCK

ASROCK FM2A85X Extreme4 Manual de usuario

ASROCK

ASROCK H410TM-ITX Manual de usuario

ASROCK

ASROCK 4CORE1333-FULLHD - V1.1 Manual de usuario

ASROCK

ASROCK IMB-770 Manual de servicio

ASROCK

ASROCK 890FX Deluxe3 Manual de usuario

ASROCK

ASROCK N68-GS3 UCC - Manual de usuario

ASROCK

ASROCK FATAL1TY P67 PROFESSIONAL Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
