English

N3150TM-ITX

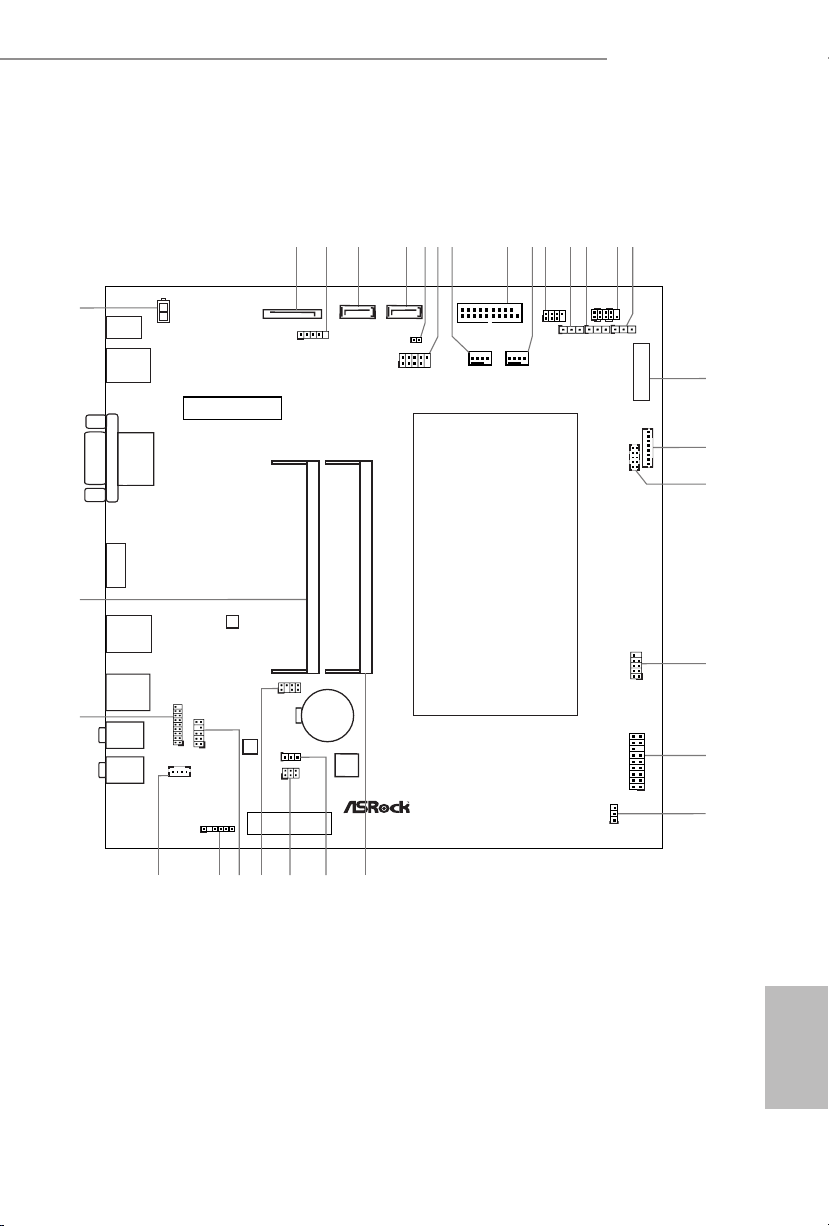

Motherboard Layout

AUDIO

SATA_POW1

DDR3_B1

N3150TM-ITX

PCIE1

4756 9111481012 13

CMOS

Battery

RoHS

Front USB 3.0

64Mb

BIOS

MINI_PCIE1

LAN

USB3_4_5

26 25

212223

SATA3_2 SATA3_1

CIR1

HDLED RESET

PLED PWRBTN

PANEL1

LVDS1

BKT_PWR1

JGPIO_PWR1

PNL_PWR1

11 1

PLED1

CPU_FAN1 CHA_FAN1

BLT_VOL1

COM1

USB 7_ 8

TPMS1

CLRCMOS1

HD_AUDIO2

SPEAKER1

HD_AUDIO1

JGPIO

DMIC1

HTPC1

Front

Speaker

Mic In

USB 3.0

T: USB2

B: USB3

USB 3.0

T: USB0

B: USB1

DC Jack

HDMI1

VGA1

RJ-45

MONITOR_SWITCH1

USB4_5

USB6

ATX19V_IN1

DDR3_A1

English

No. Description

1 SATA Power Connector (SATA_POW1)

2 USB 2.0 Header (USB6)

3 SATA3 Connector (SATA3_2)

4 SATA3 Connector (SATA3_1)

5 Monitor Switch Header (MONITOR_SWITCH1)

6 USB 2.0 Header (USB4_5)

7 CPU Fan Connector (CPU_FAN1)

8 USB 3.0 Header (USB3_4_5)

9 Chassis Fan Connector (CHA_FAN1)

10 Consumer Infrared Module Header (CIR1)

11 Power LED Header (PLED1)

12 Backlight Power Jumper (BKT_PWR1)

13 System Panel Header (PANEL1)

14 Panel Power Jumper (PNL_PWR1)

15 LVDS Connector (LVDS1)

16 Backlight Control Header (BLT_VOL1)

17 COM Port Header (COM1)

18 USB 2.0 Header (USB7_8)

19 TPM Header (TPMS1)

20 Clear CMOS Jumper (CLRCMOS1)

21 204-pin DDR3 SO-DIMM Slots (DDR3_B1)

22 Digital Input / Output Power Selection Jumper (JGPIO_PWR1)

23 Digital Input / Output Pin Header (JGPIO)

24 Home eater PC Header (HTPC1)

25 Front Panel Audio Header (HD_AUDIO1)

26 Digital MIC Header (DMIC1)

27 3W Audio AMP Output Wafer Header (SPEAKER1)

28 Analog Surround Audio Header (HD_AUDIO2)

29 204-pin DDR3 SO-DIMM Slots (DDR3_A1)

30 Internal Power Header (ATX19V_IN1)

English

N3150TM-ITX

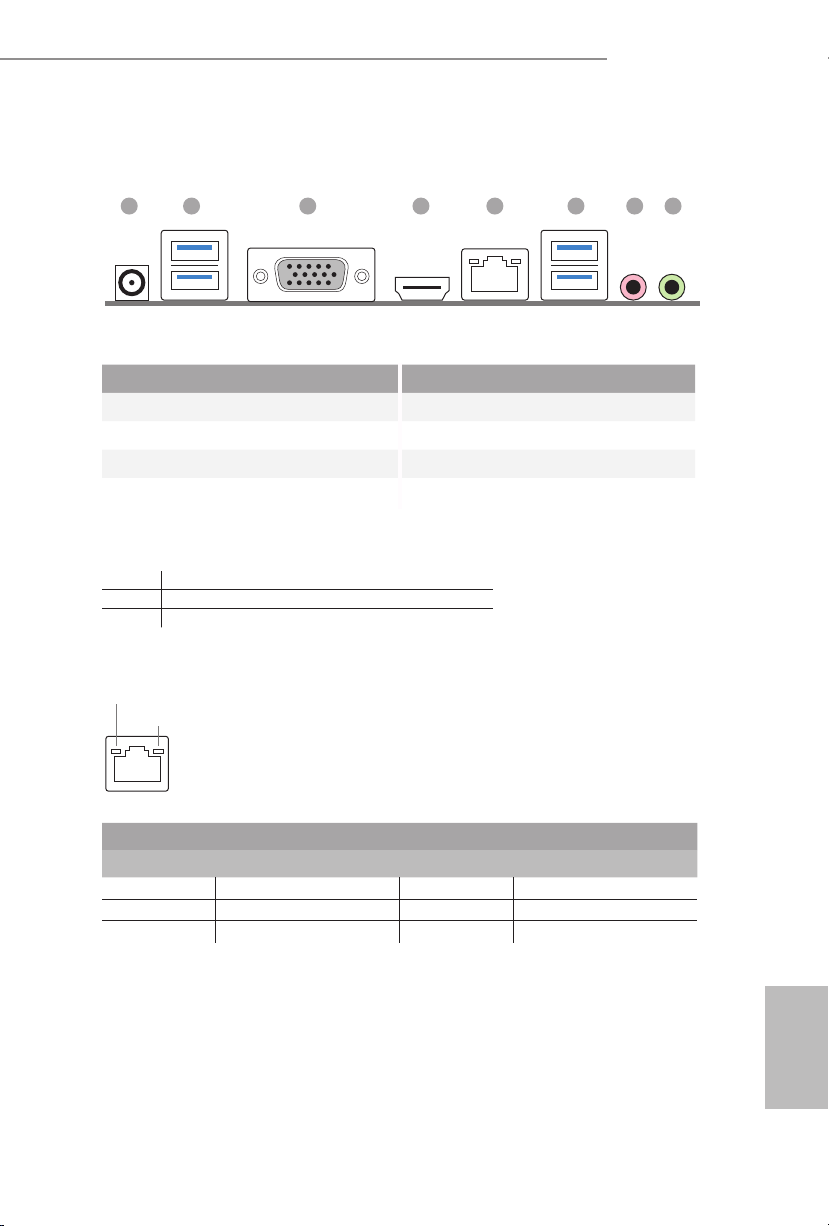

I/O Panel

No. Description No. Description

1 DC Jack* 5 LAN RJ-45 Port**

2 USB 3.0 Ports (USB3_01) 6 USB 3.0 Ports (USB3_23)

3D-Sub Port 7Microphone (Pink)

4 HDMI Port 8 Front Speaker (Lime)

* Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of

5.1 mm and an outer diameter of 7.4 mm, where the inner contact is +19 (±10%) VDC and the shell is GND.

DELTA DELTA-ADP-150TB-150W/19V

HP HP-TBC-BA52-150W/19V

FSP FSP-FSP150-ABAN1-150W/19V

** ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity O 100Mbps connection

On Link Orange 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

8762 5431

English

Chapter 1 Introduction

ank you for purchasing ASRock N3150TM-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

•ASRock N3150TM-ITX Motherboard (in Mini-ITX Form Factor)

•ASRock N3150TM-ITX Quick Installation Guide

•ASRock N3150TM-ITX Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x SATA 1 to 2 Power Cable (Optional)

•2 x I/O Panel Shields

•1 x WiFi Module Screw

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to this

motherboard, please visit our website for specic information about the model you are

using. You may nd the latest VGA cards and CPU support list on ASRock’s website as

well. ASRock website http://www.asrock.com.

English

N3150TM-ITX

1.2 Specications

Platform •in Mini-ITX Form Factor

•Solid Capacitor design

•High Density Glass Fabric PCB

CPU •Intel® Quad-Core Processor N3150 (up to 2.08 GHz)

Memory •Dual Channel DDR3/DDR3L Memory Technology

•2 x DDR3/DDR3L SO-DIMM Slots

•Supports DDR3/DDR3L 1600/1066 non-ECC, un-buered

memory

•Max. capacity of system memory: 16GB

(see CAUTION)

* If only one SO-DIMM module is installed, please install it into

DDR3_A1.

Expansion

Slot

•1 x PCI Express 2.0 x1 Slot

•1 x Half-size Mini-PCI Express Slot

* Due to the power limitation and PCIe bandwidth (x1), the VGA

card is not supported.

Graphics •Intel® 8th generation (Gen 8) graphics: up to 12 EUs inside

•DirectX 11.1, Pixel Shader 5.0

•ree graphics output options: D-Sub, HDMI and LVDS

•Supports Triple Monitor

•Supports HDMI with max. resolution up to 2560x1600 @

60Hz

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports LVDS with max. resolution up to 1920x1200 @

60Hz

•Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate

Audio) with HDMI Port (Compliant HDMI monitor is

required)

•Supports HW Accelerated Decoders: H.264 @ level 5.2,

H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

•Supports HDCP with HDMI Port

•Supports Full HD 1080p Blu-ray (BD) playback with HDMI

Port

English

Audio •7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD

front panel audio module and enable the multi-channel audio

feature through the audio driver.

•Premium Blu-ray Audio support

•Supports Surge Protection (ASRock Full Spike Protection)

•ELNA Audio Caps

LAN •PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•Realtek RTL8111GR

•Supports Wa ke-On-WAN

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

•Supports LAN Cable Detection

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x DC Jack (Compatible with the 19V power adapter)

•1 x D-Sub Port

•1 x HDMI Port

•4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jacks: Microphone / Front Speaker (Supports

SPDIF Optical)

Storage •2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector •1 x Backlight Power Selection Jumper

•1 x Panel Power Selection Jumper

•1 x Backlight Control Header

•1 x Digital Input / Output Pin Header

•1 x Digital Input / Output Power Selection Jumper

•1 x Home eater PC Header

•1 x Monitor Switch Header

•1 x Digital MIC Header

•1 x 3W Audio AMP Output Wafer Header

•1 x LVDS Connector

•1 x CIR Header

English

N3150TM-ITX

•1 x COM Port Header

•1 x Power LED Header

•1 x TPM Header

•1 x CPU Fan Connector (4-pin)

•1 x Chassis Fan Connector (4-pin)

•1 x SATA Power Connector

•1 x Internal Power Header

•1 x Front Panel Audio Connector

•1 x Analog Surround Audio Connector

•3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

•1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports)

(Supports ESD Protection (ASRock Full Spike Protection))

BIOS

Feature

•64Mb AMI UEFI Legal BIOS with GUI support

•Supports Plug and Play

•ACPI 1.1 compliant wake up events

•Supports jumperfree

•SMBIOS 2.3.1 support

Hardware

Monitor

•CPU/Chassis temperature sensing

•CPU/Chassis Fan Tachometer

•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

•CPU/Chassis Fan multi-speed control

•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS •Microso® Windows® 10 64-bit / 8.1 64-bit / 7 64-bit

* To install Windows® 7 64-bit OS, a modied installation disk

with xHCI drivers packed into the ISO le is required. Please

refer to page 166 for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock's

website for details: http://www.asrock.com

Certica-

tions

•FCC, CE, WHQL

•ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

English

is is a in Mini-ITX form factor motherboard. Before you install the

motherboard, study the conguration of your chassis to ensure that the

motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

•Make sure to unplug the power cord before installing or removing the motherboard.

Failure to do so may cause physical injuries to you and damages to motherboard

components.

•In order to avoid damage from static electricity to the motherboard’s components,

NEVER place your motherboard directly on a carpet. Also remember to use a grounded

wrist strap or touch a safety grounded object before you handle the components.

•Hold components by the edges and do not touch the ICs.

•Whenever you uninstall any components, place them on a grounded anti-static pad or

in the bag that comes with the components.

•When placing screws to secure the motherboard to the chassis, please do not over-

tighten the screws! Doing so may damage the motherboard.

Chapter 2 Installation

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK B75M-GL R2.0 Manual de usuario

ASROCK

ASROCK B650 PG LIGHTNING Manual de usuario

ASROCK

ASROCK Z77 Extreme4-M Manual de usuario

ASROCK

ASROCK 960GM-GS3 FX Manual de usuario

ASROCK

ASROCK G41M-S3 Manual de usuario

ASROCK

ASROCK UTX-110 Manual de servicio

ASROCK

ASROCK X570 Taichi Manual de usuario

ASROCK

ASROCK E350M1 - Manual de usuario

ASROCK

ASROCK B450M-HDV R4.0 Manual de usuario

ASROCK

ASROCK G41M-VS3 R2.0 - Manual de usuario

ASROCK

ASROCK 4Core1600-DVI Manual de usuario

ASROCK

ASROCK H110TM-ITX Manual de usuario

ASROCK

ASROCK FM2A88X+ BTC Manual de usuario

ASROCK

ASROCK H67M-GE Manual de usuario

ASROCK

ASROCK IMB-171-D Instrucciones de uso

ASROCK

ASROCK B760M-C Manual de usuario

ASROCK

ASROCK FM2A78M Pro3+ Manual de usuario

ASROCK

ASROCK P55 DELUXE - V1.1 Manual de usuario

ASROCK

ASROCK G41C-GS Manual de usuario

ASROCK

ASROCK P75 Pro3 Manual de usuario

ASROCK

ASROCK P4I48 Manual de usuario

ASROCK

ASROCK H61 Pro BTC Manual de usuario

ASROCK

ASROCK Velocita X570 PG Manual de usuario

ASROCK

ASROCK A520M/ac Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
