2ASRock K10N78D Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 19 Chassis Speaker Header

2 ATX 12V Power Connector (ATX12V1) (SPEAKER 1, Purple)

3 CPU Heatsink Retention Module 20 NB Fan Connector (NB_FAN1)

4 AM2 940-Pin CPU Socket 21 System Panel Header (PANEL1, Orange)

5 2 x 240-pin DDR2 DIMM Slots 22 Serial Port Connector (COM1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 23 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 24 Front Panel Audio Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HD_AUDIO1, Lime)

7 ATX Power Connector (ATXPWR1) 25 HDMI_SPDIF Header

8 Primary IDE Connector (IDE1, Blue) (HDMI_SPDIF1,Yellow)

9 NVIDIA nForce 720D Chipset 26 PCI Slots (PCI1- 3)

10 SATAII Connector (SATAII_6 (PORT 5), Red) 27 Internal Audio Connector: CD1 (Black)

11 SATAII Connector (SATAII_5 (PORT 4), Red) 28 SPI BIOS Chip

12 SATAII Connector (SATAII_4 (PORT 3), Red) 29 PCI Express x1 Slot (PCIE4, White)

13 SATAII Connector (SATAII_3 (PORT 2), Red) 30 Clear CMOS Jumper (CLRCMOS1)

14 SATAII Connector (SATAII_2 (PORT 1), Red) 31 PCI Express x1 Slot (PCIE3, White)

15 SATAII Connector (SATAII_1 (PORT 0), Red) 32 PCI Express x16 Slot (PCIE2, Green)

16 USB 2.0 Header (USB6_7, Blue) 33 PCI Express x1 Slot (PCIE1, White)

17 USB 2.0 Header (USB10_11,Blue) 34 Chassis Fan Connector (CHA_FAN1)

18 USB 2.0 Header (USB8_9, Blue) 35 CPU Fan Connector (CPU_FAN1)

ASRock K10N78D Motherboard

EnglishEnglish

English

I/O PI/O P

I/O Panelanel

anelanel

anel

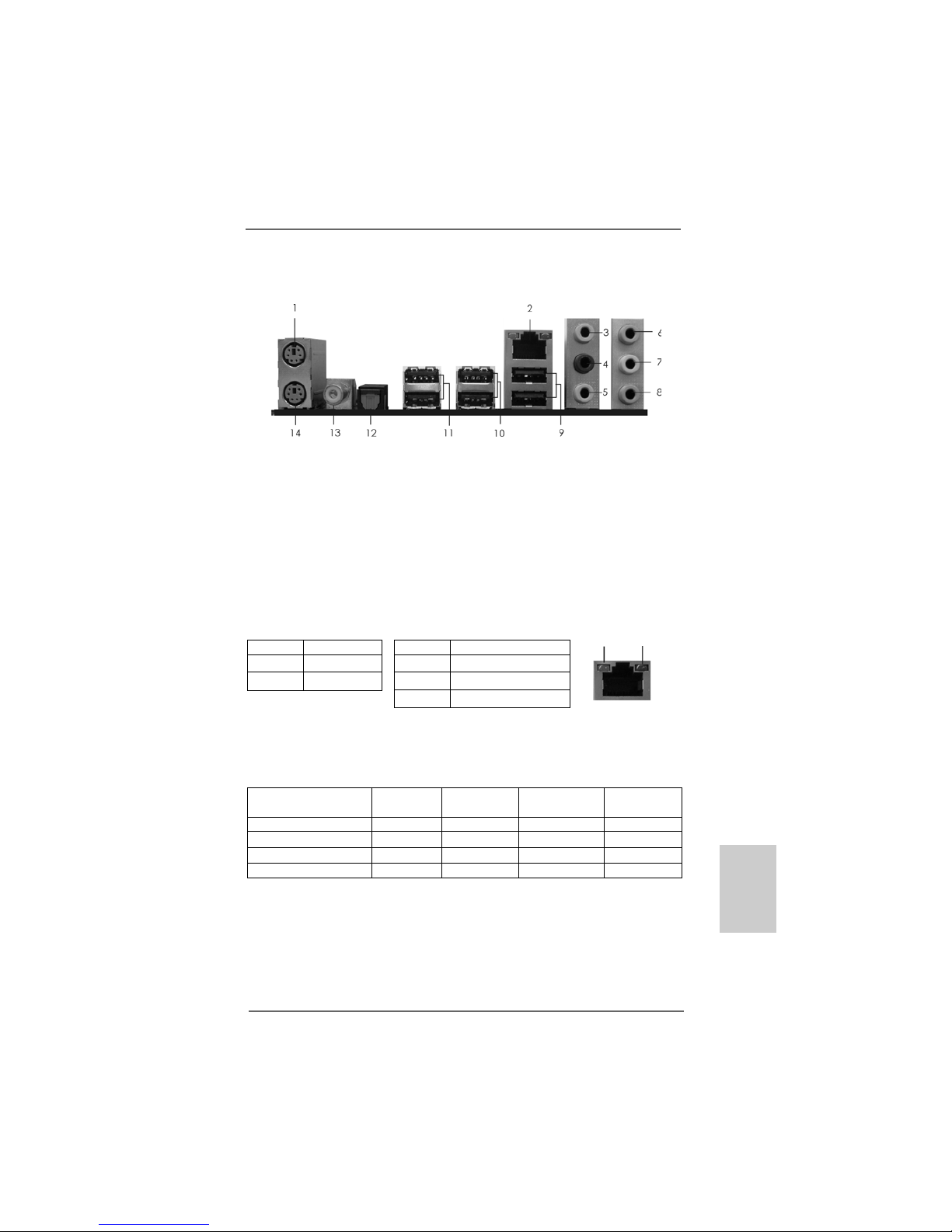

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

* 2 LAN RJ-45 Port (LAN1) 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 USB 2.0 Ports (USB45)

5 Central / Bass (Orange) 12 Optical SPDIF Out Port

6 Line In (Light Blue) 13 Coaxial SPDIF Out Port

** 7 Front Speaker (Lime) 14 PS/2 Keyboard Port (Purple)

4ASRock K10N78D Motherboard

EnglishEnglish

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®VistaTM / VistaTM 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

ASRock K10N78D Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock K10N78D motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

ASRock K10N78D Motherboard

(ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm)

ASRock K10N78D Quick Installation Guide

ASRock K10N78D Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

Two Serial ATA (SATA) Data Cables (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

One I/O Panel Shield

EnglishEnglish

English

6ASRock K10N78D Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 7.5-in, 30.5 cm x 19.1 cm

- Solid Capacitor for CPU power

CPU - Support for Socket AM2+ / AM2 processors: AMDPhenomTM

FX / Phenom /Athlon 64 FX / Athlon 64 X2Dual-Core / Athlon

X2 Dual-Core / Athlon 64 / Sempronprocessor

- Support for AM3 processors:AMD PhenomTM II X4 / X3 and

Athlon II X4 / X3 / X2 processors

-AMDLIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset -NVIDIA®nForce 720D

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 16GB (see CAUTION 4)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (green @ x16 mode)

- 3 x PCI Express x1 slots

- 3 x PCI slots

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN -Gigabit LAN 10/100/1000 Mb/s

-Giga PHY Realtek RTL8211CL

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort withLED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 5)

Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID1, RAID 0+1, RAID5 and JBOD),NCQ,AHCI and “Hot

Plug” functions (see CAUTION 6)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

ASRock K10N78D Motherboard

EnglishEnglish

English

- 1 x Floppy connector

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis/NB FANconnector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 7)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

-NB Voltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 8)

- Intelligent Energy Saver (see CAUTION 9)

- Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 11)

- ASRock U-COP (see CAUTION 12)

- Boot Failure Guard (B.F.G.)

-ASRockAM2 Boost: ASRock PatentedTechnology to boost

memory performance up to 12.5% (see CAUTION 13)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/NB Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit / VistaTM

/ VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock K10N78D Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 22 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

6. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 24 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector

directly.

7. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

8. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

ASRock K10N78D Motherboard

EnglishEnglish

English

9. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance.

To use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet

option in the BIOS setup in advance. Please visit our website for the

operation procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

10. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

11. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

12. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

13. This motherboard supports ASRock AM2 Boost overclocking technology for

AM2 CPU. If you enable this function in the BIOS setup, the memory perfor-

mance will improve up to 12.5%, but the effect still depends on the AM2 CPU

you adopt. Enabling this function will overclock the chipset/CPU reference

clock. However, we can not guarantee the system stability for all CPU/DRAM

configurations. If your system is unstable after AM2 Boost function is enabled,

it may not be applicative to your system. You may choose to disable this

function for keeping the stability of your system.

1010

10 ASRock K10N78D Motherboard

EnglishEnglish

English

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is an ATX form factor (12.0-in x 7.5-in, 30.5 cm x 19.1 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

Otros manuales para K10N78D

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK 870iCafe Manual de usuario

ASROCK

ASROCK H55M PRO Manual de usuario

ASROCK

ASROCK 785GM-GS3 Manual de usuario

ASROCK

ASROCK 970 Extreme3 Manual de usuario

ASROCK

ASROCK G41C-VS Manual de usuario

ASROCK

ASROCK H67DE3 Manual de usuario

ASROCK

ASROCK Fatal1ty 970 Performance/3.1 Series Manual de usuario

ASROCK

ASROCK B75TM-ITX Manual de referencia

ASROCK

ASROCK P55 DELUXE - V1.1 Manual de usuario

ASROCK

ASROCK R0ME2D16-2T Manual de usuario

ASROCK

ASROCK A780FULLHD Manual de usuario

ASROCK

ASROCK E3C222D4U Manual de usuario

ASROCK

ASROCK H410M-HDV Manual de usuario

ASROCK

ASROCK Z390 Extreme4 Manual de usuario

ASROCK

ASROCK P4I65PE-M Manual de usuario

ASROCK

ASROCK J5005-ITX Manual de usuario

ASROCK

ASROCK 775I65PE-M Manual de usuario

ASROCK

ASROCK IMB-1713 Manual de usuario

ASROCK

ASROCK Z390M-ITX/ac Manual de usuario

ASROCK

ASROCK H470M Manual de usuario

ASROCK

ASROCK PRO Series Manual de usuario

ASROCK

ASROCK X670E STEEL LEGEND Manual de usuario

ASROCK

ASROCK STX-1000B Manual de usuario

ASROCK

ASROCK Z590 Phantom Gaming 4/ac Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
