ASROCK IMB-186V Manual de usuario

IMB-186

User Manual

Version 1.0

Published July 2014

Version 1.0

Published July 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slots ............................................................ 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

3.3.1 CPU Conguration ............................................... 25

3.3.2 Chipset Conguration........................................... 27

3.3.3 Storage Conguration .......................................... 29

3.3.4 Intel(R) Rapid Start Technology ........................... 30

3.3.5 Intel(R) Smart Connect Technology ..................... 31

3.3.6 Super IO Conguration ........................................ 32

3.3.7 ACPI Conguration............................................... 33

3.3.8 USB Conguration ............................................... 34

3.3.9 Voltage Conguration........................................... 35

3.4 Hardware Health Event Monitoring Screen ................... 36

3.5 Boot Screen ................................................................... 37

3.6 Security Screen ............................................................. 39

3.7 Exit Screen .................................................................... 40

4 Software Support .............................................. 41

4.1 Install Operating System................................................ 41

4.2 Support CD Information ................................................. 41

4.2.1 Running Support CD............................................ 41

4.2.2 Drivers Menu........................................................ 41

4.2.3 Utilities Menu........................................................ 41

4.2.4 Contact Information.............................................. 41

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-186 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-186 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-186 Driver CD

ASRock IMB-186 Jumper setting instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU

BGA type for Intel®Core i7-4650U / i5-4300U /

i3-4010U and Celeron 2980U / 2957U mobile

processor (Haswell ULT MCP)

Core

Number (By CPU, Max 4)

Max Speed (By CPU)

L3 Cache (By CPU)

Chipset (By CPU)

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (Half Size + USB2.0)

mSATA 1 x full size with SATA3

PCIe 0

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3L 1333/1600 MHz SDRAM

Max. 16GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®HD Graphics (By CPU)

VRAM Shared Memory

VGA 1 (shared with HDMI)

LVDS 1

HDMI

Supports HDMI 1.4a, supported with Level

Shifter, resolution up to 4096x2304 (4096x2304

resolution requires Intel®Core processor)

DVI 0

DisplayPort 1

Multi Display Yes (Three Monitors with appropriate driver

software)

Ethernet

Ethernet 10/100/1000 Mbps

Controller

- GbE LAN1: Intel®218LM, LAN2: RTL8111G

(Core i7 / i5 SKU)

- GbE LAN1: Intel®218V, LAN2: RTL8111G

(Core i3 / 2980U / 2957U SKU)

Connector 2 x RJ-45

SATA

Max Data

Transfer

Rate

SATA3 (6.0Gb/S)

Rear I/O

VGA 1 (shared with HDMI)

DVI 0

HDMI 1

DisplayPort 1

Ethernet 2

USB 4 x USB 3.0

Audio 2 (Mic-In, Line-Out)

eSATA 0

PS/2 0

Internal

Connector

USB 6 (2 x USB Header 2.54mm pitch)

LVDS/

Inverter 24 bit dual channel LVDS

VGA 1

Serial 6 (2 x RS-232/422/485, 4 x RS-232)

SATA 2 x SATA3 (6.0Gb/s)

mPCIe 1

Parallel 1 (Co-lay with DIO)

mSATA 1

PS/2 1

GPIO 16-bit 8 x GPI + 8 x GPO (Co-lay with LPT)

SATA PWR

Output Con 2

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR DC 9-19 input

Power On

AT/ATX Supported

AT : Directly PWR on as power input ready

ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

1.3 Motherboard Layout

Mic In

AUDIO

CODEC

BUZZ1

BIOS

ROM

USB8_9

HD_AUDIO1

IMB-186

32 27

37 31 30

12345678910 11 12

LVDS1

FAN1

DC_JACK1

mini-PCIe

VGA1

CLRMOS1

FAN2

SPEAKER1

USB 3.0

T: USB0

B: USB1

LAN1

Line Out

SPDIF1

UPS_IN1

mini-SATA

INT_DC1

HDLED RESET

PLED PWRBTN

PANEL1

CI2

SATA3_2

Industrial

PS2_KB_MS1

SATA3 _1

USB6_7

USB4_5

PWR_COM1

PWR_COM2

PWR_COM3

PWR_COM4

PWR_COM5

PWR_COM6

COM1

COM2

COM3

COM4

COM5

COM6

SATA_PWR1 SATA_PWR2

PNL_PWR1

BKT_PWR1

SIM1

CI1

LPC1

LPT_GPIO1

BLT_VOL1

BLT_PWR1

JGPIO_PWR1

111

PWR_JP1

JGPIO_SET1

BLT_PWM1

HDMI1

DP1

LAN2

USB 3.0

T: USB2

B: USB3

17.0cm (6.7 in)

1 :

2-pin UPS Module Power Input Connector

2 : 4-pin ATX Power Input/Output Connector

3 : SATA3 Connector (SATA3_1)

4 : VGA Connector

5 : SATA3 Connector (SATA3_2)

6 : SATA Power Output Connector (SATA_PWR1)

7 : SATA Power Output Connector (SATA_PWR2)

8 :

4-Pin FAN Connector (+12V)

9 :

PS2 Keyboard/Mouse Header

10 :

System Panel Header

11 : Panel Power Selection (LCD_VCC) (PNL_PWR1)

12 : Backlight Power Selection (LCD_BLT_VCC) (BKT_PWR1)

13 : LVDS Panel Connector

14 :

Backlight Power Connector

(BLT_PWR1)

15 : Backlight Volume Control (BLT_VOL1)

16 :

Backlight Control Level

(CON_LBKLT_CTL) (BLT_PWM1)

17 : ATX/AT Mode Selection (PWR_JP1)

18 :

Digital Input / Output

Default Value Setting (JGPIO_SET1)

19 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

20 : Printer Port / GPIO Header (LPT_GPIO1)

21 : COM Port Header (RS232) (COM6)

22 : USB2.0 Header (USB4_5)

23 : USB2.0 Header (USB6_7)

24 : USB2.0 Header (USB8_9)

25 : COM Port Header (RS232) (COM4)

26 : COM Port Pin9 PWR Setting Jumper (PWR_COM6) (For COM Port6)

27 : COM Port Header (RS232) (COM5)

28 : COM Port Pin9 PWR Setting Jumper (PWR_COM5) (For COM Port5)

29 : COM Port Pin9 PWR Setting Jumper (PWR_COM4) (For COM Port4)

30 : COM Port Header (RS232) (COM3)

31 : COM Port Pin9 PWR Setting Jumper (PWR_COM3) (For COM Port3)

32 : COM Port Pin9 PWR Setting Jumper (PWR_COM2) (For COM Port2)

33 : COM Port Header (RS232/422/4485) (COM1)

34 : COM Port Pin9 PWR Setting Jumper (PWR_COM1) (For COM Port1)

35 : COM Port Header (RS232/422/4485) (COM2)

36 :

4-Pin FAN Connector (+12V)

37 : Clear CMOS Header

38 : LPC Header

39 : 3W Audio AMP Output Wafer

40 : SPDIF Header

41 : Chassis Intrusion Header (CI1)

42 :

Front Panel Audio Header

43 : Chassis Intrusion Header (Cl2)

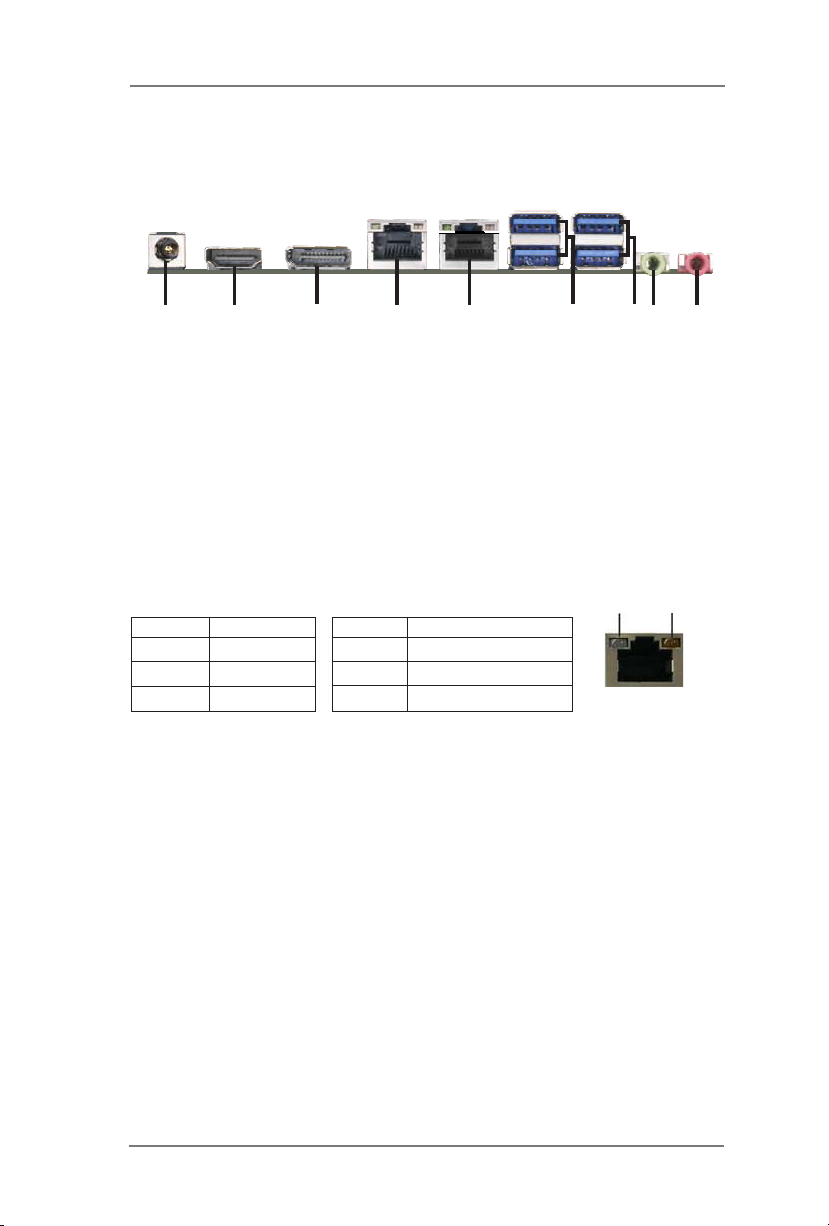

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

1 DC Jack (DC_JACK1)

2 HDMI Port (HDMI1)

3 DisplayPort (DP1)

4 LAN RJ-45 Port* (

Intel

I218V / I218LM

)

5 LAN RJ-45 Port* (Realtek RTL8111G)

6 USB 3.0 Ports (USB01)

7 USB 3.0 Ports (USB23)

8 Line Out (Lime)

9 Microphone (Pink)

124

358

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK B85M Pro4 Manual de usuario

ASROCK

ASROCK 990FX Extreme4 Manual de usuario

ASROCK

ASROCK Fatal1ty AB350 Gaming K4 Manual de usuario

ASROCK

ASROCK H61M-VGS Manual de usuario

ASROCK

ASROCK K8SLI-ESATA2 Manual de usuario

ASROCK

ASROCK P85 Pro3 Manual de usuario

ASROCK

ASROCK WOLFDALE1333-GLAN Manual de usuario

ASROCK

ASROCK B660M-HDV Manual de usuario

ASROCK

ASROCK X299E-ITX/ac Manual de usuario

ASROCK

ASROCK K7UPGRADE-880 Manual de usuario

ASROCK

ASROCK P4VM890 - V1.1 Manual de usuario

ASROCK

ASROCK B550 PG Riptide Manual de usuario

ASROCK

ASROCK H110M-HDS Manual de usuario

ASROCK

ASROCK K8NF3-VSTA Manual de usuario

ASROCK

ASROCK M3A770DE - V1.0 Manual de usuario

ASROCK

ASROCK G41M-PS Manual de usuario

ASROCK

ASROCK Z590M Phantom Gaming 4 Manual de usuario

ASROCK

ASROCK H61M-IDE Manual de usuario

ASROCK

ASROCK IMB-380-L Manual de servicio

ASROCK

ASROCK N68C-GS UCC - Manual de usuario

ASROCK

ASROCK E3C224-V4L Manual de usuario

ASROCK

ASROCK P43C-ME Manual de usuario

ASROCK

ASROCK K8N68PV-GLAN Manual de usuario

ASROCK

ASROCK H110M-ITX/ac Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
