H97M Pro4

English

Motherboard Layout

Intel

H97

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V1

CMOS

Battery

Super

I/O

ATXPWR1

Top:

RJ-45

USB 3.0

T: USB4

B: USB5

Top:

Central/Bass

Center:

REAR SPK

Top:

LINE I N

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

CLRCMOS1

SPEAKER1

HDLED RESET

PLED PWRBTN

PANEL1

COM1

HD_AUDIO1

H97M Pro4

SATA_0_1 SATA_2_3 SATA_4_5

CHA_FAN1

CHA_FAN2

PCI1

CPU_FAN1

CPU_FAN2

128Mb

BIOS

HDMI1

VGA1

DVI1

PCI2

USB 3.0

T: USB2

B: USB3

Audio

CODEC

PCIE1

PCI Express 3.0

PCIE2

PWR_FAN1

TPMS1

LPT1

CI1

RoHS

Front USB 3.0

USB 2.0

T: USB0

B: USB1

Ps2

Keyboard/

Mouse

USB10_11

TB1

USB6_7

USB8_9

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Power Fan Connector (PWR_FAN1)

3 CPU Fan Connector (CPU_FAN2)

4 CPU Fan Connector (CPU_FAN1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

7 ATX Power Connector (ATXPWR1)

8 USB 3.0 Header (USB10_11)

9 SATA3 Connector (SATA_4)

10 SATA3 Connector (SATA_5)

11 SATA3 Connector (SATA_2)

12 SATA3 Connector (SATA_3)

13 SATA3 Connector (SATA_1)

14 SATA3 Connector (SATA_0)

15 Chassis Speaker Header (SPEAKER1)

16 System Panel Header (PANEL1)

17 Chassis Fan Connector (CHA_FAN1)

18 underbolt AIC Connector (TB1)

19 USB 2.0 Header (USB8_9)

20 USB 2.0 Header (USB6_7)

21 TPM Header (TPMS1)

22 Chassis Intrusion Header (CI1)

23 Print Port Header (LPT1)

24 COM Port Header (COM1)

25 Chassis Fan Connector (CHA_FAN2)

26 Front Panel Audio Header (HD_AUDIO1)

27 Clear CMOS Jumper (CLRCMOS1)

H97M Pro4

English

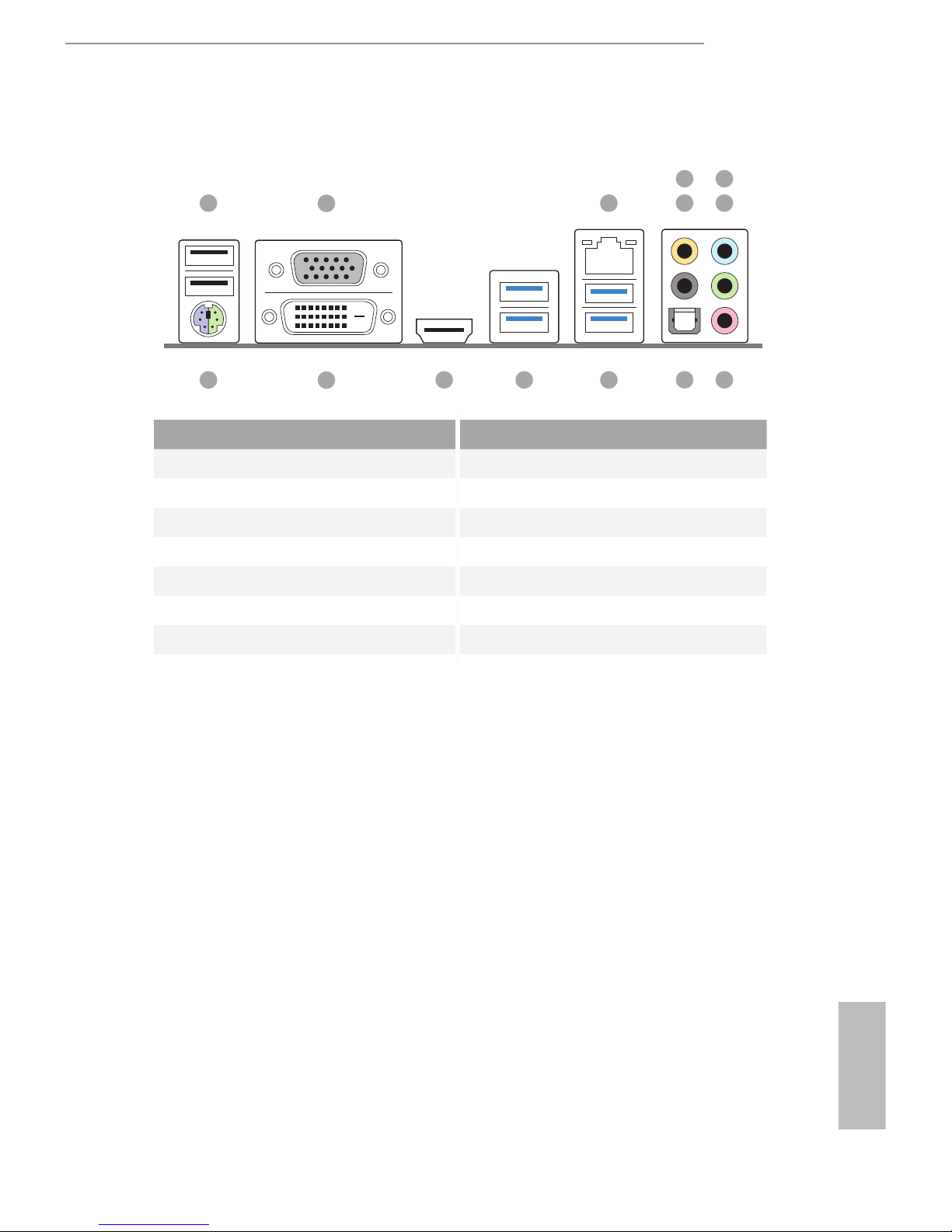

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 8 Microphone (Pink)

2 D-Sub Port 9 Optical SPDIF Out Port

3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB45)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB23)

5 Rear Speaker (Black) 12 HDMI Port

6 Line In (Light Blue) 13 DVI-D Port

7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port

14 101112

1 3

English

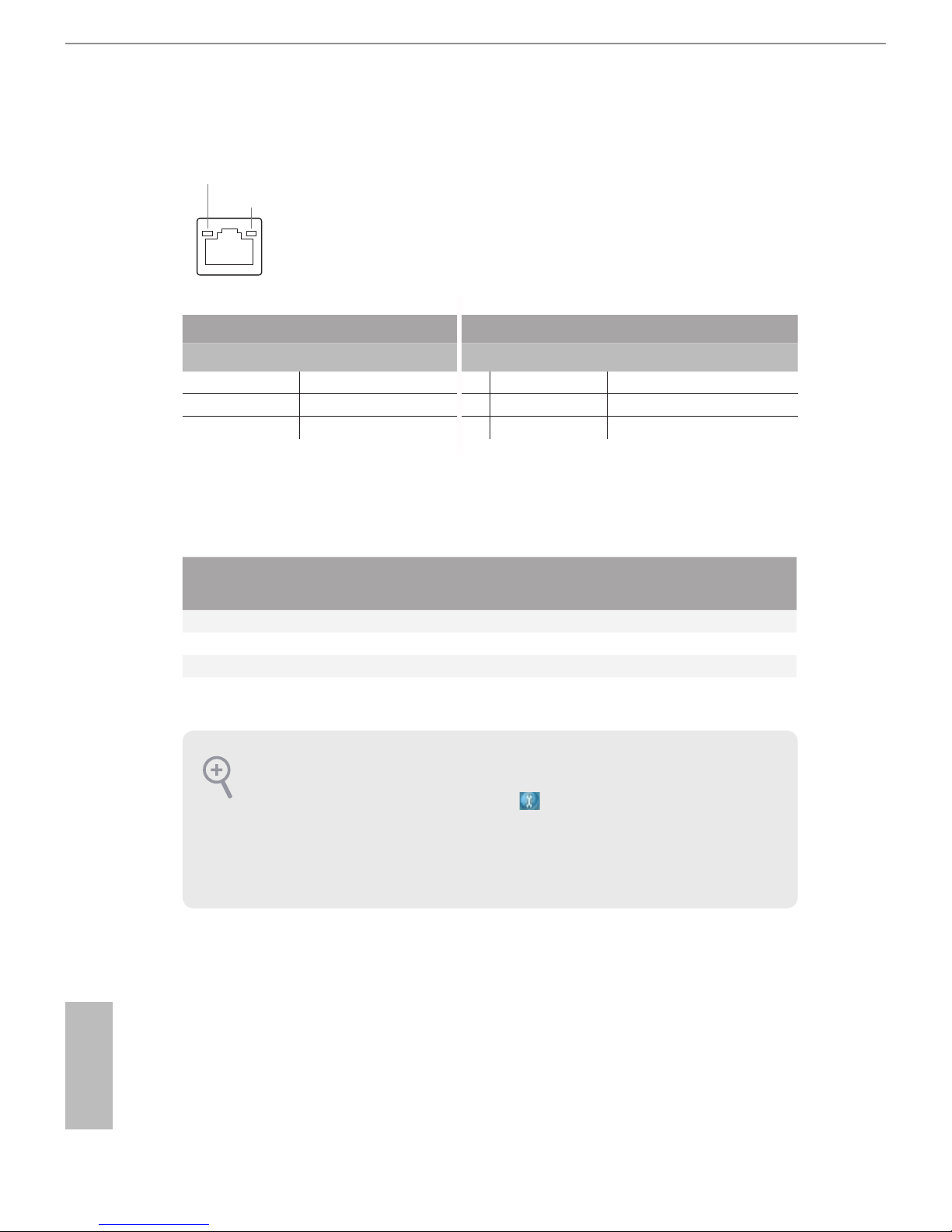

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

Line In

(No. 6)

2V -- -- --

4V V -- --

6V V V --

8V V V V

ACT/LINK LED

SPEED LED

LAN Port

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool

on your system. Please select “Mixer ToolBox” , click “Enable playback multi-

streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are

allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/

Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front

panel audio.

H97M Pro4

English

Chapter 1 Introduction

ank you for purchasing ASRock H97M Pro4 motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock H97M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock H97M Pro4 Quick Installation Guide

• ASRock H97M Pro4 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this manual will be subject to change without notice. In case any modica-

tions of this manual occur, the updated version will be available on ASRock’s website

without further notice. If you require technical support related to this motherboard,

please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well.

ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports 5th Generation, New 4th and 4th Generation Intel®

CoreTM i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)

• Digi Power design

• 4 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® H97

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 32GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x16 Slot (PCIE2: x4 mode)

• 2 x PCI Slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree graphics output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 1920x1200 @

60Hz

H97M Pro4

English

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI Port (Compliant

HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray Audio support

• Supports Surge Protection (ASRock Full Spike Protection)

• ELNA Audio Caps

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I218V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

English

Storage • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology

13 and Intel Smart Response Technology), NCQ, AHCI and

Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x underbolt AIC Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 128Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit /

8 64-bit / 7 32-bit / 7 64-bit

Otros manuales para H97M Pro4

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK H81 Pro BTC Manual de usuario

ASROCK

ASROCK 775i65GV Manual de usuario

ASROCK

ASROCK 775Twins-HDTV Guía rápida

ASROCK

ASROCK H570 PHANTOM GAMING 4 Manual de usuario

ASROCK

ASROCK FM2A85X Extreme4 Manual de usuario

ASROCK

ASROCK PV530A Manual de usuario

ASROCK

ASROCK NUC-8665UE Manual de usuario

ASROCK

ASROCK 890FX Deluxe5 Manual de usuario

ASROCK

ASROCK FM2A58M-VG3+ R2.0 Manual de usuario

ASROCK

ASROCK B550M-ITX/AC Manual de usuario

ASROCK

ASROCK 890GMH/USB3 Manual de usuario

ASROCK

ASROCK B660M-ITX/eDP Manual de usuario

ASROCK

ASROCK 880GMH USB3 R2.0 Manual de usuario

ASROCK

ASROCK Z590M Phantom Gaming 4 Manual de usuario

ASROCK

ASROCK R0ME2D16-2T Manual de usuario

ASROCK

ASROCK K10N78HSLI-GLAN Manual de usuario

ASROCK

ASROCK ALIVENF7G-FULLHD Manual de usuario

ASROCK

ASROCK 939Dual-SATA2 Manual de usuario

ASROCK

ASROCK Z590 Extreme WiFi 6E Manual de usuario

ASROCK

ASROCK WOLFDALE1333-GLAN-M2 - V1.0 Manual de usuario

ASROCK

ASROCK Z590 Phantom Gaming-ITX/TB4 Manual de usuario

ASROCK

ASROCK Z87 Extreme9/ac Manual de usuario

ASROCK

ASROCK SOM-P101 Manual de usuario

ASROCK

ASROCK H67M Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
