ASRock H61M-VG3 / H61M-VS3 Motherboard

English

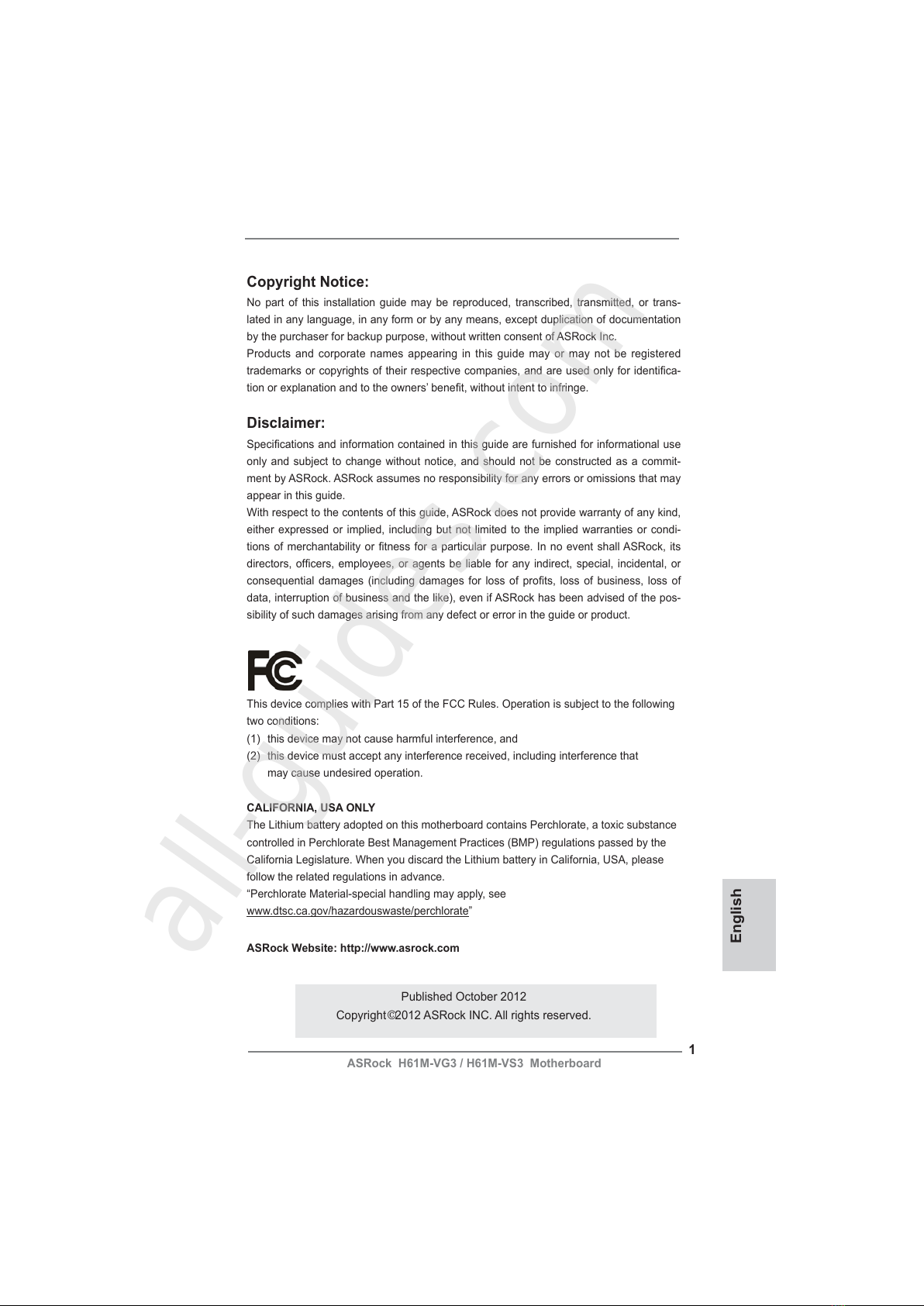

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identiﬁca-

tion or explanation and to the owners’ beneﬁt, without intent to infringe.

Disclaimer:

Speciﬁcations and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or ﬁtness for a particular purpose. In no event shall ASRock, its

directors, ofﬁcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of proﬁts, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published October 2012

All manuals and user guides at all-guides.com

all-guides.com

2ASRock H61M-VG3 / H61M-VS3 Motherboard

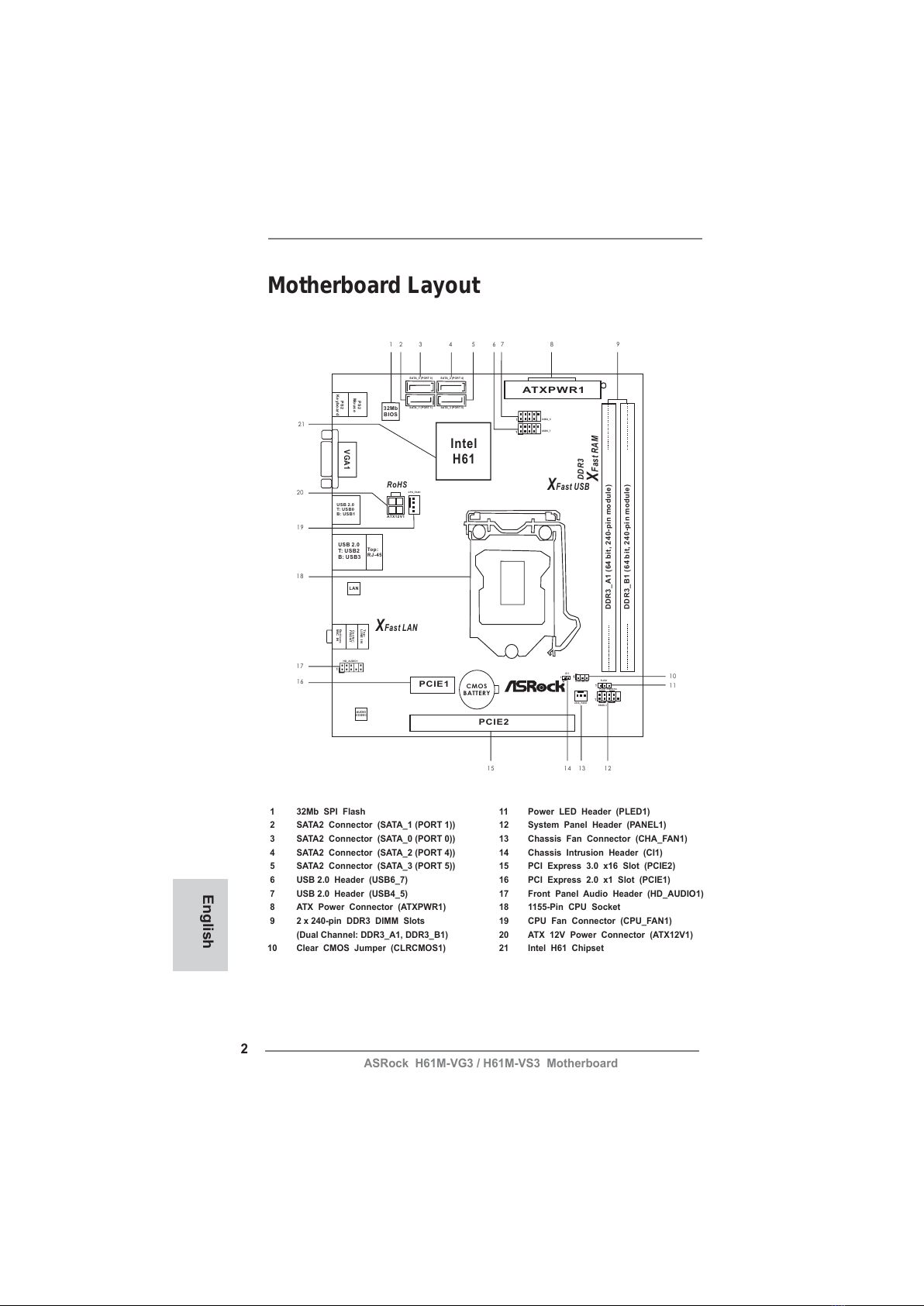

Motherboard Layout

English

1 32Mb SPI Flash 11 Power LED Header (PLED1)

2 SATA2 Connector (SATA_1 (PORT 1)) 12 System Panel Header (PANEL1)

3 SATA2 Connector (SATA_0 (PORT 0)) 13 Chassis Fan Connector (CHA_FAN1)

4 SATA2 Connector (SATA_2 (PORT 4)) 14 Chassis Intrusion Header (CI1)

5 SATA2 Connector (SATA_3 (PORT 5)) 15 PCI Express 3.0 x16 Slot (PCIE2)

6 USB 2.0 Header (USB6_7) 16 PCI Express 2.0 x1 Slot (PCIE1)

7 USB 2.0 Header (USB4_5) 17 Front Panel Audio Header (HD_AUDIO1)

8 ATX Power Connector (ATXPWR1) 18 1155-Pin CPU Socket

9 2 x 240-pin DDR3 DIMM Slots 19 CPU Fan Connector (CPU_FAN1)

(Dual Channel: DDR3_A1, DDR3_B1) 20 ATX 12V Power Connector (ATX12V1)

10 Clear CMOS Jumper (CLRCMOS1) 21 Intel H61 Chipset

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

Intel

H61

PCIE2

AUDIO

CODEC

32Mb

BIOS

ATXPWR1

ATX12V1

USB6_7

HDLED RESET

PLED PWRBTN

PANEL1

CLRCMOS1

PLED1

CHA_FAN1

CPU_FAN1

HD_AUDIO1

SATA_1 (PORT 1)

SATA_0 (PORT 0) SATA_2 (PORT 4)

USB4_5

SATA_3 (PORT 5)

CMOS

BATTERY

PCIE1

LAN

CI1

PS2

Keyboard

PS2

Mouse

VGA1

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

USB 2.0

T: US B 2

B: USB3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

DDR3

Fast RAM

XFast USB

XFast LAN

RoHS

1234567

14 13

All manuals and user guides at all-guides.com

ASRock H61M-VG3 / H61M-VS3 Motherboard

English

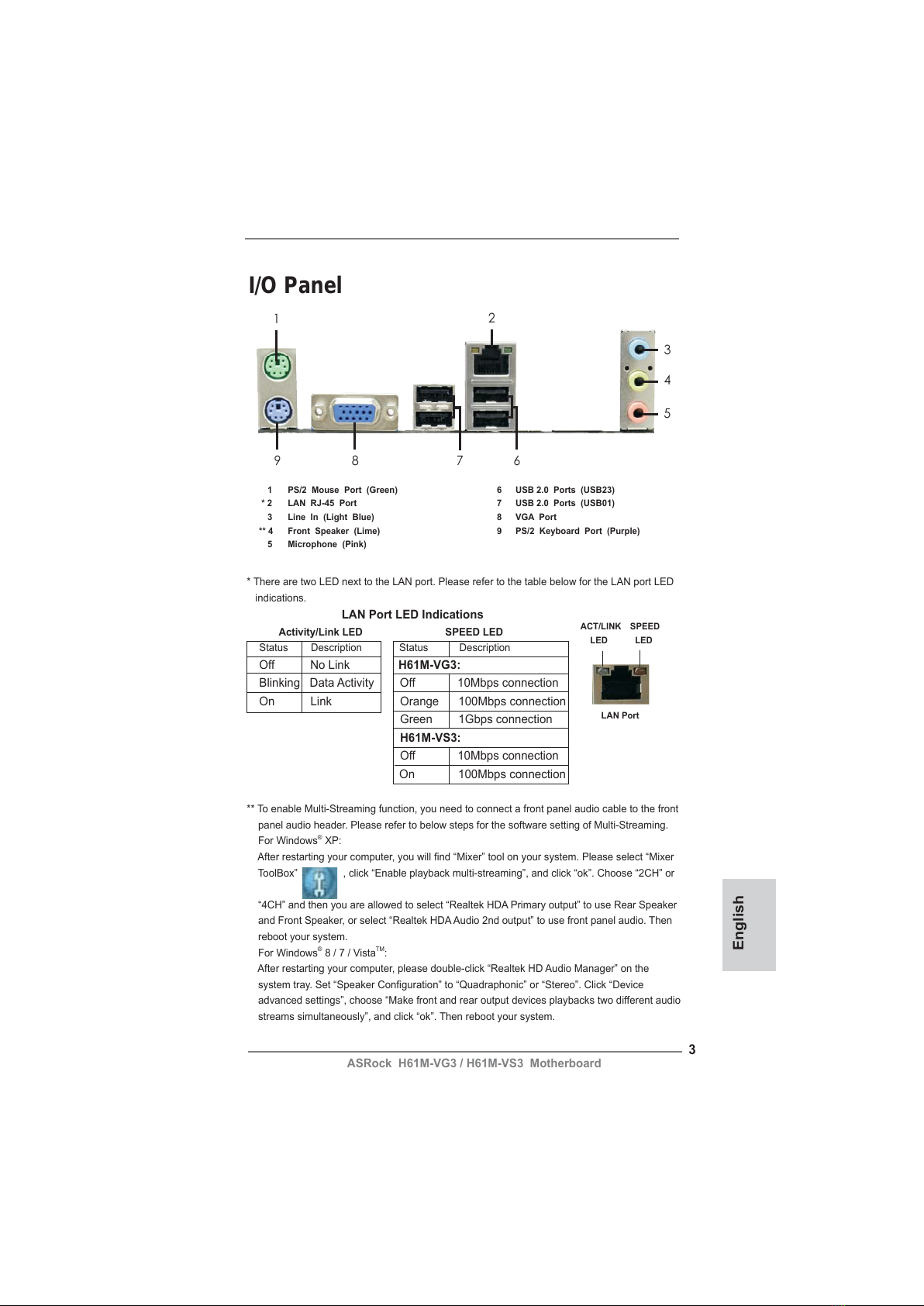

I/O Panel

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB23)

* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB01)

3 Line In (Light Blue) 8 VGA Port

** 4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link H61M-VG3:

Blinking Data Activity Off 10Mbps connection

On Link Orange 100Mbps connection

Green 1Gbps connection

H61M-VS3:

Off 10Mbps connection

On 100Mbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will ﬁnd “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®8 / 7 / VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Conﬁguration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

All manuals and user guides at all-guides.com

4ASRock H61M-VG3 / H61M-VS3 Motherboard

English

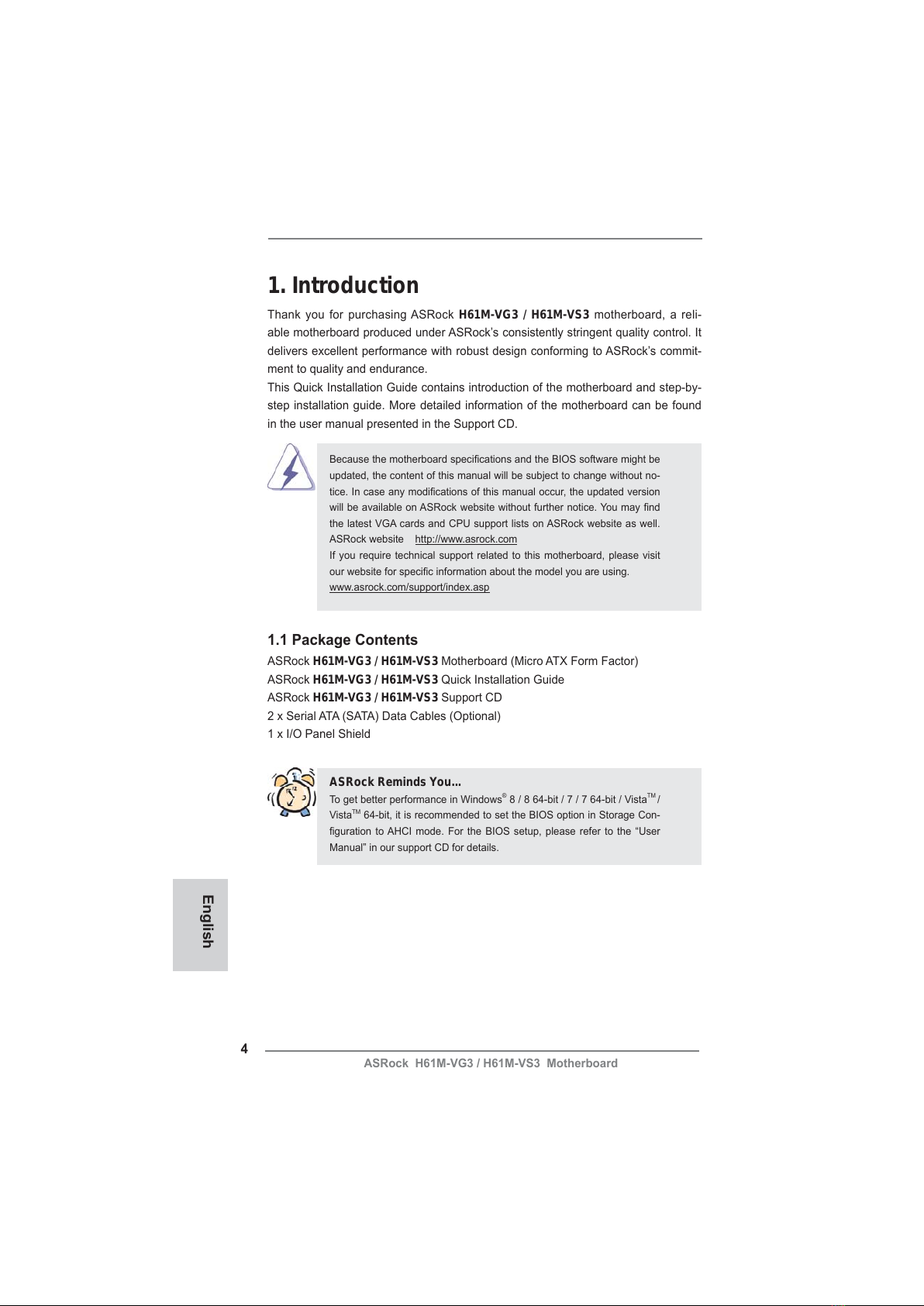

1. Introduction

Thank you for purchasing ASRock H61M-VG3 / H61M-VS3 motherboard, a reli-

able motherboard produced under ASRock’s consistently stringent quality control. It

delivers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock H61M-VG3 / H61M-VS3 Motherboard (Micro ATX Form Factor)

ASRock H61M-VG3 / H61M-VS3 Quick Installation Guide

ASRock H61M-VG3 / H61M-VS3 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-

ﬁguration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

All manuals and user guides at all-guides.com

ASRock H61M-VG3 / H61M-VS3 Motherboard

English

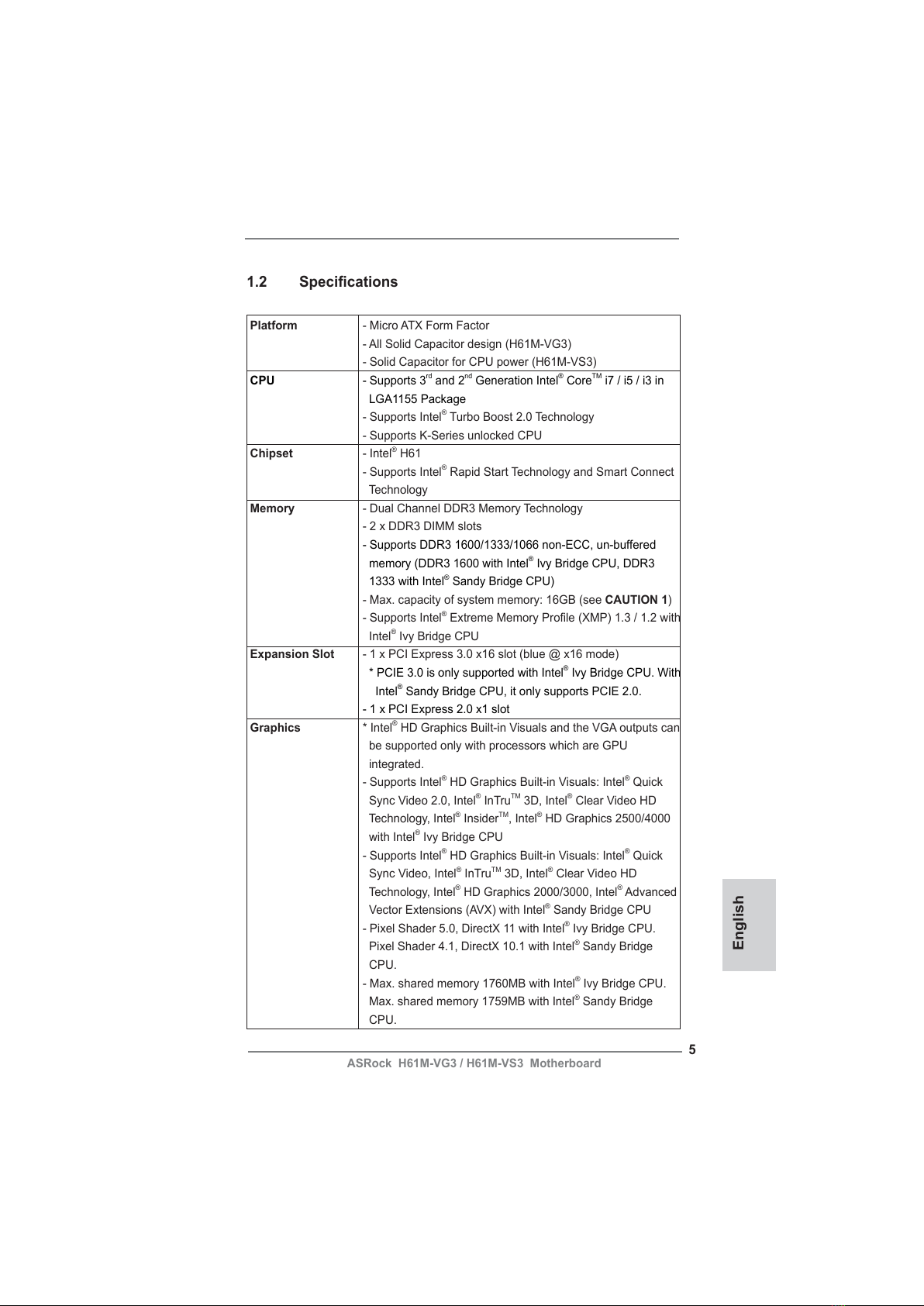

1.2 Speciﬁcations

Platform - Micro ATX Form Factor

- All Solid Capacitor design (H61M-VG3)

- Solid Capacitor for CPU power (H61M-VS3)

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Supports Intel®Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

Chipset - Intel®H61

- Supports Intel®Rapid Start Technology and Smart Connect

Technology

Memory - Dual Channel DDR3 Memory Technology

- 2 x DDR3 DIMM slots

- Supports DDR3 1600/1333/1066 non-ECC, un-buffered

memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3

1333 with Intel®Sandy Bridge CPU)

- Max. capacity of system memory: 16GB (see CAUTION 1)

- Supports Intel®Extreme Memory Proﬁle (XMP) 1.3 / 1.2 with

Intel®Ivy Bridge CPU

Expansion Slot - 1 x PCI Express 3.0 x16 slot (blue @ x16 mode)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x PCI Express 2.0 x1 slot

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

with Intel®Ivy Bridge CPU

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®HD Graphics 2000/3000, Intel®Advanced

Vector Extensions (AVX) with Intel®Sandy Bridge CPU

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.

Max. shared memory 1759MB with Intel®Sandy Bridge

CPU.

All manuals and user guides at all-guides.com

6ASRock H61M-VG3 / H61M-VS3 Motherboard

English

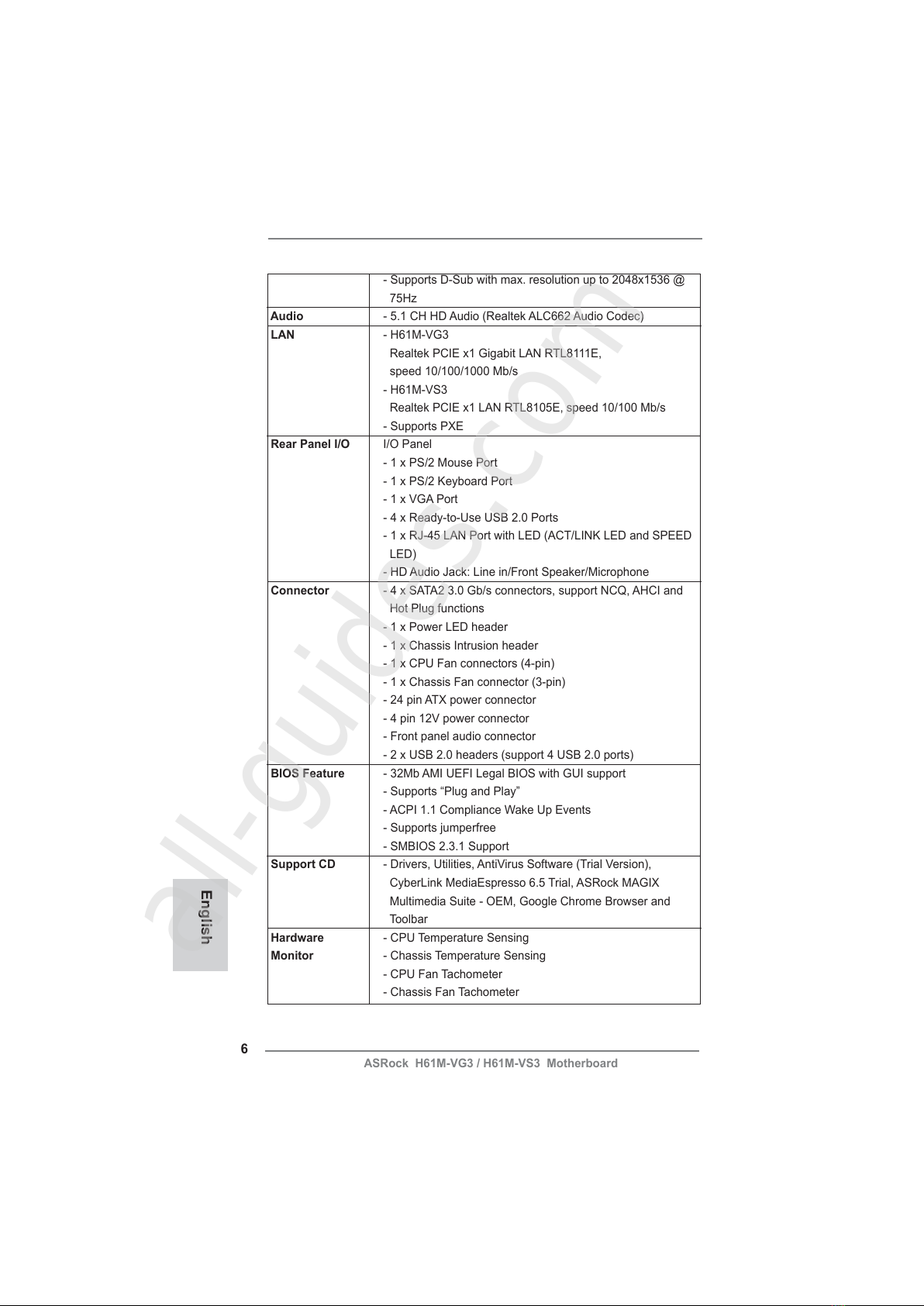

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

LAN - H61M-VG3

Realtek PCIE x1 Gigabit LAN RTL8111E,

speed 10/100/1000 Mb/s

- H61M-VS3

Realtek PCIE x1 LAN RTL8105E, speed 10/100 Mb/s

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and

Hot Plug functions

- 1 x Power LED header

- 1 x Chassis Intrusion header

- 1 x CPU Fan connectors (4-pin)

- 1 x Chassis Fan connector (3-pin)

- 24 pin ATX power connector

- 4 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM, Google Chrome Browser and

Toolbar

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

All manuals and user guides at all-guides.com

all-guides.com

ASRock H61M-VG3 / H61M-VS3 Motherboard

English

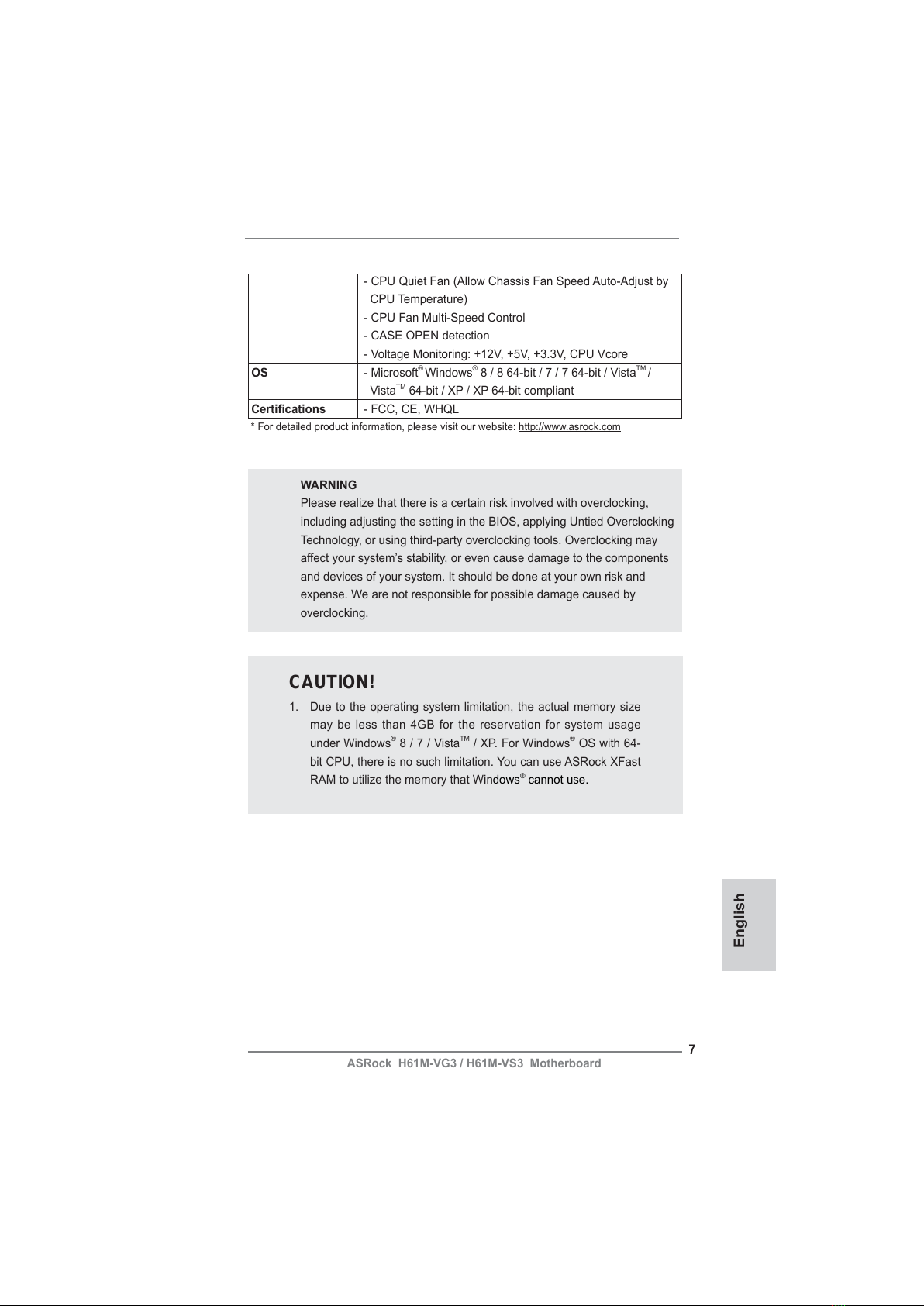

CAUTION!

1. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®8 / 7 / VistaTM / XP. For Windows®OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU Temperature)

- CPU Fan Multi-Speed Control

- CASE OPEN detection

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /

VistaTM 64-bit / XP / XP 64-bit compliant

Certiﬁcations - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

All manuals and user guides at all-guides.com

8ASRock H61M-VG3 / H61M-VS3 Motherboard

English

1.3 Jumpers Setup

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Clear CMOS Jumper

(CLRCMOS1)

(see p.2, No. 10)

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just ﬁnish updating the BIOS, you must boot up

the system ﬁrst, and then shut it down before you do the clear-CMOS action.

Please be noted that the password, date, time and user default proﬁle will be

cleared only if the CMOS battery is removed.

Clear CMOSDefault

If you clear the CMOS, the case open may be detected. Please adjust

the BIOS option “Clear Status” to clear the record of previous chassis

intrusion status.

All manuals and user guides at all-guides.com

ASRock H61M-VG3 / H61M-VS3 Motherboard

English

1.4 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

motherboard!

Serial ATA2 Connectors These four Serial ATA2

(SATA_0 (PORT 0): (SATA2) connectors support

see p.2, No. 3) SATA data cables for internal

(SATA_1 (PORT 1): storage devices. The current

see p.2, No. 2) SATA2 interface allows up to

(SATA_2 (PORT 4): 3.0 Gb/s data transfer rate.

see p.2, No. 4)

(SATA_3 (PORT 5):

see p.2, No. 5)

SATA_0 (PORT 0) SATA_2 (PORT 4)

SATA_1 (PORT 1) SATA_3 (PORT 5)

Serial ATA (SATA) Either end of the SATA data

Data Cable cable can be connected to the

(Optional) SATA / SATA2 hard disk or the

SATA2 connector on this

motherboard.

USB 2.0 Headers Besides four default USB 2.0

(9-pin USB4_5) ports on the I/O panel, there

(see p.2 No. 7) are two USB 2.0 headers on

this motherboard. Each

USB 2.0 header can support

two USB 2.0 ports.

(9-pin USB6_7)

(see p.2 No. 6)

All manuals and user guides at all-guides.com

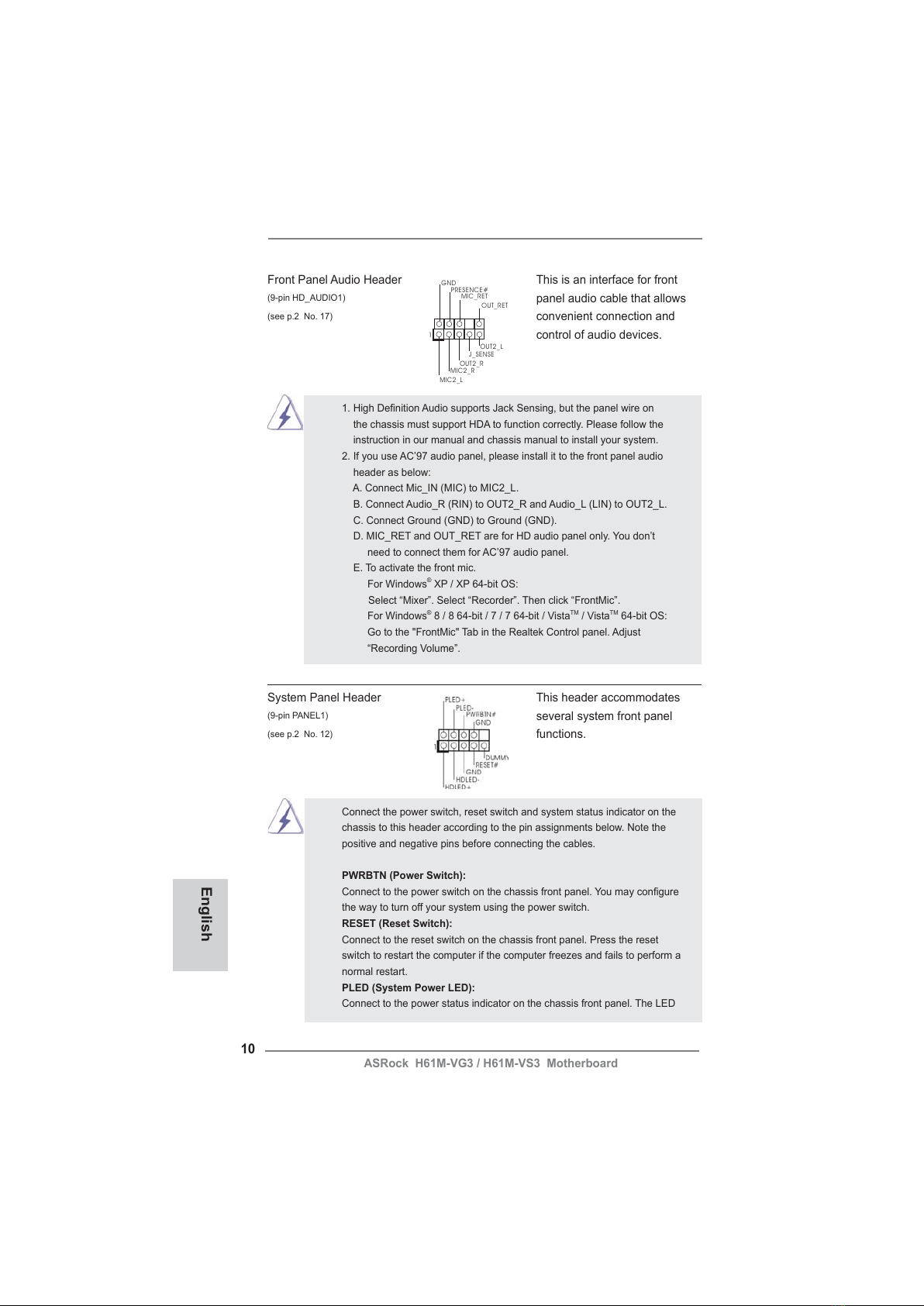

10 ASRock H61M-VG3 / H61M-VS3 Motherboard

J_SENSE

OUT2_L

MIC_RET

PRESENCE#

GND

OUT2_R

MIC2_R

MIC2_L

OUT_RET

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 17) convenient connection and

control of audio devices.

1. High Deﬁnition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

header as below:

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

For Windows®XP / XP 64-bit OS:

Select “Mixer”. Select “Recorder”. Then click “FrontMic”.

For Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:

Go to the "FrontMic" Tab in the Realtek Control panel. Adjust

“Recording Volume”.

System Panel Header This header accommodates

(9-pin PANEL1) several system front panel

(see p.2 No. 12) functions.

Connect the power switch, reset switch and system status indicator on the

chassis to this header according to the pin assignments below. Note the

positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may conﬁgure

the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to perform a

normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED

English

All manuals and user guides at all-guides.com

Otros manuales para H61M-VG3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK M3A785GMH/128M Manual de usuario

ASROCK

ASROCK H570M Manual de usuario

ASROCK

ASROCK P55DE PRO - Manual de usuario

ASROCK

ASROCK M3A760GMH - V1.0 Manual de usuario

ASROCK

ASROCK K8SLI-ESATA2 Manual de usuario

ASROCK

ASROCK EN2C602-4L/D12 Manual de usuario

ASROCK

ASROCK G31M-GS - R2.0 Manual de usuario

ASROCK

ASROCK 775VM800 Manual de usuario

ASROCK

ASROCK 890GX Pro3 Manual de usuario

ASROCK

ASROCK D1541D4I-2L2T Manual de usuario

ASROCK

ASROCK CONROE1333-1394 Manual de usuario

ASROCK

ASROCK AD2700-ITX Manual de usuario

ASROCK

ASROCK B95M-DGS Manual de usuario

ASROCK

ASROCK B365 PHANTOM GAMING 4 Manual de usuario

ASROCK

ASROCK SBC-230D Manual de usuario

ASROCK

ASROCK Z590M Phantom Gaming 4 Manual de usuario

ASROCK

ASROCK K8 COMBO-Z Manual de usuario

ASROCK

ASROCK A88M-G/3.1 Manual de usuario

ASROCK

ASROCK Q1900TM-ITX Manual de usuario

ASROCK

ASROCK P43ME Manual de usuario

ASROCK

ASROCK E350M1 - Manual de usuario

ASROCK

ASROCK H110M-DGS Manual de usuario

ASROCK

ASROCK N4200-NUC IPC Manual de usuario

ASROCK

ASROCK RIPTIDE Z790 PG Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
