ASROCK E3C204 Manual de usuario

E3C204-4L

E3C204

E3C204-V4L

E3C204-V+

User Manual

Version 1.0

Published July 2012

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents............................................... 5

1.2 Specications ...................................................... 6

1.3 Unique Features.................................................. 9

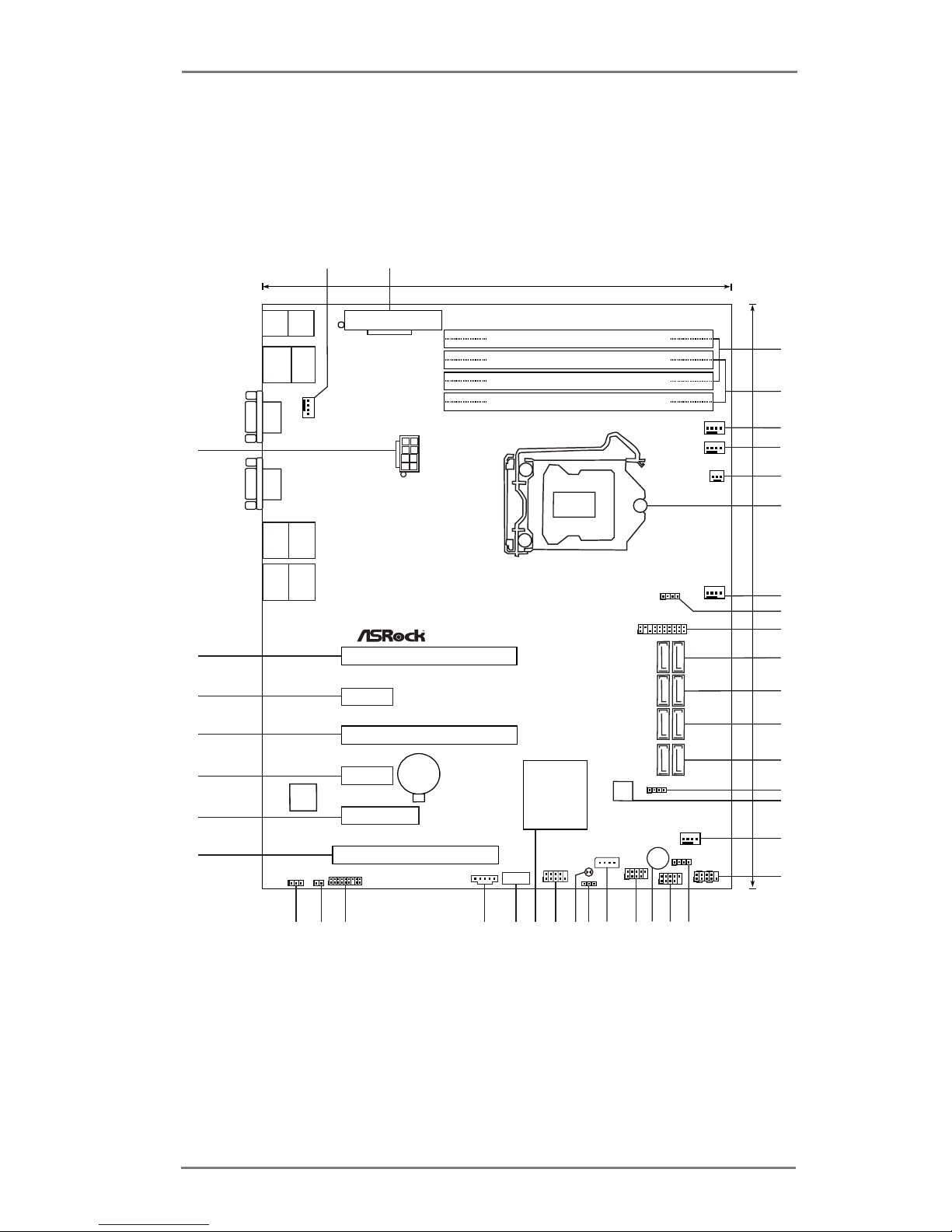

1.4 Motherboard Layout ............................................ 10

1.5 I/O Panel ............................................................. 18

1.6 Block Diagram..................................................... 22

2 Installation ......................................................... 26

2.1 Pre-installation Precautions ................................ 26

2.2 Screw Holes ........................................................ 26

2.3 CPU Installation .................................................. 27

2.4 Installation of Heatsink and CPU fan .................. 30

2.5 Installation of Memory Modules (DIMM) ............. 31

2.6 Expansion Slots (PCI and PCI Express Slots) .... 33

2.7 Jumpers Setup .................................................... 34

2.8 Onboard Headers and Connectors ..................... 35

2.9 Driver Installation Guide....................................... 42

2.10 Hot Plug for Hard Disk Drives ............................ 43

3 UEFI SETUP UTILITY......................................... 44

3.1 Introduction ......................................................... 44

3.1.1 UEFI Menu Bar........................................... 44

3.1.2 Navigation Keys ......................................... 45

3.2 Main Screen ........................................................ 46

3.3 Advanced Screen ................................................ 47

3.3.1 CPU Conguration ..................................... 48

3.3.2 North Bridge Conguration......................... 50

3.3.3 South Bridge Conguration ........................ 51

3.3.4 Storage Conguration ................................ 52

3.3.5 Super IO Conguration............................... 54

3.3.6 ACPI Conguration..................................... 55

3.3.7 USB Conguration...................................... 57

3.3.8 Trusted Computing ..................................... 58

3.3.9 WHEA Conguration .................................. 59

3.3.10 Intel TXT(LT) Conguration ...................... 60

3.3.11 Intel ME Subsystem.................................. 61

3.3.12 Serial Port Console Redirection ............... 62

3.3.13 Voltage Control......................................... 63

3.4 Hardware Health Event Monitoring Screen......... 64

3.5 Boot Screen ........................................................ 66

3.6 Security Screen................................................... 68

3.7 Exit Screen.......................................................... 69

3.8 Server Management............................................ 70

3.9 Event Logs .......................................................... 71

4 Software Support .............................................. 72

4.1 Install Operating System ..................................... 72

4.2 Support CD Information ...................................... 72

4.2.1 Running Support CD .................................. 72

4.2.2 Drivers Menu .............................................. 72

4.2.3 Utilities Menu.............................................. 72

4.2.4 Contact Information .................................... 72

5 Troubleshooting ................................................ 73

5.1 Troubleshooting Procedures ............................... 73

5.2 Technical Support Procedures ............................ 75

5.3 Returning Merchandise for Service..................... 75

Chapter 1: Introduction

Thank you for purchasing ASRock E3C204-4L / E3C204 / E3C204-V4L

/ E3C204-V+ motherboard, a reliable motherboard produced under AS-

Rock’s consistently stringent quality control. It delivers excellent perfor-

mance with robust design conforming to ASRock’s commitment to quality

and endurance.

In this manual, chapter 1 and 2 contains the introduction of the mother-

board and step-by-step hardware installation guide. Chapter 3 and 4 con-

tains the conguration guide of BIOS setup and information of the Support

CD.

Because the motherboard specications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modications of this manual

occur, the updated version will be available on ASRock’s web-

site without further notice. You may nd the latest VGA cards

and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com

If you require technical support related to this motherboard,

please visit our website for specic information about the model

you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock E3C204-4L / E3C204 / E3C204-V4L / E3C204-V+ Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

ASRock E3C204-4L / E3C204 / E3C204-V4L / E3C204-V+ Quick Installa-

tion Guide

ASRock E3C204-4L / E3C204 / E3C204-V4L / E3C204-V+ Support CD

8 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

1.2 Specications

Physical

Status

Form Factor ATX

Dimension 12'' x 9.6'' (30.5 cm x 24.4 cm)

Processor

System

CPU

Supports Intel®Xeon E3-1200 & E3-1200 v2

series, 2nd and 3rd Gen Core i3 processors,

Pentium, Celeron

Supports Hyper-Threading Technology

Socket Single Socket H2 (LGA1155)

Power

Phase 4 Power Phase Design

Chipset Intel®C204

System

Memory

Capacity 4 x 240-pin DDR3 DIMM slots

Support up to 32GB DDR3 ECC UDIMM

Type

Dual Channel DDR3 memory technology

Supports DDR3 1600*/1333/1066 ECC DIMM

* DDR3 1600 can only be supported with Intel®

Xeon®E3-1200 v2 Processor

Voltage 1.5V, 1.35V

Expansion

Slot

PCIe 3.0 x

2 slots (PCIE6/PCIE4: x16/x0 mode or x8/x8

mode)

* PCIE4 slot shares lanes with PCIE6 slot. When

PCIE4 slot is populated, PCIE6 slot will operate

at up to x8 mode

* PCIE 3.0 can only be supported with Intel®

Xeon®E3-1200 v2 Processor

PCIe 2.0 x 4 1 slot (PCIE2: x4 mode)

PCIe 2.0 x 1 2 slots

PCI 1 slot

Graphics

Controller

E3C204-4L / E3C204

ASPEED AST2300

E3C204-V4L / E3C204-V+

ASPEED AST1300

VRAM DDR3 16MB

Output Supports D-Sub with max. resolution up to

1920x1200 @ 60Hz

Ethernet

Interface Gigabit LAN 10/100/1000 Mb/s

IPMI

Dedicated

GLAN

E3C204-4L / E3C204

1 x Realtek RTL8211E for dedicated

management GLAN

E3C204-V4L / E3C204-V+

N/A

LAN

Controller

E3C204-4L / E3C204-V4L

4 x Intel®82574L

E3C204 / E3C204-V+

2 x Intel®82574L

Supports Wake-On-LAN

Supports Energy Efcient Ethernet 802.3az

Supports Quad/Dual LAN with Teaming function

Supports PXE

Storage

SATA

Controller

Intel C204: 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0

Gb/s, support RAID 0, 1, 10 and Intel Rapid

Storage

Marvell SE9172: 2 x SATA3 6.0 Gb/s, support

RAID 0, 1, NCQ, AHCI and Hot Plug

(* Marvell SE9172 RAID is supported with

Windows® OS only)

SAS

Controller

N/A

Rear Panel

I/O

PS/2

KB/Mouse 2

VGA Port D-sub x 1

USB 2.0

Port 2

Lan Port

E3C204-4L

4 x RJ45 Gigabit Ethernet LAN ports

1 x RJ45 Dedicated IPMI LAN port

LAN Ports with LED (ACT/LINK LED and

SPEED LED)

E3C204

2 x RJ45 Gigabit Ethernet LAN ports

1 x RJ45 Dedicated IPMI LAN port

LAN Ports with LED (ACT/LINK LED and

SPEED LED)

E3C204-V4L

4 x RJ45 Gigabit Ethernet LAN ports

LAN Ports with LED (ACT/LINK LED and

SPEED LED)

E3C204-V+

2 x RJ45 Gigabit Ethernet LAN ports

LAN Ports with LED (ACT/LINK LED and

SPEED LED)

* For detailed product information, please visit our website: http://www.asrock.com

Serial Port 1 (COM1)

Internal

Connectors

COM Port

Header 1 (COM2)

Auxiliary

Panel

Header

1 (Includes chassis intrusion, location button &

LED, front LAN LED)

TPM Header 1

IPMB

Header

E3C204-4L / E3C204

E3C204-V4L / E3C204-V+

N/A

Buzzer 1

Fan Header 6 (5 x 4-pin, 1 x 3-pin)

ATX Power

1 (24-pin) + 1 (8-pin)

USB Header 2 (Each supports 2 USB 2.0)

Type A USB

2.0 Port 1

System

BIOS

BIOS Type 64Mb AMI UEFI Legal BIOS with GUI support

BIOS

Features

Plug and Play (PnP)

ACPI 1.1 Compliance Wake Up Events

Supports jumperfree

SMBIOS 2.3.1 Support

DRAM Voltage Multi-adjustment

Hardware

Monitor

Temperature CPU Temperature Sensing

System Temperature Sensing

Fan

CPU/Rear/Front Fan Tachometer

CPU Quiet Fan (Allow Chassis Fan Speed

Auto-Adjust by CPU Temperature)

CPU/Rear/Front Fan Multi-Speed Control

Voltage

Voltage Monitoring: +12V, +5V, +3.3V, CPU

Vcore, DRAM, VTT, 1.05V_PCH, +BAT, 3VSB,

5VSB

Support OS OS Microsoft®Windows®Server 2003 / 2003 R2 /

2008 / 2008 R2 / Linux compliant

Features Unique

Features ASRock Instant Flash

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded

in Flash ROM. This convenient BIOS update tool allows

you to update your BIOS without entering operating

systems rst like MS-DOS or Windows®. With this util-

ity, you can press the <F6> key during the POST or the

<F2> key to enter into the BIOS setup menu to access

ASRock Instant Flash. Just launch this tool and save

the new BIOS le to your USB ash drive, oppy disk or

hard drive, then you can update your BIOS only in a few

clicks without preparing an additional oppy diskette or

other complicated ash utility. Please be noted that the

USB ash drive or hard drive must use FAT32/16/12 le

system.

1.3 Unique Features

1.4 Motherboard Layout

E3C204-4L

SPEAKER1

Intel

C204

CMOS

Battery

PS2

Keyboard

PS2

Mouse

VGA1

Top:

IPMI

LAN

USB 2.0

T: USB0

B: USB1

COM1

RJ-45

LAN1

RJ-45

LAN2

RJ-45

LAN3

RJ-45

LAN4

ATXPWR1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_A2 (64 bit, 240-pin module)

PCIE6

PCIE4

PCIE5

PCIE3

PCIE2

PCI1

Super

I/O

SATA_0_1SATA_2_3SATA_4_5

SATA3_M0_M1

64Mb

BIOS

HDLED RESET

PLED PWRBTN

PANEL1

USB2_3

USB4_5

BUZZER1

COM2

USB6

TPM1

AUX_PANEL1

FRNT_FAN1

CPU_FAN1

CPU_FAN2

FRNT_FAN3

REAR_FAN1

9.6cm (24.4 in)

30.5cm (12.0 in)

ATX12V1

E3C204-4L

RoHS

Designed in Taipei

FRNT_FAN2

CLRCMOS2

TR1

PSU_SMB1

SGPIO_1

ME_RECOVERY1

IPMB_1

NMI_BTN1

FRONT_LED_LAN34

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK ALIVENF7G-HDREADY Manual de usuario

ASROCK

ASROCK IMB-1004 Manual de servicio

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Manual de usuario

ASROCK

ASROCK Q170M vPro+ Manual de usuario

ASROCK

ASROCK H61M-GS Manual de usuario

ASROCK

ASROCK X570 PRO4 Manual de usuario

ASROCK

ASROCK B250M DASH Manual de usuario

ASROCK

ASROCK X299 Steel Legend Manual de usuario

ASROCK

ASROCK X79 Extreme4 Manual de usuario

ASROCK

ASROCK Z97E-ITX/ac Manual de usuario

ASROCK

ASROCK H610M-H2/M.2 D5 Manual de usuario

ASROCK

ASROCK P45XE Manual de usuario

ASROCK

ASROCK FM2A85X Extreme4-M Manual de usuario

ASROCK

ASROCK Z170 Extreme3 Manual de usuario

ASROCK

ASROCK G41M-VGS3 Guía de instalación

ASROCK

ASROCK IMB-154 Manual de usuario

ASROCK

ASROCK B150M-ITX/D3 Manual de usuario

ASROCK

ASROCK B660M Pro RS/AX Manual de usuario

ASROCK

ASROCK K8N68PV-GLAN Manual de usuario

ASROCK

ASROCK ALIVENF7G-HD720P - V2.0 V5.0 Manual de usuario

ASROCK

ASROCK B450M Pro4 Manual de usuario

ASROCK

ASROCK H410TM-ITX Manual de usuario

ASROCK

ASROCK H310M-ITX/ac Manual de usuario

ASROCK

ASROCK J4105-ITX Manual

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
