ASROCK B85M-DGS Manual de usuario

Version 1.0

Published May 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

B85M-DGS

English

Motherboard Layout

Intel

B85

DDR3_B1 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

CMOS

Battery

Super

I/O

ATXPWR1

LAN

Top:

RJ-45

USB 2.0

T: USB2

B: USB3

CLRCMO S1

SPE AKE R1

HDL ED RE SET

PLE D PWR BTN

PANE L1

USB4 _5

COM1

HD_AUDIO1

B85M-DGS

CHA_FAN1

RoHS

16 12

21 18

CPU_FAN1

32Mb

BIOS

VGA1

Audio

CODEC

PCIE1

Front USB 3.0

PWR_FAN1

TPMS1

LPT1

CI1

USB3_2_3

SATA3 _3

PCIE2

USB 3.0

T: USB0

B: USB1

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

USB6 _7

ATX12V1

SATA3 _1

SATA3 _2

SATA3 _0

PCI Express 3.0

USB 2.0

T: USB0

B: USB1

PS2

Keyboard/

Mouse

DVI1

English

No. Description

1 CPU Fan Connector (CPU_FAN1)

2 ATX 12V Power Connector (ATX12V1)

3 Power Fan Connector (PWR_FAN1)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 ATX Power Connector (ATXPWR1)

6 SATA3 Connector (SATA3_3)

7 SATA3 Connector (SATA3_2)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_1)

10 USB 3.0 Header (USB3_2_3)

11 Clear CMOS Jumper (CLRCMOS1)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 USB 2.0 Header (USB6_7)

15 Chassis Speaker Header (SPEAKER1)

16 USB 2.0 Header (USB4_5)

17 Chassis Fan Connector (CHA_FAN1)

18 Print Port Header (LPT1)

19 COM Port Header (COM1)

20 Chassis Intrusion Header (CI1)

21 Front Panel Audio Header (HD_AUDIO1)

B85M-DGS

English

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 6 USB 2.0 Ports (USB23)

2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_01)

3 Line In (Light Blue) 8 D-Sub Port

4 Front Speaker (Lime) 9 DVI-D Port

5 Microphone (Pink) 10 PS/2 Mouse/Keyboard Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

2 4

5679 8

English

1 Introduction

ank you for purchasing ASRock B85M-DGS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock B85M-DGS Motherboard (Micro ATX Form Factor)

• ASRock B85M-DGS Quick Installation Guide

• ASRock B85M-DGS Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

B85M-DGS

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

• High Density Glass Fabric PCB

CPU • Supports New 4th and 4th Generation Intel® CoreTM i7/i5/i3/

Xeon®/Pentium®/Celeron® Processors (Socket 1150)

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

Memory • Dual Channel DDR3 Memory Technology

• 2 x DDR3 DIMM Slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 16GB (see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x1 Slot

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• Dual graphics output: support DVI-D and D-Sub by

independent display controllers

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP with DVI-D Port

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

Port

English

Audio • 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

• Supports Surge Protection (ASRock Full Spike Protection)

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111GR

• Supports Wake-On-WAN

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection (ASRock Full Spike

Protection)

• Supports LAN Cable Detection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full

Spike Protection))

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x Chassis Intrusion Header

• 1 x TPM Header

• 1 x CPU Fan Connector (4-pin)

• 1 x Chassis Fan Connector (4-pin)

• 1 x Power Fan Connector (3-pin)

• 1 x 24 pin ATX Power Connector

• 1 x 4 pin 12V Power Connector

• 1 x Front Panel Audio Connector

B85M-DGS

English

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

• 32Mb AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 1.1 Compliant wake up events

• SMBIOS 2.3.1 support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage multi-adjust-

ment

Hardware

Monitor

• CPU/Chassis temperature sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by

CPU temperature)

• CPU/Chassis Fan multi-speed control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-

bit / 7 32-bit / 7 64-bit

Certica-

tions

• FCC, CE, WHQL

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjust-

ing the setting in the BIOS, applying Untied Overclocking Technology, or using third-

party overclocking tools. Overclocking may aect your system’s stability, or even cause

damage to the components and devices of your system. It should be done at your own

risk and expense. We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Due to limitation, the actual memory size may be less than 4GB for the reservation

for system usage under Windows® 32-bit operating systems. Windows® 64-bit operat-

ing systems do not have such limitations. You can use ASRock XFast RAM to utilize

the memory that Windows® cannot use.

English

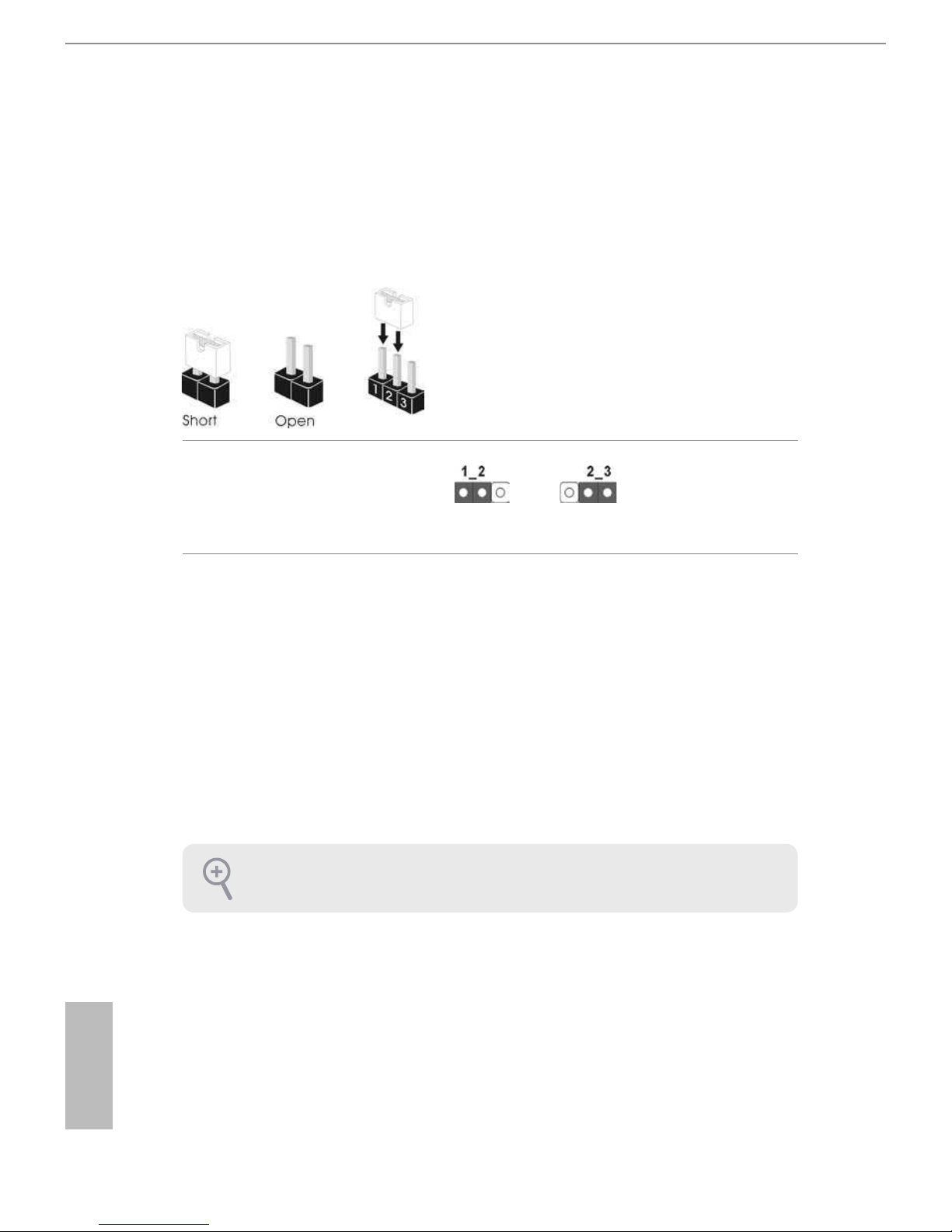

1.3 Jumpers Setup

e illustration shows how jumpers are setup. When the jumper cap is placed on

the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper

is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”

when a jumper cap is placed on these 2 pins.

Clear CMOS Jumper

(CLRCMOS1)

(see p.1, No. 11)

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system

parameters to default setup, please turn o the computer and unplug the power

cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to

short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear

the CMOS right aer you update the BIOS. If you need to clear the CMOS when

you just nish updating the BIOS, you must boot up the system rst, and then shut

it down before you do the clear-CMOS action. Please be noted that the password,

date, time, and user default prole will be cleared only if the CMOS battery is

removed.

Clear CMOSDefault

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option

“Clear Status” to clear the record of previous chassis intrusion status.

Otros manuales para B85M-DGS

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK PV530A-ITX Manual de usuario

ASROCK

ASROCK FM2A68M-DG3+ Manual de usuario

ASROCK

ASROCK Z270M PRO4 Manual de usuario

ASROCK

ASROCK H97M Pro4 Manual de usuario

ASROCK

ASROCK P55 PRO/USB3 - Manual de usuario

ASROCK

ASROCK FM2A88M Extreme4+ Manual de usuario

ASROCK

ASROCK E3C240D4U2-2L2T Manual de usuario

ASROCK

ASROCK Phantom Gaming B650M PG LIGHTING Manual de usuario

ASROCK

ASROCK K10N78HSLI-GLAN Manual de usuario

ASROCK

ASROCK H55M PRO Manual de usuario

ASROCK

ASROCK C621A WS Manual de usuario

ASROCK

ASROCK N68-GS3 UCC - Manual de usuario

ASROCK

ASROCK M3A770DE Manual de usuario

ASROCK

ASROCK K10N750SLI-WIFI Manual de usuario

ASROCK

ASROCK H61M-ITX Manual de usuario

ASROCK

ASROCK Fatal1ty H87 Performance Series Manual de usuario

ASROCK

ASROCK GENOAD24QM3-2L2T/BCM Manual de usuario

ASROCK

ASROCK A780LM Manual de usuario

ASROCK

ASROCK 4CORE1333-GLAN - V1.1 Manual de usuario

ASROCK

ASROCK 4CORE1333-ESATA2 - V5.1 Manual de usuario

ASROCK

ASROCK A55M-DGS Manual de usuario

ASROCK

ASROCK A55M-DGS Manual de usuario

ASROCK

ASROCK H61M-U3S3 Manual de usuario

ASROCK

ASROCK gaia 404 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
