ASROCK B460TM-ITX Manual de usuario

Version 1.0

Published May 2020

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

B460TM-ITX

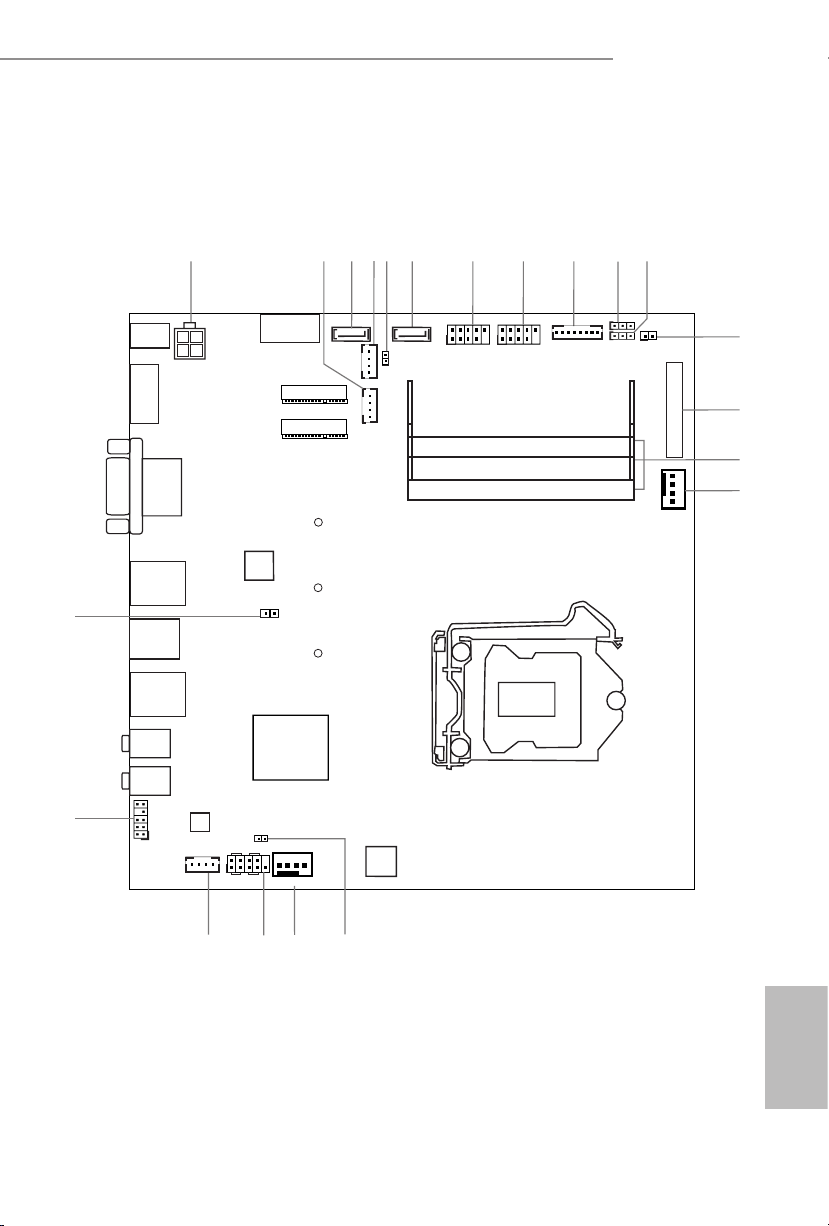

Motherboard Layout

Audio

CODEC

HDLED RESET

PLED PWRBTN

PANEL1

COM1

DC Jack

HDMI1

HDMI2

Super

I/O

BIOS

ROM

M.2 WiFi

M.2 SSD

CPU_FAN2

CPU_FAN1

B460TM-ITX

RoHS

19 18

DDR4_A2

DDR4_A1

SATA_1

3 6

USB2_1_2

LVDS1

BKT_PWR1

BLT_VOL1

SPK_OUT1

USB 3.2 Gen1

T: USB3_3

B: USB3_4

USB 3.2 Gen1

T: USB3_1

B: USB3_2

RJ-45

Headphone

Mic In

ATX_PWR1

HD_AUDIO1

SATA_2

USB2_3_4

SATAPWR2

CLR_MOS1

TH1

245

PNL_PWR1

Intel

B460

SATAPWR1

M2_1_CT2

M2_1_CT1

MH1

CI1

PNL_SW1

English

No. Description

1 4 pin 19V Power Connector (ATX_PWR1)

2 SATA Power Connector (SATAPWR2)

3 SATA3 Connector (SATA_1)

4 SATA Power Connector (SATAPWR1)

5 Clear CMOS Jumper (CLRCMOS1)

6 SATA3 Connector (SATA_2)

7 USB 2.0 Header (USB2_1_2)

8 USB 2.0 Header (USB2_3_4)

9 FPD Brightness Header (BLT_VOL1)

10 Panel Voltage Selection Header (PNL_PWR1)

11 Backlight Inverter Voltage Selection Header (BKT_PWR1)

12 Panel O Header (PNL_SW1)

13 LVDS Connector (LVDS1)

14 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_A2)

15 CPU Fan Connector (CPU_FAN1)

16 Chassis Intrusion Header (CI1)

17 CPU Fan Connector (CPU_FAN2)

18 System Panel Header (PANEL1)

19 Internal Speaker Header (SPK_OUT1)

20 Front Panel Audio Header (HD_AUDIO1)

21 ermal Sensor Header (TH1)

English

B460TM-ITX

I/O Panel

No. Description No. Description

1 DC Jack** 5 LAN RJ-45 Port*

2HDMI Port (HDMI1) 6 USB 3.2 Gen1 Port (USB3_12)

3COM Port 7Microphone (Pink)

4 USB 3.2 Gen1 Port (USB3_34) 8 Line out (Lime)

*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Green 100Mbps connection

On Link Green 1Gbps connection

** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 2.5

mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).

DELTA DELTA-ADP-150TB-150W/19V

HP HP-TBC-BA52-150W/19V

FSP FSP-FSP150-ABAN1-150W/19V

DELL FA130PE1-00-130W/19.5V

DELL LA90PE0-01-90W/19.5V

DELTA DELTA-ADP-180TB-180W/19V

FSP FSP-FSP180-ABBN3-180W/19V

is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do

not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and

devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power

for HDDs.

ACT/LINK LED

SPEED LED

LAN Port

872 5431 6

English

Chapter 1 Introduction

ank you for purchasing B460TM-ITX motherboard. In this documentation,

Chapter 1 and 2 contains the introduction of the motherboard and step-by-step

installation guides.

1.1 Package Contents

• B460TM-ITX Motherboard (in Mini-ITX Form Factor)

• B460TM-ITX Quick Installation Guide (Optional)

• 1 x in-Mini ITX I/O Shield (Optional)

• 1 x Mini ITX I/O Shield (Optional)

• 1 x Serial ATA (SATA) Data Cables (Optional)

• 1 x SATA Power Cables (Optional)

• 2 x Screws for M.2 Sockets (M2*2) (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice.

English

B460TM-ITX

1.2 Specications

Platform • in Mini-ITX Form Factor

• Solid Capacitor design

CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)

• 4 Power Phase design

• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset • Intel® B460

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 SO-DIMM Slots

• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-

buered memory

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

• CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

Expansion

Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265

8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2,

MJPEG, VC-1

* VP9 10bit and VC-1 are for decode only.

* VP8 and VP9 encode are not supported by Windows OS.

English

• Graphics, Media & Compute: Microso DirectX 12, OpenGL

4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid /

Switchable Graphics, OpenCL 2.1

• Display & Content Security: Rec. 2020 (Wide Color Gamut),

Microso PlayReady 3.0, Intel® SGX Content Protection,

UHD/HDR Blu-ray Disc

• ree graphics output options: 2 x HDMI, 1 x LVDS ports

• Supports 2 x HDMI 1.4 with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

HDMI x 1 port (Rear)

HDMI x 1 port (Internal)

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR

(High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI

monitor is required)

• Supports LVDS with max. resolution up to 1920x1080 @ 60Hz

• Supports HDCP 2.3 with HDMI 1.4 Port

• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Audio • Realtek ALC233 Audio Codec

• 1 x Line out

• 1 x MIC-In

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

I/O • 1 x DC Jack (Compatible with the 19V power adapter)

• 1 x Serial Port: COM

• 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)

• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line out / Microphone

English

B460TM-ITX

Storage • 2 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1, Intel Rapid Storage Technology 17), NCQ, AHCI and

Hot Plug

• 1 x Ultra M.2 Socket, supports M Key type 2260/2280 M.2

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen3 x4 (32 Gb/s)

* Supports NVMe SSD as boot disks

Connector • 1 x Chassis Intrusion Header

• 1 x Panel Voltage Selection Header

• 1 x Backlight Inverter Voltage Selection Header

• 1 x FPD Brightness Header

• 1 x Panel O Header

• 1 x LVDS Connector

• 2 x CPU Fan Connectors (4-pin)

* e CPU Fan Connectors support the CPU fan of maximum 1A

(12W) fan power.

• 1 x 4 pin 19V Power Connector

• 1 x ermal Sensor Header (2-Pin)

• 1 x Front Panel Audio Connector

• 1 x Internal Speaker Header (4-Pin)

• 2 x SATA Power Connectors

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD

Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

Hardware

Monitor

• CPU Temperature Sensing

• CPU Fan Tachometer

• CPU Quiet Fan (Auto adjust chassis fan speed by CPU

temperature)

• CPU Fan Multi-Speed Control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 10 64-bit

Power • 1 x DC Jack (Supports 19V DC Power Adapters)

English

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.
