ASROCK B150M-HDS Manual de usuario

Version 1.0

Published December 2015

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

English

B150M-HDS

Intel

B150

DDR4_B1 (64 bit,288-pin module)

DDR4_A1 (64 bit, 288-pin module)

CMOS

Battery

ATXPWR1

Top:

RJ-45

USB 2.0

T: USB0

B: USB1

USB_4_5

HD_AUDIO1

B150M-HDS

RoHS

CPU_FAN1

BIOS

ROM

Audio

CODEC

PCIE2

TPMS1

USB3_3_4

PCIE1

USB 2.0

T: USB2

B: USB3

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

ATX12V1

P 2

Mous e

DVI1

SATA3 _3

CHA_FAN1

SATA3 _2

SATA3 _1

SATA3 _0

1314

CLRMOS1

USB 3.0

T: USB1

B: USB2

P 2

Keyboard

HDLE D RESE T

PLED P WRBT N

PANEL1

SPK_CI1

HDMI1

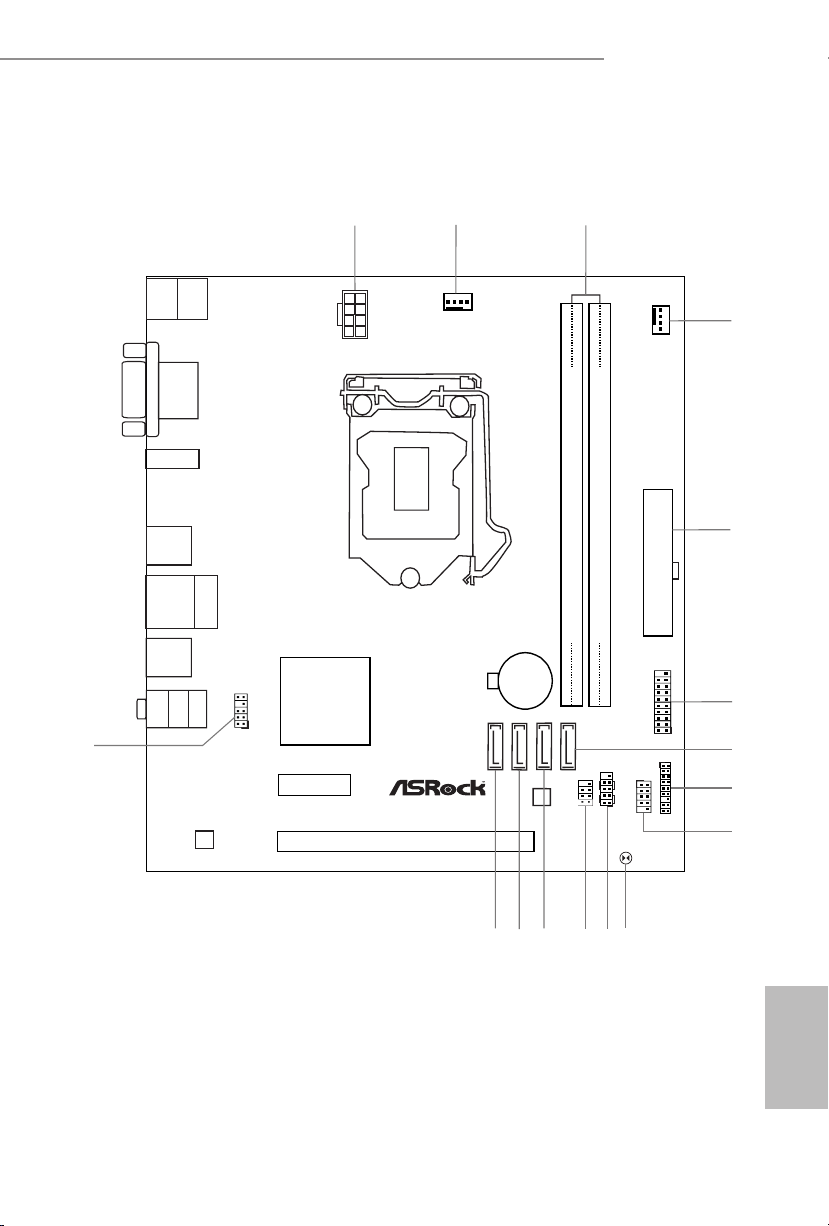

Motherboard Layout

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis Fan Connector (CHA_FAN1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.0 Header (USB3_3_4)

7 SATA3 Connector (SATA3_0)

8TPM Header (TPMS1)

9 USB 2.0 Header (USB_4_5)

10 Clear CMOS Pad (CLRMOS1)

11 System Panel Header (PANEL1)

12 Chassis Intrusion and Speaker Header (SPK_CI1)

13 SATA3 Connector (SATA3_1)

14 SATA3 Connector (SATA3_2)

15 SATA3 Connector (SATA3_3)

16 Front Panel Audio Header (HD_AUDIO1)

English

B150M-HDS

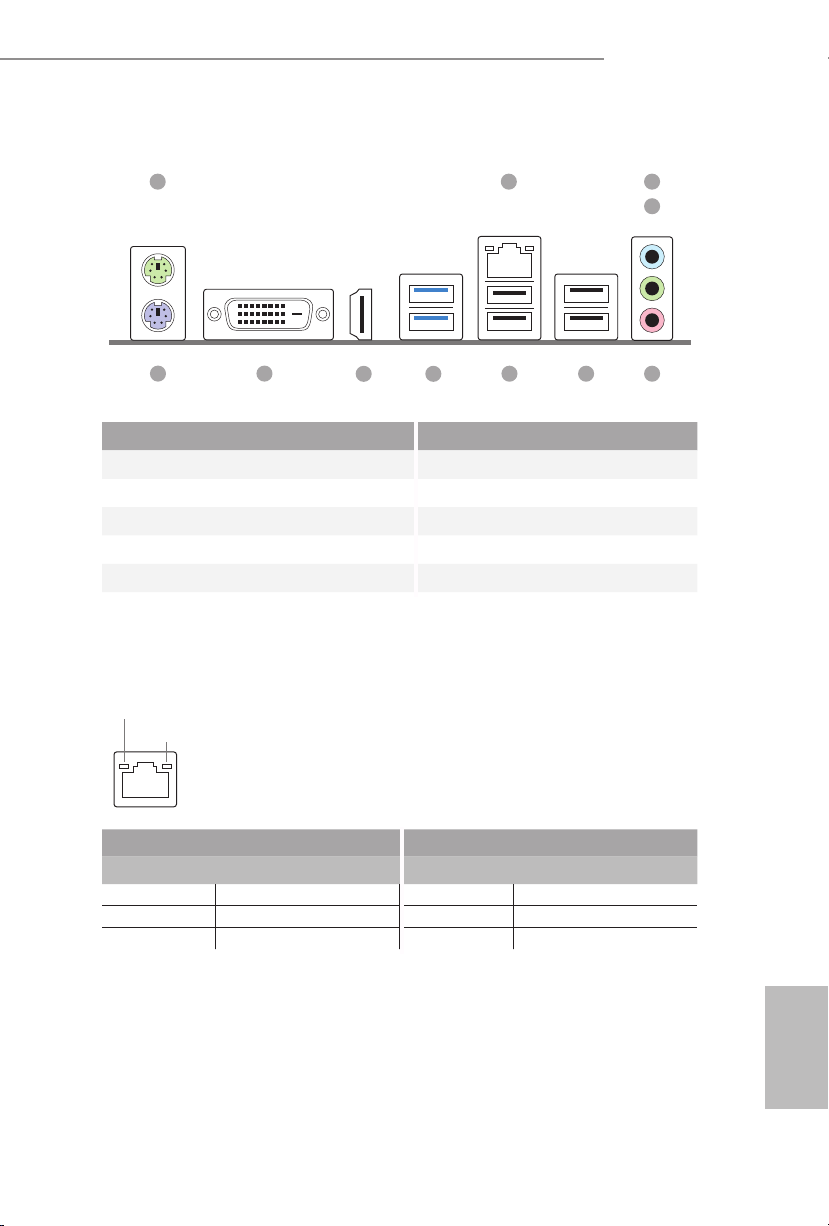

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port (Green)*** 7 USB 2.0 Ports (USB01)

2 LAN RJ-45 Port* 8 USB 3.0 Ports (USB3_12)

3 Line In (Light Blue)** 9 HDMI Port

4 Front Speaker (Lime)** 10 DVI-D Port

5 Microphone (Pink)** 11 PS/2 Keyboard Port (Purple)***

6 USB 2.0 Ports (USB23)***

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-

channel audio feature through the audio driver.

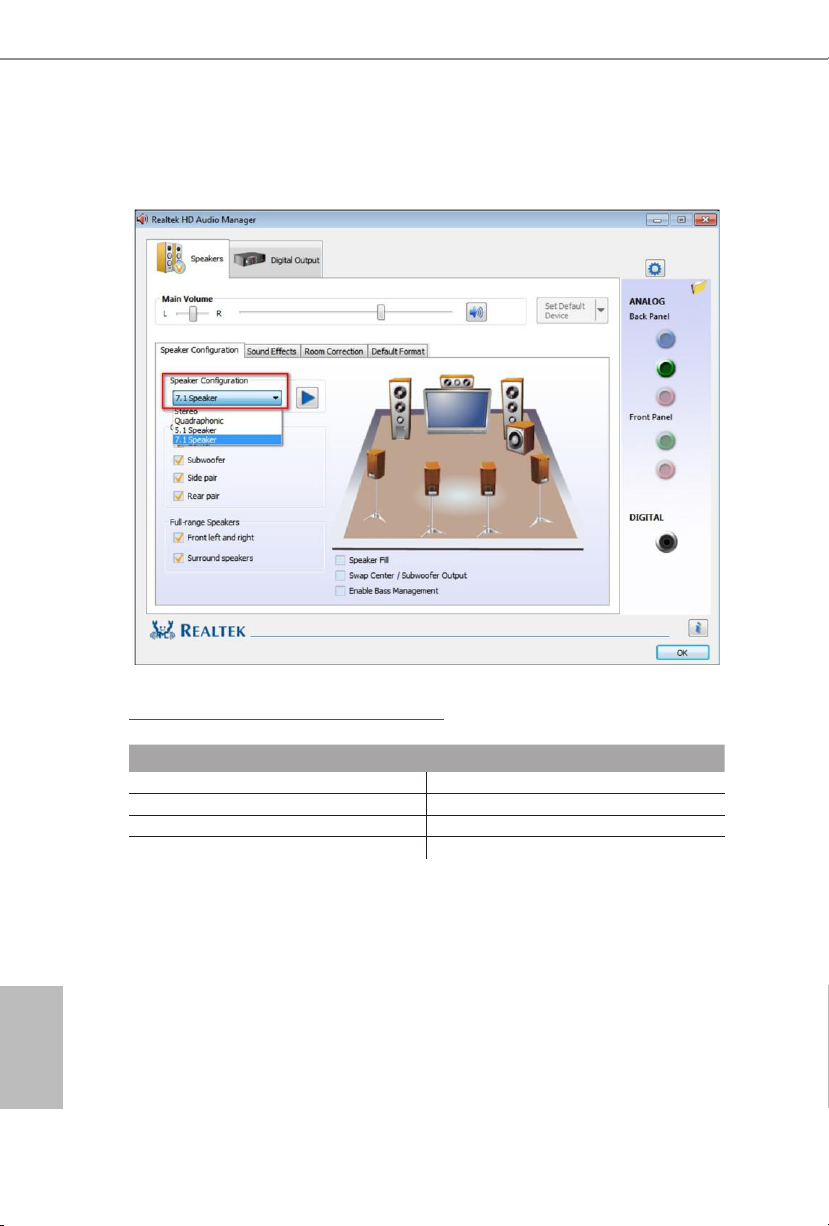

Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.

Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

*** Supports ACPI wake-up function

English

B150M-HDS

Chapter 1 Introduction

ank you for purchasing ASRock B150M-HDS motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

•ASRock B150M-HDS Motherboard (Micro ATX Form Factor)

•ASRock B150M-HDS Quick Installation Guide

•ASRock B150M-HDS Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform •Micro ATX Form Factor

•Solid Capacitor design

CPU •Supports 6th Generation Intel® CoreTM i7/i5/i3/Pentium®/

Celeron® Processors (Socket 1151)

•Supports CPU up to 95W

•Supports Intel® Turbo Boost 2.0 Technology

Chipset •Intel® B150

Memory •Dual Channel DDR4 Memory Technology

•2 x DDR4 DIMM Slots

•Supports DDR4 2133 non-ECC, un-buered memory

•Supports ECC UDIMM memory modules (operate in non-ECC

mode)

•Max. capacity of system memory: 32GB

•Supports Intel® Extreme Memory Prole (XMP) 2.0

Expansion

Slot

•1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*|

* Supports NVMe SSD as boot disks

•1 x PCI Express 3.0 x1 Slot

Graphics *Intel® HD Graphics Built-in Visuals and the VGA outputs can be

supported only with processors which are GPU integrated.

•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW

Encode1, Intel® InTruTM 3D, Intel® Clear Video HD Technology,

Intel® InsiderTM, Intel® HD Graphics 510/530

•Pixel Shader 5.0, DirectX 12

•Max. shared memory 1792MB

•Dual graphics output: Support DVI-D and HDMI ports by

independent display controllers

•Supports HDMI with max. resolution up to 4K x 2K (4096x2160)

@ 24Hz / (3840x2160) @ 30Hz

•Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR

(High Bit Rate Audio) with HDMI Port

(Compliant HDMI monitor is required)

English

B150M-HDS

•Supports Accelerated Media Codecs: HEVC, VP8, VP9

•Supports HDCP with DVI-D and HDMI Ports

•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI Ports

Audio •7.1 CH HD Audio (Realtek ALC887 Audio Codec)

* To congure 7.1 CH HD Audio, it is required to use an HD front

panel audio module and enable the multi-channel audio feature

through the audio driver.

•Supports Surge Protection (ASRock Full Spike Protection)

•ELNA Audio Caps

LAN •PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•Realtek RTL8111GR

•Supports Wa ke-On-WAN

•Supports Wake-On-LAN

•Supports Lightning/ESD Protection (ASRock Full Spike Protec-

tion)

•Supports LAN Cable Detection

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse Port

•1 x PS/2 Keyboard Port

•1 x DVI-D Port

•1 x HDMI Port

•4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike

Protection))*

* ACPI wake-up function is supported on USB23 ports only.

•2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike

Protection))

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jacks: Line in / Front Speaker / Microphone

Storage •4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot

Plug

Connector •1 x TPM Header

•1 x Chassis Intrusion and Speaker Header

English

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

•1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)

•1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)

•1 x 24 pin ATX Power Connector

•1 x 8 pin 12V Power Connector

•1 x Front Panel Audio Connector

•1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

•1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD

Protection (ASRock Full Spike Protection))

BIOS

Feature

•AMI UEFI Legal BIOS with multilingual GUI support

•ACPI 5.0 Compliant wake up events

•SMBIOS 2.7 Support

•CPU, GT_CPU, DRAM, PCH 1.0V, VCCIO, VCCSA Voltage

Multi-adjustment

Hardware

Monitor

•CPU/Chassis temperature sensing

•CPU/Chassis Fan Tachometer

•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU

temperature)

•CPU/Chassis Fan multi-speed control

•CASE OPEN detection

•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS •Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit

* To install Windows® 7 OS, a modied installation disk with xHCI

drivers packed into the ISO le is required. Please refer to page 61

for more detailed instructions.

* For the updated Windows® 10 driver, please visit ASRock’s web-

site for details: http://www.asrock.com

Certica-

tions

•FCC, CE, WHQL

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK Z97 Extreme9 Manual de usuario

ASROCK

ASROCK B150M-DVS R2.0 Manual de usuario

ASROCK

ASROCK P55DE PRO - Manual de usuario

ASROCK

ASROCK Z77 Extreme4-M Manual de usuario

ASROCK

ASROCK G41M-S3 Manual de usuario

ASROCK

ASROCK X570 PHANTOM GAMING 4 Manual de usuario

ASROCK

ASROCK IMB-X790 Manual de usuario

ASROCK

ASROCK Fatal1ty FM2A88X+ Killer Series Manual de usuario

ASROCK

ASROCK ALIVENF5-ESATA2 R3.0 Manual de usuario

ASROCK

ASROCK Fatal1ty X99X Killer Series Manual de usuario

ASROCK

ASROCK H81M-HG4 Manual de usuario

ASROCK

ASROCK E350M1 - Manual de usuario

ASROCK

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Manual de usuario

ASROCK

ASROCK Fatal1ty X99X Killer Series Manual de usuario

ASROCK

ASROCK H610TM-ITX Manual de usuario

ASROCK

ASROCK M3A790GXH/USB3 Manual de usuario

ASROCK

ASROCK B550M Steel Legend Manual de usuario

ASROCK

ASROCK G41M-LE-H - V1.0 Manual de usuario

ASROCK

ASROCK H61M-HVGS Manual de usuario

ASROCK

ASROCK K7VT4-4X Manual de usuario

ASROCK

ASROCK B85M Pro4/ASM Manual de usuario

ASROCK

ASROCK CONROE945PL-GLAN Manual de usuario

ASROCK

ASROCK H61M-GS Manual de usuario

ASROCK

ASROCK K8 COMBO-Z Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
