2ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

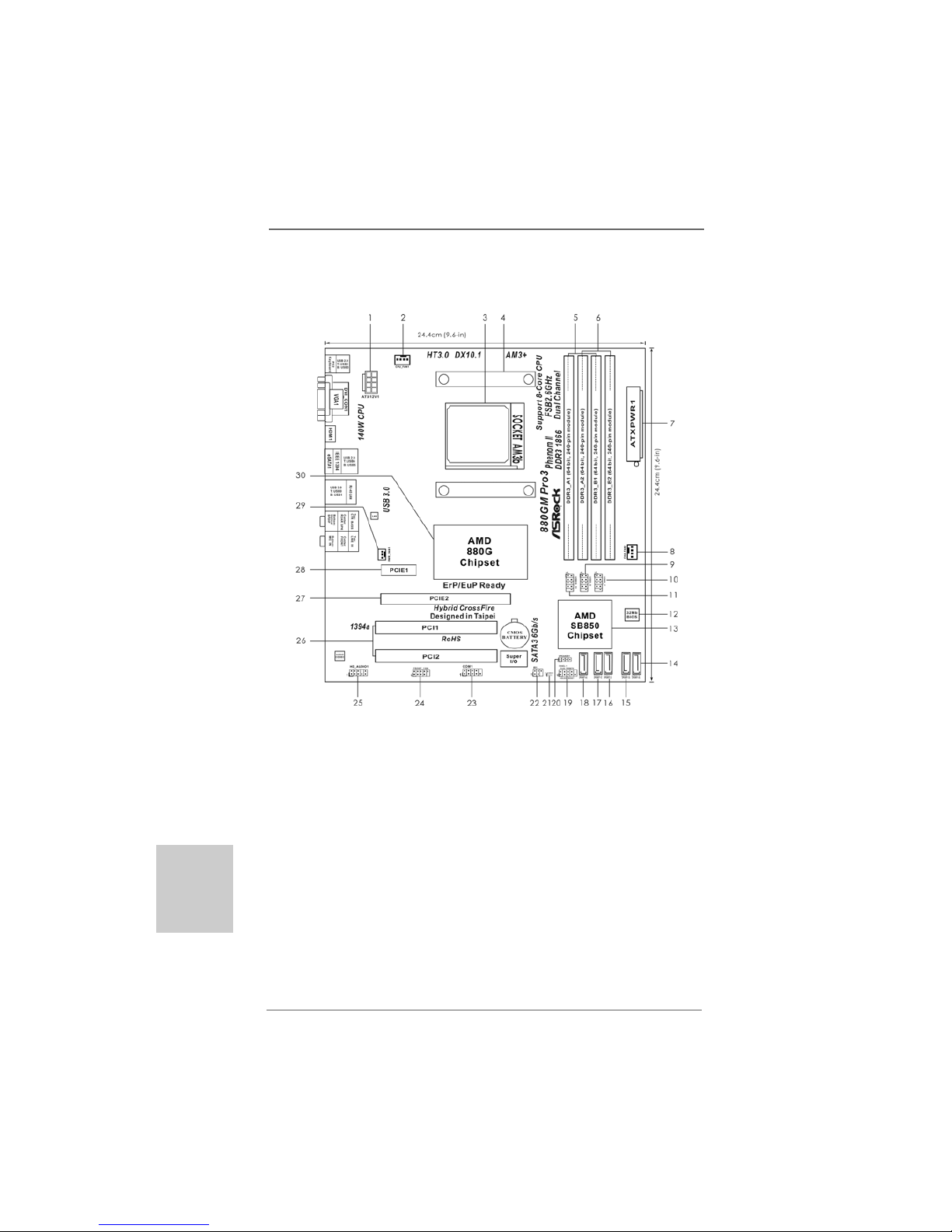

1 ATX 12V Power Connector (ATX12V1) 17 SATA3 Connector (SATA3_2(PORT1),White)

2 CPU Fan Connector (CPU_FAN1) 18 SATA3 Connector (SATA3_1(PORT0),White)

3 AM3+ CPU Socket 19 System Panel Header (PANEL1, White)

4 CPU Heatsink Retention Module 20 Chassis Speaker Header

5 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)

(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 21 Clear CMOS Jumper (CLRCMOS1)

6 2 x 240-pin DDR3 DIMM Slots 22 Infrared Module Header (IR1)

(Dual Channel B: DDR3_A2, DDR3_B2; White) 23 Serial Port Connector (COM1)

7 ATX Power Connector (ATXPWR1) 24 Front Panel IEEE 1394 Header

8 Chassis Fan Connector (CHA_FAN1) (FRONT_1394, White)

9 USB 2.0 Header (USB8_9, Blue) 25 Front Panel Audio Header

10 USB 2.0 Header (USB6_7, Blue) (HD_AUDIO1, White)

11 USB 2.0 Header (USB10_11, Blue) 26 PCI Slots (PCI1-2)

12 SPI Flash Memory (32Mb) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)

13 Southbridge Controller 28 PCI Express 2.0 x1 Slot (PCIE1; White)

14 SATA3 Connector (SATA3_5 (PORT 4), White) 29 Power Fan Connector (PWR_FAN1)

15 SATA3 Connector (SATA3_4 (PORT 3), White) 30 Northbridge Controller

16 SATA3 Connector (SATA3_3 (PORT 2), White)

ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

I/O PI/O P

I/O Panelanel

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 9) (No. 6) (No. 5) Side Speaker

(No. 8)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

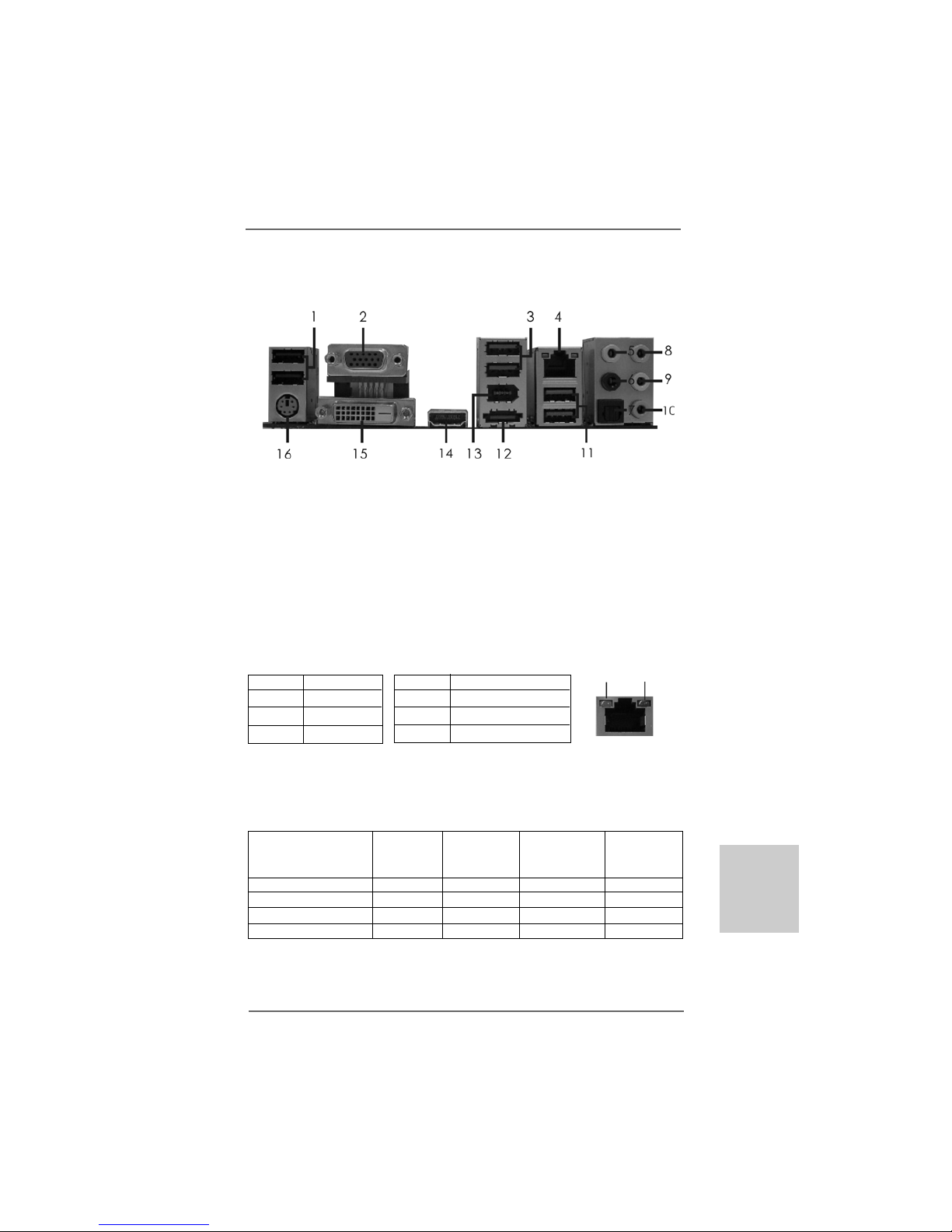

1 USB 2.0 Ports (USB23) ** 9 Front Speaker (Lime)

2 VGA/D-Sub Port 10 Microphone (Pink)

3 USB 2.0 Ports (USB45) 11 USB 3.0 Ports (USB01)

* 4 LAN RJ-45 Port *** 12 eSATA3 Connector (eSATA1)

5 Central / Bass (Orange) 13 IEEE 1394 Port (IEEE 1394)

6 Rear Speaker (Black) 14 HDMI Port

7 Optical SPDIF Out Port 15 VGA/DVI-D Port

8 Line In (Light Blue) 16 PS/2 Keyboard Port (Purple)

4ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

*** eSATA3 connector supports SATAGen3 in cable 1M.

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

ASRock 880GM Pro3 Motherboard

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock 880GM Pro3 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

ASRock 880GM Pro3 Motherboard

(Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)

ASRock 880GM Pro3 Quick Installation Guide

ASRock 880GM Pro3 Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

EnglishEnglish

English

6ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

- All Solid Capacitor design

CPU - Support for Socket AM3+ processors

- Support for Socket AM3 processors: AMD PhenomTM II X6 /

X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 /

Sempron processors

- 8-Core CPU Ready

- Supports UCC feature (Unlock CPU Core) (see CAUTION 1)

- V4 + 1 Power Phase Design

- Supports CPU up to 140W

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 2)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge: AMD 880G

- Southbridge: AMD SB850

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 3)

- 4 xDDR3DIMM slots

- SupportDDR3 1866(OC)/1800(OC)/1600(OC)/1333/1066/800

non-ECC, un-buffered memory (see CAUTION 4)

- Max. capacity of system memory: 32GB (see CAUTION 5)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 1 x PCI Express 2.0 x1 slot

- 2 x PCI slots

- Supports ATITM Hybrid CrossFireXTM

Graphics - Integrated AMD Radeon HD 4250 graphics

- DX10.1 class iGPU, Shader Model 4.1

- Max. shared memory 512MB (see CAUTION 6)

- Three VGA Output options:D-Sub, DVI-D and HDMI

- Supports HDMI Technology with max. resolution up to

1920x1200 (1080P)

- Supports Dual-link DVI with max. resolution up to 2560x1600

@ 75Hz

- Supports D-Sub with max. resolution up to 2048x1536

@ 85Hz

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

Audio - 7.1 CH HDAudio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN10/100/1000 Mb/s

- Atheros®AR8151

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Keyboard Port

- 1 x VGA/D-Sub Port

- 1 x VGA/DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 2 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- 1 x IEEE 1394 Port

- HDAudio Jack: Rear Speaker/Central/Bass/Line in/

Front Speaker/Microphone (see CAUTION 7)

SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID1, RAID0+1 and RAID5),NCQ, AHCI and "Hot Plug"

functions

USB 3.0 - 2 x USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0

up to 5Gb/s

Connector - 5 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x COM port header

- 1 x IEEE 1394 header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS withGUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU VID, VCCM, NB Voltage Multi-adjustment

8ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), AMD

OverDriveTM Utility, AMD Live! Explorer, AMD Fusion, ASRock

Software Suite (CyberLink DVD Suite - OEM and Trial;

Creative Sound Blaster X-Fi MB - Trial)

Unique Feature -ASRock Extreme Tuning Utility (AXTU) (see CAUTION 8)

- Instant Boot

- ASRock Instant Flash (see CAUTION 9)

- ASRock AIWI (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- SmartView (see CAUTION 12)

- ASRock XFast USB (see CAUTION 13)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 14)

- ASRock U-COP (see CAUTION 15)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

/ XP / XP Media Center / XP 64-bit compliant

Certifications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

(see CAUTION 16)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

CAUTION!

1. ASRock UCC (Unlock CPU Core) feature simplifies AMD CPU activation. As

long as a simple switch of the UEFI option “ASRock UCC”, you can unlock the

extra CPU core to enjoy an instant performance boost. When UCC feature is

enabled, the dual-core or triple-core CPU will boost to the quad-core CPU, and

some CPU, including quad-core CPU, can also increase L3 cache size up to

6MB, which means you can enjoy the upgrade CPU performance with a better

price. Please be noted that UCC feature is supported with AM3/AM3+ CPU

only, and in addition, not every AM3/AM3+ CPU can support this function

because some CPU’s hidden core may be malfunctioned.

2. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 28 for details.

3. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 14 for proper installation.

4. Whether 1866/1800/1600MHz memory speed is supported depends on the

AM3/AM3+ CPU you adopt. If you want to adopt DDR3 1866/1800/1600

memory module on this motherboard, please refer to the memory support

list on our website for the compatible memory modules.

ASRock website http://www.asrock.com

5. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®7 /

VistaTM / XP. For Windows®OS with 64-bit CPU, there is no such limitation.

6. The maximum shared memory size is defined by the chipset vendor and

is subject to change. Please check AMD website for the latest information.

7. For microphone input, this motherboard supports both stereo and mono modes.

For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,

and 8-channel modes. Please check the table on page 3 for proper connection.

8. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hard-

ware Monitor, it shows the major readings of your system. In Fan Control,

it shows the fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as a profile and

share with your friends. Your friends then can load the OC profile to their

own system to get the same OC settings. In IES (Intelligent Energy

Saver), the voltage regulator can reduce the number of output phases to

improve efficiency when the CPU cores are idle without sacrificing

computing performance. Please visit our website for the operation proce-

dures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

1010

10 ASRock 880GM Pro3 Motherboard

EnglishEnglish

English

9. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

10. To experience intuitive motion controlled games is no longer only available

at Wii. ASRockAIWI utility introduces a new way of PC gaming operation.

ASRock AIWI is the world's first utility to turn your iPhone/iPod touch as

a game joystick to control your PC games. All you have to do is just to

install the ASRock AIWI utility either from ASRock official website or

ASRock software support CD to your motherboard, and also download the

free AIWI Lite from App store to your iPhone/iPod touch. Connecting your

PC and apple devices via Bluetooth or WiFi networks, then you can start

experiencing the exciting motion controlled games. Also, please do not

forget to pay attention to ASRock official website regularly, we will

continuously provide you the most up-do-date supported games!

ASRock website: http://www.asrock.com/Feature/Aiwi/index.asp

11. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful

solution for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP

Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

12. SmartView, a new function of internet browser, is the smart start page for

IE that combines your most visited web sites, your history, your Facebook

friends and your real-time newsfeed into an enhanced view for a more

personal Internet experience. ASRock motherboards are exclusively

equipped with the SmartView utility that helps you keep in touch with

friends on-the-go. To use SmartView feature, please make sure your OS

version is Windows®7 / 7 64 bit / VistaTM / VistaTM 64 bit, and your browser

version is IE8.

ASRock website: http://www.asrock.com/Feature/SmartView/index.asp

13. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

Otros manuales para 880GM PRO3

Tabla de contenidos

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK H81M-HG4 Manual de usuario

ASROCK

ASROCK CONROEXFIRE-ESATA2 - INSTALLATION - 03-2007 Manual de usuario

ASROCK

ASROCK Z97 Extreme4 Manual de usuario

ASROCK

ASROCK 4COREN73PV-HD720P - V3.1 Manual de usuario

ASROCK

ASROCK 2CORE1333-2.66G - V1.0 Manual de usuario

ASROCK

ASROCK X99 Taichi Manual de usuario

ASROCK

ASROCK X470 Taichi Manual de usuario

ASROCK

ASROCK Fatal1ty Z77 Professional Manual de usuario

ASROCK

ASROCK H310CM-HDVP Manual de usuario

ASROCK

ASROCK ALIVENF5-VSTA R2.0 Manual de usuario

ASROCK

ASROCK ROMED4ID-2T Manual de usuario

ASROCK

ASROCK G41MH/USB3 R2.0 Manual de usuario

ASROCK

ASROCK B75M-ITX Manual de usuario

ASROCK

ASROCK G41C-VS Manual de usuario

ASROCK

ASROCK FM2A78M-ITX+ Manual de usuario

ASROCK

ASROCK EPC612D8A-TB Manual de usuario

ASROCK

ASROCK H61M-DEL Manual de usuario

ASROCK

ASROCK ALIVENF7G-HD720P - V2.0 V5.0 Manual de usuario

ASROCK

ASROCK 4Core1600Twins-P35 Manual de usuario

ASROCK

ASROCK H310CM-HDVP/DASH Manual de usuario

ASROCK

ASROCK N73PV-S - INSTALLATION - 12-2006 Manual de usuario

ASROCK

ASROCK iBOX-V2000 Series Manual de usuario

ASROCK

ASROCK H110M-DVP Manual de usuario

ASROCK

ASROCK P43DE2 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
