ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

PublishedApril 2008

2ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

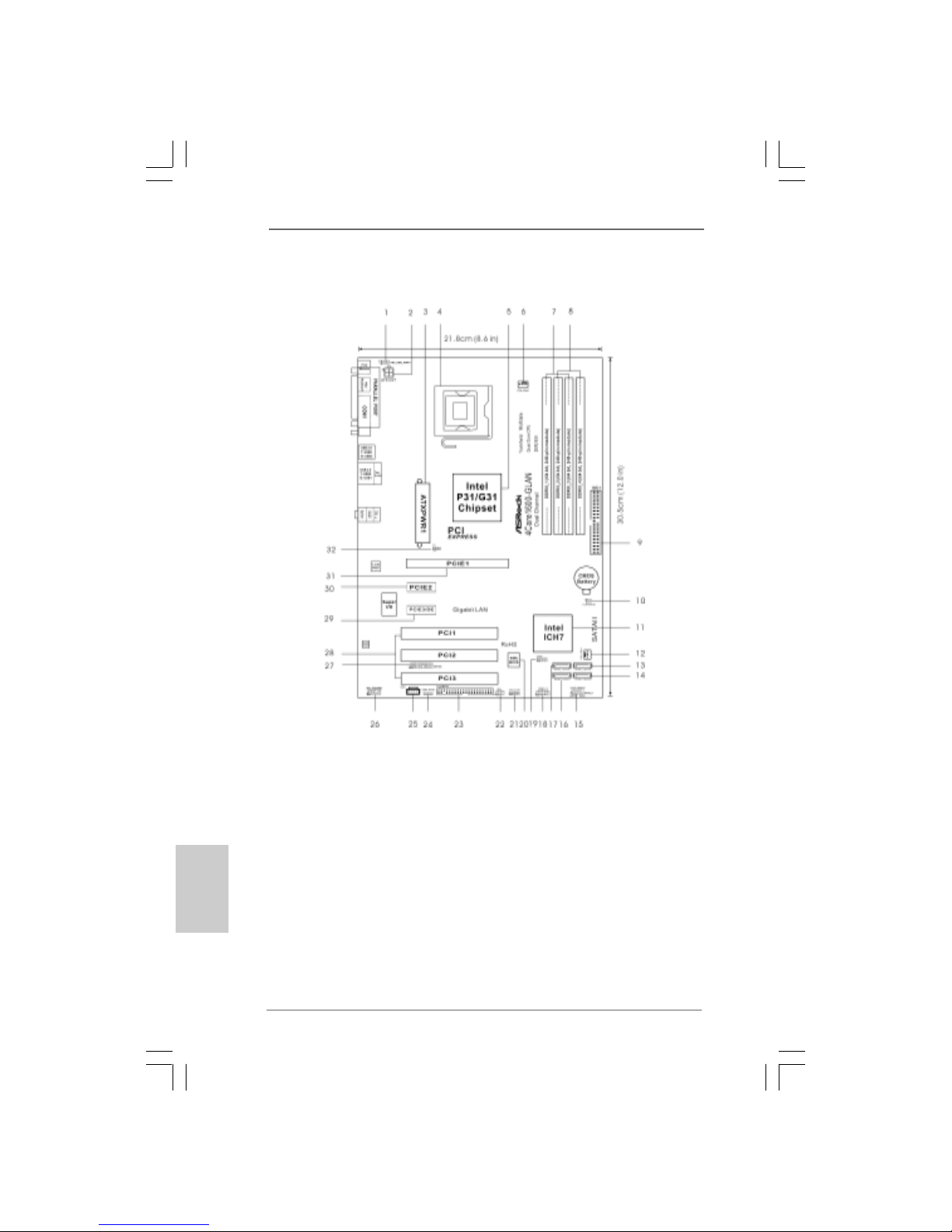

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 17 SATAII Connector (SATAII_1 (Port0))

2 ATX 12V Connector (ATX12V1) 18 USB 2.0 Header (USB4_5, Blue)

3 ATX Power Connector (ATXPWR1) 19 USB 2.0 Header (USB6, Blue)

4 775-Pin CPU Socket 20 Flash Memory

5 North Bridge Controller 21 Chassis Speaker Header (SPEAKER 1)

6 CPU Fan Connector (CPU_FAN1) 22 DeskExpress Hot Plug Detection Header

7 2 x 240-pin DDR2 DIMM Slots (IR1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR2 DIMM Slots 24 HDMI_SPDIF Header (HDMI_SPDIF1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 Internal Audio Connector: CD1 (Black)

9 IDE1 Connector (IDE1, Blue) 26 Front Panel Audio Header (HD_AUDIO1)

10 Clear CMOS Jumper (CLRCMOS1) 27 WiFi/E Header (WIFI/E)

11 South Bridge Controller 28 PCI Slots (PCI1 - 3)

12 Chassis Fan Connector (CHA_FAN1) 29 PCI Express x1 Slot (PCIE3/DE)

13 SATAII Connector (SATAII_4 (Port3)) 30 PCI Express x1 Slot (PCIE2)

14 SATAII Connector (SATAII_3 (Port2)) 31 PCI Express x16 Slot (PCIE1)

15 System Panel Header (PANEL1) 32 FD Jumper

16 SATAII Connector (SATAII_2 (Port1))

ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

ASRASR

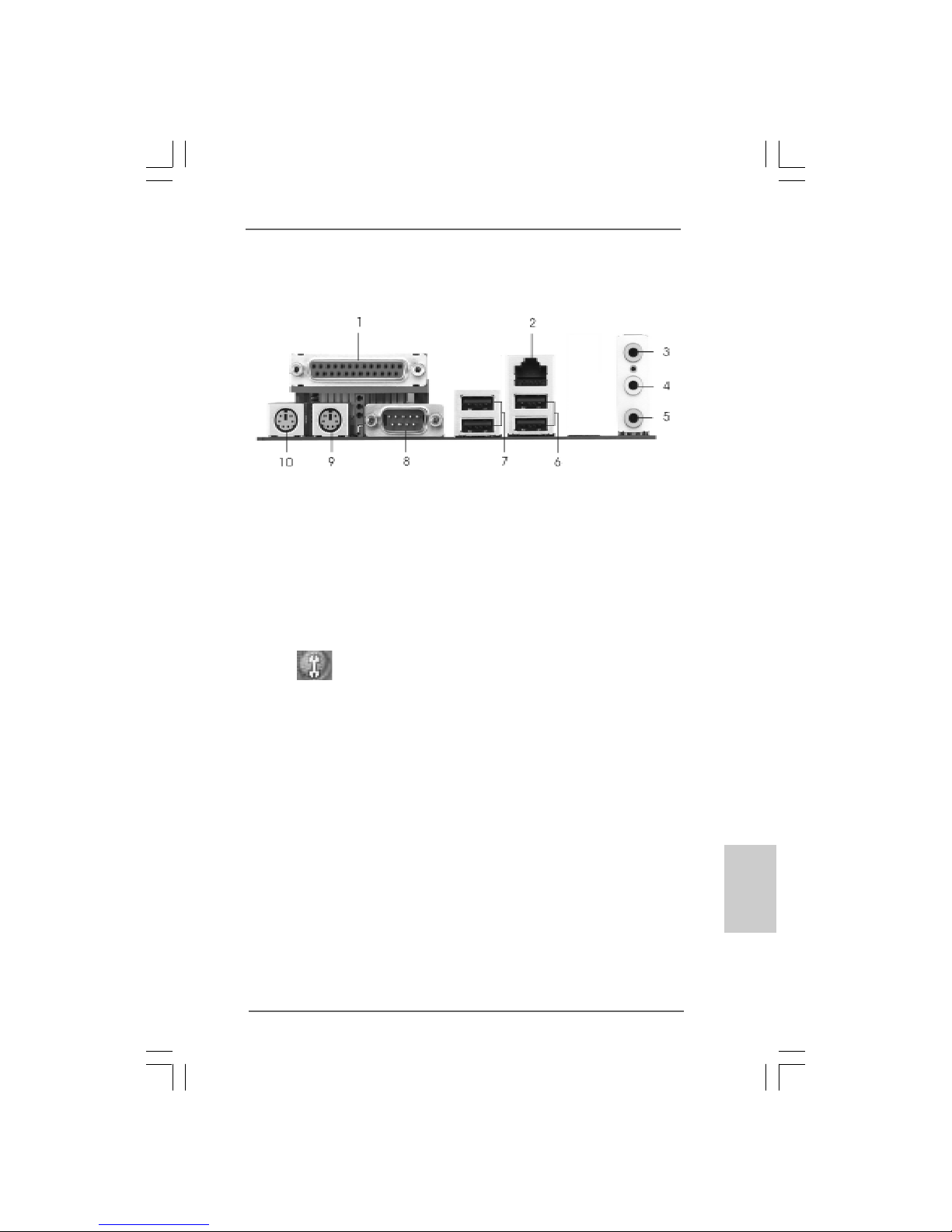

ASRock 6CH I/O Pock 6CH I/O P

ock 6CH I/O Pock 6CH I/O P

ock 6CH I/O Proro

roro

1 Parallel Port 6 USB 2.0 Ports (USB01)

2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 Serial Port: COM1

4 Front Speaker (Lime) 9 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 10 PS/2 Mouse Port (Green)

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows®XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows®VistaTM:

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

4ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

ThankyouforpurchasingASRock4Core1600-GLANmotherboard,areliablemotherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 P1.1 P

1.1 Packack

ackack

ackage Contentsage Contents

age Contentsage Contents

age Contents

ASRock4Core1600-GLAN Motherboard

(ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm)

ASRock 4Core1600-GLAN Quick InstallationGuide

ASRock4Core1600-GLANSupportCD

One 80-conductor UltraATA66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in FloppyDrive

One SerialATA (SATA)Data Cable (Optional)

One SerialATA(SATA) HDDPower Cable (Optional)

OneHDMI_SPDIFCable(Optional)

One “ASRock 6CH I/O Pro” I/O Panel Shield

ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform -ATX Form Factor: 12.0-in x 8.6-in, 30.5 cm x 21.8 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2Duo /Pentium®Dual Core /Celeron®, supportingPenryn Quad

Core Yorkfield andDual CoreWolfdale processors

- Compatible with all FSB1600/1333/1066/800MHz CPUs

(see CAUTION 1)

- Supports Hyper-ThreadingTechnology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P31/G31

- Southbridge: Intel®ICH7

Memory -Dual ChannelDDR2 Memory Technology (see CAUTION 4)

- 4 xDDR2DIMM slots (see CAUTION 5)

- SupportDDR2 800/667 non-ECC, un-buffered memory

(see CAUTION 6)

- Max. capacity of system memory: 4GB (see CAUTION 7)

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 8)

-ASRock U-COP (see CAUTION 9)

- Boot FailureGuard (B.F.G.)

Expansion Slot - 1 x PCI Express x16 slot

- 2 x PCI Express x1 slots

- 3 x PCI slots

Audio - 5.1 CH Windows® VistaTM Premium Level HDAudio

(ALC662Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

-RealtekRTL8111B/RTL8111C

- Supports Wake-On-LAN

Rear Panel I/O ASRock 6CH I/O Pro

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Serial Port: COM1

- 1 x Parallel Port (ECP/EPP Support)

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HDAudio Jack: Line in/Front Speaker/Microphone

6ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

Connector - 4 x SerialATAII 3.0Gb/s connectors (No support for RAIDand

“Hot Plug” functions) (see CAUTION 10)

- 1 xATA100 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 xDeskExpress Hot PlugDetection header

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 24 pinATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 3 USB 2.0 ports)

(see CAUTION 11)

- 1 x WiFi/E header (see CAUTION 12)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD -Drivers, Utilities,AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

CAUTION!

1. FSB1600-CPU will operate in overclocking mode. Under this situation,

PCIE frequency will also be overclocked to 120MHz. If you use a FSB1600-

CPU on this motherboard, you need to adjust the jumpers. If you want to

overclock the CPU you adopt from FSB800 to FSB1066, you need to

adjust the jumpers as well. Please refer to page 15 for proper jumper

settings.

2. About the setting of “Hyper Threading Technology”, please check page

30 of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 22 for details.

4. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read

the installation guide of memory modules on page 12 for proper

installation.

5. There are memory module installation limitations on this motherboard,

please read “Installation of Memory Modules (DIMM)” on page 12 for

details.

6. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1600 DDR2 800

1333 DDR2 667, DDR2 800

1066 DDR2 667, DDR2 800

800 DDR2 667, DDR2 800

7. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM

64-bit with 64-bit CPU, there is no such limitation.

8. Although this motherboard offers stepless control, it is not recom-

mended to perform over-clocking. Frequencies other than the recom-

mended CPU bus frequencies may cause the instability of the system

or damage the CPU.

9. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC

system.

10. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 21 to adjust your SATAII hard

disk drive to SATAII mode. You can also connect SATAhard disk to SATAII

connector directly.

11. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

8ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic LogoPremium 2007 and Basic Logo

Premium 2007 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2007 and Basic logo, please

follow below table for minimum hardware requirements.

CPU Celeron 420

Memory 1GB system memory (Premium)

512MB Single Channel (Basic)

VGA DX9.0 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2007, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2007 logo.

12. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or

WiFi-802.11n module, an easy-to-use wireless local area network

(WLAN) adapter. It allows you to create a wireless environment and

enjoy the convenience of wireless network connectivity. Please visit our

website for the availability of ASRock WiFi-802.11g or WiFi-802.11n

module. ASRock website http://www.asrock.com

ASRock 4Core1600-GLAN Motherboard

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

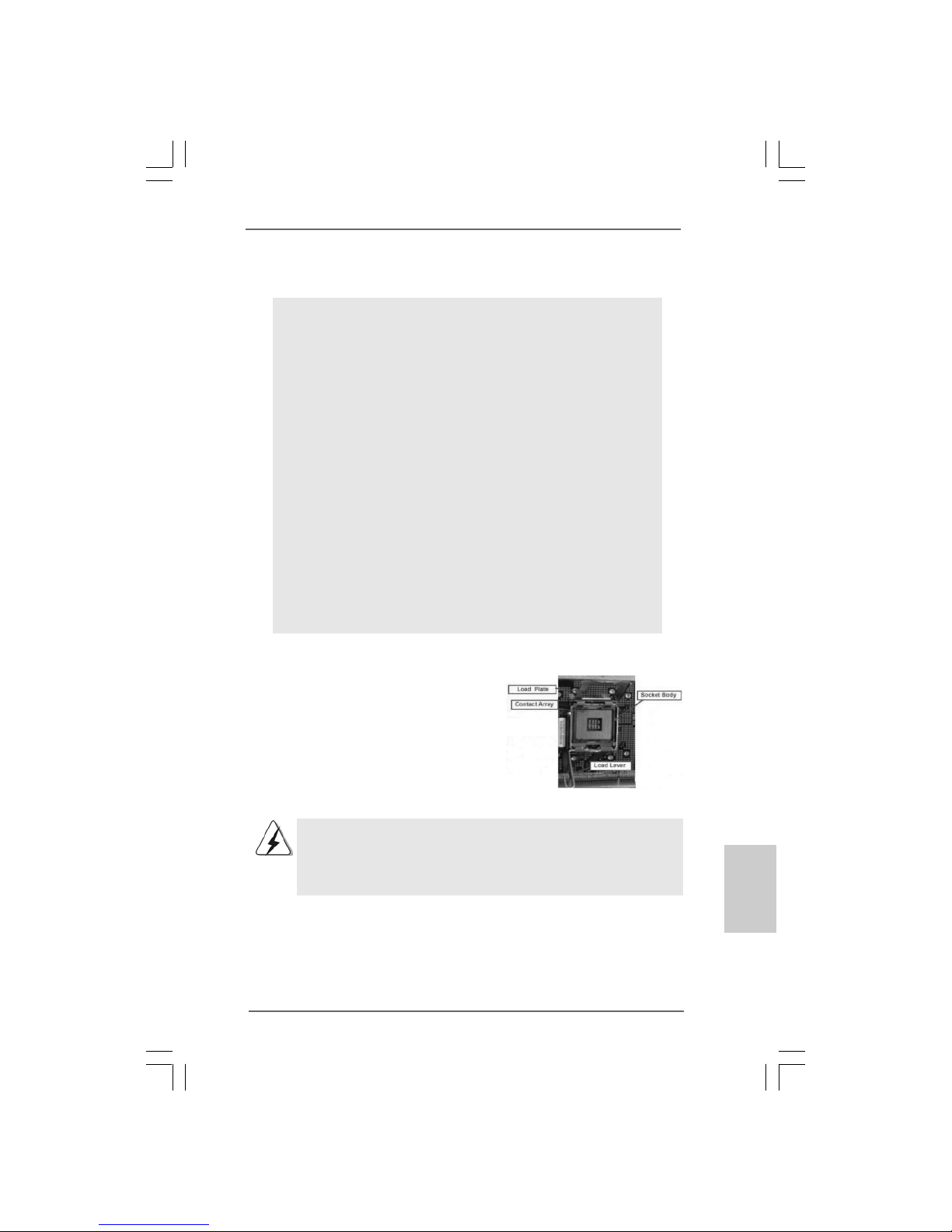

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity,NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

EnglishEnglish

English

1010

10 ASRock 4Core1600-GLAN Motherboard

EnglishEnglish

English

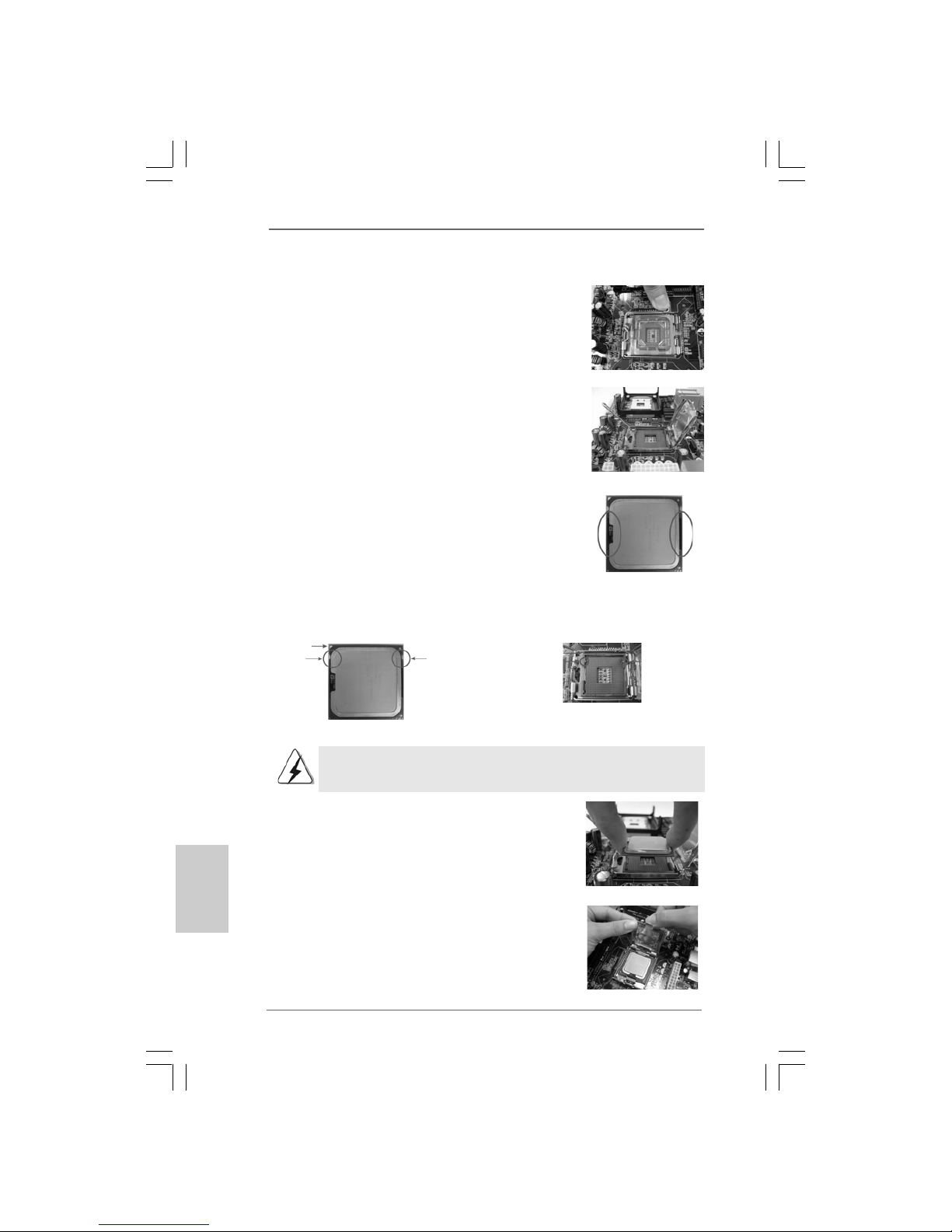

Step 1. Open the socket:

Step 1-1. Disengaging the lever by depressing

down and out on the hook to clear

retention tab.

Step 1-2. Rotate the load lever to fully open po-

sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po-

sition at approximately 100 degrees.

Step 2. Insert the 775-LAND CPU:

Step 2-1. Hold the CPU by the edges where are

marked with black lines.

Step 2-2. Orient the CPU with IHS (Integrated

Heat Sink) up. Locate Pin1 and the two

orientation key notches.

For proper inserting, please ensure to match the two orientation key

notches of the CPU with the two alignment keys of the socket.

Step 2-3. Carefully place the CPU into the socket

by using a purely vertical motion.

Step 2-4. Verify that the CPU is within the socket

and properly mated to the orient keys.

Step 3. Remove PnP Cap (Pick and Place Cap):

Use your left hand index finger and thumb to

support the load plate edge, engage PnP cap

with right hand thumb and peel the cap from the

socket while pressing on center of PnP cap to

assist in removal.

black line

775-PinSocket

Pin1

alignment key alignment key

Pin1

orientation

key notch orientation

key notch

775-LAND CPU

Otros manuales para 4Core1600-GLAN

Tabla de contenidos

Idiomas:

Otros manuales de Placa madre de ASROCK

ASROCK

ASROCK D1541D4U Series Manual de usuario

ASROCK

ASROCK Z87iCafe4 Manual de usuario

ASROCK

ASROCK P4I65PE-M Manual de usuario

ASROCK

ASROCK 880GM PRO3 Manual de usuario

ASROCK

ASROCK 890GM Pro3 R2.0 Manual de usuario

ASROCK

ASROCK P43D1600TWINS Manual de usuario

ASROCK

ASROCK Fatal1ty 990FX Professional Manual de usuario

ASROCK

ASROCK ALIVENF5SLI-1394 Manual de usuario

ASROCK

ASROCK Z930 EXTREME4 Manual de usuario

ASROCK

ASROCK Z87 Pro4 Manual de usuario

ASROCK

ASROCK Z77 Extreme9 Manual de usuario

ASROCK

ASROCK P43 PROUSB3 - Manual de usuario

ASROCK

ASROCK Z690 PRO RS Manual de usuario

ASROCK

ASROCK 4CORE1600-DVI - V1.0 Manual de usuario

ASROCK

ASROCK AD525PV3 Manual de usuario

ASROCK

ASROCK H67M-ITX Manual de usuario

ASROCK

ASROCK Z87 Extreme4 TB4 Manual de usuario

ASROCK

ASROCK Z97 OC Formula Manual de usuario

ASROCK

ASROCK AM1H-M Manual de usuario

ASROCK

ASROCK Z790 Steel Legend WiFi Manual de usuario

ASROCK

ASROCK Z170 PRO4/D3 Manual de usuario

ASROCK

ASROCK 890GMH-USB3 - V1.0 Manual de usuario

ASROCK

ASROCK D2123D4I4 Manual de usuario

ASROCK

ASROCK B660D4-P1 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
