Asko W600 Manual de usuario

Model W600

(WM-33)

Page

Date

2000-02 1

INDEX

W600 WASHER

(WM-33)

ll PROGRAMS 2

ll DETERGENT DRAWER 4

ll SPARE PARTS LISTS

♦♦ Casing and related parts 6

♦♦ Lower section 8

♦♦ Cylinder and related parts 10

♦♦Control panel 12

♦♦ Upper section 14

ll SERVICE INFORMATION

♦♦ Front door seal 16

♦♦ Wiring information 17

♦♦ Timer unit program 18

♦♦ Water levels 19

♦♦ Fault indications 20

♦♦Fault tracing 22

♦♦Motor brushes 24

♦♦Spring legs 25

Model W600

(WM-33)

Date

2000-02 Page

PROGRAMS

THE CONTROL PANEL

Program Recommended Temp.

Number Program Types of Laundry Range (° F)

1White cotton w/prewash For heavily soiled cotton 140–205

2White cotton w/short prewash For normally soiled cotton 140–205

3Normal For lightly soiled cottons & colorfast fabrics 105–140

4Rinse

5Long spin

6Permanent Press/Synthetics For acrylic, polyester 105–140

7Super quick wash For lightly soiled fabrics 85–105

8Short spin

9Wool/Hand wash For silk, nylon, washable wool 85–105

10 Drain

CAUTION! Some fabrics may not be able to withstand extremely hot temperatures.

Please refer to the Recommended Wash Temperatures chart in the Use and

Care Guide.

PROGRAMS

Your ASKO washer has several programs and options specifically designed to give you the cleanest

laundrypossible.Thetablesbelowdefineeachprogramandoption.TheCand SontheProgramControl

are fault codes, which are explained on the next page.

Power Button

The Power button turns the power to the machine on and off. When the power is on, the power

indicator light glows red. The power must be on before you can open the door, set the programs

or start the machine.

Door Open Button

The power mustbe on and you mustpress this button to openthe door. There will be a few seconds

delay before the door opens. Please note that the Program Control knob must be at the end of a

program (at a red mark) to open the glass door. (See also, “Interrupting or Changing a Program”

on the next page.)

For instructions on how to open the door manually in case of power failure, refer tothe Use and Care Guide.

800

105

120

140

160

170

205

123

Door Open Button

Press to open the glass door. Please note

that the Program Control knob must be at

the end of a program (at a red mark) to open

the glass door.

Super Rinse Button

Press to program

seven rinses.

Economy Button

Press to extend the wash time

by 22 minutes. (Suggested for

use only with the low wash

temperatures.)

Power Button

Press to turn on power

to the machine.

Program Control

Turn clockwise to

select a program.

Power Indicator Light

Glows when the

power is turned on.

Temperature Control

Turn clockwise to set the

wash temperature.

800 RPM Spin Button

Press to reduce spin

speed from 1000 rpm to

800 rpm.

No Spin Button

Press to omit the

spin cycles.

Model W600

(WM-33)

Page

Date

2000-02 3

PROGRAMS

DefinitionOption

Super Rinse – Provides two additional rinses. Recommended for persons with sensitive

skin or allergies.

Economy – Extends the main wash time by 22 minutes. When used with low wash

temperatures (85°–100° F), this program conserves energy but gives the same high level of

cleaning. Note: You can only use this option with programs 1, 2, and 3.

Reduces the spin speed from 1000 rpm to 800 rpm.

800

No Spin – Omits the spin cycles in all programs. Programs 1–4 will drain the water after the

last rinse. Programs 6, 7, and 9 will stop with water still in the machine. Set the Program

Control knob to 10 to drain the water.

OPTIONS

INTERRUPTING OR CHANGING A PROGRAM

Ifyouneedtostoporinterrupta program after you start the machine, turn the Program Control knob to 10

(Drain). Any water in the machine will be pumped out. Press the Door Open button to open the door. (It

won’t open until the water is out.) To restart the washer, close the door, add detergent (if needed), and

turn the controls to the desired settings.

Model W600

(WM-33)

Date

2000-02 Page

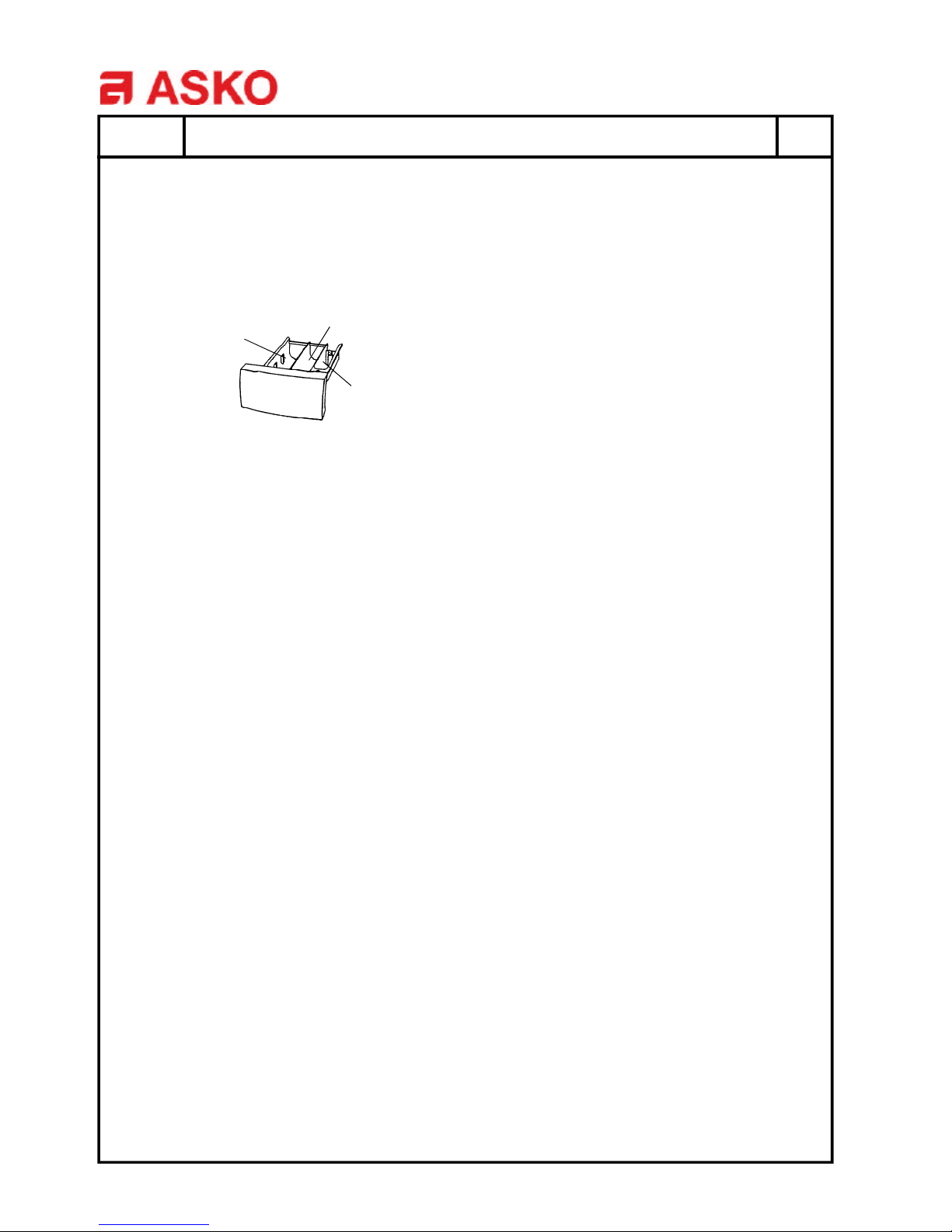

DETERGENT DRAWER

THE DETERGENT DRAWER

The detergent drawer on ASKO washers automatically dispenses the detergent and fabric softener at

theappropriatetimes.The drawer is located to the left of the control panel. Simply pull the drawer out and

pour the measured amounts of detergent and softener into the proper compartments (as illustrated) and

close the drawer.

DETERGENT AND FABRIC SOFTENER AMOUNTS

BecauseASKOwashersuseless water than conventional top-loading washers, you need less detergent

andfabricsoftener.Werecommend that you use a low-sudsing powder detergent only, preferably a high-

efficiency(HE)detergent designed specifically for front-loading washers. (Liquid detergents tend to suds

more, which make them more difficult to rinse out.)

Detergent – The amount of detergent needed varies, depending on the detergent you use. For high-

efficiency detergent specifically for front-loading washers, you should use the amounts recommended

by the manufacturer. For regular laundry detergent, 1 to 3 tablespoonsof detergent is all you need for

a normal wash load. More heavily soiled items, however, may need slightly more detergent. Also, the

amount of detergent needed can vary due to differences in water hardness. (Refer to the Use and Care

Guide for more details.) If you choose to use a liquid detergent, start out with a very small amount, such

as one or two tablespoons.

Fabric Softener – We recommend that you use only 2 tablespoons of fabric softener.If more softening

is desired, try using slightly more with the next load.

Prewash detergent

Main wash

detergent

Fabric

softener

We recommend that you don’t use bleach in an ASKO washer. The tumbling

wash action, temperature control options and extended wash times are sufficient

to remove most stains.

NOTE:

The detergent drawer is equipped with an

optional child safety catch. (See the Use and

CareGuide.)

Model W600

(WM-33)

Page

Date

2000-02 5

This page intentionally blank.

Model W600 (WM-33)

Date

2000-02 Page 6CASING AND RELATED PARTS

Model W600 (WM-33)

Page

Description

Fig.PartNo. Notes

Date

2000-02

Qty

7CASING AND RELATED PARTS

1 1 8061817-0 TopCover,white

38900338 Screw RTK STt 4.2x9.5 FZB T20

28901413 Lock washer AZ 4.3 galv.

3 1 8064062 Strip, top cover WMD20

6 1 8801174-0 Side plate compl. WM20

7 2 8061763 Guide,front plate/topcover

8 3 8061916 Cableholder WMD20

928061713 Holder hose, side plate

10 28061623 Plastic bracket, front plate/2

11 18064017 Soundinsulation,outlethose

12 18063925-0 Front plate compl., white WM20

28900327 Screw RTS ST 4.2x13 FZB T20

14 28063371 Guide,frontplate

23 18061657-0 Dooroutletpump WM20

27 18061737 Rear panel WM20

88900338 Screw RTK ST 4.2x9.5 FZB T20

31 18061693 Transport Beam

18901413 Lock washer AZ 4.3 galv.

48900338 Screw RTK ST 4.2x9.5 FZB T20

33 38061735-UL Transport sleeve WM20

34 38901940 Screw M6S M8x70 FZB w/guide

35 38061767 Locking washer, transport beam WM20

36 28061799 Holder hose, rear panel

37 18056950 Connectionpipe W-1500-15-3/4"-3/

Model W600 (WM-33)

Date

2000-02 Page 8LOWER SECTION

Model W600 (WM-33)

Page

Description

Fig.PartNo. Notes

Date

2000-02

Qty

9LOWER SECTION

1 1 8801171 Spring leg kit WM20

2 4 8055796 Rubber buffer, spring leg

3 4 8055797 Rubber buffer, spring leg

4 4 8061668 Rubber Damper, spring leg

433256445 Washer, spring leg 37x37x2

48901193 Lockingnut 8BHBgalv.

68901343 Washer SRKB 11x28x2 FZB

6 1 8061772 Motor 60 Hz WM33/44

7 2 8058261 Spac. tube motor suspension 12x191

828063591 Screw 8.8 M8x205 FZB

18901337 Washer BRB 8.4x16 HB 200 galv.

28901155 Nut M6M8BH8,galv.

10 18086801 Cable set E60-MO WM44/33 (P)

15 18061681 Bellows hose outlet pump WM20

16 18063262 Hoseclip 80.0-708

17 18056471 Hoseclip

18 18052083 Hoseclip RFZ 39.6-706R

19 18061924 Pressure chamber WM20

20 17382670 Rubber hose 5x8x550

21 18801167 Drain pump sync. han. compl. WM20

22 28061649 Rubber buffer, drain pump WM20

23 18061796 Rubberring,drainpump WM20

24 18061725 Drain hose 180mm, WM20

18052731 Hoseclip OETIKER14.8-706R

26 18061998 Outlet hose WM20

18056491 Hoseclip 30.1-708

28 133700183 TerminalESPA

18901097 Screw MRT-11 rx12 FZB T20

18901413 Lock washer AZ 4.3 galv.

30 18061738 Thermistor holder WM20

31 18061663 Thermistor (E30)

28061976 Cable holder, small

18054485 Cable strip T50RSF/PH

34 18061674 Recirculationstub

35 18061673 Grommet, recirc. stub

36 18061945 Hose, recirculation curved 345 mm

38 38054196 Hoseclip FZB 22.8-25.6

40 18061706 Heating element 2000W, 230V

133700450 Cable strip T 30 R

Model W600 (WM-33)

Date

2000-02 Page10CYLINDER AND RELATED PARTS
