Asko D5426XLS Guía

Asko Design Guide

REVISED 3/2016

Features and specications are subject to change at any

time without notice. Visit askona.com/specs for the most

up-to-date information.

IMPORTANT NOTE: Throughout this guide, dimensions may

vary by ± 1/8"(3). Dimensions in parentheses are millimeters

unless otherwise specied.

Contents

3Asko Dishwashers

4Specications

8Custom Panel

10 Asko Washers | Dryers

12 Specications

19 Warranty

askona.com/specs

ASKO DISHWASHERS

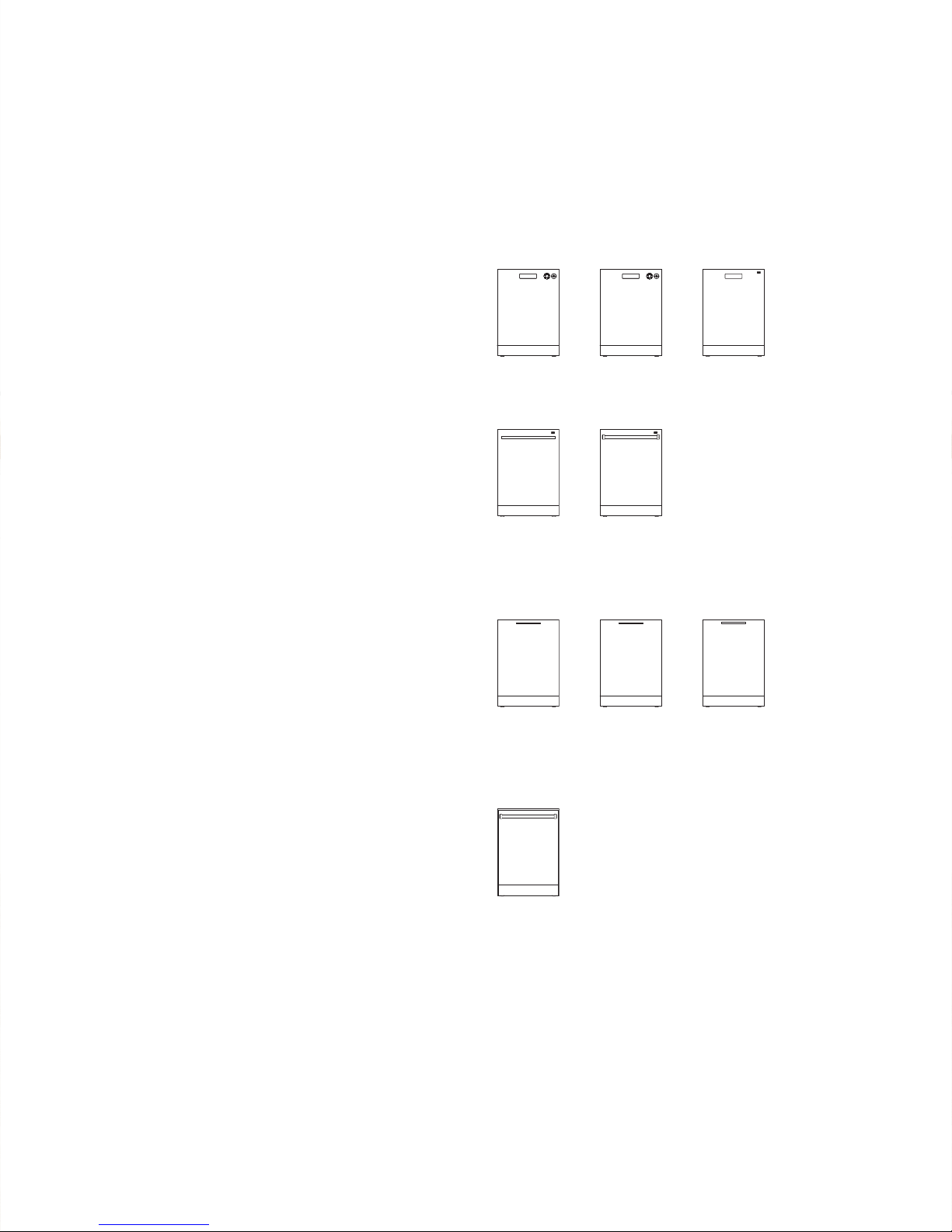

DISHWASHER MODELS

INTEGRATED HANDLE

TUBULAR | PRO HANDLE

PANEL READY

OUTDOOR

D5426XLS

D5436XLS

D5636XXLSHI

D5526XLFI

D5526XXLFI

D5536XLFI

D5536XXLFI

D5536XXLFISOF

D5556XXLFI

D5636XLHS/TH

D5636XXLHS/TH

D5656XXLHS/TH

D5636XLHS/PH

D5636XXLHS/PH

D5656XXLHS/PH

D5956OUTDOORPH

Asko Dishwashers

At Asko, we design and manufacture premium quality dish-

washers with a special Scandinavian touch for design and

function. Panel ready models accept a custom panel and

handle. Tubular and pro handle models match Sub-Zero and

Wolf products. Our products meet the highest demands in

performance and durability, as well as environmental aware-

ness. XL models are ADA height compliant.

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

OPEN DOOR

237/8"(606) 227/8"(581)

4" (102)*

(76)

53/8"

(137)

*Dimension will vary with product height.

245/8"

(625)

Overall Dimensions

INTEGRATED HANDLE

HEIGHT H

XL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

OPEN DOOR

237/8"(606) 23/8"

(60) 227/8"(581)

4" (102)*

(76)

53/8"

(137)

*Dimension will vary with product height.

245/8"

(625)

TUBULAR | PRO HANDLE

HEIGHT H

XL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819) by removing top trim and lowering side trim.

askona.com/specs

ASKO DISHWASHERS

Overall Dimensions

PANEL READY

239/16"(599) 227/8"(581)

OPEN DOOR

*Dimension will vary with product height.

4" (102)*

(76)

53/8"

(137)

245/8"

(625)

OPEN DOOR

245/8"(625) 23/8"

(60) 227/8"(581)

4" (102)*

(76)

53/8"

(137)

*Dimension will vary with product height.

245/8"

(625)

OUTDOOR

HEIGHT H

Outdoor Model 35" (889) – 353/4"(908)

HEIGHT H

XL Model 323/4"(832)* – 343/4"(883)

XXL Model 34" (864) – 353/4"(908)

*Can be reduced to 321/4"(819).

IMPORTANT NOTE: Overall dimensions for panel ready

models do not include panels or handles. Dimensions will

vary with panel thickness.

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

OPENING WIDTH

341/2"

(876)

OPENING

HEIGHT

24" (610)

OPENING

DEPTH

TOP VIEW

SIDE

VIEW FRONT VIEW

NOTE:

31/2"(89) finished returns will be visible and should be finished to match cabinetry.

31/2"(89)

FINISHED

RETURN

FRAMELESS CABINETRY

3/4"

(19)

TYPICAL

31/2"(89)

FINISHED

RETURN

FILLER

FRAMED CABINETRY

W W

Opening Dimensions

DISHWASHERS

OPENING WIDTH W

Integrated Handle 24" (610)

Tubular | Pro Handle 24" (610)

Panel Ready 235/8"(600)

Outdoor 247/8"(632)

A minimum 31/2"(89) nished return is required on all sides

of the opening. Framed cabinets will require additional

nished ller material behind the face frame for a proper

installation. Refer to the illustration.

Integrated handle models and tubular and pro handle

models include top and side trim to accommodate slightly

larger or smaller openings. If top and side trim are removed,

the opening width should be reduced to 235/8"(600) to

achieve minimum reveals. Panel ready models do not

include trim. Dimensions provide minimum reveals.

For ADA installations and height restricted openings, all

XL models can be installed in a 321/4"(819) opening by

removing top trim and lowering side trim.

askona.com/specs

Electrical

The electrical supply should be located in an adjacent

cabinet. If the supply cannot be located in an adjacent

cabinet, it must be located within the shaded area shown in

the illustration below. A separate circuit, servicing only this

appliance is required.

IMPORTANT NOTE: For the outdoor model, a ground fault

circuit interrupter (GFCI) is required to reduce the risk of

electrical shock. A GFCI is not recommended for use with

other models and may cause interruption of operation.

Installation must comply with all applicable electrical codes.

ELECTRICAL REQUIREMENTS

Electrical Supply 115 VAC, 60 Hz

Service 15 amp

Receptacle 3-prong grounding-type

53/8"

(137)

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

Electrical supply location.

Plumbing

The water supply and drain should be located in an adjacent

cabinet. If they cannot be located in an adjacent cabinet,

they must be located within the shaded area shown in the

illustration below. The water supply line should be con-

nected to a hot or cold house supply with an easily acces-

sible shut-off valve between the supply and the unit.

Installation must comply with all applicable plumbing codes.

PLUMBING REQUIREMENTS

Water Connection 6' (1.8 m) PEX tubing with

3/8" NPT female connection

Pressure 4.2–140 psi (.3–9.7 bar)

ASKO DISHWASHERS

53/8"

(137)

OPENING

WIDTH

AREA EXTENDS 2" (51)

FORWARD ON FLOOR

Water supply and drain location.

Asko Customer Care 800.222.7820

ASKO DISHWASHERS

Custom Panel

PANEL READY

For panel ready models, a custom door panel and handle

must be provided. Typical panel dimensions are based on a

235/8"(600) opening width and 341/2"(876) nished height,

with a minimum 4" (102) toe kick and 1/8"(3) reveals. For all

other opening widths, the panel should be 1/4"(6) less than

the opening to achieve minimum reveals. Panel dimensions

must be adjusted accordingly for all other installations. Refer

to the chart and illustration below for panel requirements.

Finish all sides of the custom panel. They may be visible

when the door is open.

PANEL REQUIREMENTS

DIMENSIONS W H

Custom Panel (typical) 233/8"(594) 301/8"(765)

WEIGHT | THICKNESS

Max Weight (including handle) 20 lb (9 kg)

Min Thickness 3/4"(19)

Panel dimensions.

askona.com/specs

ASKO DISHWASHERS

Asko Customer Care 800.222.7820
