Asko D5424ADA W Manual de usuario

Asko Appliances, Inc

PO BOX 940609 • Plano • Texas • 75094

Phone 800.898.1879

www.askousa.com

MADE IN

SWEDEN

Type: Built-in

Colors: White, Black or TouchProof™

stainless steel

performance

Capacity: 14 place settings

Noise level 50 dB(A)

7Spray™ system

PowerZone™ Pots & Pans, PowerZone™ Cutlery

proGramS

Daily Heavy

Normal Eco

Quick Rinse & Hold

Super Quick program in 15 minutes!

feaTUreS

6 Temperatures, Condensation dry,

Award-winning front control, Front LED

display, Integrated handle, Uses as little at 2.6

gals of water in Quick wash, Energy Star rated

2 Plus 1 warranty

flexirackS™

Standard upper rack accommodates:

- 9” items

- Height-adjustable stemware shelf

- High-side design to protect dishes and glasses

Standard lower rack accommodates:

- 13 3/4” dishes

Cutlery basket

ASKO Classic Dishwasher

D5424ADA W/B/S

Art no: 6301703

Technical Data

Electricity120V,60Hz,15Amp

Water pressure 18-176 psi

Heating element 1200 watt

Max loading 1300 watt

Cutout Dimensions

US METRIC

HEIgHT: 32 ¼˝ – 34˝ 819 – 864 mm

WIDTH: 5424ADA, 5624ADAHS 24˝ 610 mm

5534ADAFI 23 5/8˝ – 24˝ 600 – 610 mm

DEPTH: 5233ADAHS, 5233ADAFI 22 7/8˝ 581 mm

Depth includes space for the high-loop drain hose

The electrical and water supplies should enter through the

area indicated by the shaded area. Preferably, they should

come through the right side of the machine. The access hole

must be round and smooth and no bigger than 2˝ (51 mm)

in diameter.

*32 ¼˝ / 819 mm height requires removal of top trim &

lower side trim (2)

24˝

(610 mm)

23 5/8˝ – 24˝

(600 mm – 610 mm)

32 ¼˝ – 34˝ minimum

(820 mm – 864 mm)

2˝

(51 mm)

6 ¼˝ – 8 ¼˝

(159 mm – 210 mm)

4˝

(102 mm)

Planning & Design: ADA Dishwashers

D5424ADA, D5534ADAFI, D5634ADAHS

Speciﬁcations are subject to change without notice. See installation instructions for additional details.

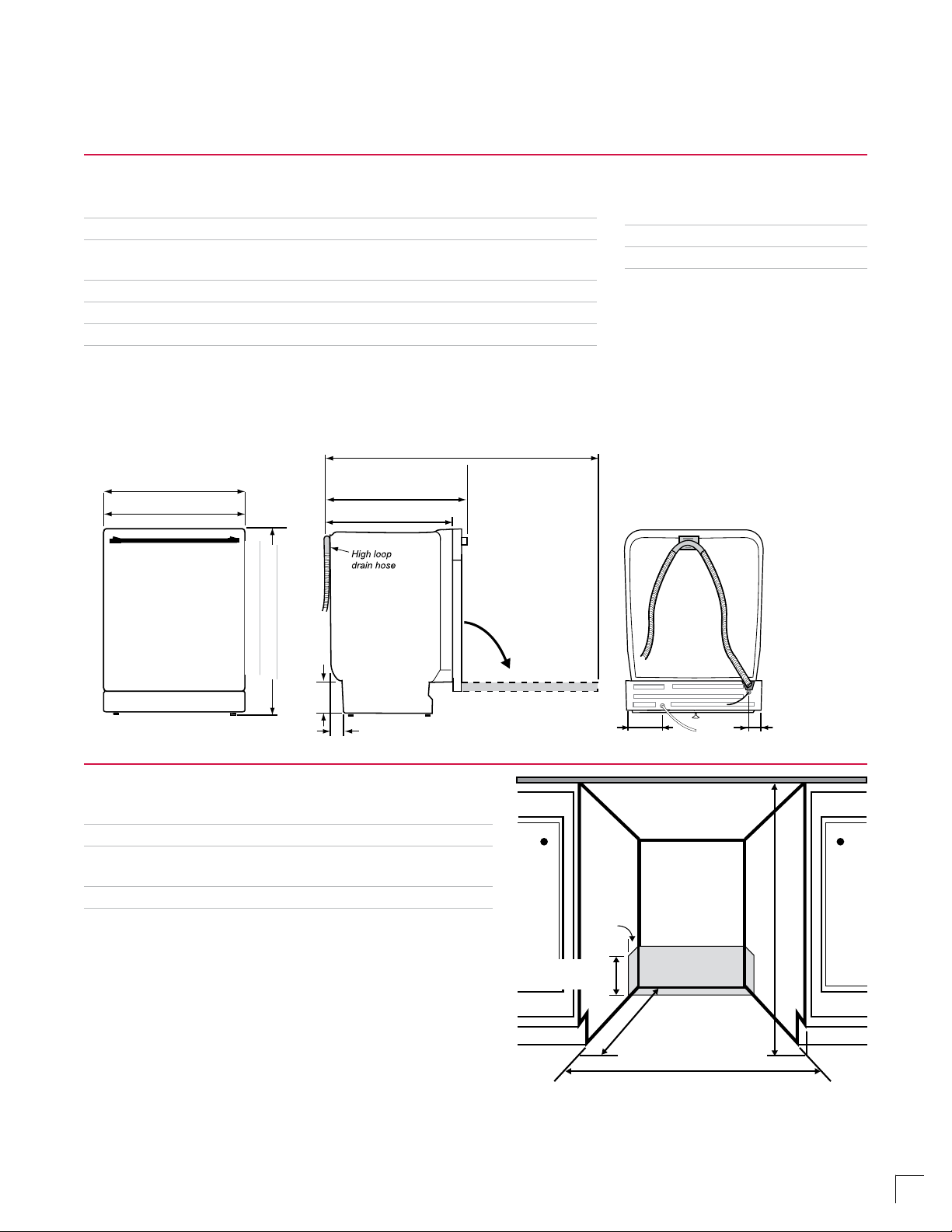

Unit Dimensions

US METRIC

HEIgHT:* 32 ¼˝ – 34˝ 819 – 864 mm

WIDTH: 5424ADA, 5634ADAHS 24˝ 610 mm

5534ADAFI 23 5/8˝ 600 mm

DEPTH: 22 7/8˝ 581 mm

DEPTHW/HANDLE:5634ADAHS24 7/8˝ 632 mm

DEPTHW/DOOROPEN: 48 3/8˝1229 mm

WEIgHT:5424ADA,5634ADAHS 106 lbs 48 kg

5534ADAFI 94 lbs 43 kg

2 ¼˝

(57 mm)

6 ¼˝

(159 mm)

32 ¼˝ – 34˝

(819mm – 864 mm)

5534ADAFI 22 7/8˝ (581 mm)

48 3/8˝

(1229 mm)

BACKSIDEFRONT

6 ¼˝ – 8 ¼˝

(159 mm – 210 mm)

2˝ (51 mm)

5534ADAFI 23 5/8˝ (600 mm)

5424ADA & 5634ADAHS 24˝ (610 mm) 5424ADA & 5634ADAHS

24 7/8˝ (632 mm)

*32 ¼˝-34˝

819 - 864 mm

Planning & Design: XXL Dishwashers

D5434XXL, D5624XXL, D5634XXLHS, D5654XXLHS, D5894XXLHS

ADA TALL TANK MODELS
