Ask Proxima M2+ Manual de usuario

User’s

Guide

>>>>>>>

6732ASK_M2_Cover.qxd 4/6/04 3:52 PM Page 1

FCC Warning

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance

with the instruction manual, may cause harmful interference to radio communi-

cations. Operation of this equipment in a residential area is likely to cause harm-

ful interference in which case the user will be required to correct the interference

at his own expense.

Canada

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Can-

ada.

Safety Certifications

UL, CUL, TUV, GOST

Other specific Country Approvals may apply, please see product certification

label.

EN 55022 Warning

This is a Class A product. In a domestic environment it may cause radio interfer-

ence, in which case the user may be required to take adequate measures.

InFocus reserves the right to alter product offerings and specifications at any time.

M2+.book Page 1 Thursday, April 8, 2004 8:10 AM

Declaration of Conformity

Manufacturer: InFocus Corporation

27700B SW Parkway Ave. Wilsonville, Oregon 97070 USA

European Office: Strawinskylaan 585, 1077 XX Amsterdam, The Netherlands

We declare under our sole responsibility that the projector conforms to the follow-

ing directives and norms:

Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 1992 + A1 + A2 + A3 + A4: 1997

January, 2004

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of

Apple Computer, Inc. IBM and PS/2 are trademarks or registered trademarks of

International Business Machines, Inc. Microsoft, PowerPoint, and Windows are

trademarks or registered trademarks of Microsoft Corporation. InFocus, ASK

Proxima, and LP are trademarks or registered trademarks of InFocus Corporation.

M2+.book Page 2 Thursday, April 8, 2004 8:10 AM

TABLE OF CONTENTS

Safety Instructions iii

Introduction 1

Image Resolution 1

Compatibility 1

Unpacking the Projector 1

Usage Guidelines 4

If You Need Assistance 4

Warranty 4

Setting up the Projector 5

Connecting a Computer 7

Connecting a Video Player 9

Powering up the Projector 11

Turning Off the Projector 14

Using the Projector 15

Basic Image Adjustment 15

Adjusting the Projector 15

Using the Remote Control 17

Using the Keypad and Remote Buttons 18

Using the On-Screen Menus 20

Basic Menu 21

Setup menu 23

Maintenance & Troubleshooting 29

Cleaning the Lens 29

Cleaning the Lamp Filter Screens 29

Replacing the Projection Lamp 30

Replacing the Batteries in the Remote Control 32

Using the Security Lock 32

Troubleshooting 33

Appendix 37

Accessories 37

Projected Image Size 38

Index 39

M2+.book Page i Thursday, April 8, 2004 8:10 AM

table of contents

M2+.book Page ii Thursday, April 8, 2004 8:10 AM

iii

SAFETY INSTRUCTIONS

Please read and follow all safety instructions provided BEFORE

using your new projector. Failure to comply with safety instruc-

tions may result in fire, electrical shock, or personal injury and

may damage or impair protection provided by equipment. Please

save all safety instructions.

Safety Definitions:

•Warning: Statements identify conditions or practices that

could result in personal injury.

•Caution: Statements identify conditions or practices that could

result in damage to your equipment.

Safety Symbols:

Attention: For information about usage of a feature, please

refer to the User’s Guide.

Warning: Hot surface. Do not touch.

An arrow pointing to the lamp door on the projector.

Warning: Turn the projector off, disconnect the power cord,

and wait 60 minutes before opening the lamp housing.

Safety Terms:

•Warning: Don’t look directly into the lens when the projector is

turned on.

•Warning: To replace the lamp, turn the projector off

and unplug the power cord. To avoid burns, wait 60 min-

utes before opening the lamp door. Follow all instructions pro-

vided in this User’s Guide.

•Warning: Please use the power cord provided. Connect

the power cord to a receptacle with a protective safety

(earth) ground terminal.

•Warning: Refer all service to qualified service personnel. Ser-

vicing your own projector will void the warranty.

•Caution: Don’t block ventilation openings.

M2+.book Page iii Thursday, April 8, 2004 8:10 AM

Safety Instructions

•Caution: Don’t set liquids on the projector. Spilled liquids may

damage your projector.

•Caution: Don’t place the projector on a hot surface or in direct

sunlight.

•Caution: Do not drop the projector. Transport the projector in

an approved case; see page 37 for a list of cases.

Important Operating Considerations for Safety

•Place the projector in a horizontal position no greater than 15

degrees off axis.

•Locate the projector in a well-ventilated area without any

obstructions to intake or exhaust vents. Do not place the projec-

tor on a tablecloth or other soft covering that may block the

vents.

•Locate the projector at least 4' (1.2 m) away from any heating or

cooling vents.

•Refer to this manual for proper startup and shutdown proce-

dures.

•In the unlikely event of the lamp rupturing, discard any edible

items placed in the surrounding area and thoroughly clean the

area along all sides of the projector. Wash hands after cleaning

the area and handling the ruptured lamp. This product has a

lamp which contains a very small amount of mercury. Dispose

of it as required by local, state or federal ordinances and regula-

tions. For more information see www.eiae.org.

Follow these instructions to help ensure image quality and lamp

life over the life of the projector. Failure to follow these instruc-

tions may affect the warranty. For complete details of the war-

ranty, see the Warranty section at the end of this user's guide.

Do not place objects in

this area on the back of the projector

2ft(.6m)

M2+.book Page iv Thursday, April 8, 2004 8:10 AM

INTRODUCTION

The ASK Proxima M2+™ is a projector specifically designed for

portability, connectivity, and collaboration. It is easy to connect,

easy to use, easy to transport, and easy to maintain.

Image Resolution

The XGA resolution of the projected image is 1024x768. The pro-

jector is compatible with screen resolutions up to 1280x1024. If

your computer’s screen resolution is higher than 1280x1024, reset

it to a lower resolution before you connect the projector.

NOTE: The projector automati-

cally expands 640x480 and

800x600 images to 1024x768.

Compatibility

The projector is compatible with a wide variety of computers and

video devices, including:

•IBM-compatible computers, including laptops, up to 1280x1024

resolution.

•Apple®Macintosh®and PowerBook®computers up to

1280x1024 resolution.

•Most standard VCRs, DVD players, camcorders, digital cam-

eras, and laser disc players.

Unpacking the Projector

The projector comes with the items shown in Figure 1. Check to

make sure all are included. Contact your dealer immediately if

anything is missing.

If you are experienced in setting up presentation systems, use the

Quick Start card that was included in the shipping box. For com-

plete details on connecting and operating the projector, refer to

this User’s Guide. Electronic versions of this user’s guide in mul-

tiple languages are available on the included CD and on our web-

site at www.askproxima.com.

M2+.book Page 1 Thursday, April 8, 2004 8:10 AM

Introduction

FIGURE 1

Shipping box contents

1. Projector + lens cap 6. Audio cable

2. Remote control with batter-

ies

7. Computer cable

3. User’s Guide, Quick Start

card, and CD

8. SCART adapter *

4. Audio/Video (A/V) cable

5. Power cord *

* country-dependent

123

M2+.book Page 2 Thursday, April 8, 2004 8:10 AM

FIGURE 2

Front view of projector

FIGURE 3

Rear view of projector

FIGURE 4

Bottom view of projector

keypad

zoom r

focus ring

remote control sensor (IR)

connectors

power connector

security lock

remote control sensor (IR)

adjustable foot

speaker

oot re

ease

lamp housing

leveling foot

M2+.book Page 3 Thursday, April 8, 2004 8:10 AM

Otros manuales para M2+

Tabla de contenidos

Otros manuales de Proyector de Ask Proxima

Ask Proxima

Ask Proxima C200 (DP6500x) Manual de instrucciones

Ask Proxima

Ask Proxima M6 Manual de usuario

Ask Proxima

Ask Proxima ASK PROXIMA C95 Manual de instrucciones

Ask Proxima

Ask Proxima C250 Manual de usuario

Ask Proxima

Ask Proxima C445+ Manual de usuario

Ask Proxima

Ask Proxima E3000 series Manual de usuario

Ask Proxima

Ask Proxima C460 Manual de usuario

Ask Proxima

Ask Proxima C250 Manual de usuario

Ask Proxima

Ask Proxima M8 Manual de usuario

Ask Proxima

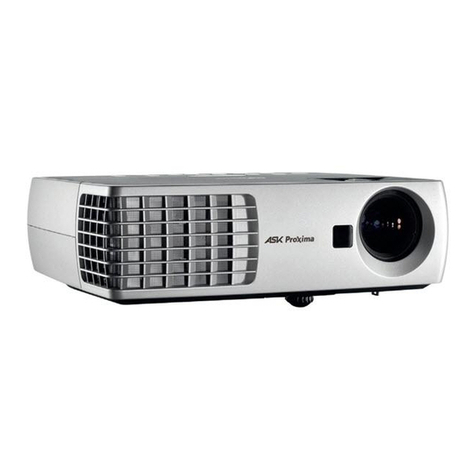

Ask Proxima M20 Manual de usuario
