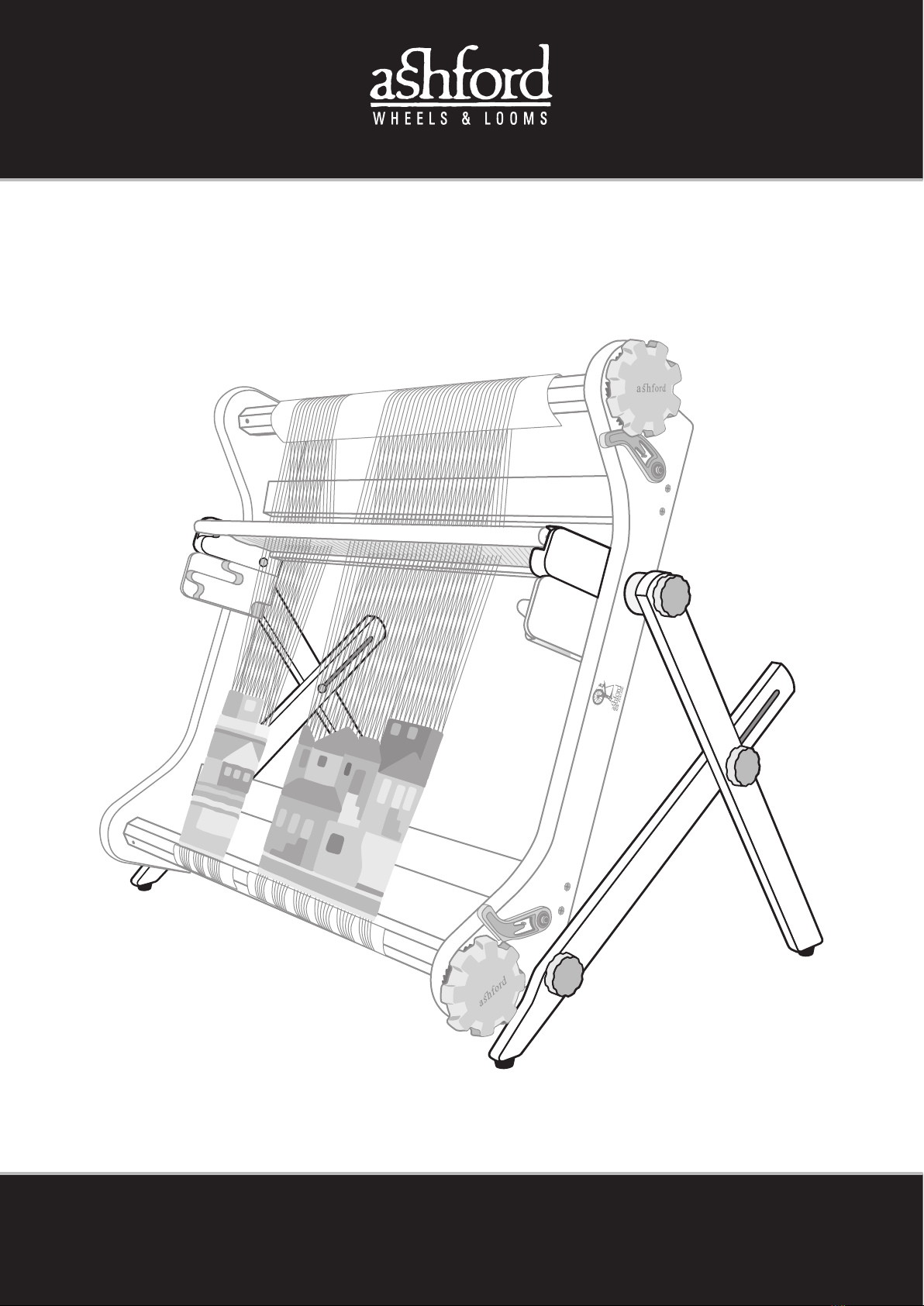

Ashford RIGID HEDDLE TABLE STAND Manual de usuario

Ashford Guarantee

Thank you for purchasing this Ashford product. In the unlikely event there is

any fault in manufacture we will replace the item. To validate our guarantee

please visit our website or write to us.

Ashford Handicrafts Limited

Factory and Showroom: 415 West Street

PO Box 474, Ashburton 7700 New Zealand

Telephone 64 3 308 9087 Facsimile 64 3 308 8664

Email: sal[email protected]o.nz Internet: www.ashford.co.nz

INSTRUCTIONS

RHTS05112015V2

RIGID HEDDLE TABLE STAND

Before commencing: Please read these instructions

completely, identify the parts and note the

assembly sequence. Use the sandpaper supplied

to remove any sharp edges and corners. To make

assembly easier use candle wax on the screws.

Finishing: We recommend that the wood surfaces

be waxed or sealed before assembly. This protects

the kiln dried wood from climatic changes and

prevents it getting dirty or stained. The Silver Beech

tree is a native of New Zealand and has a lovely

variety of colour and grain. For a silky smooth matt

ﬁnish, use the Ashford Finishing Wax Polish to

enhance the natural colours and character of this

timber.

For older models: If your Rigid Heddle Loom does

not have holes in the sides, mark the holes as

shown and drill them with a 6mm (1/4”) bit.

ASSEMBLY INSTRUCTIONS FOR

THE ASHFORD RIGID HEDDLE TABLE STAND

More Information

The Wheel Magazine

Ashford’s annual ﬁbrecraft

magazine. Spinning, weaving,

felting, dyeing and knitting

projects, patterns and articles

from around the world. To

receive the premium version

delivered to you, subscribe at:

www.ashford.co.nz/subscribe

How-to videos on You Tube

Watch our how-to videos on You Tube.

www.youtube.com/user/AshfordHandicrafts

Facebook

Join us on facebook.

www.facebook.com/ashford.wheels.looms

Real Scale Hardware List

Tools Required

Important

Please warp your loom as usual before you attach

the stand. Leave the reed in the rest position.

410mm (16⅛")

15mm (⅝”)

15mm (⅝")

60mm (2⅜")

Ø 6mm (¼")

Attach the 4 rubber feet

to the legs with 12mm

(1/2”) screws

Secure the shaped legs

A to the front holes in the

loom side with 45mm (1

¾”) bolts, washers and

knobs.

2 22

Back

Front

Loom side

Washer

Push the

75mm (3”) bolt

through the

reed support

block and side

as illustrated

followed by the

spacer.

Then locate a leg B as

illustrated and secure

with a washer and knob.

Repeat for the other

side.

Knob

Loom side

Spacer

Washer

New reed support block

Reed support block

Spacer

Reed Support Block

Push a 40mm (1 ½”)

bolt through the slot in

leg A, through the hole

in leg B and secure with

a washer and knob.

Repeat for the other

side.

Push the new reed

support block ﬁrmly

against the original

reed support block and

tighten both knobs.

Ashford Handicrafts Limited

Factory and Showroom: 415 West Street

PO Box 474, Ashburton 7700 New Zealand

Telephone 64 3 308 9087 Facsimile 64 3 308 8664

Email: sal[email protected]o.nz Internet: www.ashford.co.nz

Changing the shed

Adjusting the angle

Adjust the angle of the loom

by loosening the back knobs,

slide the bolts along the slots,

then retighten. Check that both

legs are in the same position

to ensure all 4 legs touch the

table.

Reed positions

Rest (neutral) position

- use the rest position

of the original reed

support.

Up position

Down position

To change from the down position to the up

position, ﬁrst lift the back reed rail up, slide

forward and place into the up position.

To change from the up position to the down

position, pull reed slightly forward, tip the

front of the reed down, slide reed back, feed

the top reed rail into the top position and

lower the back reed rail into the back position.

DOWN UP UP DOWN
