Artisan 335 B Manual de usuario

Threading Guide

Blank on purpose

3

Artisan 335B

Table of Contents

Page 4 Step 1…...Thread stand

Page 5 Step 2…..Upper thread post

Page 6 Step 3…..Threading Image

Page 7 Step 4…..Threading Route

Page 8 –11….Closer view of threading

Page 12 Step 5…..Threading the libra

Page13 Step 6…..Felted thread guide

& center press shaft threading

Page14 - 15 Step 7…..Through needle and

center presser foot

4

Artisan 335B

The thread stand and thread guide

need to be parallel to each other for

the correct tension to be maintained.

The thread will move off the spool to

the back of the guide feeding from

back to front.

Step 1

Fig 4-1

5

Artisan 335B

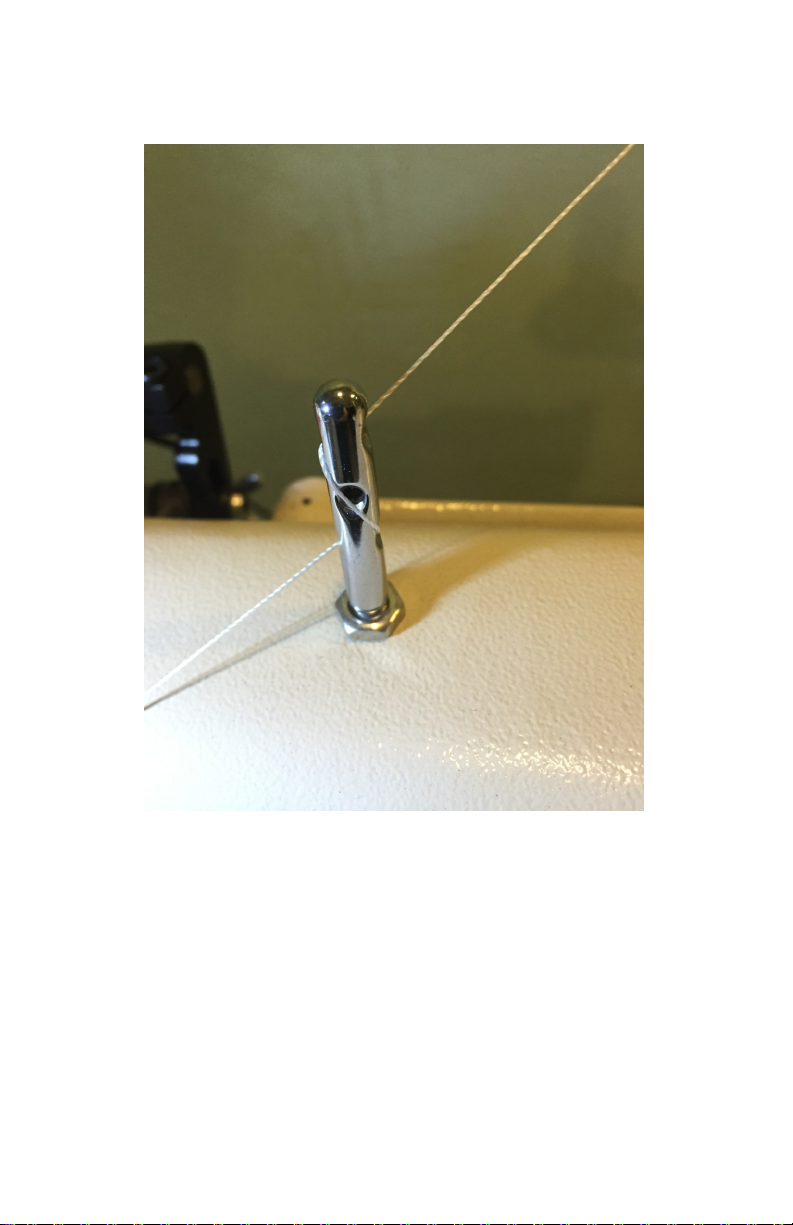

Step 2

The thread will go thru the top hole

then around the pin passing thru the

bottom hole as shown in image above.

Fig 5-1

6

Artisan 335B

Step 3

The thread then passes thru the bot-

tom tension guide opening as illus-

trated above.

Fig 6-1

7

Artisan 335B

Step 4

1

2

3

4

5

6

7

8

1. Start from tension post to lower guide

opening

2. Through lower opening under rod

3. Over and around ,pulled into top tension

screw guide

4. Down and around lower tension guide

5. Over rod

6. Under and around lowest tension guide

7. Around guide all the way up past inter

thread hook

8. Up through thread guide upper

Fig 7-1

8

Artisan 335B

Closer view of operation 1, 2, and 3 from

previous page 7

Fig 8-1

9

Artisan 335B

Closer view of operation 4, 5, 6, 7, and 8 from previ-

ous page 7

1. Around guide all the way up past inter thread hook.

Pulling thread all the way into guide groove.

Fig 9-1

10

Artisan 335B

Another view of lower guide retainer

Fig 10-1
