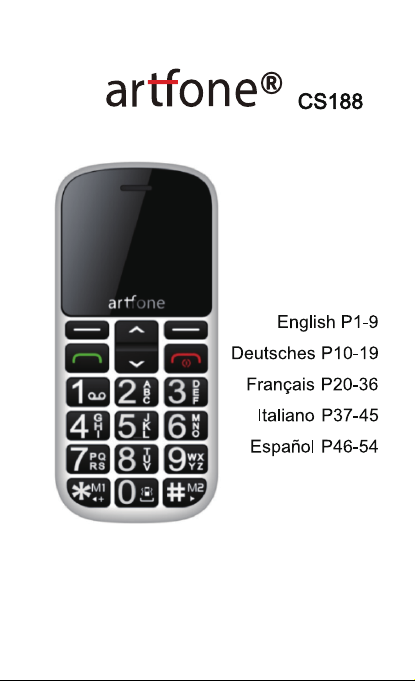

Artfone CS188 Manual de usuario
1
Introduction Overview
Thank you for buying this specially
designed mobile phone for older peoples.
Please take a moment and read this manual
while using the device.
1.Speaker
2.LCD
3.Left soft key
-To enter main menu when standby mode
-The phone menu confirms the selection and
-activates the selected function (OK)
4.Right soft key:
-In standby mode, assigned with "Contacts"
function
-Exit menu or exit current operation
-Other assignments depending on the context
2
5. Up/down button:
-Navigation in software menu
3
-”Up “to Messages shortcut, “down” to
Multimedia shortcut.
6. Green button: Answer/make a call
7. Red button : End a call/Power on/off
8. Numeric keypad
9. Numeric 0 button or long pressing to
switch to meeting profile.
10. 3.5mm audio jack(APPLE/SAMSUNG
style)
11.Micro USB socket
12. Flashlight LED
13.Keypad locked
14.Keypad unlocked
15.Side button to turn on/off flashlight
Icon description
Show actual GSM signal
4
Unread message
Show normal profile
Headphone plugged-in
When alarm set up
Bluetooth enabled
Battery status
How to power on ?
Press red button for 2.5 seconds.
How to power off ?
Make sure keypad is unlocked, then press
red button for 2.5 seconds.
How to use flashlight?
Just push flashlight button on the side to
turn on, pull back to turn off.
5
How to use SOS function ?
1. Status: Set on or off here.
2. SOS numbers:This is very
important,you can set no more than 5
telephone numbers here,when user
press SOS button, the CS188 phone
will dial the numbers settled one by
one automaticly.
3. SOS SMS: You can edit SMS
4. SOS SMS ON/OFF: You can turn on
or off SOS message
Make a call
1. Input telephone number and press left
green button.
6
2. Find a contact in phonebook and
press left green button.
3. SOS special dial:press SOS and the
phone will dial settled SOS number
automaticly
4. Speed dial---very important function
as below details
Speed dial
–If user would like to to dial more easy
and speedly,she/he can set speed dial
numbers as above,and also can turn off
this fuction via setting.
7
Volume adjustment
1.Calling volume: Press UP/DOWN button
to adjust the volume during a call
2.How to change ringtone/message
tone/volume,etc?
1).Settings, 2)Profiles, 3)General,
4)Customize
Passwords
Security settings Phone security
password is 1234
Restore factory settings password
is 1234
Common questions
1. How to open phone back panel and
insert SIM card?
Support nano and micro card,but big
SIM card is preferred.
8
2. Does artfone CS188 work on 3G
network?
No, it is 2G GSM phone, quad
bands:850/900/1800/1900
3. Can artfone CS188 connect to
internet and support MMS?
No.
4. Is the phonoe unlocked?
9
Yes,all artfone phones are unlocked
and work well on 2G GSM network around
the world.
5. Can I buy a battery for this phone in
market? What spec?
Yes, it is NOKIA BP-4L stardard,very
popular in the market.
6. Does the phone packaging has
earphone?
No, but this phone has 3.5mm audio
jack,and it is APPLE/SAMSUNG sytle,
you can buy one earphone in the
market easily.
7.How to change ringtone/message
tone/volume,etc?
1).Settings, 2)Profiles, 3)General,
4)Customize
