Arrow YS410-A Manual de uso y cuidado

* Size rounded off to the nearest foot

BUILDING DIMENSIONS

CAUTION: SOME PARTS HAVE SHARP EDGES. CARE

MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES

TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ

SAFETY INFORMATION PROVIDED IN THIS MANUAL

BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES

WHEN HANDLING METAL PARTS.

707741209

Owner's Manual & Assembly Instructions

BS1

Exterior Dimensions Interior Dimensions Door

*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening

Size Size Width Depth Height Width Depth Height Width Height

4' x 10' 50 1/2" x 116 3/4" 49" 116" 82" 47 3/4" 114" 81 1/4" 38 1/2" 60 1/4"

1,2 m x 2,9 m 128,3 cm x 296,5 cm 124,5 cm 294,6 cm 208,3 cm 121,3 cm 289,6 cm 206,4 cm 97,8 cm 153,0 cm

Model No. YS410-A 697.68602

Missing Parts, Questions on Assembly?

Call: 1-800-851-1085

Do not return to dealer, they are not

equipped to handle your requests.

Storage Area: 38 Sq. Ft. 227 Cu. Ft.

3,5 m26,4 m3

Owner's Manual

Before beginning construction, check local building codes regarding footings, location

and other requirements. Study and understand this owner's manual.

Important information and helpful tips will make your construction easier and more

enjoyable.

Assembly Instructions: Instructions are supplied in this manual and contain all

appropriate information for your building model. Review all instructions before you begin,

and during assembly, follow the step sequence carefully for successful results.

Flooring and Anchoring: Your storage building must be anchored to prevent wind

damage. A base is necessary to construct a square and level building. Anchoring and

base materials are not included with your building. We recommend the combined use of

an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of

securing your building to the ground (Available by mail order or at your local dealer) or

you may construct a base and anchoring system of your choice. Your assembly

instructions provide information on a few methods commonly used to secure and level

a storage building.

Parts and Parts List: Check to be sure that you have all the necessary parts for your

building.

•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the

numbers on the parts list. The parts list is located on page 12.

•If you find that a part is missing, include the model number of your building and contact:

Arrow Group Industries, Inc. Customer Service Department

1101 North 4th Street Breese, Illinois 62230

1-800-851-1085

•Separate contents of the carton by the part number while reviewing parts list. The first few steps

show how to join related parts to make larger sub assemblies which will be used later.

•Familiarize yourself with the hardware and fasteners for easier use during construction. These are

packaged within the carton. Note that extra fasteners have been supplied for your convenience.

BEFORE YOU BEGIN....

Selecting and Preparing Your Site: Before assembly, you will want to decide on

a location for your building. The best location is a level area with good drainage.

•Allow enough working space for ease of moving parts into position during assembly. Be sure there

will be enough space at entrance for doors to open fully and enough space around the building to

be able to fasten the panel screws from the outside.

•Before you begin the first steps in assembling your parts, a base should be constructed and

an anchoring system should be ready to use.

Watch the Weather: Be sure the day you select to install your building is dry and calm.

Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.

Teamwork: Whenever possible, two or more people should work together to assemble

your building. One person can position parts or panels while the other is able to handle the

fasteners and the tools.

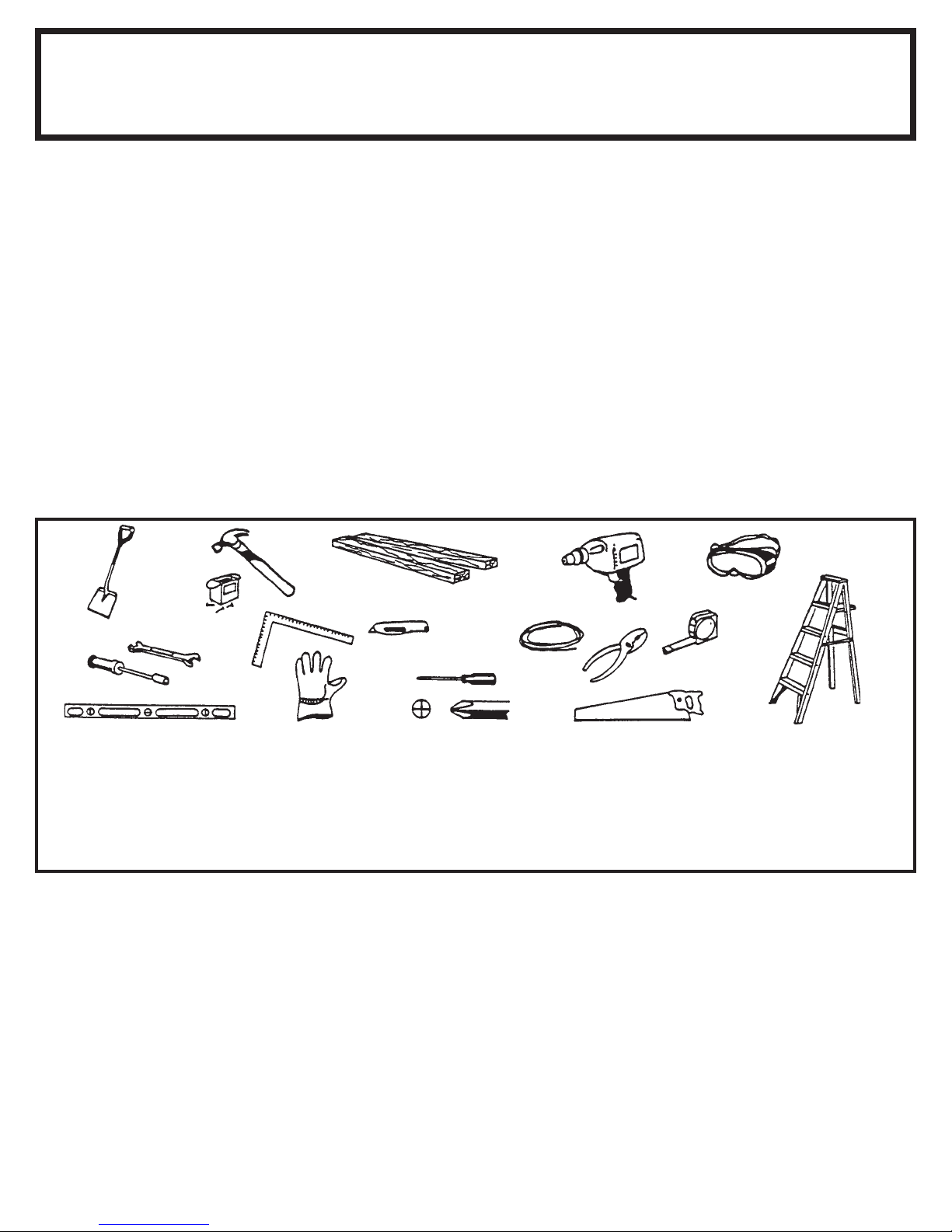

Tools and Materials: These are some basic tools and materials you will need for the

construction of your building. Decide which method of anchoring and the type of base you

wish to use in order to form a complete list of the materials you will need.

Base Preparation

• Hammer and Nails

• Spade or Shovel

• Hand Saw / Power Saw

• Lumber and/or Concrete

Optional Time-Savers

• Wrench / Nut Driver

• Electric / Cordless Drill

• Square

• String (for squaring frame)

Required

• Work Gloves

• Step Ladder

• Utility Knife / Scissors

• Pliers

• Carpenter's Level

• Tape Measure

Required

• Eye Goggles

• No. 2 Phillips Screwdriver

(With Hardened Magnetic Tip)

Note: A power screwdriver or vari-

able speed drill with Phillips-tip at-

tachment can speed assembly by

as much as 40%.

PLAN AHEAD....

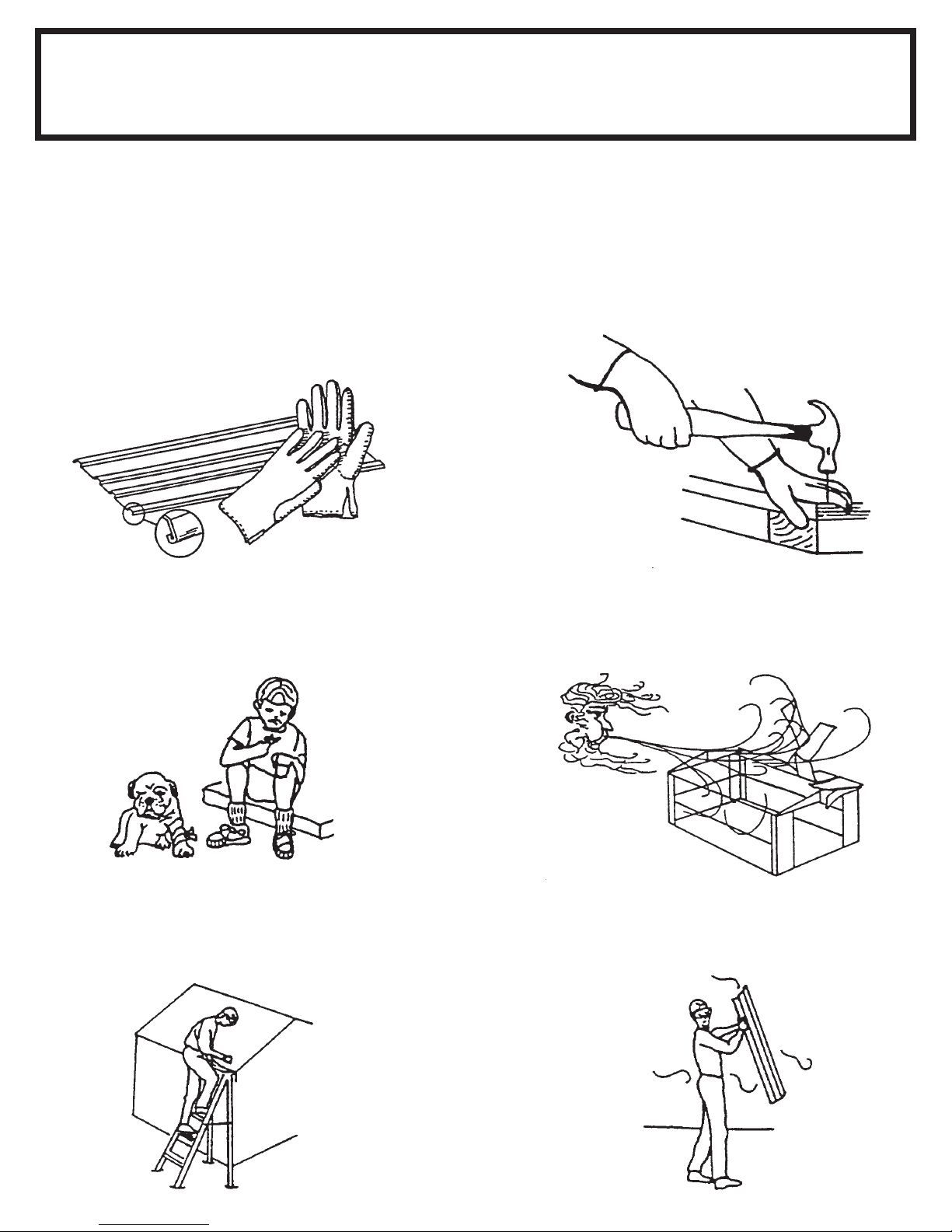

Safety precautions are important to follow throughout the construction of your building.

•Care must be taken when handling various

pieces of your building since some contain

sharp edges. Please wear work gloves, eye

protection and long sleeves when assembling

or performing any maintenance on your build-

ing.

•Practice caution with the tools being used in the

assembly of this building. Be familiar with the

operation of all power tools.

•Never concentrate your total weight on the

roof of the building. When using a step ladder

make sure that it is fully open and on even

ground before climbing on it.

•Keep children and pets away from worksite to

avoid distractions and any accidents which

may occur.

•Do not attempt to assemble the building if parts

are missing because any building left partially

assembled may be seriously damaged by light

winds. Call 1-800-851-1085

•Do not attempt to assemble the building on a

windy day, because the large panels acting as a

"sail", can be whipped about by the wind making

construction difficult and unsafe.

SAFETY FIRST....

safetyedge

sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-

up scratches as soon as you notice them on your unit. Immediately clean the area with

a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.

Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy

amounts of snow on roof can damage building making it unsafe to enter. In snow country,

Roof Strengthening Kits are available for most Arrow Buildings for added protection

against heavy snow accumulation.

Doors: Always keep the door tracks clear of dirt and other debris that prevent them from

sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep

doors closed and locked to prevent wind damage.

Fasteners: Use all washers supplied to protect against weather infiltration and to protect

the metal from being scratched by screws. Regularly check your building for loose

screws, bolts, nuts, etc. and retighten them as necessary.

Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good

ventilation will reduce condensation.

Other Tips....

• Wash off inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

Do not store swimming pool chemicals in your building. Combustibles and

corrosives must be stored in air tight approved containers.

Keep this Owner's Manual and Assembly Instructions for future reference.

CARE & MAINTENANCE....

A5 Web

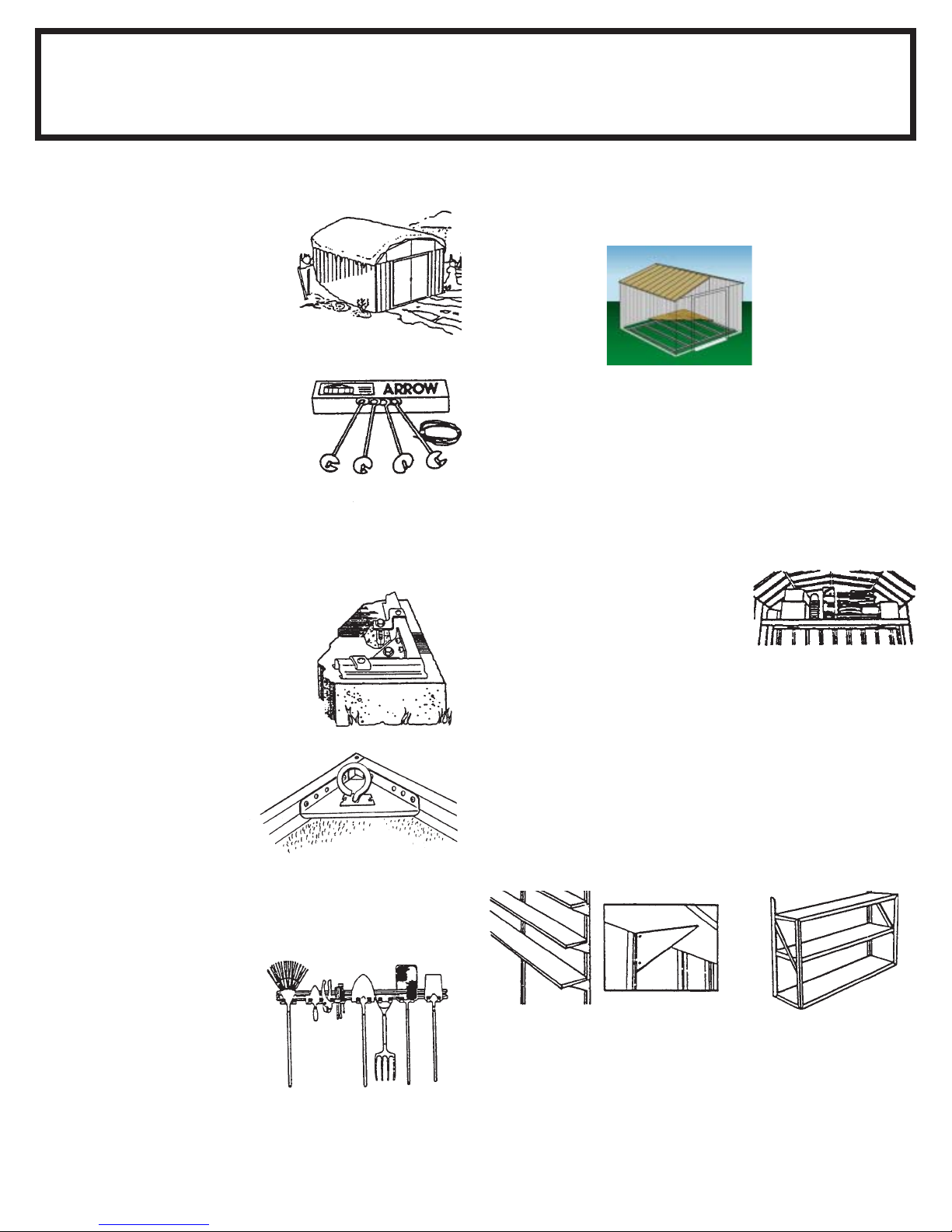

ACCESSORIES....

A6 WEB

* Some drilling required to fit buildings without mid-wall bracing.

Model No. SS404

• Makes 8" to 12" (20,3-30,5 cm)

wide shelves in any length.

• Brackets, braces,

hardware included.

Lumber is not included.

Model No. SS900-A

• Grey color

• 3 shelves

• Holds up to 85 lbs. (38 kg)

(even weight distribution)

Heavy-duty, galvanized steel shelf units help organize storage

space. They easily mount on the wall or sit on the floor. Fits all

Arrow buildings.*

SHELF UNITS

ATTIC KIT / WORKBENCH KIT

Model No. AT101

Heavy-duty galvanized steel bars that

fit all 10' (3,0 m) wide Arrow buildings.

They install quickly and easily to

help organize space and create

more useable space as an attic or

workbench. Will hold up to 250 lbs.

(113 kg) evenly distributed.

Some drilling required to fit buildings without mid-wall bracing.

Model No. AK100

New concrete anchor system permits

anchoring any size Arrow building

directly to a concrete slab. Each kit

contains heavy-duty, hot-dipped

galvanized steel corner gussets and

perimeter clips which fit over the floor

frame and lag bolt into a concrete slab.

Full assembly instructions and a 1/4"

masonary drill bit are included.

TOOL HANGING RACK

Model No. TH100

The perfect tool organizer. Twin

25 1/2" (64,8 cm) steel channels

plus five heavy-duty snap-in

hangers and a small tool holder for

screwdrivers, pliers, etc. Holders

slide along channel for fully

adjustable spacing. Great for

garage, basement, or the back

of any door. Fits all Arrow

storage buildings.

ROOF STRENGTHENING

(heavy snow load) KITS

Extra roof beams and gable braces

designed for added protection against

heavy snow accumulation. Increases

the strength of your roof by 50%.

ANCHOR KITS

Model No. AK4

Anchor Kit contains heavy-duty steel

augers, 60' (18 m) of steel cable and

4 cable clamps. No digging or concrete

pouring, just insert cable under roof,

over roof beams, into augers and twist

augers into the ground. For buildings

larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.

FLOOR FRAME KITS

MODELS FB47410, FB5465, FB106-A

FB109-A and FB1014-A

A simple new floor frame system made of heavy-duty, hot-dipped

galvanized steel. Use as base for plywood, sand or stone.

Model No. AK600

Earth Anchor Kit anchors any size

Arrow building to the ground.

Each kit contains heavy duty,

hot-dipped galvanized steel

corner gussets and 4 earth anchors.

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

THIS

PAGE

WAS

LEFT

BLANK

INTENTIONALLY

The Base For Your Building

FRONT

(DOOR)

FRONT

(DOOR)

Base

BS09

Note: Finished Slab dimensions, with lumber removed.

116 3/4"

296,5 cm

50 1/2"

128,3 cm

50 1/2"

128,3 cm

OPTION 1: ARROW FLOOR FRAME KIT: (Order No. FB47410)

Arrow has the best base for your building in this simple kit. It keeps stored items above the ground. This kit should be used with one

of the following:

A. To support a plywood deck B. To be filled with sand. We recommend the combined use of

1. an ARROW FLOOR FRAME KIT and 2. an ARROW ANCHORING KIT as an effective method of securing the building to the ground.

Allow 1 - 2 hours for construction.

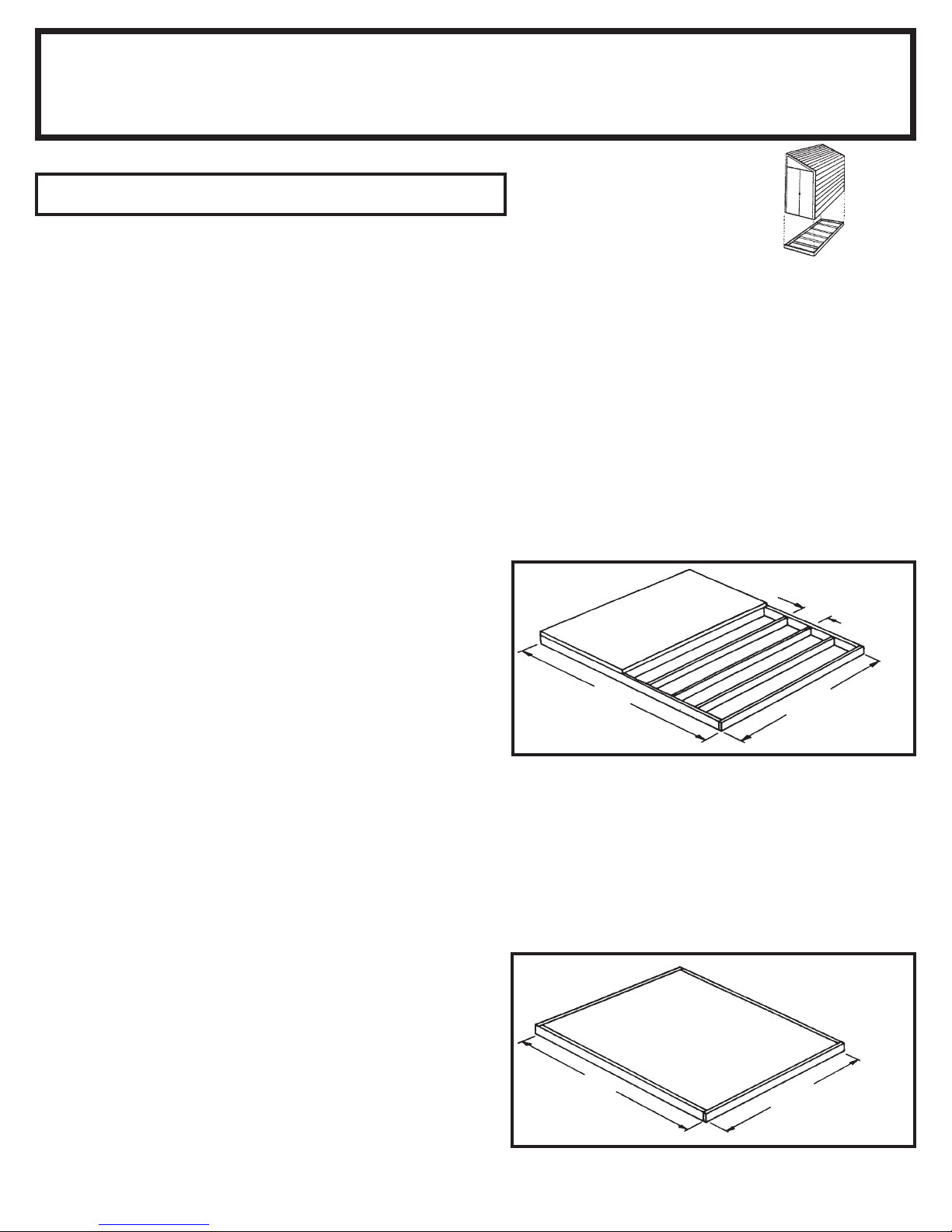

OPTION 2: Wood Platform

If you decide to build your own base, be sure to select the appropriate materials.

These are the recommended materials for your base:

●2 x 4's (38 mm x 89 mm) Pressure Treated Lumber ●5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade

●10 & 4 penny Galvanized Nails ●Concrete Blocks (optional)

The platform should be level and flat (free of bumps, ridges etc.)

to provide good support for the building. The necessary materials

may be obtained from your local lumber yard.

To construct the base follow instructions and diagram.

Construct frame (using 10 penny galvanized nails)

Measure 16"/24" (40,6 cm/61,0 cm) sections to construct

inside frame (see diagram)

Secure plywood to frame (using 4 penny galvanized nails)

Allow 6 - 7 hours for construction.

OPTION 3: Concrete Slab

The slab should be at least 4" (10,2 cm) thick. It must be level and flat to provide good support for the frame.

The following are the recommended materials for your base.

●1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)

●Concrete ●Sheet of 6 mil plastic

●We recommend for a proper strength concrete to use a mix of:

1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand

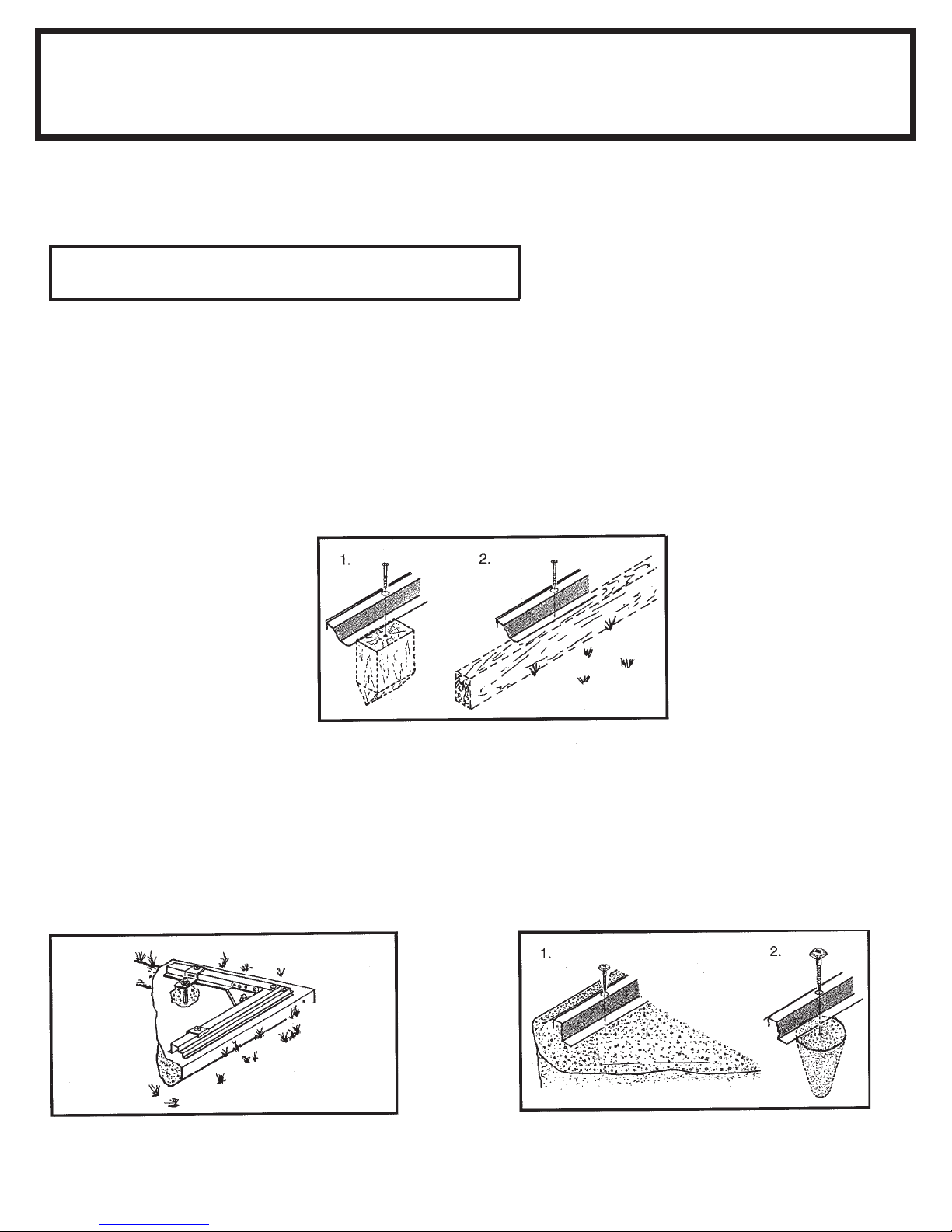

Prepare the Site/Construct a Base

1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).

2. Fill up to 4" (10,2 cm) in the square with gravel and tamp firm.

3. Cover gravel with a sheet of 6 mil plastic.

4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)

lumber.

5. Pour in concrete to fill in the hole and the frame giving a

total of 4" (10,2 cm) thick concrete. Be sure surface is level.

Allow 3 - 5 hours for construction and a week for concrete curing time.

Note: Platform/Slab will extend 9/16" (1,4 cm) beyond floor

frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a

roofing cement (not included), or bevel this 9/16" (1,4 cm) of

concrete when pouring, for good water drainage.

16"/24"

40,6 cm/61,0 cm

116 3/4"

296,5 cm

It is important that the entire floor frame be anchored after the building is erected.

Below are recommended ways of anchoring.

Anchoring Down The Building

Anchoring

BR10

ArrowAnchoringKit:(Model No. AK100 or 68383)

Recommended for use with the concrete base.

Contains: Corner gussets, perimeter clips, hardware,

1/4" masonary drill bit and installation instruction.

AnchoringintoWood/Post:

Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)

dia. holes provided in the frames for proper anchoring.

AnchoringintoConcrete:

1. For poured concrete slab or footing or patio blocks:

Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.

2. For Anchor Post of Concrete poured after building is

erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Almacenamiento al aire libre de Arrow

Arrow

Arrow GA5M-A Manual de usuario

Arrow

Arrow LM109 Manual de uso y cuidado

Arrow

Arrow HM101267-A1 Manual de uso y cuidado

Arrow

Arrow CLG1014CC Manual de usuario

Arrow

Arrow VD108-A Manual de uso y cuidado

Arrow

Arrow HM10867 Manual de uso y cuidado

Arrow

Arrow CPH101507 Instrucciones de uso

Arrow

Arrow CLP104CC Instrucciones de uso

Arrow

Arrow ES1014 Manual de uso y cuidado

Arrow

Arrow Rom Instrucciones de uso

Arrow

Arrow SpaceMaker PS53EU Series Instrucciones de uso

Arrow

Arrow FDN54 Manual de uso y cuidado

Arrow

Arrow GS83C Manual de uso y cuidado

Arrow

Arrow BY1012-A Manual de uso y cuidado

Arrow

Arrow CPHC202007 Instrucciones de uso

Arrow

Arrow LW1012FB Manual de uso y cuidado

Arrow

Arrow VM1012-B Manual de uso y cuidado

Arrow

Arrow SCG1417CC Instrucciones de uso

Arrow

Arrow ED1012-B1 Series Manual de uso y cuidado

Arrow

Arrow ED108 Manual de uso y cuidado

Arrow

Arrow PS43 Series Instrucciones de uso

Arrow

Arrow YT108M Series Manual de uso y cuidado

Arrow

Arrow CLG108CC Instrucciones de uso

Arrow

Arrow CM1014-A1 Manual de uso y cuidado

Manuales populares de Almacenamiento al aire libre de otras marcas

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Manual de usuario

TYGO

TYGO Nyland Manual de usuario

Duratuf

Duratuf GL105 Manual de usuario

Viking

Viking SD5300SS Manual técnico

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Manual de usuario

ModuLaro

ModuLaro Lojo WC202200 Manual de usuario

Lifetime

Lifetime 6418 Manual de usuario

rollaway container

rollaway container ARPCA24 Manual de usuario

Duratuf

Duratuf Havelock Manual de usuario

X-METAL

X-METAL 4065 Manual de usuario

Outdoor Life Products

Outdoor Life Products FP2030 F Manual de usuario

Royalcraft

Royalcraft Faro 295L Storage Box Manual de usuario

Riverlea

Riverlea Duratuf KIWI KS3 Manual de usuario

OLT

OLT GS84D-FJ-Plywood Manual de usuario

Rubbermaid

Rubbermaid 5L45 Manual de usuario

garofalo

garofalo TUSCANY EVO Manual de usuario

Duratuf

Duratuf Kiwi MK1 Manual de usuario

Eden

Eden CA2988 Manual de usuario
