Ariston EcoGENUS 24 MFFI Manual de usuario

Users

Manual

276

TABLE OF CONTENTS

1. GENERAL INFORMATION

2. OPERATING INSTRUCTIONS

3. USEFUL INFORMATION

-2-

IMPORTANT!

Please read this manual carefully.

For additional information, please consult the

“Installation and Servicing Instructions.”

Make sure to keep the manuals provided with

the appliance so that they can be used by the

end-user, installer or our authorised engineer.

Every attempt has been made to avoid

errors of any kind in this User's Manual, the

Management invites customers to inform of

any inaccuracies which they may find.This

will help to improve our service.

276 -3-

Dear Customer,

Thank you for choosing an ARISTON boiler.

We guarantee that your boiler is a reliable and technically sound

product.

This User's Manual provides detailed instructions and

recommendations for proper installation, use and maintenance.

Remember to keep this manual in a safe place for future reference.

Your local MTS Servicing Centre is at your complete disposal for all

requirements.

GROUP

GUARANTEE

The guarantee on this appliance is valid for 12 months from

the first day of installation.

Repairs to the electric, water or gas circuits may be carried

out only by your local authorised MTS Servicing Centre.

276 -4-

GENERAL DATA

Thermal Capacity min/max kW 8 / 24 8 / 24

Usable Thermal Power min/max (30/40°C) kW 8.8 / 26.1 8.8 / 26.1

Usable Thermal Power min/max (60/80°C) kW 7.9 / 23.3 7.9 / 23.3

Usable Thermal Power min/max (30/50°C) kW - / 24.5 - / 24.5

Power for Hot Water Production min/max kW 7.9 / 23.3 7.9 / 23.3

Efficiency at Nominal Thermal Capacity (60/80°C) % 97.3 97.3

24 MFFI 24 RFFI SYSTEM

TECHNICAL INFORMATION

276 -5-

CENTRAL HEATING

Temperature min/max (High Temperature range) °C 42 / 82 42 / 82

Temperature min/max (Low Temperature range) °C 30 / 75 30 / 75

Maximum Heating Pressure bar 3 3

Expansion Vessel Capacity l 7 7

DOMESTIC HOT WATER

Temperature min/max °C 36 / 56 36 / 56

Pressure of Water for Domestic Use min/max bar 0.2 / 8-10 0.2 / 8-10

Heating Temperature min/max (Low Temperature range) °C 30 / 75 30 / 75

Temperature of Water for Domestic Use min/max °C 36 / 56 36 / 56

Flow Rate ∆T=30°C l/min 11.1 N/A

Flow Rate ∆T=35°C l/min 9.6 N/A

276

ELECTRICAL DATA

Electrical Supply V/Hz 230/50 230/50

Power Consumption W 130 130

Protection of Electrical System IP 4XD 4XD

CATEGORY

Nominal Pressure/Natural Gas (G20) (boiler at maximum) mbar 20 20

Nominal Pressure/LPG (G30-31) (boiler at maximum) mbar 30 30

-6-

24 MFFI 24 RFFI SYSTEM

TECHNICAL INFORMATION (CONT’D)

276 -7-

1. GENERAL INFORMATION

This is a combined appliance for the production of central heating (C.H.) and

domestic hot water (D.H.W.).

This appliance must be used only for the purpose for which it is designed.

The manufacturer declines all liability for damage caused by improper or

negligent use.

Do not allow children or inexperienced persons to use the appliance without

supervision.

If you smell gas in the room, do not turn on light switches, use the telephone or

any other object which might cause sparks.

Open doors and windows immediately to ventilate the room.

Shut the gas mains tap (on the gas meter) or the valve of the gas cylinder and

call your Gas Supplier immediately.

If you are going away for a long period of time, remember to shut the mains gas

tap or the gas cylinder valve.

Before any intervention within the boiler it is first necessary to cut off the

electrical power supply by turning the external switch to “OFF”.

This manual may be kept in the front panel of the boiler.

276 -8-

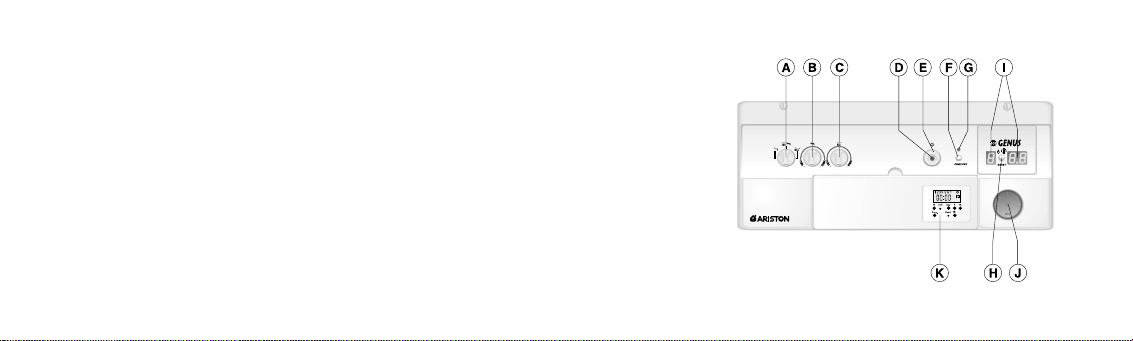

CONTROL PANEL

A. Selector Knob for

Summer/Winter/Flue Test Modes

B. Domestic Hot Water Temperature

Adjustment Knob

C. Central Heating Temperature

Adjustment Knob

D. On/Off L.E.D.

E. On/Off Knob

F. "COMFORT"/Heating Only

Function Push-button

G. “COMFORT"/Heating Only

Function L.E.D.

H. Reset Button

I. Multi-function Display

J. Heating System Pressure Gauge

K. Time Clock

276 -9-

HELPFUL SUGGESTIONS

To get the most out of your boiler, we have provided you with some useful advice on

proper use and maintenance:

- Periodically check the system pressure using the pressure

gauge “J” and make sure that the pressure is between 1.0 and

1.5 bar (the blue part on the gauge) when the system is off and

cool.If the pressure is below the minimum recommended value,

the pressure must be brought into the acceptable range.Consult

your installer for checking and refilling the system.

If the pressure level drops on a frequent basis, it is likely that there is a water leak

in the system. If this is the case, your installer must inspect the system.

2. OPERATING INSTRUCTIONS

CAUTION

Installation, start-up, adjustments and maintenance must be performed by

a competent person only in accordance with the current Gas Safety

(Installation & Use) Regulations and the instructions provided. Improper

installation may cause damage or injury to individuals, animals and

personal property, for which the manufacturer will not be held liable.

To ensure efficient and safe operation it is recommended that the boiler is

serviced annually by a competent person.

If it is known or suspected that a fault exists on the appliance, it must not

be used until the fault has been corrected by a competent person.

276 -10-

- The outer panels of the boiler's case must only be cleaned with a damp cloth,

do not use abrasive cleaners. The Control panel can be wiped with either a

damp or dry cloth. Spray polishes must not be used on the control panel

surface or knobs. Care must be taken in preventing any liquid entering the

appliance.

- If the water is exceptionally hard, install a water softener so that the efficiency

of the boiler remains the same over time, as this will consume less gas.

- To improve comfort levels and take full advantage of the heat produced by the

boiler, it is recommended that an external thermostat be installed.

A programmable timer for the thermostat is also recommended to schedule

when the boiler will turn on and off during the course of the day (or week), and

an outdoor sensor to optimise operating times.

- When the boiler is not in use for prolonged periods shut it down by pushing

button “E”, the red light “D” will go out; close the gas and water isolation

valves.

IMPORTANT!

This will disable the anti-frost device - if the period of disuse is very cold it will

also be necessary to drain the heating system of water.

If you wish to leave the anti-frost device active, it is necessary to leave the

boiler on: this will not safeguard from possible "blocks" which may impair this

function.

- It is good practice to clean and service the appliance and central heating

system every year.

Call an Authorised Service Centre.
