Ariens Pro-Track 28 Manual de usuario
Quick Start Guide
Pro-Track 28 (926042 s/n 75000 & up)
•Step 1: Unfold Handlebar
•Step 2: Install Discharge Chute
•Step 3: Install Chute Control Assembly
•Step 4: Install Discharge Chute Rod
•Step 5: Install Remote Deflector Cable
•Step 6: Check Function of Dual Handle Interlock
•Step 7: Check Track Tension
•Step 8: Adjust Skid Shoes
•Step 9: Check Auger Gearcase Oil
•Step 10: Check Engine Crankcase Oil
•Step 11: Fill Engine Fuel Tank
•Step 12: Start Engine
•Step 13: Stop Engine
READ AND UNDERSTAND ALL INSTRUCTION, WARNING, AND DANGER LABELS.
IMPORTANT: READ OPERATOR’S MANUAL AND ENGINE MANUAL
THOROUGHLY AND FOLLOW THE IMPORTANT SAFE OPERATION PRACTICES
BEFORE OPERATING.
Step One:
Unfold Handlebar
1. Remove the lower and loosen the upper hardware on the
handlebar assembly.
2. Loosen the hardware on the shift rod.
3. Put the speed selector lever in the second reverse position.
4. Rotate the handlebar into operating position.
NOTE: The handlebar has two height positions. Adjust the
handlebar height to provide better operator comfort. See
Handlebar Height in Owner Manual.
5. Install and tighten the hardware on the handlebar assembly
and shift rod.
6. Check tension on auger and traction clutch cables.
IMPORTANT: Cables should not be slack nor under tension.Adjust
as necessary.
Step Two:
Install Discharge Chute
1. Grease underside of discharge chute ring (if not already
greased).
2. Remove mounting hardware from auger housing.
3. Install discharge chute over opening in the auger housing.
Finger tighten the mounting hardware removed above.
NOTE: Leave discharge chute pedestal loose to help install the
chute rod.
Step Three: Install Chute Control
Assembly
1. Remove the gear cover from top of chute pedestal.
2. Release the lock teeth on the gear assembly with your finger
and rotate the discharge chute so it points straight ahead.
NOTE: Make sure alignment markers are lined up when discharge
chute is pointing straight ahead.
Step Three: Install Chute Control
Assembly Cont.
3. Remove the rubber grommet from the control panel.
4. Make sure the chute control cable is routed between the lower
handlebar and the bottom of the control panel, insert control
assembly into slot in control panel from below and install
assembly into nylon bushing in control panel.
5. Reinstall rubber grommet over control assembly knob and into
control panel.
Step Four:
Install Discharge Chute Rod
NOTE: To ensure the discharge chute follows its full range of travel,
make sure the control lever is centered in the slot and pointing
straight up before installing the chute rod.
1. Insert chute rod end without ears into control lever and slide into
control panel until opposite end of rod clears the gear assembly.
2. Align end of chute rod with hex hole in gear assembly and insert
until ears hit gear.
3. Insert hairpin into hole in chute rod near gear assembly.
Step Four:
Install Discharge Chute Rod Cont.
4. Hook the chute control cable onto the chute rod.
IMPORTANT: The chute control cable hook will prevent the cable
from contacting the engine or muffler guard. Make sure the cable
stays connected while unit is in operation.
5. Check to make sure the chute control cable ends are properly
seated in control assembly and control arm.
6. Replace gear cover on top of chute pedestal.
7. Orient the chute and pedestal to its most vertical position and
tighten pedestal hardware to 15-31 lbf-ft (20-42 N∙m).
8. Make sure the discharge chute rotates left and right when you
push the discharge chute control lever left and right.
NOTE: If chute does not stay in position, adjust as directed in
Discharge Chute Control in Owner Manual.
Step Five: Install Remote
Deflector Control Cable
1. Connect the barrel cable end to the chute deflector cable anchor
before clipping the cable to the discharge chute cable bracket.
2. Route deflector remote cable along the left side of the chute
pedestal.
3. Insert the barrel on the cable end into the bracket on left side of
chute deflector.
4. Hold seal out of the way while routing the cable through the bracket
on the left side of the discharge chute, and then push the cable
fitting into the bracket.
5. Push the seal securely over the end on the cable fitting to prevent
water from entering the cable.
6. Check deflector travel. Adjust nut on cable end under handlebar to
obtain full travel, if necessary (see Remote Deflector Control in
Owners Manual.
Step Six:
Check Function of Dual Handle Interlock
Without the engine
running, press down
(engage) both clutch
levers. Release
attachment clutch lever.
Attachment clutch should
remain engaged until
traction clutch lever is
released, then both
clutches must disengage.
If they do not, contact your
dealer for repairs.
Step Seven:

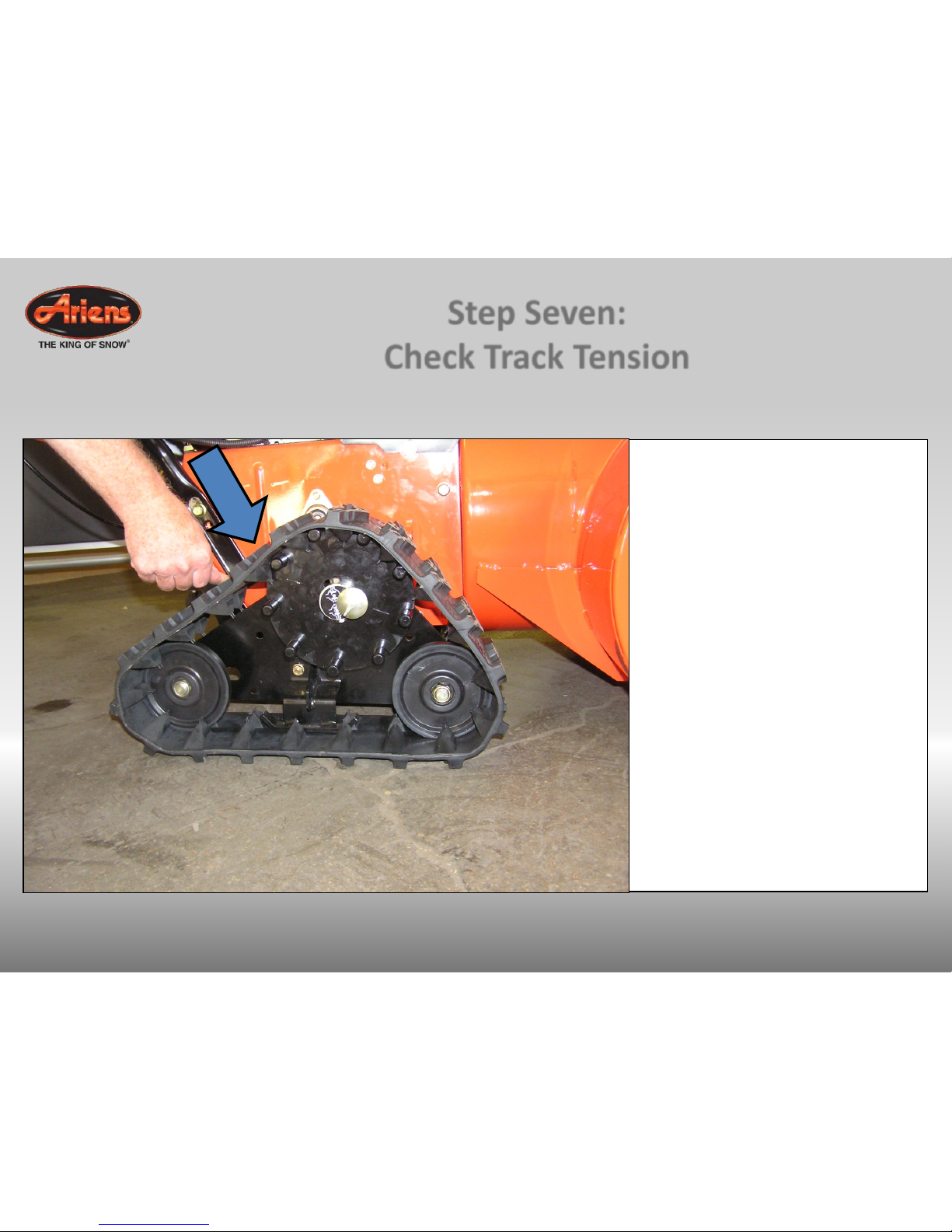

Check Track Tension
Check tracking of unit with
the differential locked, and
tension of tracks (see
Track Tension Adjustment
in Owners Manual.
